How can I remove this bolt?

In order to get further along with my lift I have to get this part off on each beam to get to my trailing arms. This post threads into a nut welded onto the beam (cannot get to) and the springs and sway bars thread onto the top portion. The welded nut inside the beamhas a crapload of dirt and rust on it, and I can't get to it. I have soaked the part in PB Blaster (penetrant) and heated up the nut and surrounding area with a torch, but nothing has worked yet. I do not know of a socket big enough that can fit this piece, it would have to be a 1-1/8" socket that's 3-4" deep. The wrench that I tried using (with a 3' piece of conduit on the end) only strips the bolt, and the largest pipe wrench I have doesn't allow me enough torque to move the bolt, nor has the ability to fit the conduit.

Does anyone know where I can pick up a deep socket deep enough for this application?

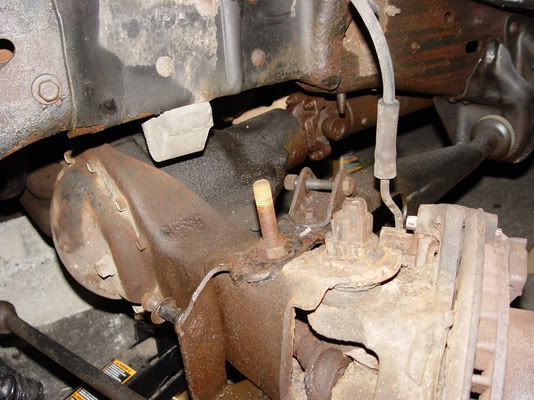

Name:  c7bb0bd5.jpg
Views: 4
Size:  62.0 KB
Stuck post

Name:  2503e96a.jpg
Views: 6
Size:  58.2 KB
My deep socket next to stuck post
*Note: socket only clears up to the chamfer, roughly 2"

Name:  3cb71c95.jpg
Views: 3
Size:  62.4 KB
Welded on nut that I cannot get to


Alternatives:

1: Cut the bolt to a point where I can get my socket on there and torque it off with the conduit. Then go to Ford and hope I can get a replacement bolt.

Pros: part comes off, everything goes back into place.

Cons: may not be too easy to find the part and I'll have to search around.

2: Cut the bolt to a point where I can get my socket on there and torque it off with the conduit. Leave the sway bar off because it won't fit on the cut up stud and put the rest of it back together.

Pros: part comes off, more articulation without the sway bar

Cons: no sway bar makes driving a full-size truck at road speeds a bit more difficult.

3: Use somebody else's idea and go from there. Hopefully somebody will have a better idea or a place to get the deep socket that I need.
Reply With Quote
  #2
Old 08-09-2006
sawred's Avatar
Member

Join Date: Jan 2005
Location: San Antonio, TX
Posts: 580
AAAGGGHHH!!! It's giving me nightmares again! I don't want to see that bolt Sunday! haha damn... hopefully someone has an idea... anybody... anybody... Bueller...
Reply With Quote
  #3
Old 08-09-2006
Shalafi49's Avatar
Member

Join Date: Jun 2004
Location: Altamonte Springs FL
Posts: 2,070
Ok so please remember that I'm as mechanically inclined as a ****zhu:

Open/box end wrench wont work?
Reply With Quote
  #4
Old 08-09-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
maybe cut the end of the bolt off.......enough so your socket could reach??

Rocky
Reply With Quote
  #5
Old 08-09-2006
Member

Join Date: Sep 2005
Location: Charlotte, NC
Posts: 561
How bad does the TTB act without a sway bar?

I don't have much experience with that setup but as long as it's not unmanageable I would just cut it and ditch the sway bar. Especially on a trail rig.

I've had mine completely off for about the last month and don't mind driving without it. But at the same time they are two completely different trucks and may react differently without it
Reply With Quote
  #6
Old 08-09-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
I didnt read the whole post....i guess thats one of your options....thats what i would do...if it HAS to be that long, i suggest putting a wrench on it...and then putting a wrench on the end of that to make it longer and get more torque on it....if that fails, i would just cut it down alittle bit...

Rocky
Reply With Quote
  #7
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Quote:
Originally Posted by RockysFord
maybe cut the end of the bolt off.......enough so your socket could reach??

Rocky
If I were to do that, I would not be able to put my sway bar back on, and that would make things a bit interesting at highway speeds.

I was told to pick up a box end wrench and cut off the other end so that I can fit the pipe on it, so far that is the best alternative.
Reply With Quote
  #8
Old 08-09-2006
sawred's Avatar
Member

Join Date: Jan 2005
Location: San Antonio, TX
Posts: 580
Quote:
Originally Posted by RockysFord
I didnt read the whole post....i guess thats one of your options....thats what i would do...if it HAS to be that long, i suggest putting a wrench on it...and then putting a wrench on the end of that to make it longer and get more torque on it....if that fails, i would just cut it down alittle bit...

Rocky

That failed... luckily the wrench didnt fail else that would have hurt. But yeah, we tried that and just flexed the wrench A LOT.
Reply With Quote
  #9
Old 08-09-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
what size is the nut?
Reply With Quote
  #10
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Quote:
Originally Posted by Cape Fear
How bad does the TTB act without a sway bar?

I don't have much experience with that setup but as long as it's not unmanageable I would just cut it and ditch the sway bar. Especially on a trail rig.

I've had mine completely off for about the last month and don't mind driving without it. But at the same time they are two completely different trucks and may react differently without it
Honestly I'm not sure how it will react. The steering is already a bit funky, and I'd like to keep as much control of that big brick I'm pushing through the air as I can. It is a trail truck, but I also will be towing a horse trailer with it every once in a while, and taking it to work sometimes.
Reply With Quote
  #11
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
The nut is 1-1/8"
Reply With Quote
  #12
Old 08-09-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
If you dont have a crafsman i wouldnt try it...but i would take a wrench....put the boxed end on there...put a pipe on the end (my floor jack pipe fits over any wrench i have, except huge ones....and then pull on that ****....it might look like its going to break but who cares, just be prepaired....

Looks like you have been spraying it in PB blaster or something to knock the rust loose??

Also heat it up....get a torch and heat it till its glowing and then use the wrench, it will come off like butta....

When we have bolts we cant get off at work (i work on semi's) we heat them up and they come right off...

Rocky
Reply With Quote
  #13
Old 08-09-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Winks when i work on the rangers with the same suspension i heat with a propain torch a little then get a CLOSED end wrench and put a pipe on the and if needed. also i get someone else to pull with me usually that bolt is a *****...serously...





Quote:
Originally Posted by Cape Fear
How bad does the TTB act without a sway bar?

I don't have much experience with that setup but as long as it's not unmanageable I would just cut it and ditch the sway bar. Especially on a trail rig.

I've had mine completely off for about the last month and don't mind driving without it. But at the same time they are two completely different trucks and may react differently without it
that holts the radii's arm on and the lower sway bar bracket you cant just ditch it and from what i see he has the sway bar off or unhooked as it is..
Reply With Quote
  #14
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Quote:
Originally Posted by Redneckstone
Winks when i work on the rangers with the same suspension i heat with a propain torch a little then get a CLOSED end wrench and put a pipe on the and if needed. also i get someone else to pull with me usually that bolt is a *****...serously...
Yep, that's the popular concensus.

Quote:
Originally Posted by Redneckstone
that holts the radii's arm on and the lower sway bar bracket you cant just ditch it and from what i see he has the sway bar off or unhooked as it is..
The sway bar doesn't hold anything on. It can come off and I will have no issues with anything other than less control of the vehicle at higher speeds. The sway bar is off in that picture, it just slides right ontop of those posts, and is held in place by the spring and bolted to the frame in front.
Reply With Quote
  #15
Old 08-09-2006
Hefavitzen's Avatar
Member

Join Date: Jun 2006
Location: Rock Hill, SC
Posts: 138
I have a few suggestions:

1) GO GET A HAYNES/CHILTONS manual!!!!

2) Go and get replacement bolts and nuts BEFORE you destroy the one you have...at least then you know you can get some...because you'll have some.

3) use a closed end wrench and a big pipe after heating the nut up

4) Does your suspension lift have instructions that address this issue? I know, I know, keep a bucket of water around to splash on your eyes as they will burn when reading instructions.

5) Cut off the top part of the bolt as if it's sticking up that much then it probably isn't needed.

If none of those work...use a hacksaw or dremmel tool or something to cut that thing off there!

other than those ideas....I dunno :)
Reply With Quote
  #16
Old 08-09-2006
optikal illushun's Avatar
Member

Join Date: Oct 2004
Location: Coal Region, MTC to be exact...heart of the coal region.
Posts: 2,232
what the **** is that? i dont recall ever seeing that **** on any Pre i wrenched on. at least not like that.

IMO, cut if off. i dont run any sway bars from the factory and it handles fine. albeit ur a short wheel base and a little higher...just take the corners a little easier.

i cant really make out in the pics on what to do. when my dad gets home ill check out his and see.
Reply With Quote
  #17
Old 08-09-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Quote:
Originally Posted by Hefavitzen
I have a few suggestions:

1) GO GET A HAYNES/CHILTONS manual!!!!
thats not gunna help at all, plus theyre totally worthless
Quote:
5) Cut off the top part of the bolt as if it's sticking up that much then it probably isn't needed.
he alrady said he couldnt, needs the whole stud for the sway bar..
Reply With Quote
  #18
Old 08-09-2006
optikal illushun's Avatar
Member

Join Date: Oct 2004
Location: Coal Region, MTC to be exact...heart of the coal region.
Posts: 2,232
he dont need the dam sway bar, they're worthless. plus when he wheels it, its gunna hinder what little wheel travel/flex the TTB will over...

Winks, did u get the extended radius arms?
Reply With Quote
  #19
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Quote:
Originally Posted by optikal illushun
he dont need the dam sway bar, they're worthless. plus when he wheels it, its gunna hinder what little wheel travel/flex the TTB will over...

Winks, did u get the extended radius arms?
Yes I did.
Reply With Quote
  #20
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
I never ordered anything to relocate my sway bars, so I am going to do away with them for the time being. Also, I don't have anything near me where I can pick up some steel tubing to make my own, nor do I have the tools to do so.

Edit: Just checked out fullsizebronco.com and they say that the sway bar doesn't do much for the handling of the Bronco so its staying off. I am still going to try the box end wrench though.

Last edited by winks; 08-09-2006 at 01:03 PM.
Reply With Quote
  #21
Old 08-09-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
I got the name of a specialty tool store, they sell parts similar to snap-on, only at about 1/3 the price (so they say). I could get a socket that is deep enough to clear the threads. What is better to use, a modified box wrench or a deep socket on a ratchet?
Reply With Quote
  #22
Old 08-09-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Try a different brand of deep socket. Some are a lot deeper than others. Heat will help.
Reply With Quote
  #23
Old 08-09-2006
TireIron's Avatar
Member

Join Date: Feb 2006
Location: Methuen, MA
Posts: 790
ok, first off dont cut it because that is a special stud that is like impossible to find, and when you do its friggin expensive. use a box end wrench on it with a piece of pipe on that (Ive found that some 2 inch exhaustpipe kind of flattened out at one end will actually slip over the 1 1/8th wrench quite nicely. then grap a torch (propane, MAPP, oxy/acetalene, whatever) and heat that sucker up till it is GLOWING... there are no rubber parts near it so just heat it up truely till it is GLOWING. then throw the wrench on it and pull, if it doenst come off, PULL HARDER. getting to the lower nut will do you no good, hat is supposed to stay there, the upper nut is actually part of that piece, cranking on that upper nut will spin the stud out of the beam, the nut itself is part of the stud and doesnt spin off the stud. oh and use a good quality box wrench, as some of the cheap ones will just flex and snap. my craftsman hasnt has any issues with those, but damn is a 1 1/8th wrench big.
Reply With Quote
  #24
Old 08-09-2006
Member

Join Date: Jun 2004
Location: City, PA
Posts: 515
I have a 4" long 1 1/8" socket, it's a Proto Professional. So yeah, they make'm...

You need a 1/2" drive, 1 1/8" 12 point crowsfoot, and a breaker bar of at least 18" in length...
Reply With Quote
  #25
Old 08-09-2006
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
How about a nut breaker?

They sell them at sears. I just dont know if the jaws can get close enough.


Try a 3/4 deep socket if you can find one. And for god sakes use a breaker bar not a ratchet when you first break it loose, Ive broken a few Crapsman rachets that way.
