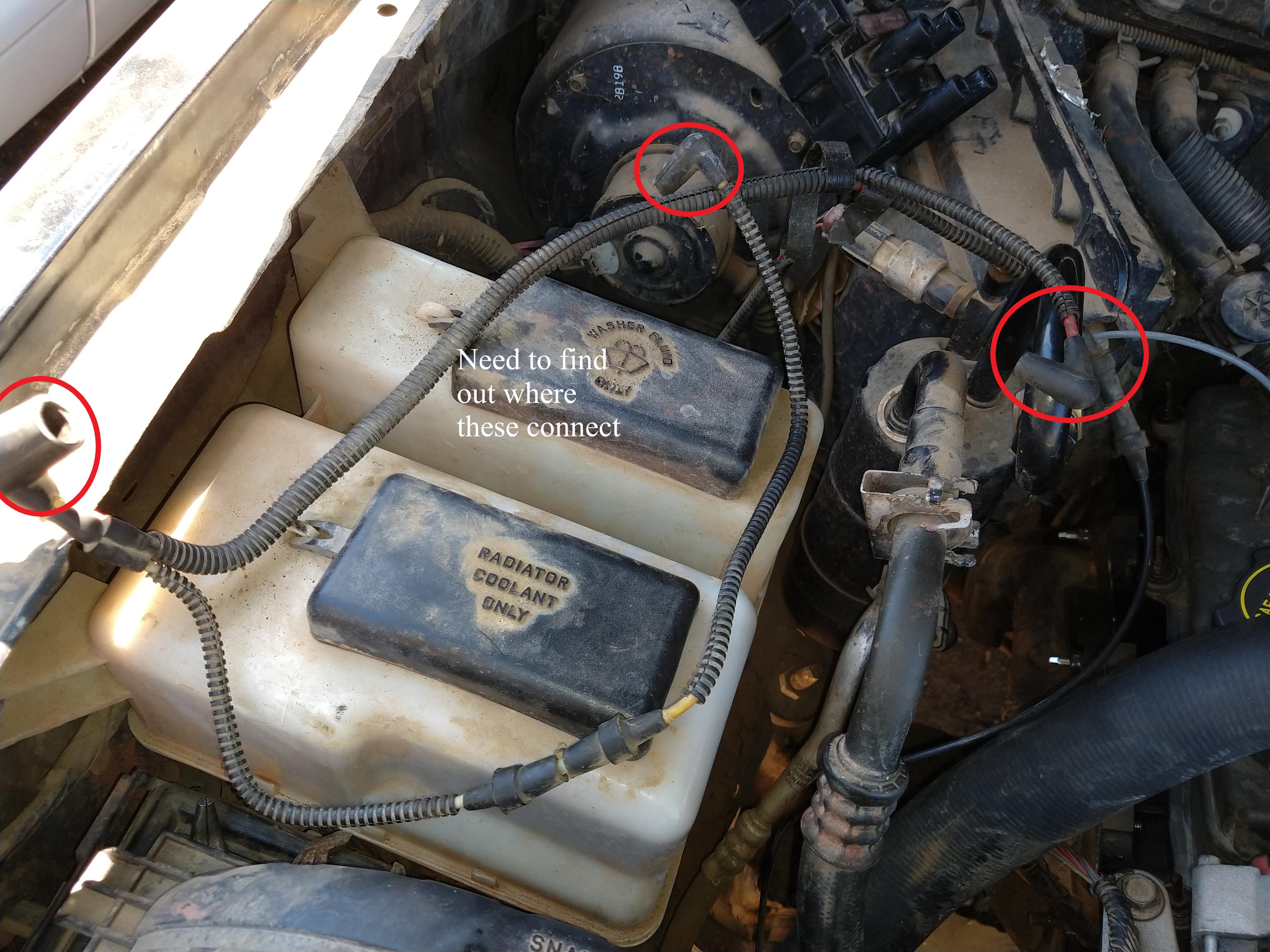

Hello to you all, So I purchased a ford ranger over a year ago that had some bad cylinder heads. As soon as it was mine, I took it apart and took pictures of where everything went. Here I am a year later and I finally decided to fix this truck, I purchased new cylinder heads installed them and now all that is left is connecting all of the wires and hoses. Unfortunately my old phone that had all of the pictures broke, and was unable to retrieve the pictures. Now I'm getting a headache just staring at all of the wires trying to figure out where everything goes. I'm new to this forum so hopefully you guys could help me out. This is just one of many issues i'm having, I will definitely be asking for more help.



Welcome to the forum

Year of Ranger and engine size?



Sorry, I forgot to add engine details.
It's a 2002 Ford Ranger XLT 3.0

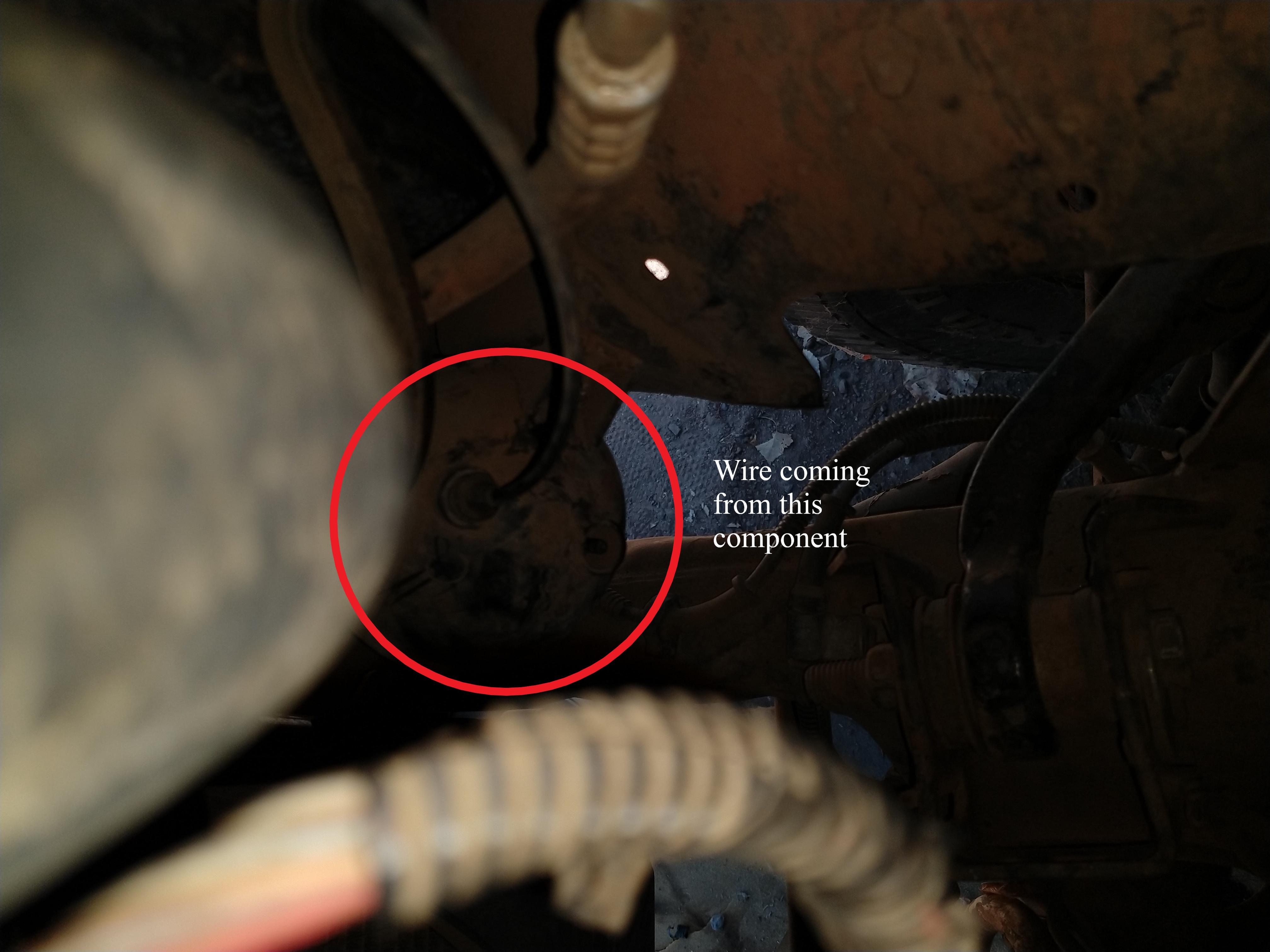

First pic is your vacuum storage. 3rd pic is vacuum lines. One end will go to the storage, One end will go to a vacuum point on the intake somewhere (usually toward the rear) and the one red line with the boot at a sharp angle will go to the fuel pressure regulator circled in red on second pic.
