Icon4 No cool air Need help fast!

Hey guys, have a cooling issue, but not motor related. No matter what setting my HVAC is on, my vents blow very hot air. only on max AC will they blow cold air, but as soon as i switch to normal AC, it goes hot.

Defrost, floor, face vents, every one blows extremely hot air. I rode the bike to work today because i have no AC on the hot days today.

Any help would be awesome. Im thinking its not switching the system over to pull air from outside, and its stuck pulling it from the heater core full of hot coolant.

Thanks!
Reply With Quote
  #2
Old 05-23-2012
Member

Join Date: Mar 2012
Location: Eagle, MI
Posts: 39
my truck is like that, its your blend door. i belive that the "max AC" just bypasses the blend door. i think your blend door is right behind your glove box.
Reply With Quote
  #3
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
ok, good to know. im reading the same stuff. I would often hear a loud thud a few seconds after starting my truck, but it would only happen every so often. makes sense if the door was sticking and then releasing all of a sudden.

Gonna call my local parts guys and see what i can find. looks like im tearing apart my truck tonight.
Reply With Quote
  #4
Old 05-23-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
i had the same problem on the pos green truck and i replaced the blend door actuator, nothing happened. thats what made me sell it. Getting to work all sweaty sucked. hopefully yours is a simple fix


I didn't really take anything apart to replace it aside taking out the glovebox which is cake. just used a ratcheting box wrench.
Reply With Quote
  #5
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
I called my local parts guys, the door is about $80. ill start a tear down tonight, hopefully it wont be too bad. maybe i can make a nice write-up about it as i cant find one now.
Reply With Quote
  #6
Old 05-23-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
there is a write up. whoever did it cut into the door, sleeved the dowel w/ brass and reinstalled. idk what they did to seal up the hole they cut though. mine is also like this but ive been lazy in repairing it. that and a/c isnt a deal breaker.
Reply With Quote
  #7
Old 05-23-2012
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
It depends how the door broke on the fix, the dash need to come out to get be able to actually touch it.

http://www.therangerstation.com/Maga...blend-door.htm
Reply With Quote
  #8
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
^ pure awesome. dont know why i didnt think to look there. ill go home tonight and do diag on it and go from there. Thanks!
Reply With Quote
  #9
Old 05-23-2012
Member

Join Date: Jul 2011
Location: hinesburg, Vt.
Posts: 1
my 03 ranger is just turning over but not starting, any ideas?

Last edited by gdonalds; 05-23-2012 at 05:47 PM. Reason: misspell
Reply With Quote
  #10
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Quote:
Originally Posted by gdonalds View Post
my 03 ranger is just turning over but not starting, any ideas?


Attached Thumbnails
No cool air Need help fast!-iiq77xee0m.jpg
Reply With Quote
  #11
Old 05-23-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I have one. Start a thread regarding any issues you have. This one is about heater doors.
Reply With Quote
  #12
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
alright pulled it apart tonight. my issue is not a broken blend door, its the motor not moving the door.

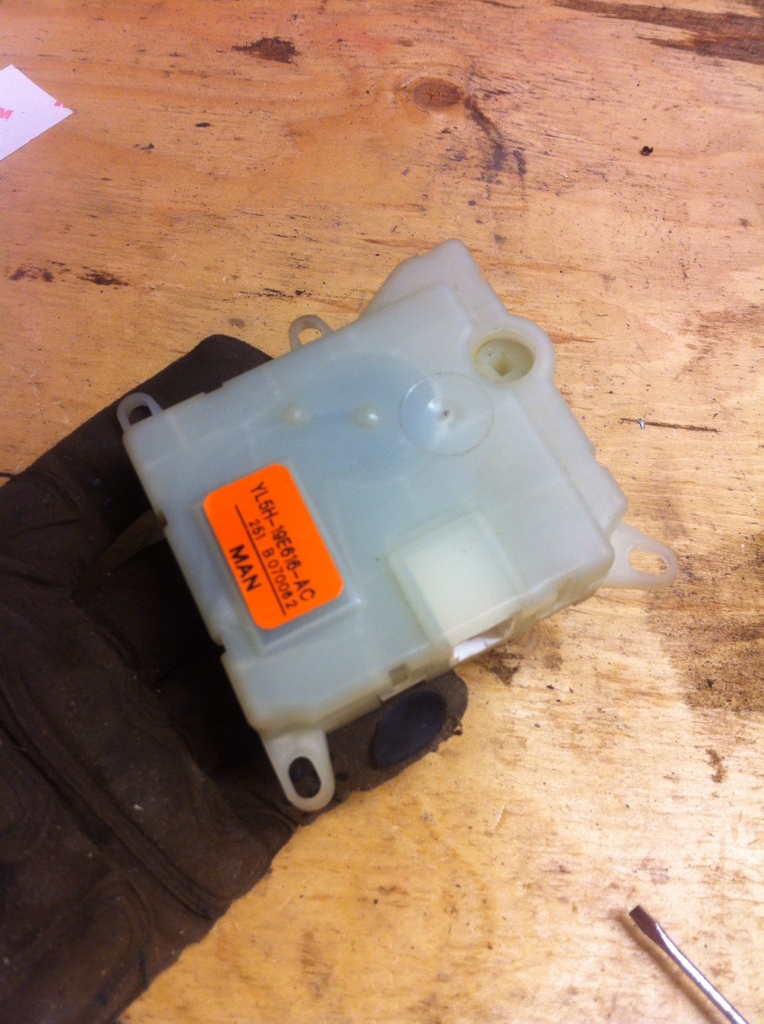

Heres my motor:

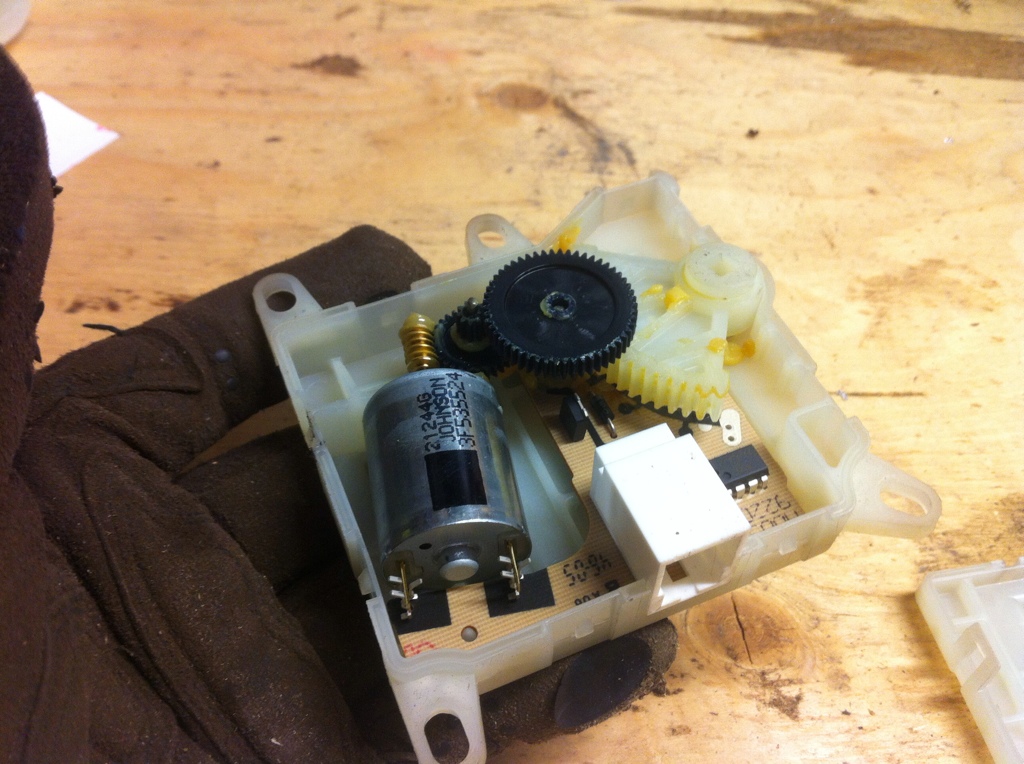

inside:



watched the motor, truck on and playing with temp control... no movement...ok

checked voltage at hvac panel, changes with temp change. good

checked voltage at motor, changed with temp imput. good

pulled motor, plugged it in and played with temp imput, no movement. bad...ok

opened it. reeks of burnt electronics.... :) huston, we have our problem. gonna grab a new one tomorrow and test it out.
Attached Thumbnails
No cool air Need help fast!-6f2de444.jpg   No cool air Need help fast!-87c6c691.jpg
Reply With Quote
  #13
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
and found a dorman replacement part. saweet.

http://www.dormanproducts.com/p-22254-604-202.aspx
Reply With Quote
  #14
Old 05-23-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
How hard was it to get that out?
Reply With Quote
  #15
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Quote:
Originally Posted by morris View Post
How hard was it to get that out?
you drop your glovebox and have full access to it. the back bolt is a PITA, but total time took maybe 20 minutes. you can see the output shaft without removing it. if the shaft isnt moving when your playing with the temp control, its probably the motor. (test with truck running)

ill let ya know as soon as i have one what the result is. hopefully it is just this box.
Reply With Quote
  #16
Old 05-23-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
im getting happier and happier its a $32 part :)

thats cheaper then the door at $80! hope i can find one ASAP!

http://www.jegs.com/i/Dorman+Product...4-202/10002/-1
Reply With Quote
  #17
Old 05-23-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
http://www.heatertreater.net/magento...ger-93-08.html

Did you happen to see this? What I find interesting is I think it's TRS said be careful when cutting into heater box. These guys aproach it from the bottom and say there isn't a threat to cut into something important.
Might be worth it to purchase if they are still in business.

Last edited by morris; 05-23-2012 at 10:13 PM.
Reply With Quote
  #18
Old 05-24-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Quote:
Originally Posted by morris View Post
http://www.heatertreater.net/magento...ger-93-08.html

Did you happen to see this? What I find interesting is I think it's TRS said be careful when cutting into heater box. These guys aproach it from the bottom and say there isn't a threat to cut into something important.
Might be worth it to purchase if they are still in business.
i wont be cutting anything. if it was the door, id spend the time to do it properly. Hack jobs are retarded.
Reply With Quote
  #19
Old 05-24-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Got a motor on order, will be here at 1:30pm. im hoping its the issue as it came to $52 tax in and its non returnable.
Reply With Quote
  #20
Old 05-24-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I agree about cutting, it was more for the replacement.
Reply With Quote
  #21
Old 05-29-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Well i guess i should update that my problem was in fact a bad blend door motor. Everything is working great now, i couldnt be happier.
Reply With Quote
  #22
Old 07-06-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I ordered a heater door from Ford Ranger '93-'08 - '93 - '08 - Ranger - Ford.
I am going to replace that on my vaca next week. I saw your issue was the motor. Can I order that from napa or a similar store? The only reason I ask is I know those places carry dorman parts and you said that your motor was a dorman unit.
Reply With Quote
  #23
Old 07-06-2012
06RangerXLT's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Quote:
Originally Posted by morris View Post
I ordered a heater door from Ford Ranger '93-'08 - '93 - '08 - Ranger - Ford.
I am going to replace that on my vaca next week. I saw your issue was the motor. Can I order that from napa or a similar store? The only reason I ask is I know those places carry dorman parts and you said that your motor was a dorman unit.
yep got mine from napa for like $60. list on it was like 145 though. if you cant find it for my price, ill call your local napa and play it off as a dealer that needs the part, and have you go pick it up and pay for it.
Reply With Quote
  #24
Old 07-06-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Our napa is pretty good, I get a city employee discount.
Reply With Quote
  #25
Old 08-06-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
CANUK HOLIDAY BUMP:

I bought the metal door replacement and tackled this today, my heater door is fine, aside from some missing sponge on the bottom and I have to cover the hole I made in the bottom of the heater core. However, I hooked up a 9volt batter to the motor and no movement. I called oriley's in detroit and its $40 plus tolls and fuel $50-60. Partsource here has to order it and it was $60. I'm heading over later and hopefully this will be fixed soon and I can have cool AC intime for fall.
