OHC install on 2006 Ranger

I have to install an OHC in my girlfriends '06. anyone have a wiring diagram for it? all the diagrams i can find are for GEM equipped trucks
Reply With Quote
  #2
Old 07-24-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Toreador4x4 View Post
I have to install an OHC in my girlfriends '06. anyone have a wiring diagram for it? all the diagrams i can find are for GEM equipped trucks
hold on...


ok here. its pretty much all the same except that kick panel wire and the dome light

https://www.ranger-forums.com/genera...wiring-126643/
Reply With Quote
  #3
Old 07-24-2012
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
other then running the speed sensor wire to the grey and black from the fuse box, its positive negative.
Reply With Quote
  #4
Old 07-24-2012
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by 06RangerXLT View Post
...running the speed sensor wire to the grey and black from the fuse box...
Actually, there is no gray/black at the Smart Junction Box in 2005/2006. That was 2004 only. The 05~06 GY/BK can be found in the large bundle of wires near the parking brake pedal.
Reply With Quote
  #5
Old 07-24-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
i made this to help people out
Attached Thumbnails
OHC install on 2006 Ranger-04-06ohcwiringdiagram.png
Reply With Quote
  #6
Old 07-24-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
bob, laying the hammer down!

Morgan, so wouldn't that be 05-06, since the gray wire isn't near the brake on 04, but in the SJB?

or does 04 have it near the brake as well?
Reply With Quote
  #7
Old 07-24-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
04 is SJB only , nothing near the brake
Reply With Quote
  #8
Old 07-24-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
mine was near the brake.. not at the GEM by the radio. mines an 04.
Reply With Quote
  #9
Old 07-24-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
no further comment until bob steps in to correct us all.
Reply With Quote
  #10
Old 07-24-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313

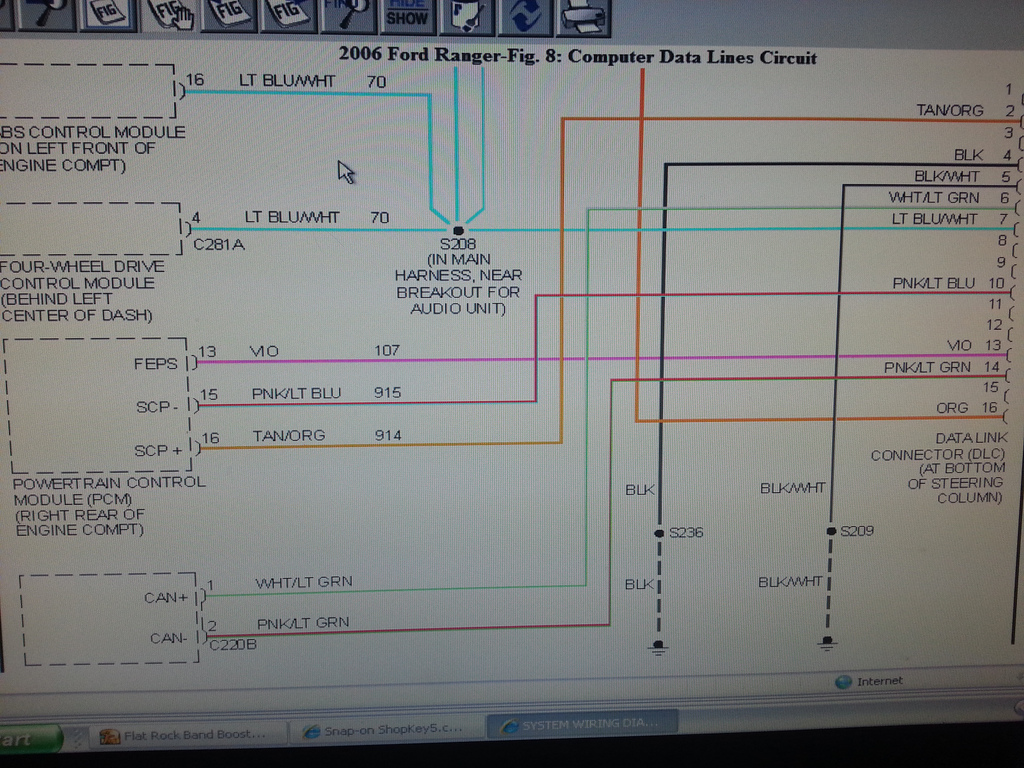

This is me being lazy.
For an 06 Ranger. according to Shopkey.



Attached Thumbnails
OHC install on 2006 Ranger-7639991922_531c8c495d_b.jpg   OHC install on 2006 Ranger-7639991120_368d2a995f_b.jpg
Reply With Quote
  #11
Old 07-24-2012
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by SteelDirigible View Post
....or does 04 have it near the brake as well?
For 04, the gray/black can be found at both places - at the SJB harness and in the wire bundle near the p-brake pedal. For 05/06, Ford deleted the branch of the GY/BK that had gone across to the SJB in 2004.

There are also other locations in the truck to find the gray/black but those mentioned above are convenient places in the interior to tap for use by the overhead console.
