Quick question!

Im replacing my factory front headlight bulbs right now and I was wondering how do I get it out of there is it twist in pull or just pull or what.

Also not sure how you guys with big hands reach in there.
Reply With Quote
  #2
Old 04-11-2007
b3kbruiser's Avatar
Member

Join Date: Nov 2006
Location: DFW Area, Tx
Posts: 713
Quote:
Originally Posted by yellow rhino
Im replacing my factory front headlight bulbs right now and I was wondering how do I get it out of there is it twist in pull or just pull or what.
On my 1994, there is a clip that you pull up on, and the wire harness pulls off, then you twist the bulb and it comes right out. DON'T TOUCH THE BULB!



Quote:
Originally Posted by yellow rhino

Also not sure how you guys with big hands reach in there.
Lots of nicks and scrapes
Reply With Quote
  #3
Old 04-11-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
yeah it's a tight sqeeze, I changed mine on my old truck and I think it's a twist then pull but not 100%
Reply With Quote
  #4
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Remove the headlight case first! Just pull up on the two tabs and they pop right out. Then you can twist the headlight harness out.
Reply With Quote
  #5
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Got the harness of no problem I guess ill just try the wist n pull.
Reply With Quote
  #6
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Take the headlight case off the truck first duh!
Reply With Quote
  #7
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Ok they are defintaly not just twisting out. All iv done so faris just take of the wiring harness thatconnects on the back. But now I dont know what to do and I don't want to mess with taking of the headlight because I dont want to reposition it.
Reply With Quote
  #8
Old 04-11-2007
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
did you pull the metal tabs up?
Reply With Quote
  #9
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
if I knew what metal tabs people were talking about then I would. Are they the ones that are positioning the headlight?
Reply With Quote
  #10
Old 04-11-2007
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
if you look above the headlight there are 2 tabs about 1/2 inch thick just gotta give those a nice little pull...did you already remove the plastic piece that goes over the headlights?
Reply With Quote
  #11
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Nope all iv removed is the wriring harness, ill just start unbolting **** then. I wish these were as easy as the blnker was.
Reply With Quote
  #12
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Ok Im completely dumbfound on how to remove these stoped things and so far iv only accomplished cutting myself so... im just gonna wait till we have a meet then let you guys show me how its done.
Reply With Quote
  #13
Old 04-11-2007
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
PM me your addy...i may be able to stop by tomorrow after I move...or this weekend...shouldnt take too long
Reply With Quote
  #14
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Unscrew the two screws holding the lil plastic cover of the top of the headlight. Then pull up on the two tabs on the headlight. They're black and have a lip/bend on the top so you can grab them. If you can see behind the headlamp those tabs have holes that lock onto the adjustment screws.
Reply With Quote
  #15
Old 04-11-2007
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
Dude, it's so easy. Look behind the headlights, and you should see two slats of metal going from the bottom to the top. The outer-most tab/slat is going to be right next to the adjustment screw. The other tab/slat is going to be maybe 8" to the center of the truck. I believe the tabs are facing different directions though. You're going to have to pull pretty hard on the tabs because they're set pretty tight from the factory. Then once you get the lamp out you see a circle piece of plastic, turn that (I'm not sure which direction, but you'll know when you get it). Then just wiggle the actual bulb back and forth, it'll be a little stiff because the rubber seal starts to stick to the plastic of the housing.

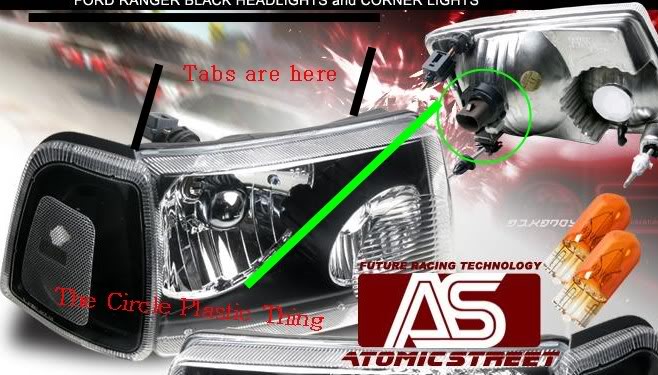

This pic doesn't have the plastic circle thing but it shows where it goes, also the tabs in relation to the front of the headlight.
Name:  LHH_LCR_FRAN01B_KS.jpg
Views: 2
Size:  73.7 KB
Reply With Quote
  #16
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Oooooo pictures definatly help. So i shouldnt loosen the nuts hoding the tabs in place? When I pull on the tabs will I then have to readjust them so the headlight points in the right direction again?
Reply With Quote
  #17
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
no no no

Just pull up on the tabs, there's nothing to loosen or tighten. That's the actual adjustment screws. You mess with them then you will have to align your headlights. Just lift those tabs and the headlamp will just fall out of the front end.
Reply With Quote
  #18
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I'm about to just hop on a plane and go to cali to change them myself
Reply With Quote
  #19
Old 04-11-2007
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
The tabs are kind of notched so they just slide in. You shouldn't have to take any bolts off or loosen them. Just give them a good tug and it'll pop loose. And as for readjusting your new headlights, just try to get the plastic nuts on the new headlights in the same place as your plastic nuts on your old ones (so you can atleast get in the ballpark). Then use the actual headlight adjustment nut (one on each headlight that can be adjusted by a phillips head screw driver or a socket) once you get everything back in place and hooked up. I just took mine to a flat abandoned road to aim mine right.
Reply With Quote
  #20
Old 04-11-2007
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
This is kind of hurting me to see. l2en can't take pictures and I can't take pictures (both in the shop). Anyone out there that can run out and take some pics of the tabs and how they work? We got to get this guys headlights in for him.
Reply With Quote
  #21
Old 04-11-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
He's just changing the bulbs!!!
Reply With Quote
  #22
Old 04-11-2007
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
oops, ha ha I don't know where I got that he was changing headlights. Sorry. Same process though, minus the readjusting.
Reply With Quote
  #23
Old 04-11-2007
05edge's Avatar
Member

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
if you need pics taken ill go run outside and take some.
Reply With Quote
  #24
Old 04-11-2007
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
^lol i was about to go do the same
Reply With Quote
  #25
Old 04-11-2007
yellow rhino's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Lol you guys really want me to do this. I understand what needs to happen now, I know what tabs your talking about so just yank on them until the headlight pops out then unscrew the black thing and pull out the bulb. Then put the new bulb in and put the headlight back in and push the tabs back down and im done?
