what am i missing? - Ranger-Forums - The Ultimate Ford Ranger Resource


General Technical & Electrical General technical and electrical discussion for the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 09-19-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
what am i missing?

hey guys im looking to put in an ohc in the ranger and im wondering what im missing for the lights any help would be appreciated.what am i missing?-p9050183.jpg

what am i missing?-p9050185.jpg
Reply With Quote
  #2
Old 09-19-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Can't tell from the pic, is there bulbs in there? There should be a cover that goes over that as well.
Reply With Quote
  #3
Old 09-19-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
He needs bulbs and a cover.
Reply With Quote
  #4
Old 09-20-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Yup.

Go check out other similar OHC's if possible. Looks like you are missing the bulbs and the cover (as said above lol)
Reply With Quote
  #5
Old 09-20-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
i have the cover just took it off for the pic. so i just need to get the bulbs? what do they plug in to?
Reply With Quote
  #6
Old 09-20-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Can't remember now... it's been a while since I had one apart. If I can find my extra one in the garage tomorrow I'll pop the cover off and look!
Reply With Quote
  #7
Old 09-20-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
ok man no rush not looking to do it till winter just trying to get everything together so i dont have to hunt it down in the yard in the negatives
Reply With Quote
  #8
Old 09-20-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Okay, sounds good. It may take me a while to find it anyways. I think it's up in the attic of my garage and right now my Mustang is below the access door in pieces. lol
Reply With Quote
  #9
Old 09-20-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
well the mustang is priority number one get that thing back together.
Reply With Quote
  #10
Old 09-20-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648

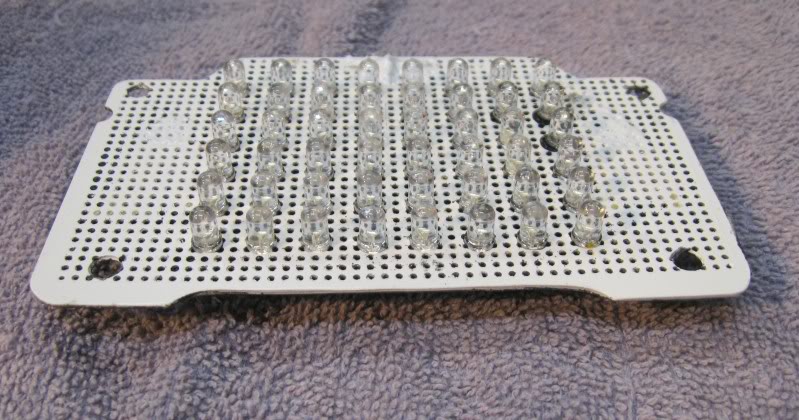

You're missing bulb holders, lens & the "truck side" wiring connector, temp sensor.... and one of these:



(end shameless plug)
Attached Thumbnails
what am i missing?-img_2236.jpg
Reply With Quote
  #11
Old 09-21-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
i got the lens i got the connector i got the temp sensor and if i were to get one of those 1) would i need the bulb holders. and 2) what would that run me?
Reply With Quote
  #12
Old 09-21-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
lol, just giving you a hard time

The led panel replaces all the reflector/bulb assembly. A little disassembly of the ohc is needed, but it's just like 6 screws.

Here's a LINKY to my ohc mods pics & my install instructions are towards the bottom.
Really simple do to, just 3 wires from the old bulb ***'y need to be cut & screwed down in the screw terminals on the new led panel.
The panel is held in place via longer screws (included) using the old holes.

I have one left right now... they run $25 +sh/ins (usually $7 priority mail)
Reply With Quote
  #13
Old 09-21-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
i like it do you think you could do some kind of package deal (led light panel, pair of amber front turn signals, and some white dome light led's?) if not ill just have to buy in different installments.
Reply With Quote
  #14
Old 09-22-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Yeah, I'll try to help ya out.
I should be able to ship all that stuff in the same small priority box for $7 - $9 to save a few bucks on separate shipments too.
Reply With Quote
