What's your CB set up?

I've looked through a lot of old threads but I thought I would just make a new post to get some new input on the subject. So what is your setup? how far is your range? Pros? Cons? What radio and antenna should I go with? Thanks!
Reply With Quote
  #2
Old 01-23-2012
Ranger4.0XLT's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Northford, CT
Posts: 501
anyone?
Reply With Quote
  #3
Old 01-23-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Reply With Quote
  #4
Old 01-23-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179

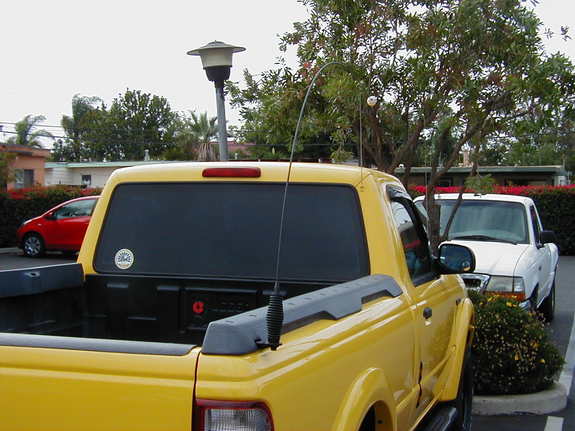

Currently running a tuned Uniden PRO510XL with a 102 Inch Stainless Steel Whip. Range wise with the antenna latched down on average about 5 - 8 miles in town and up to 10 - 15 miles on the flat lands. If I let the antenna up I can squeeze a few more miles out of it.



Attached Thumbnails
What's your CB set up?-7689800055_large.jpg   What's your CB set up?-7689800066_large.jpg
Reply With Quote
  #5
Old 01-23-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
I had a cobra mounted to my ashtray under the radio bezel with a 4 foot firestik mounted on a superduty fender mount with a heavy duty spring
Reply With Quote
  #6
Old 01-23-2012
PAShooter's Avatar
Member

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
Ill post mine up tomorrow
Reply With Quote
  #7
Old 01-23-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by 99offroadrngr View Post
I had a cobra mounted to my ashtray under the radio bezel with a 4 foot firestik mounted on a superduty fender mount with a heavy duty spring
i would get so pissed with that. It annoyed me being behind you
Reply With Quote
  #8
Old 01-23-2012
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
I have a cobra 19 mounted on the center console. I have a 4' firestik for an antenna. Im not sure what the range is.
I used an alon mount for the antenna.
Attached Thumbnails
What's your CB set up?-cabin019.jpg
Reply With Quote
  #9
Old 01-23-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 04RangerDave View Post
i would get so pissed with that. It annoyed me being behind you
didn't bother me at all lol. that squeak adam has would **** me off tho haha just needs some moisture on those bushings
Reply With Quote
  #10
Old 01-23-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by 99offroadrngr View Post
didn't bother me at all lol. that squeak adam has would **** me off tho haha just needs some moisture on those bushings
sounded like bird bird walking down the trail LMAO
Reply With Quote
  #11
Old 01-24-2012
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417

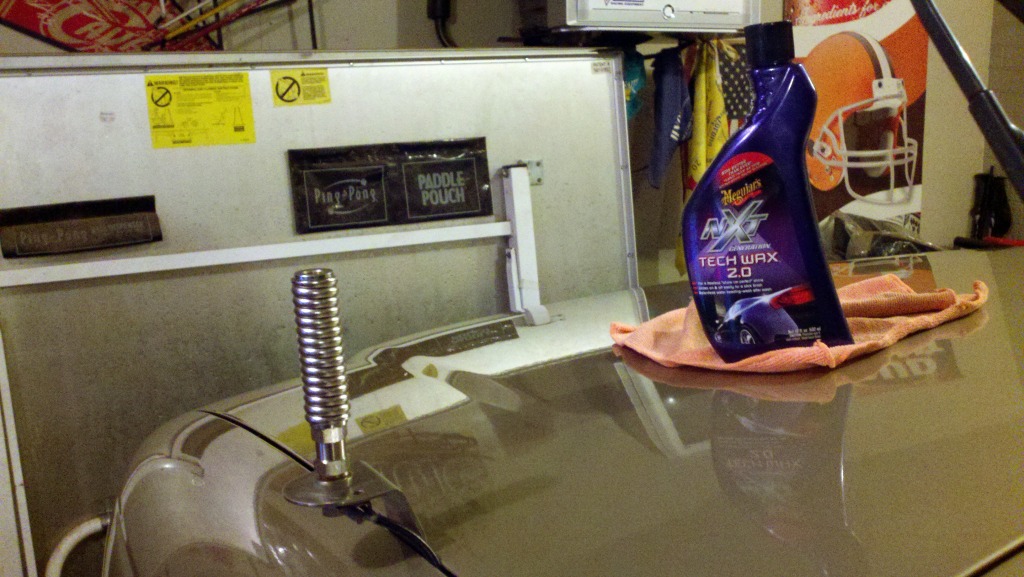

I'm using the Superduty mount as well. I use a 4ft Diesel whip. I really like the location of it and with my Cobra CB It does well talking to truckers on the highway and if you have a buddy driving beside you that you want to talk to. Not really sure about max range though.

Where my radio is located:

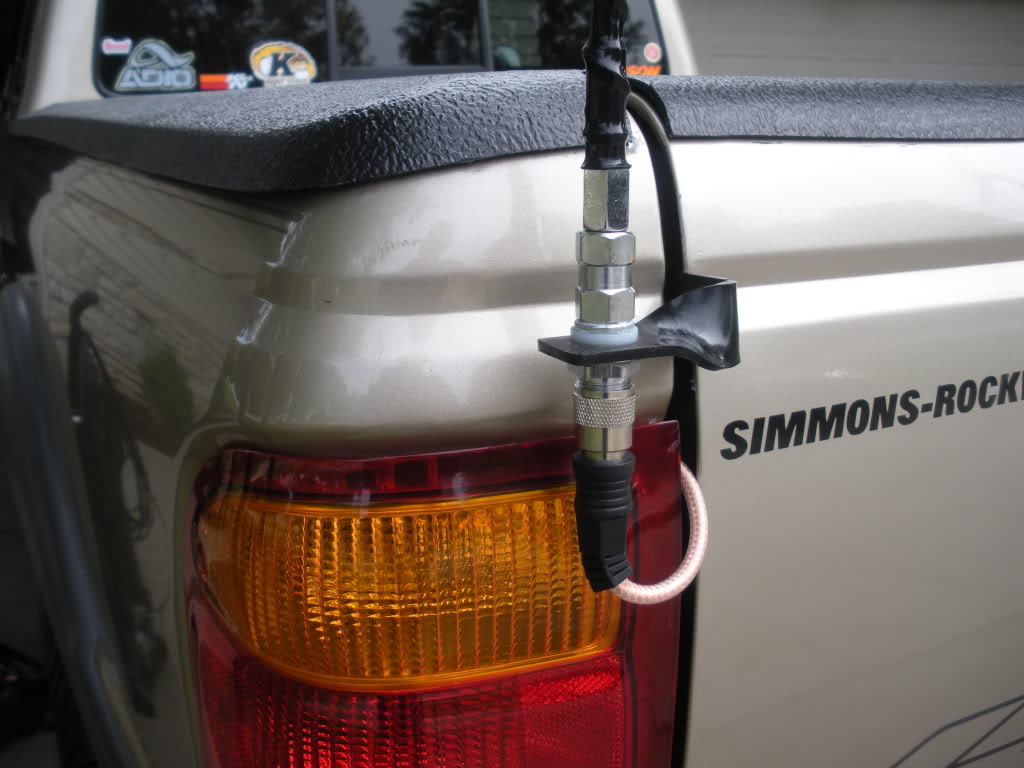

And I also ran a Alan mount before which I still have it in my tool box if your interested
Attached Thumbnails
What's your CB set up?-2012-01-02_17-10-37_164.jpg   What's your CB set up?-dscn1519.jpg   What's your CB set up?-dscn1521.jpg
Reply With Quote
  #12
Old 01-24-2012
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229

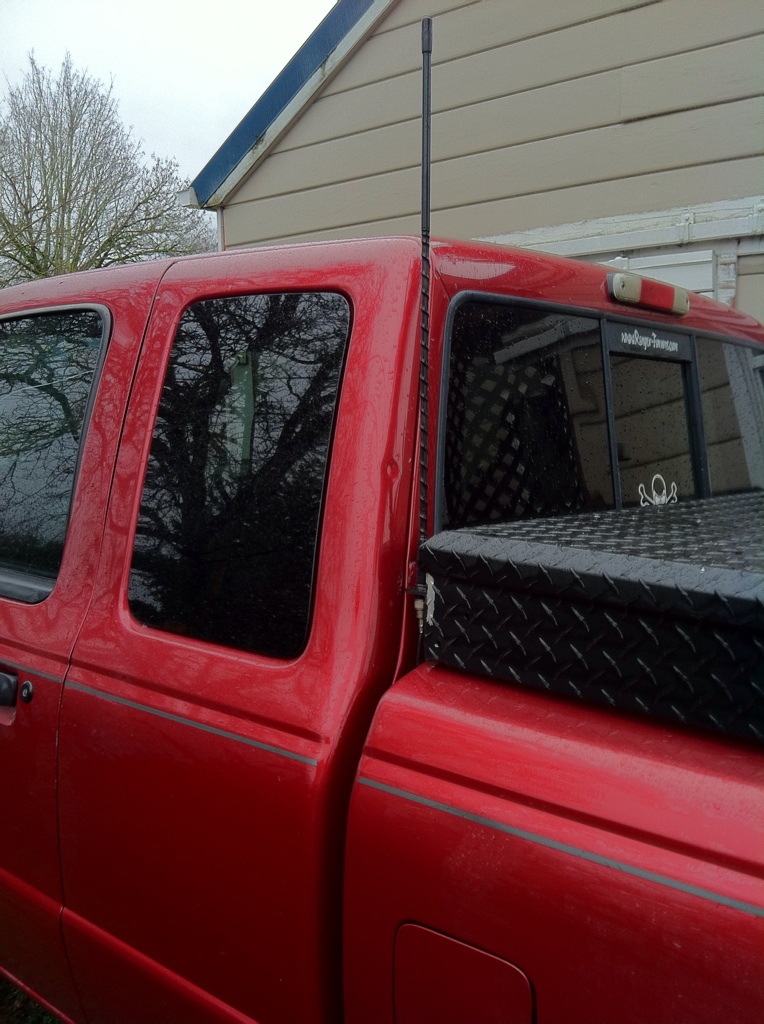

I have my uniden mounted pretty nicely in my expo console. I'll have to take a pic later, kinda proud of that. 24" fire stick on my tool box with a tab. Not sure on range, seems to work pretty well.
Reply With Quote
  #13
Old 01-24-2012
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
Ok it's later lol...

Here's my set up.


Attached Thumbnails
What's your CB set up?-40a396e4.jpg   What's your CB set up?-287e8b36.jpg
Reply With Quote
  #14
Old 01-24-2012
Ranger4.0XLT's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Northford, CT
Posts: 501
Awesome! Thanks for the input guys! But what radio would you recommend specifically? And antenna I want maybe a 4ft tall one?
Reply With Quote
  #15
Old 01-24-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I have a CB I can sell if anyone wants it. PM me for info. Otherwise I will make a thread in a few days.
Reply With Quote
  #16
Old 01-26-2012
Ranger4.0XLT's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Northford, CT
Posts: 501
Any specific radio anyone would recommend?
Reply With Quote
  #17
Old 01-26-2012
Scrambler82's Avatar
Old Guy UserÖ ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Ranger CB from RCI, nice rig, no ehco.
this is it but it is black: http://www.walcottcb.com/ranger-rci6...th=340_500_448

for a good reliable CB Uniden has good Radios.
The Pro510:
Nice little radio with minimum *****.

http://www.walcottcb.com/uniden-pro5...th=340_377_379

and the PRO520: same as 510 except more knows and a little bit better in control of the signal.

http://www.walcottcb.com/uniden-pro5...th=340_377_379

Both great little radios, compact and fit almost anywhere.
Uniden has other larger CB and with all kinds of features, so decide what you need one for first.

Unidenís latest offering: http://www.walcottcb.com/uniden-bear...th=340_377_379

Nice stuff.


There is Cobra and other names, there are high powered and std power your call.

http://www.walcottcb.com/cobra-19dxi...th=340_377_379

http://www.walcottcb.com/cobra-29ltd...th=340_377_379

and Galaxy:

http://www.walcottcb.com/galaxy-dx-9...th=340_377_379

Keep in mind one thing, The best radio canít get out and communicate without a GOOD antenna.
Buy the best antenna you can afford, next would be good coax, something like RG8X Belden is good stuff and then a CB Radio with the features you want.

Try to stay away form the Midland stuff I have heard of problems.
Antennas:
Wilson and Firestik are the antennas of choice, there are other manufacturers so talk to people.
Coax:
Belden is easy to find and affordable, stick to a good quality.
The best, IMHO, would be Times MicroWave Cable, LMR200 for a mobile setup.

OK talked too much !
Reply With Quote
  #18
Old 01-26-2012
Ranger4.0XLT's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Northford, CT
Posts: 501
Wow thank you! this helps A LOT. There are a lot of different options. I've heard something about antenna tuning? Is it necessary?
Reply With Quote
  #19
Old 01-26-2012
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Yeah Its necessary. If you know someone who has an SWR Meter borrow it or Radio Shack sells one as well. This is how you would use it and the SWR meter that Radio Shack sells.
Reply With Quote
  #20
Old 01-26-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598



Attached Thumbnails
What's your CB set up?-img_2289.jpg   What's your CB set up?-img_2288.jpg   What's your CB set up?-img_2291.jpg   What's your CB set up?-img_2292.jpg
Reply With Quote
  #21
Old 01-26-2012
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417

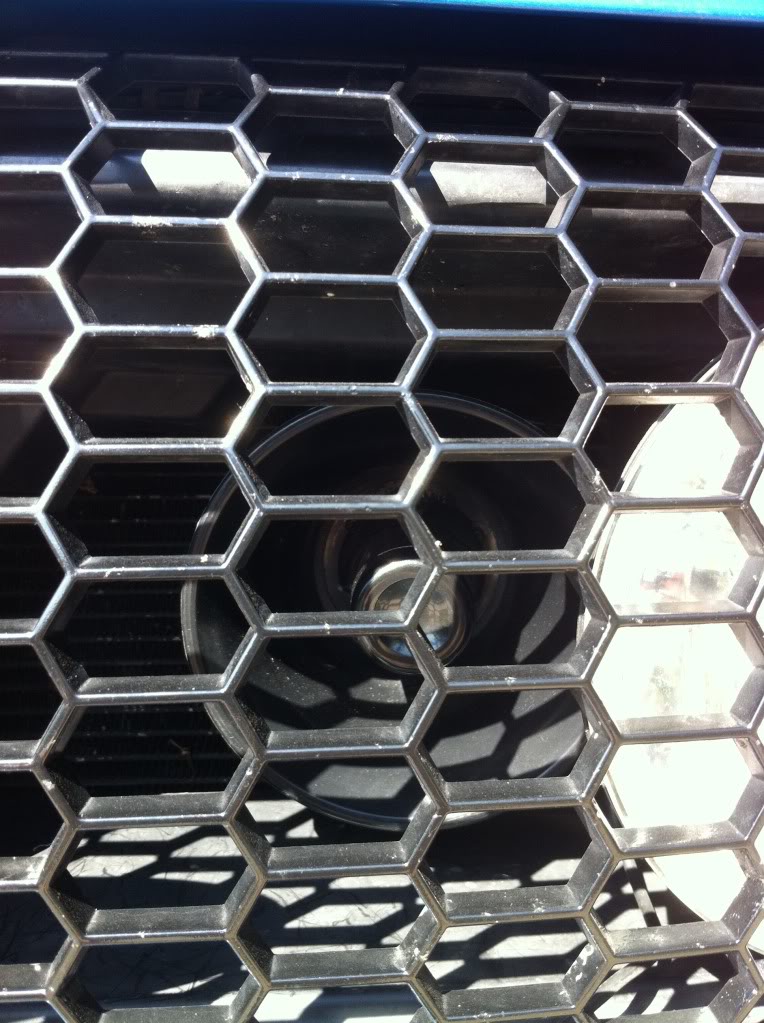

Justin, for the PA did you just drill a hole or 2 in the plastic surround? I can't seem to find where people mount them behind the grill. I need to find a new place to put mine since the spot I've used ate 3 of them lol
Reply With Quote
  #22
Old 01-26-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by cchsbuzz19 View Post
Justin, for the PA did you just drill a hole in the plastic surround? I need to find a new place to put mine since the spot I've used ate 3 of them lol
I mounted it to the top of the shroud. I cut a slot in the back of the shroud so the mounting bracket could slide onto it and I used zip ties to hold it in place.

That wording sounds dumb after re-reading it. I'll snap a pic for ya sometime soon
Reply With Quote
  #23
Old 01-26-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
I will more than likely be coming back to this thread in the next couple of weeks.

My CB will arrive either tomorrow or saturday.
Reply With Quote
  #24
Old 01-26-2012
Ranger4.0XLT's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Northford, CT
Posts: 501
Quote:
Originally Posted by Taylor View Post
I will more than likely be coming back to this thread in the next couple of weeks.

My CB will arrive either tomorrow or saturday.
what radio and antenna did you purchase?
Reply With Quote
  #25
Old 01-26-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Ranger4.0XLT View Post
what radio and antenna did you purchase?
Havnt purchase an antenna yet. To be honest I havnt even really researched them at all lol.

Cobra 29 ltd something something. It was a trade with another member.
Reply With Quote
