WTF is this?

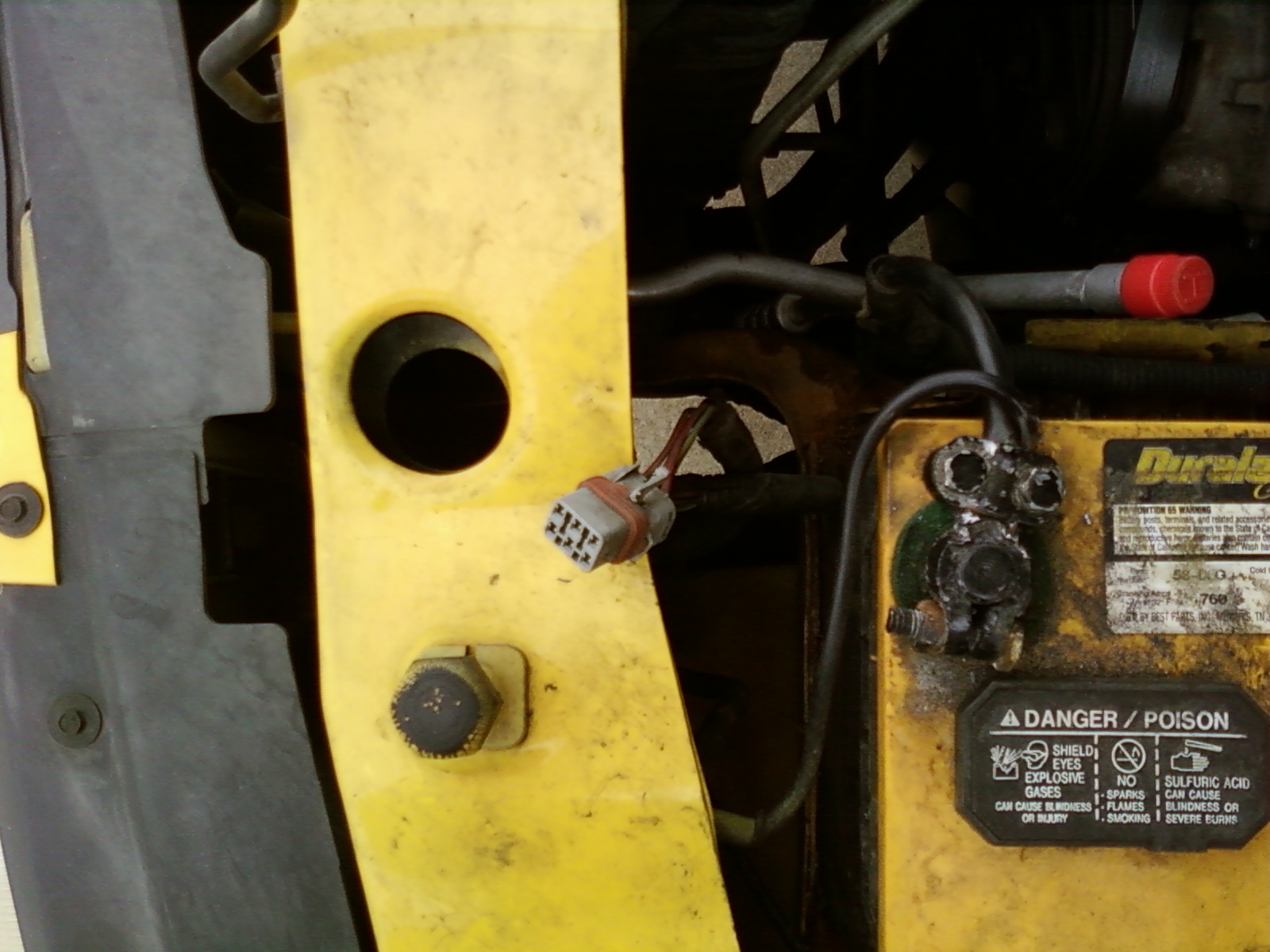

Whats this plug to.I found it near the battery not connected to anything but looks like it was at some point.
Attached Thumbnails
WTF is this?-03091606.jpeg
Reply With Quote
  #2
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
No one?
Reply With Quote
  #3
Old 03-09-2010
russian's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Windsor, ON
Posts: 574
Fogs maybe?
Reply With Quote
  #4
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
Can't be cause they use a two pin plug and they are pluged in already but that plug is like 6"long
Reply With Quote
  #5
Old 03-09-2010
VH5150's Avatar
Level III Supporter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
Possibly for a Battery Heater? I know my '00 had one and it's in the right place.
Reply With Quote
  #6
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
Hmmmm if I remember the plug had four wires going to it and only one had power
Reply With Quote
  #7
Old 03-09-2010
Member

Join Date: Mar 2010
Location: white oak tx
Posts: 237
turbo encabaculater plug
Reply With Quote
  #8
Old 03-09-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
lick it and if it shocks you then you're gullible
Reply With Quote
  #9
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
Quote:
Originally Posted by old87ranger View Post
turbo encabaculater plug
Quote:
Originally Posted by 01RangerEdge View Post
lick it and if it shocks you then you're gullible
Reply With Quote
  #10
Old 03-09-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Goats View Post
Its a joke. We obviously have no idea so are giving you a bump with a joke
Reply With Quote
  #11
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
Quote:
Originally Posted by 01RangerEdge View Post
Its a joke. We obviously have no idea so are giving you a bump with a joke
Yea I know it just appers that no one knows anything about the electical system on these trucks
Reply With Quote
  #12
Old 03-09-2010
Member

Join Date: Mar 2010
Location: white oak tx
Posts: 237
all i can say is that your truck is running and driving ok then the plug must not do much
Reply With Quote
  #13
Old 03-09-2010
Goats's Avatar
Member
Thread Starter

Join Date: Feb 2010
Location: lake worth
Posts: 54
Quote:
Originally Posted by old87ranger View Post
all i can say is that your truck is running and driving ok then the plug must not do much
Well I do have a wire jumped for the a/c switch and air bag to work
Reply With Quote
  #14
Old 03-09-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Goats View Post
Yea I know it just appers that no one knows anything about the electical system on these trucks
Give it time, someone is bound to stumble on this thread that will know the answer.
Reply With Quote
  #15
Old 03-09-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
where is bob when we need him
Reply With Quote
  #16
Old 03-10-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
shot in the dark... airbag sensor plug?
Reply With Quote
  #17
Old 03-10-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
That looks like the connector for the Daytime Running Lamps Module which was required on Canadian-spec Rangers of that year. It is in the right general location. The DRL connector (without the module) is also present in some U.S.-spec Ranger harnesses of the same era.
Reply With Quote
  #18
Old 03-10-2010
russian's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Windsor, ON
Posts: 574
Looks like a Canoedian Ranger eh?
Reply With Quote
  #19
Old 03-10-2010
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
follow it and see where it goes. i have never seen that plug before.
Reply With Quote
  #20
Old 03-19-2010
jacks050679's Avatar
Member

Join Date: Jun 2009
Location: Imperial Beach Ca,
Posts: 7
Seems like a tranny slip between 40 and 45 mph. Used additive no good, drained fluid and changed filter. still seems as if its slippin, new fuel filter,new plugs and wires,still seems like a slip. Maybe trans shift solenoids or torque converter???? Anyone with similar problem??? 2005 xlt 4.0
