How To: Change Rear Differential Fluids

Written By: dixie_boysles


Discalimer: Neither I nor this site takes any responsibility in any damage or actions resulting from this . When performing this, you are doing so at your own risk

In this how-to I will be showing you my method to replacing the gear oil in your rear differential. There may be other ways, but this is the way that I found best. This was for my 04' Lariat with 3.73 Limit Slip. The same steps go for a Ranger.

Materials needed:

- Gear Oil ( quantity and specs manual calls for)
- 1 Tube of TransX Friction Modifier (for people with limited slip only!!!)
- 1 tube of RTV Sealant (The gray kind if possible)
- 1 Can of brake cleaner
- Old Rags

Tools Needed:

- 3/8" Drive Ratchet
- 1/2" Socket
- Extension
- 1/2" wrench if needed
- razor blade or gasket scraper
- Hammer
- Oil Drain pan

Tips:

- Wear old cloths as you dont want gear oil or rtv sealant on you
- I wore medical gloves to keep the smelly gear oil off my hands (that stuff stinks)
- you should always loosen the fill plug before you start the job to make sure the plug will come out. You'll be in a tough situation if you pull the pan, drain the fluid, re-install the pan then find out you can't get the fill plug out.


Procedure:

Gather Materials:

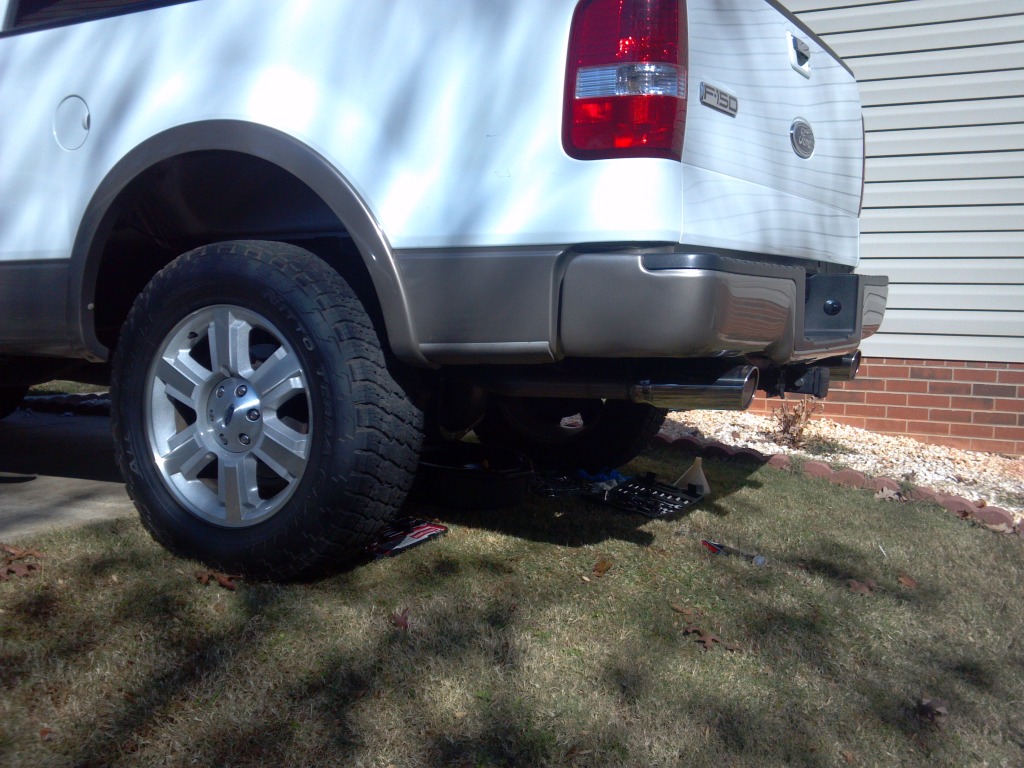

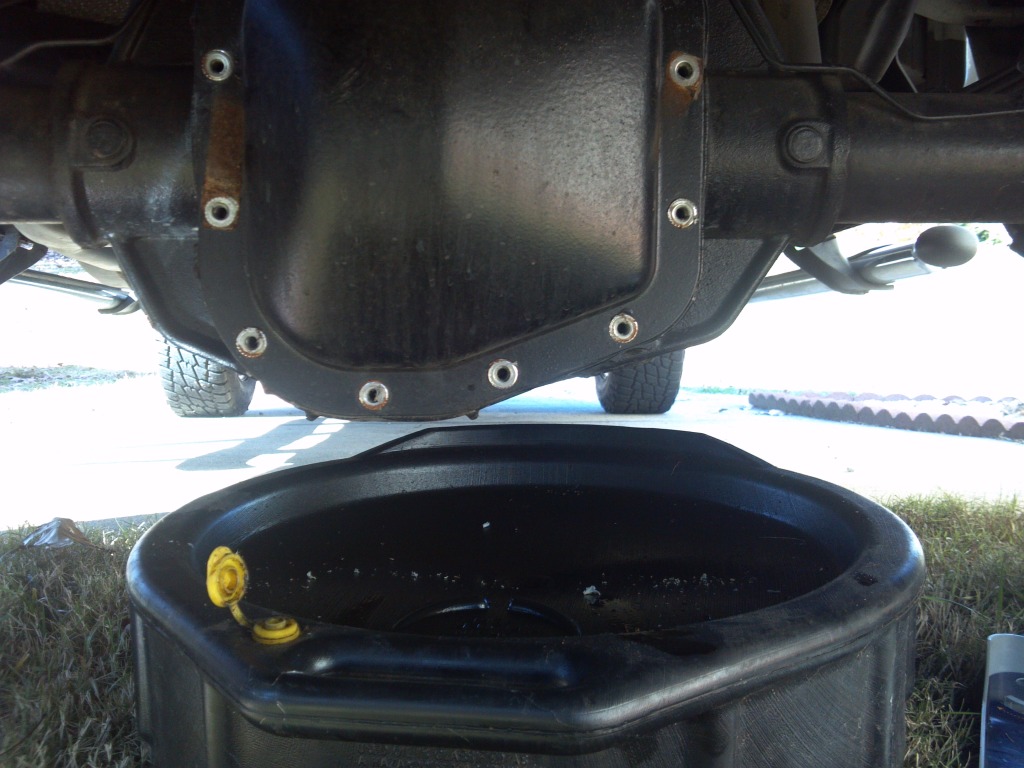

Put truck in park and apply brake. Place Oil catch pan under rear differential





Using the 1/2" Ratchet or Wrench, start loosening all of the bolts

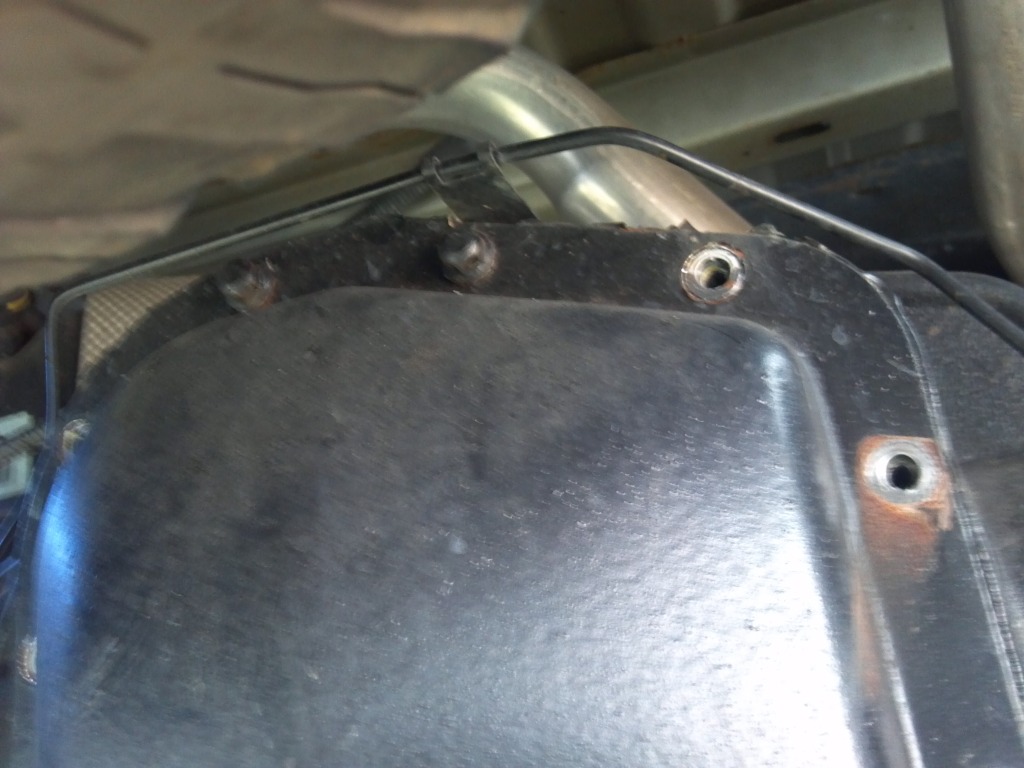

I took them all out but the top Two, used them to hold the cover so it wouldnt fall for the next step.





Once that is done, it's time to break the seal. Using a combination of the screw driver and the hammer, try to pry away the bottom of the cover from the axle. dont force too much in one area.

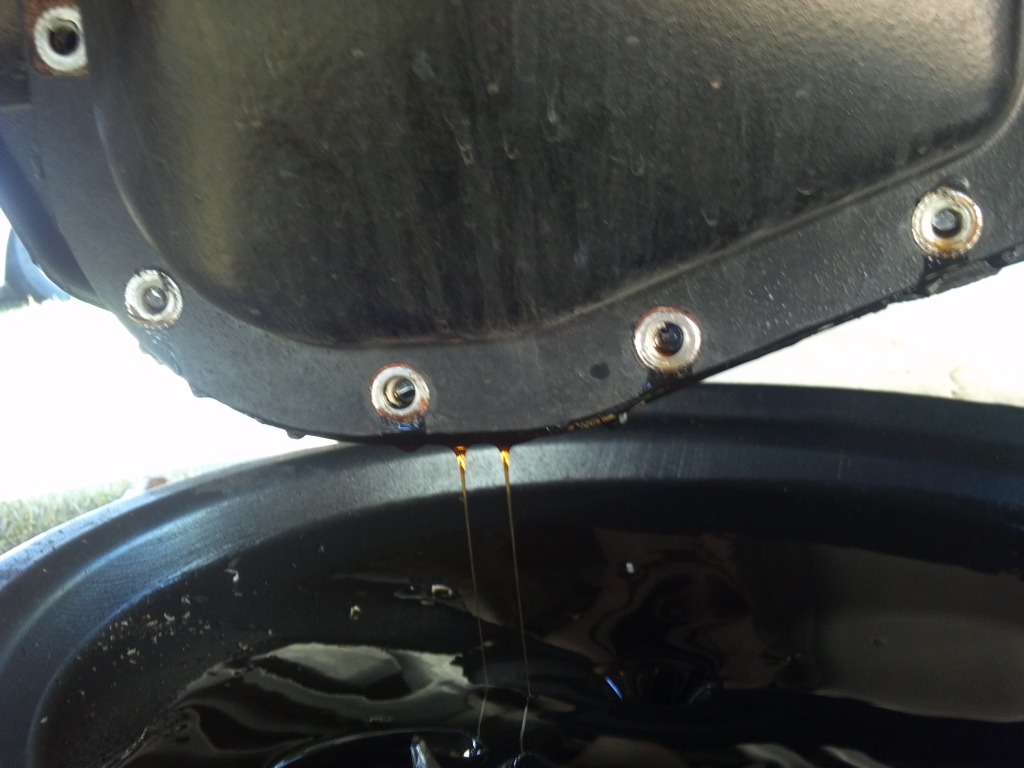

Then oil should start to drain



When it drain all the oil then go ahead and remove the remaining two top bolts.

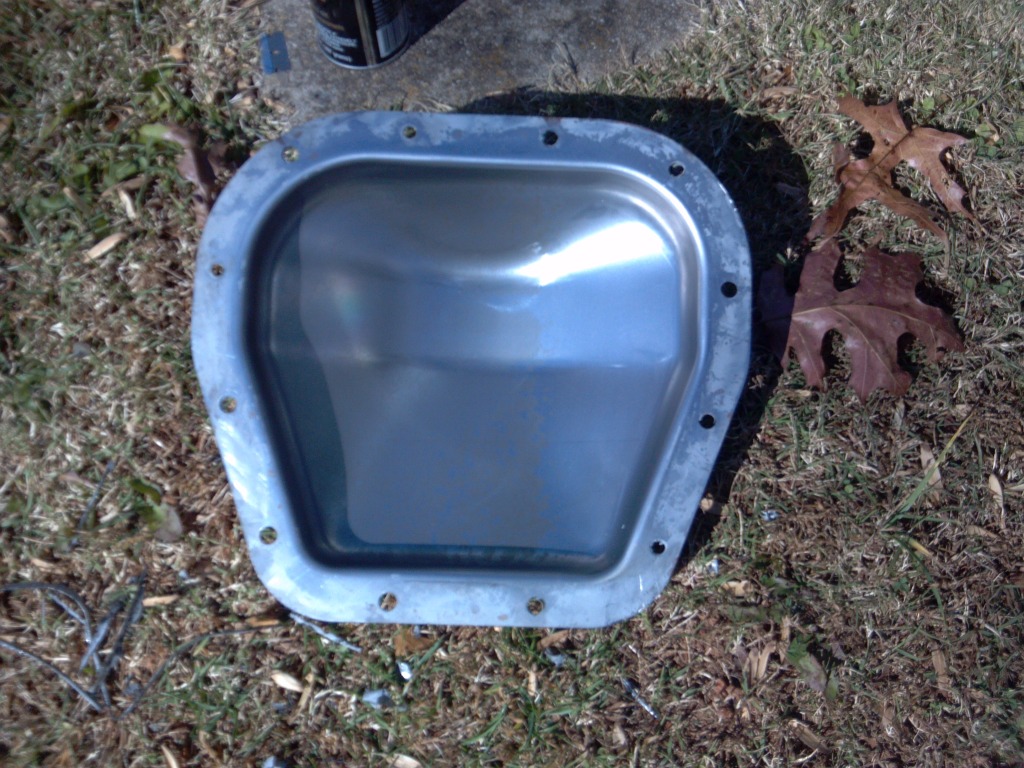

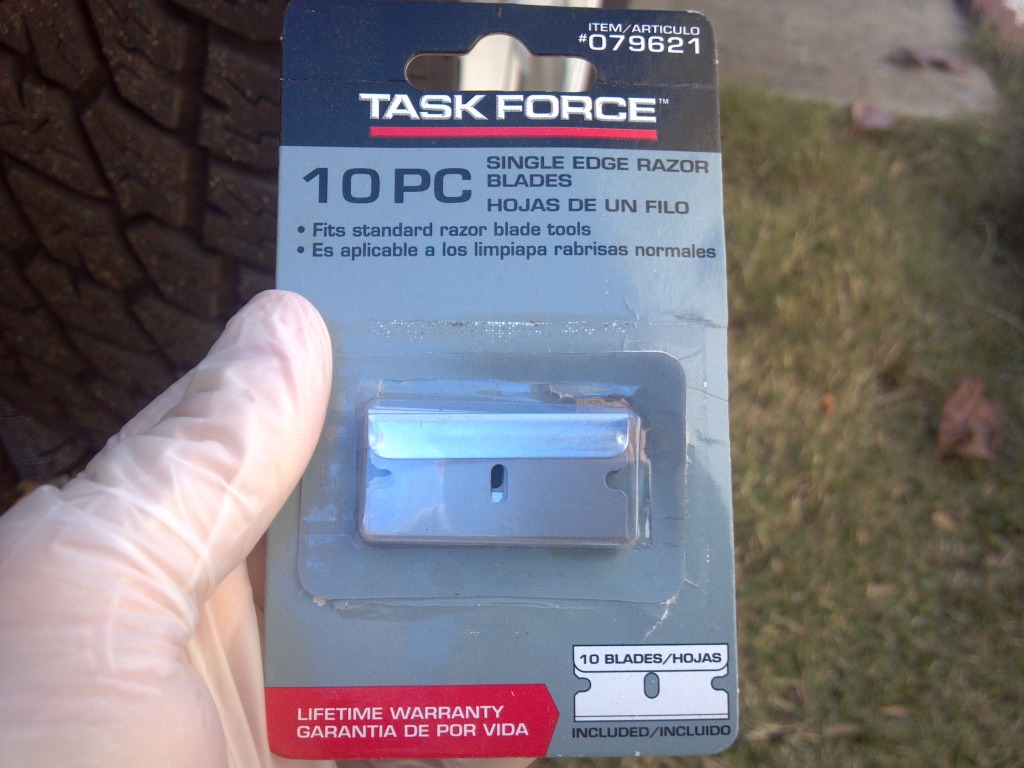

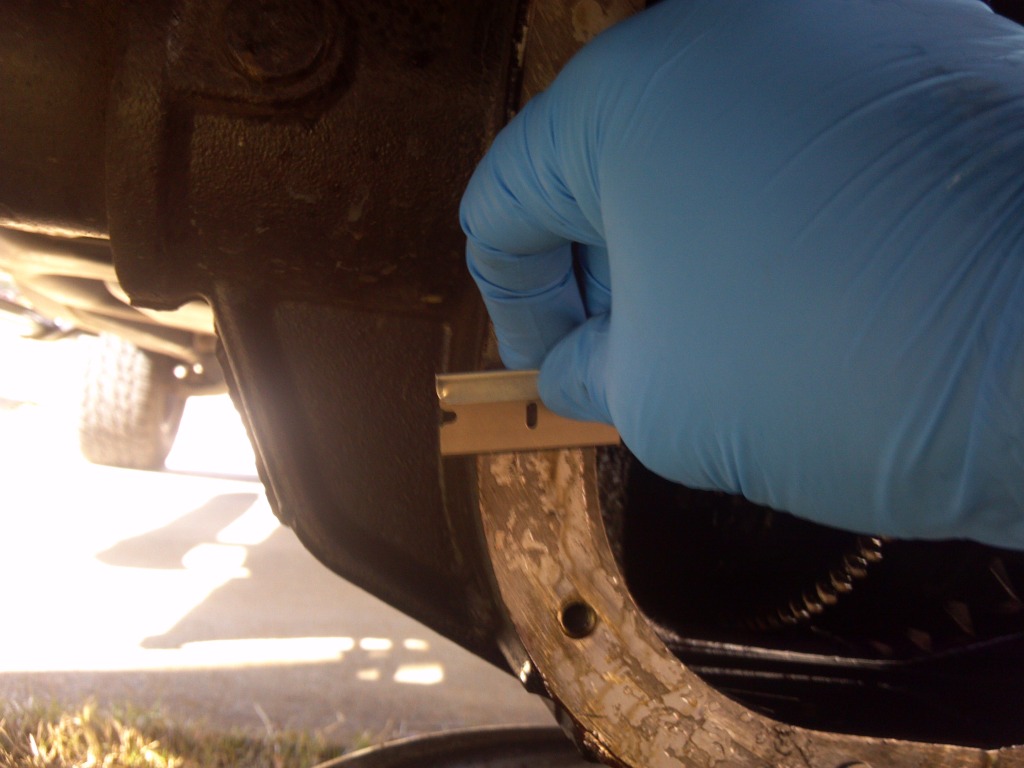

Use the razor blade to clean both mating surfaces on the axle and cover

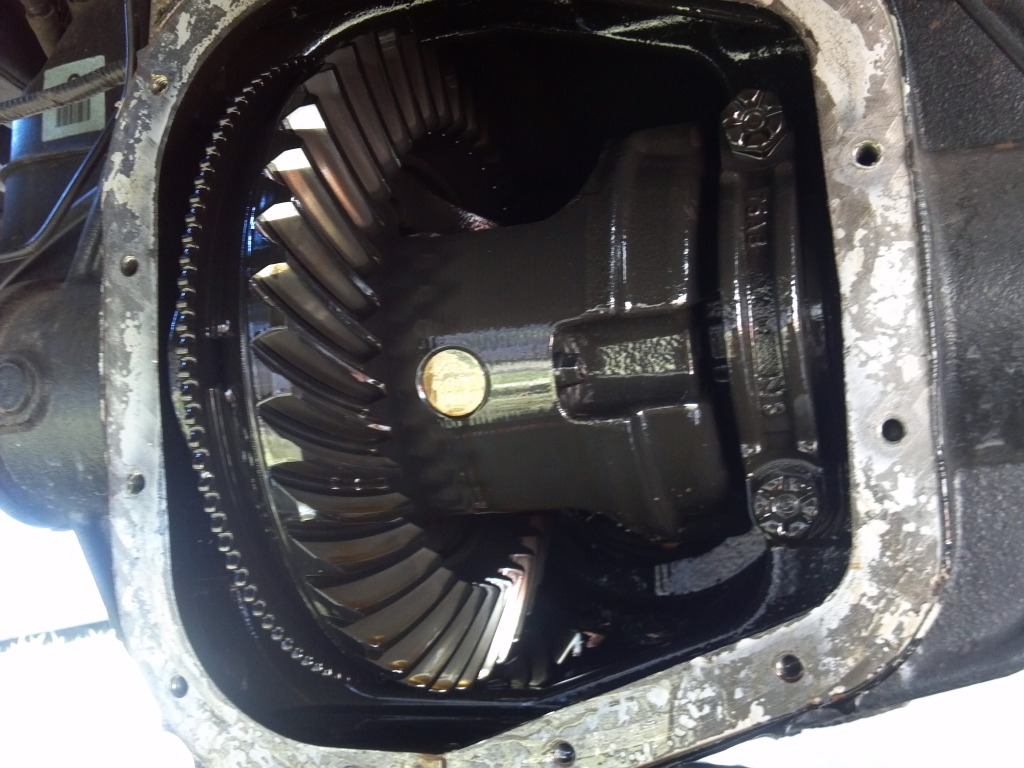

Use brake cleaner to clean the gears and the back of the diff cover

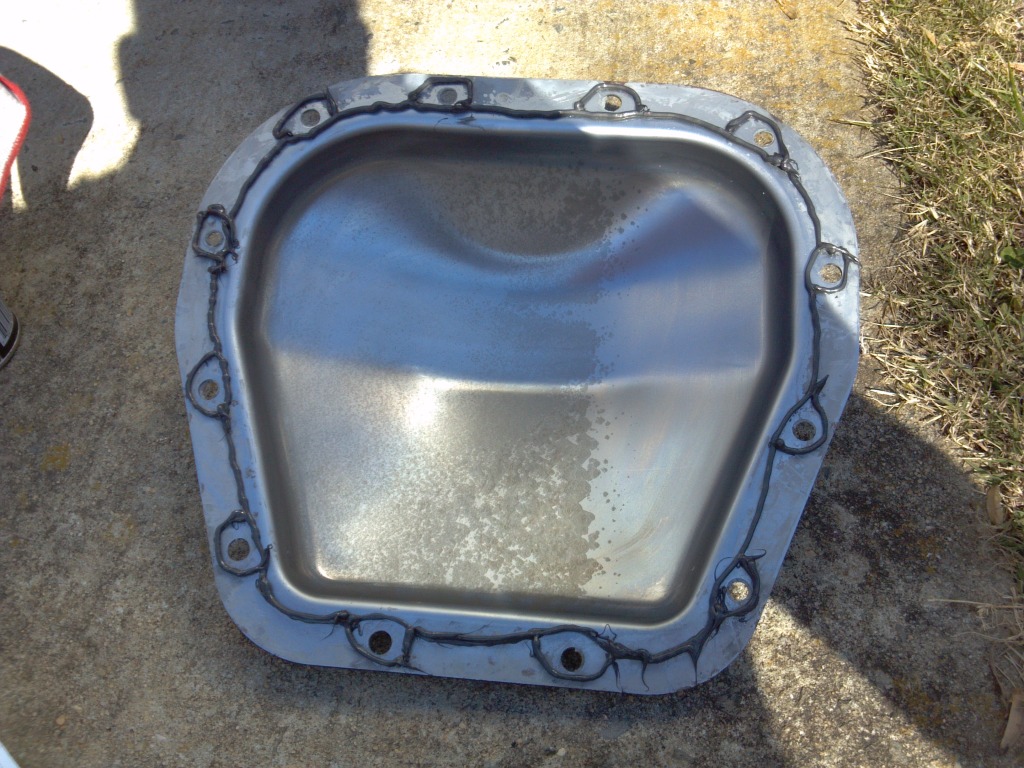

Once both surfaces are clean, apply RTV sealant around all the holes and a good solid bead around the perimeter of the cover



Put cover on and hand tighten all the bolts, let RTV dry for an hour then tighten completely using a cross bolt pattern similar to tightening lugs for wheels.

Using the 3/8" drive ratchet, loosen oil drain plug





Once loose, begin filling. I mixed my friction modifier with a qrt before putting it in. fill until the oil is level with the fill hole. Plug the hole. Done.
Attached Thumbnails
How To: Change Rear Differential Fluids-2012-11-17_11-10-48_126.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-12-33_673.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-32-16_962.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-28-15_153.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-11-43_4.jpg

How To: Change Rear Differential Fluids-2012-11-17_12-57-28_208.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-10-02_40.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-20-57_532.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-18-02_938.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-20-49_44.jpg

How To: Change Rear Differential Fluids-2012-11-17_11-24-37_746.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-32-53_860.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-24-43_259.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-30-26_557.jpg   How To: Change Rear Differential Fluids-2012-11-17_11-57-16_286.jpg

How To: Change Rear Differential Fluids-2012-11-17_12-09-41_403.jpg   How To: Change Rear Differential Fluids-2012-11-17_12-57-43_624.jpg   How To: Change Rear Differential Fluids-2012-11-17_13-02-47_541.jpg

Last edited by dixie_boysles; 11-19-2012 at 01:45 PM.
Reply With Quote
  #2
Old 11-18-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
I'm surprised we didn't have this write up done already. Good work.
Reply With Quote
  #3
Old 11-18-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Nice write up. I'd use grey RTV instead though, its better.
Reply With Quote
  #4
Old 11-18-2012
oldblue01's Avatar
Member

Join Date: Jul 2012
Location: Venango, PA
Posts: 375
nice write-up. I just changed the oil in the front diff on my shop teacher's new-to-him dodge the other day.
Reply With Quote
  #5
Old 11-19-2012
dixie_boysles's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
Quote:
Originally Posted by 99offroadrngr View Post
Nice write up. I'd use grey RTV instead though, its better.
yeah so i figured that out after removing the cover. This was actually my first time doing this. I already had the black sealant and all and wasn't about to go back to the store lol
