How-To: 06+ Taillight Mod

If you have no patience, hit the back button. If you've done the headlight mod, it helps. This was more difficult and more time consuming.


Purpose: replicate the taillights of 04-08 F150's with a Ranger housing.
You can mask your own lights however you want and use whatever color paint you want but I wanted mine to be as close to the F150's as possible.

What you need:
-Oven
-06+ taillight
-Painters tape (I used blue 3M)
-Exacto knife or similar (new one works best)
-Flathead screwdriver
-Krylon Fusion (satin black)
-Sealant of your choice
-Whatever you have to apply pressure to seal the light (bungees, clamps, small ratchet straps, etc)
-Nitrile gloves

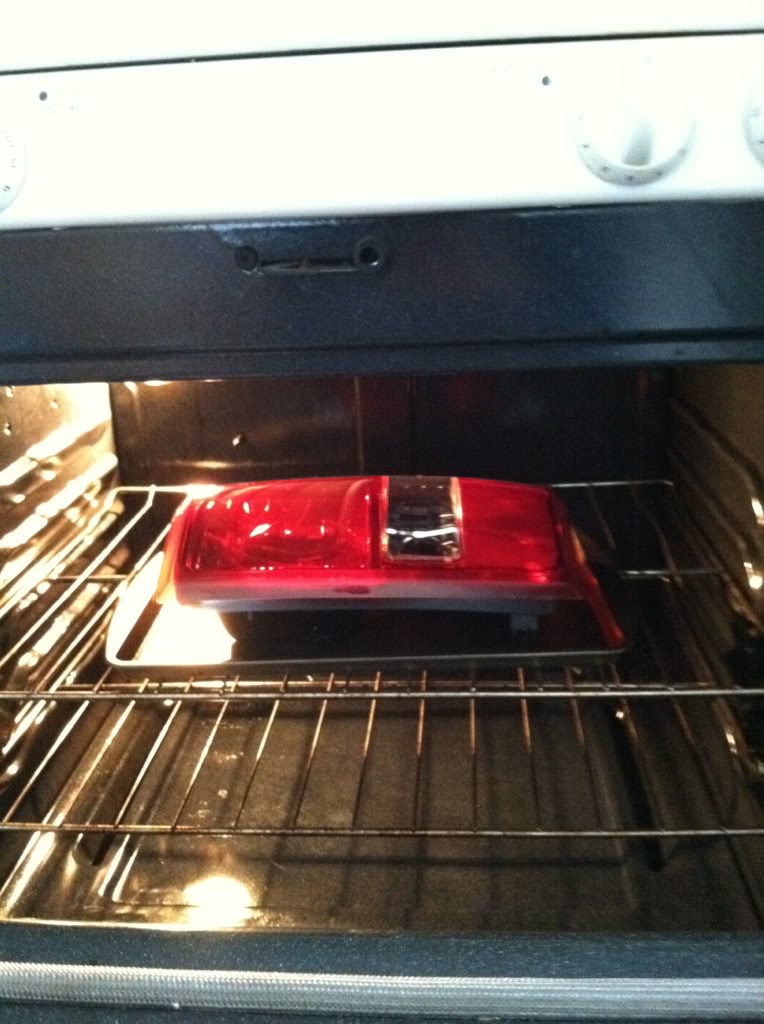

Step 1: Pre-heat your oven to 200 degrees. Once pre-heated, place your taillight on a cookie sheet and put it on the middle rack.
Name:  bd7a5d33.jpg
Views: 147
Size:  107.5 KB


Step 2: Keep your eye on the time. I took my light out every 5 minutes and worked the lens all the way around with the flathead screwdriver and put it back in for another 5 minutes and so on until it came apart. Always start on the bottom corner of the side that meets the tailgate. DO NOT TWIST THE SCREWDRIVER, UP AND DOWN ONLY. (took about an hour total to get the lens off)

Step 3: Once the lens is about to come off, you'll notice that the parts where the holes are for the screws on the lens itself wont let go. I used my hands and just held the lens and the housing apart steadily and it slowly started to let go on its own. Be careful not to snap or crack the lens or the housing.

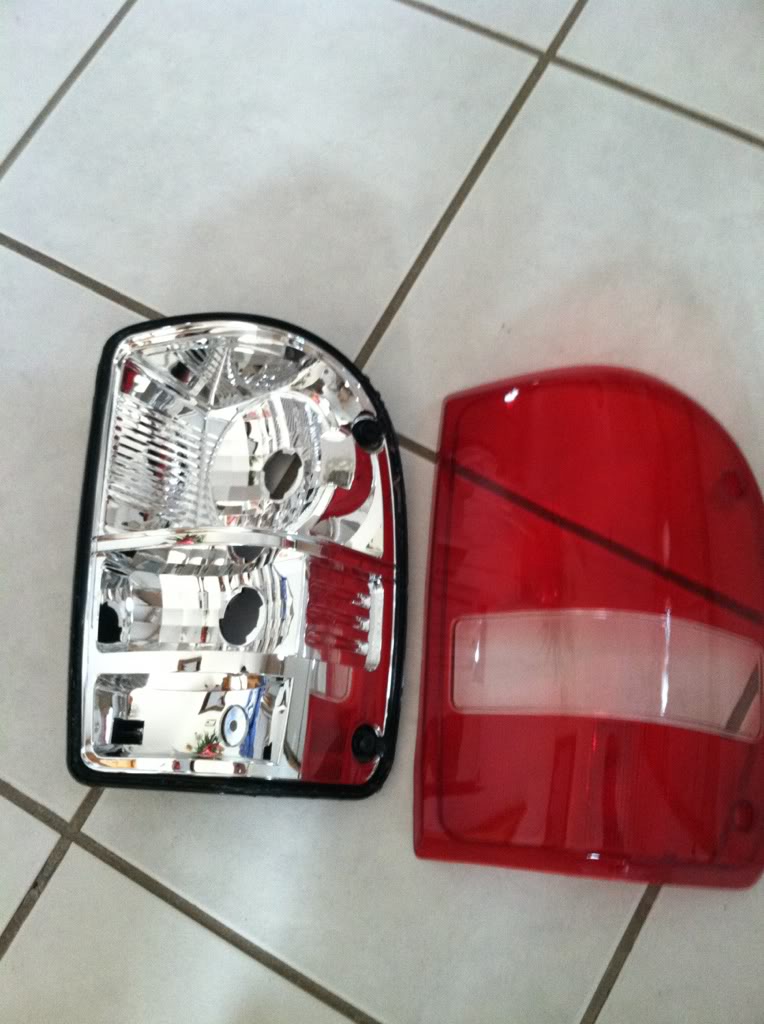

Step 4: Once you have separated the lens from the housing, quickly remove all the remaining glue off of the both parts. If it starts to harden up again, throw it back in the oven for 5 minutes and take it out and continue.
Name:  adf5e616.jpg
Views: 118
Size:  92.8 KB

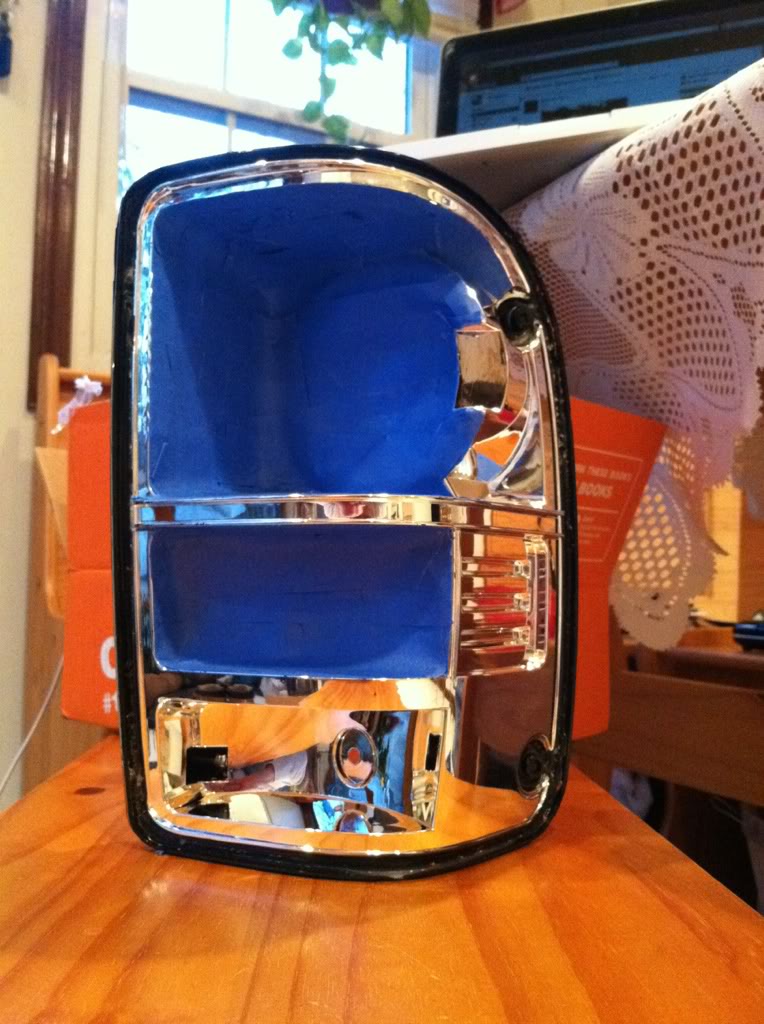

Step 5: Mask off what you don't want painted black. I was going for a replica of the Harley Davidson F150's so I masked it like below. Before you put a piece of tape onto the chrome, put the tape on your clothes somewhere a few times to take some of the stickiness off of it. If you don't, when you take the tape off you'll pull the chrome right off of the housing. Its really really delicate. Take your time masking it if you want it to come out good.
Name:  7933a139.jpg
Views: 140
Size:  124.1 KB

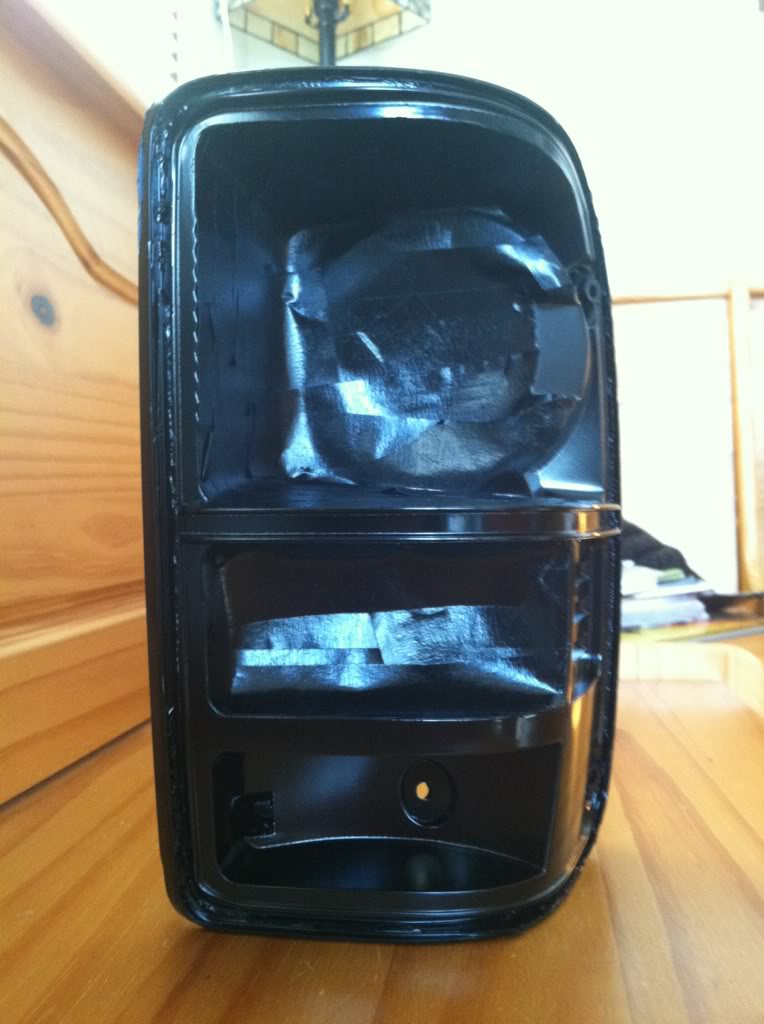

Step 6: Paint the housing with your Krylon Fusion satin black. I sprayed the first coat on, waited 15 minutes and went back and did another coat. (flip your taillight upside down to get the spots you miss and to ensure you covered everything). Let it dry for an hour.
Name:  73726a99.jpg
Views: 117
Size:  78.0 KB

Step 7: After you've let the light dry for an hour, pull the tape off slowly and carefully. Use your exacto knife if you need to lift up on the corners.
Name:  IMG_0999.jpg
Views: 113
Size:  76.5 KB

Step 8: Put on a pair of nitrile gloves and apply your sealant to the groove where the lens mounted inside the housing. I used this stuff called Lexel which can be applied at any temperature from 0-120*F because I've had great success doing the headlight mod with it. Spread and lay a decently thick bead and be quick with it. This stuff starts to dry somewhat fast.

Step 9: Place the lens into the housing. It will be a pain in the *** putting the screw holes through the lens. Press hard and you'll hear them pop into place. To hold it, I used two clamps and 4 bungee cords. Let it sit for a few days before removing anything you use to hold it together.
Name:  IMG_1012.jpg
Views: 114
Size:  93.8 KB

Step 10: Repeat 1-9 for the other side



Finished
Name:  IMG_1003.jpg
Views: 118
Size:  92.5 KB
Name:  IMG_1008.jpg
Views: 112
Size:  64.0 KB
Reply With Quote
  #2
Old 01-26-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Nice. Not what I thought it would look like. Very subtle. That would look good with a very light coating of niteshade.
Reply With Quote
  #3
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Not a fan of any nite shade, been there done that. Only ones i've seen that were nice were Beard's. These aren't getting any nite shade. they're dark enough. you'll see in the summer lol
Reply With Quote
  #4
Old 01-26-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I wonder if I would have to do the headlight mod also or if I could just do the tails.
Reply With Quote
  #5
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by morris View Post
I wonder if I would have to do the headlight mod also or if I could just do the tails.
u could just do the tails. headlight mod is just good practice since its the same concept just easier in terms of splitting the lens from the housing. Headlights took me 15 minutes a piece to split. this single tail took me a hair over an hour using the same process lol
Reply With Quote
  #6
Old 01-26-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
You enlightened me on one thing Pedro:

I originally thought that the reflective part was inside the tails (not on the lense)

Great job man. Like I said before, its not an insanely noticeable thing, but it is an awesome subtle touch.
Reply With Quote
  #7
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Taylor View Post
You enlightened me on one thing Pedro:

I originally thought that the reflective part was inside the tails (not on the lense)

Great job man. Like I said before, its not an insanely noticeable thing, but it is an awesome subtle touch.
haha yeah that stuff is so delicate and its on the housing not the lens lol I messed up a headlight by not putting the tape on my clothes a few times to remove some of its adhesive strength. In person its more noticeable next to the stock tail
Reply With Quote
  #8
Old 01-26-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by 99offroadrngr View Post
haha yeah that stuff is so delicate and its on the housing not the lens lol I messed up a headlight by not putting the tape on my clothes a few times to remove some of its adhesive strength. In person its more noticeable next to the stock tail
I was talking about the reflective part that lights up when nother person's headlights hit them.

Like the reflective safety stuff that you can put on vests, and trailers and stuff like that.

lol.
Reply With Quote
  #9
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Taylor View Post
I was talking about the reflective part that lights up when nother person's headlights hit them.

Like the reflective safety stuff that you can put on vests, and trailers and stuff like that.

lol.
ohhhhhh hahah yeah. its textured on the inside of the lens.
Reply With Quote
  #10
Old 01-26-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
looks awesome!
Reply With Quote
  #11
Old 01-26-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
I think it would looks good to leave only the inner circle on the top light chrome, like paint more of the inside of the housing, but leave a reflective circle.
They look good as are though. go find a ranger and stick em on for a pic.
Reply With Quote
  #12
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 2004xlmiller View Post
looks awesome!
thanks

Quote:
Originally Posted by SteelDirigible View Post
I think it would looks good to leave only the inner circle on the top light chrome, like paint more of the inside of the housing, but leave a reflective circle.
They look good as are though. go find a ranger and stick em on for a pic.
Yeah i thought about it but just stuck with the f150 design. They have a curved top not a flat side on the inner part closest to the tailgate though. I could always do another set to see how it looks and have as a spare set.
Reply With Quote
  #13
Old 01-26-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I would do it like Pedro's. Anymore and you cut down on the side reflection of the bulb
Reply With Quote
  #14
Old 01-26-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Quote:
Originally Posted by 2004xlmiller View Post
looks awesome!
Ten-fo!
Reply With Quote
  #15
Old 01-26-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I just looked again. It gives the illusion of it being night shaded, I retract what I said about a thin layer of tint.
Reply With Quote
  #16
Old 01-26-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by morris View Post
I just looked again. It gives the illusion of it being night shaded, I retract what I said about a thin layer of tint.
That illusion is very present in person lol its hard in the pic
Reply With Quote
  #17
Old 01-26-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks great!
Reply With Quote
  #18
Old 01-26-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
I cant get over how awesome this is.

Its subtle, and a super clean mod.

Next chance I get, im ordering some 06 tails.
Reply With Quote
  #19
Old 01-26-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks cool!
Reply With Quote
  #20
Old 06-23-2012
nelson22's Avatar
Member

Join Date: Jun 2012
Location: Kasson, MN
Posts: 4
looks cool, now lets see em on the truck
Reply With Quote
  #21
Old 06-23-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
yeah what happened to this? you have a truck now.
Reply With Quote
  #22
Old 06-23-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
They look GOOD on the truck.

In the near future I WILL have a set lol (if Pedro will)

I have a pic on my phone.
Reply With Quote
  #23
Old 06-24-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Your post makes no sense lol
Reply With Quote
  #24
Old 06-24-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Check his build thread on his truck. They're mounted
Reply With Quote
  #25
Old 06-24-2012
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
?
Reply With Quote
