How To: Rear Gap Guards

Tired of seeing this??
Name:  Untitled-3-3.jpg
Views: 41
Size:  42.3 KB

Then this is for you. First go to home depo and pick up some step guard. It should be around $10. Also get some self tapping screws while you their.
Name:  Untitled-2-4.jpg
Views: 33
Size:  51.7 KB

Roll it out and let the sun heat it up a bit. It will make it easier to work with.

Measure from front to rear of the wheel well. Then from the fram to whell well. Add those together and cut the step guard to lenth.
Name:  Untitled-1-4.jpg
Views: 33
Size:  45.0 KB

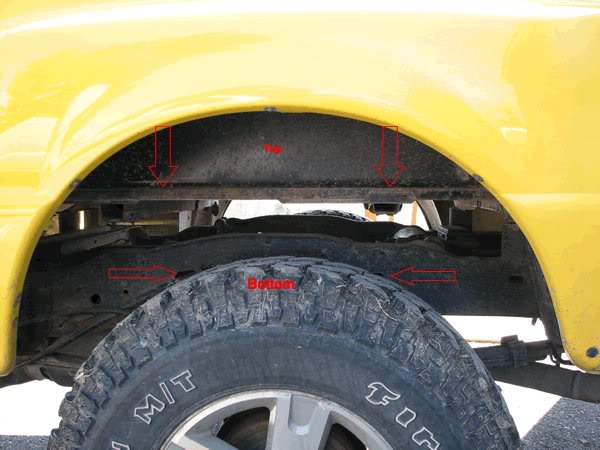

Then measure from top to bottom. And cut the lenth.
Name:  topbottom.jpg
Views: 43
Size:  43.0 KB
Name:  Untitled-4-1.jpg
Views: 32
Size:  47.3 KB

Start with the rear of the wheel well. (Pre drill for the self tapping screws) Then pre drill in the plastic for the retainers.
Name:  Untitled-62.jpg
Views: 34
Size:  64.0 KB

Continue along the top rail to the front of the wheel well and do the same for the front as you did for the rear.

You could be done at this step, but I did one more step to make sure the guards woudn't rub into the tire while driving.

On each side of the fram theirs two holes that you can use zip ties to hold the guard. I like using the zip ties because on the driver side youll run into the gas lines, didnt want to mess up the lines.
Name:  zipties.jpg
Views: 32
Size:  42.5 KB

You dont have to have the zip ties all the way tight. You just want it to hole it in place and not go towards the tire.
Name:  Untitled-8.jpg
Views: 35
Size:  45.2 KB

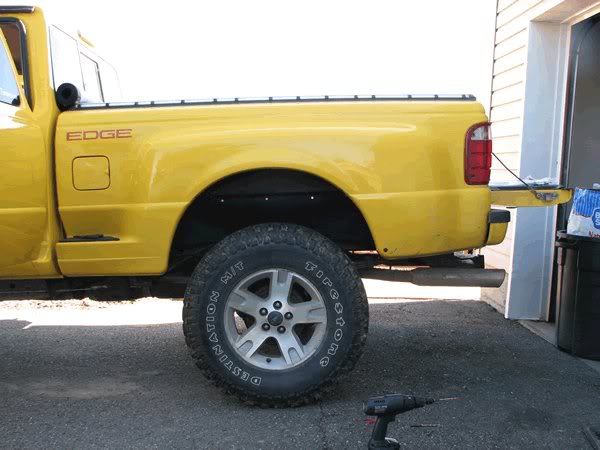

Go to the other side and repeat, now you done and can enjoy no more gap.
Name:  Untitled-33.jpg
Views: 36
Size:  48.5 KB
Name:  Untitled-9.jpg
Views: 32
Size:  42.5 KB
Reply With Quote
  #2
Old 01-03-2013
Member

Join Date: Sep 2012
Location: hedgesville WV
Posts: 62
Icon14 A good Buy !

Hello going to do front and back on my ranger.

Thanks Al
Reply With Quote
  #3
Old 01-05-2013
green99's Avatar
Member

Join Date: Apr 2010
Location: OR
Posts: 199
Looks much better! I would paint those self tapers black, so you can't see them.
Reply With Quote
  #4
Old 01-07-2013
Member

Join Date: Sep 2012
Location: hedgesville WV
Posts: 62
Icon7 gaurds

I plan to use push pins the locking ones.
Reply With Quote
  #5
Old 03-11-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Just saw this, good idea.
