2006 FX4 Shifter

I am looking to putting an FX4 shifter in my 05 XLT and wondered if anyone had any part numbers or pictures of an 05 or 06 FX4 Shifter and shifter ****? I wondered if these years are any different than the parts listed in the "How to shifter install" ? Any help would be greatly appreciated.
Thanks!
Reply With Quote
  #2
Old 03-08-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
I don't have any pictures of mine or part numbers, but I can tell you that the old shifter and the new one will swap out easily. Simply unbolt one and bolt the new one on.
Reply With Quote
  #3
Old 03-08-2006
Member

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Heres the numbers for you: FX4 arm: 1L5Z7210BC, Shift ball: 1L5Z7213AA. There is a page on how to swap them out here it is:
http://silvertank.batcave.net/FXShift.html
Reply With Quote
  #4
Old 03-08-2006
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Here's the installed shot in a regular shifter console:



Don't forget you'll need to either make a boot or buy an aftermarket one. Can't use a stock fx4 one i think. Can't wait to do mine.

Shane

Last edited by Fx4wannabe01; 03-08-2006 at 09:51 PM.
Reply With Quote
  #5
Old 03-08-2006
bmwysocki's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Chambersburg, PA
Posts: 61
Hey, thanks for the help, but isn't the install for 2003 FX4 parts? I was hoping to find this years part numbers. If Im wrong, please let me know. I am anxious to get this done, it looks really cool.
Reply With Quote
  #6
Old 03-09-2006
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
Isn't it the same part? I think the only thing that changed after 2003 was the t-case shifter and boot disapeared. On my 2003 the trans and t-case shifters are seperate. The entire assembly is 2 part, w/ the exception of the trim ring that secures to the floor.

Or are you asking about that trim ring too? I could see that the '04+ assembly, including trim ring could be a direct swap to a non LII truck, now that the t-case lever and cutout is out of the picture..
Reply With Quote
  #7
Old 03-09-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
yep same part as a 02-05 level II minus the missing manual transfer case in 04...
Reply With Quote
  #8
Old 03-09-2006
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
The trim ring has to be different.. maybe that's what he's after?
Reply With Quote
  #9
Old 03-09-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by NHBubba
The trim ring has to be different.. maybe that's what he's after?
it is. in 04+ the trim ring is the same as a regular manual cup holder thingy...
Reply With Quote
  #10
Old 03-09-2006
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
Really? I thought it was faux-chrome, like in the '02/'03.. just w/o the t-case part.

If it is the same, then maybe there is a new boot that works w/ the regular cup holder assembly.

We need some illustrations. Who's got a '04+ LII w/ the manual trans?
Reply With Quote
  #11
Old 03-09-2006
HAZZARDJOHN's Avatar
Member

Join Date: Dec 2005
Location: Wyoming MN
Posts: 2,400

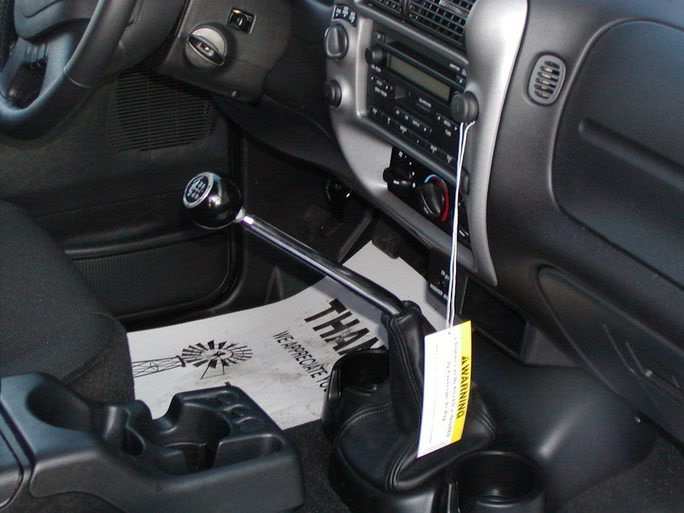

Here's what mine looks like in an 04. I think this boot will work with the stock console. it appears to be the same as mine.

Name:  shifter.jpg
Views: 222
Size:  50.2 KB
Reply With Quote
  #12
Old 03-09-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by NHBubba
Really? I thought it was faux-chrome, like in the '02/'03.. just w/o the t-case part.

If it is the same, then maybe there is a new boot that works w/ the regular cup holder assembly.

We need some illustrations. Who's got a '04+ LII w/ the manual trans?
yes there is a new boot just like he posted up there ^^
Reply With Quote
  #13
Old 03-09-2006
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
Quote:
Originally Posted by HAZZARDJOHN
Here's what mine looks like in an 04. I think this boot will work with the stock console. it appears to be the same as mine.
Doh.. I coulda swore the '04 I saw had a chrome ring similar to my '03.. My bad.

There must be a different part number for the boot then..
Reply With Quote
  #14
Old 03-09-2006
bmwysocki's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Chambersburg, PA
Posts: 61
Thanks for everything guys. I didn't realize Ford removed the transfer case lever on the 04-06. And my original question was if the arm or the ball changed part numbers since 03 but I am assuming they are the same. Boy that boot will look nice on my 05 XLT since the cupholder assembly is the same as what I have. I just hope I can get the boot, shifter, and **** at a decent price! Thanks for the pictures!
Reply With Quote
  #15
Old 03-09-2006
Member

Join Date: Jun 2005
Location: Fuquay-Varina, NC
Posts: 506
this looks to be a promising addition to my site
Reply With Quote
  #16
Old 03-09-2006
bmwysocki's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Chambersburg, PA
Posts: 61
As Ive been emailing you.... Im sure plenty of people would like to get their hands on these parts since its a direct fit.
Reply With Quote
  #17
Old 03-09-2006
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
Quote:
Originally Posted by Fx4wannabe01
Here's the installed shot in a regular shifter console:



Don't forget you'll need to either make a boot or buy an aftermarket one. Can't use a stock fx4 one i think. Can't wait to do mine.

Shane
yea thats my shifter, its not the factory boot, the guy i baught it from gave it to me. I dunno the brand

The shifter ain't cheap... its like 300$ from factory but you'd never believe how much i paid for it, about a quarter of that
Reply With Quote
  #18
Old 03-09-2006
Member

Join Date: Jun 2005
Location: Fuquay-Varina, NC
Posts: 506
Quote:
Originally Posted by a311fanam
The shifter ain't cheap... its like 300$
i can beat that easy

anybody know the part number for the boot? this'll make a killer set
Reply With Quote
  #19
Old 03-09-2006
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
This will be my next mod i do believe. I've been saying that for a year!

Quote:
Originally Posted by a311fanam
yea thats my shifter, its not the factory boot, the guy i baught it from gave it to me. I dunno the brand

The shifter ain't cheap... its like 300$ from factory but you'd never believe how much i paid for it, about a quarter of that
YUP...it's yours. I copied that from back in the Gen-Edge.com days. Still got all the install pics too. Now, do i need to pay you royaltys?? haha.

Quote:
Originally Posted by redneckstone
yep same part as a 02-05 level II minus the missing manual transfer case in 04...
Update: same shifter 02-06. '06 brochure has a pic of it.
Reply With Quote
  #20
Old 03-10-2006
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
Quote:
Originally Posted by bmwysocki
I didn't realize Ford removed the transfer case lever on the 04-06.
Just as background: the '02 FX4 and '03 FX4 LII's had a manual transfer case on trucks equipped w/ the manual trans. Starting in '04 they eliminated the manual t-case and went back to the electric t-case, but kept the fancy shifter. Trucks equipped w/ the automatic had the electric t-case for all years.
Reply With Quote
  #21
Old 03-10-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
2002 FX4, 2003 FX4 Level II:






2004-up FX4 Level II:



Reply With Quote
  #22
Old 03-10-2006
elmo_4_vt's Avatar
Member

Join Date: Jun 2005
Location: Wilmington DE
Posts: 377
Way to rub that one in Bob...
Reply With Quote
  #23
Old 03-10-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by elmo_4_vt
Way to rub that one in Bob...
I was going to do the old routine:

"This is your brain"
"This is your brain on drugs"
"Any questions?"

but I thought it was unnecessarily rude.....
Reply With Quote
  #24
Old 03-12-2006
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
We all love this man we all call B-O-B.
Reply With Quote
  #25
Old 03-12-2006
Member

Join Date: Sep 2005
Location: Ohio
Posts: 17
Anyone get a part number on that factory shift boot yet?? I want to order one!!!
