  #26
Old 12-05-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Quote:
Originally Posted by dixie_boysles View Post
as long as you do it, the the truck looks sooo good for small details like that. could you can it with material covered sheetmetal somehow? How does the dash fit, i love things like this when done correctly. I mean does it fit good and somehow looks like it belngs, or does it ill-fit with gaps at the window and stuff
Ya the dash fits great, the dash has some wood on it. The wood in the bed, and dash has all been stained an ebony color. Kinda like blackwood. My buddy and I are goin to build a center console pretty soon.

Quote:
Originally Posted by powerranger262 View Post
I see some JL's peeking out in that first pic. Any more pics of your audio setup?
Want some audio pics, go here. I made a booming build thread.
https://www.ranger-forums.com/audio-...l-w1v2-136459/
Reply With Quote
  #27
Old 12-05-2012
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Love it man, but I'm not a huge fan of the front end. It's still a great looking truck though!
Reply With Quote
  #28
Old 12-07-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
The front end is gangster as.... Thanks though. I got the hood and grill in the shop right now. Nice change is about to happen. Two weeks.

I had MT designs do some center console renderings.

Attached Thumbnails
Abe's interior build thread (with pics)-untitled-1copy.jpg
Reply With Quote
  #29
Old 12-11-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551

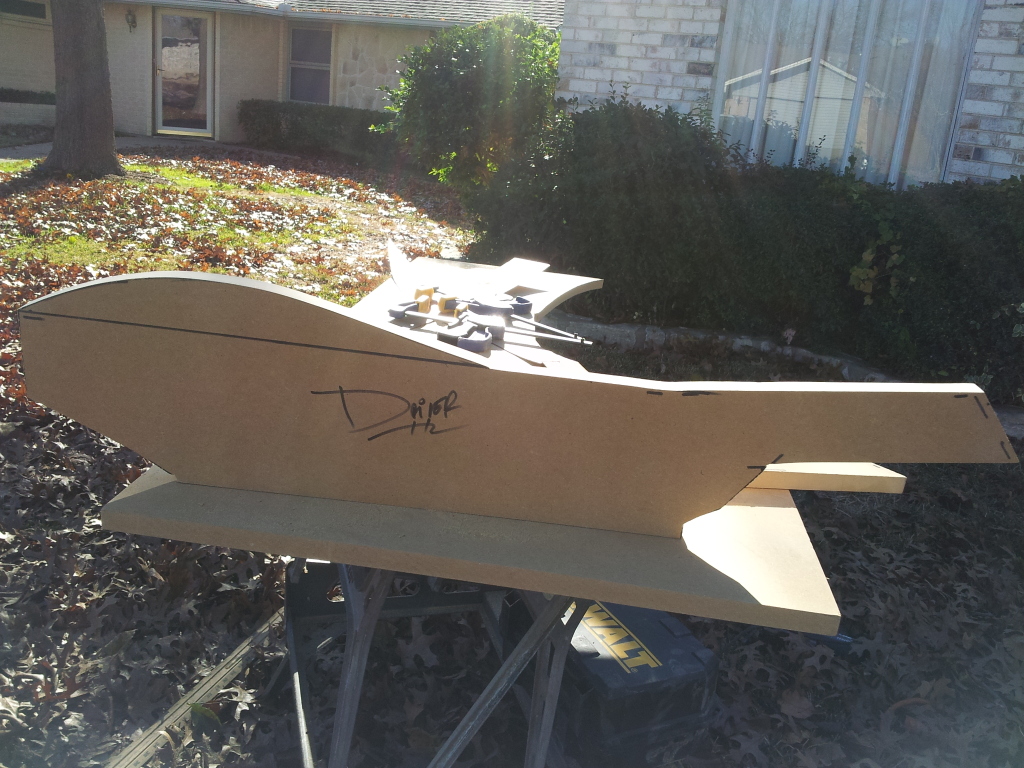

I liked the bottom rendering, MT designs is building a custom center console, it will have some billet cup holders and a black and gray leather wrap.

In progress.

Attached Thumbnails
Abe's interior build thread (with pics)-console.jpg
Reply With Quote
  #30
Old 12-11-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551

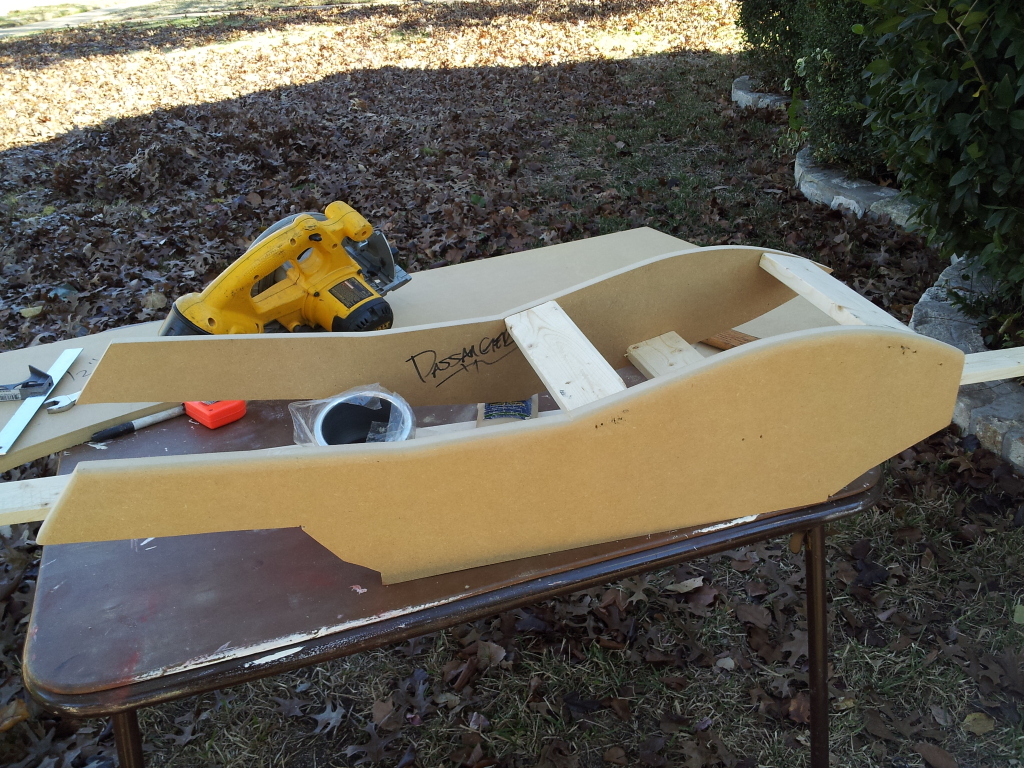

More progress pics.





Attached Thumbnails
Abe's interior build thread (with pics)-2012-12-11123442.jpg   Abe's interior build thread (with pics)-2012-12-11140043.jpg   Abe's interior build thread (with pics)-2012-12-11140056.jpg
Reply With Quote
  #31
Old 12-13-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Do work daily

Attached Thumbnails
Abe's interior build thread (with pics)-console2.jpg
Reply With Quote
  #32
Old 12-14-2012
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i am going to guess the console is going to be glassed and painted? or will it be covered? either way it is starting to really look good
Reply With Quote
  #33
Old 12-14-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Ya, looking good, nice work ?

Is it really wide for a Ranger ?

How wide is it ?
Reply With Quote
  #34
Old 12-14-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
First off thanks for the comments. I was starting to think I was doing it wrong or this forum is getting quiet.

Kyle, the console will have black carpet on the side with gray matching the seats on top.

Grev, kinda the console is exactly 10 inches wide. I narrowed the cav seats about an inch on each side.

Test fit went well. Took some measurements and got some ideas for the boot.
Attached Thumbnails
Abe's interior build thread (with pics)-testfit_zpsbe19e79e.jpg
Reply With Quote
  #35
Old 12-14-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by <TX>TORKiT View Post
First off thanks for the comments. I was starting to think I was doing it wrong or this forum is getting quiet.

Kyle, the console will have black carpet on the side with gray matching the seats on top.

Grev, kinda the console is exactly 10 inches wide. I narrowed the cav seats about an inch on each side.

Test fit went well. Took some measurements and got some ideas for the boot.
OK on the narrow seats.

Consoles looks good test fit…
The boot area look bog too, are you going to fill in around it more. before doing a boot.

Is the B&M Slap shifter staying, do you know the trick to make it a slap shifter ?
I used the Mr Gasket Vertical Gate on my ’88/5.0 Ranger but I think it was the same shifter.

Keep the pics coming.
Reply With Quote
  #36
Old 12-14-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Looks sweet. You plan on building anything to match up to the dash?
Reply With Quote
  #37
Old 12-14-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Yes the test fit was to get it sitting level and take some measurements to build around the boot. Its still in the works. I took the T handle off the shifter for mock up. I may be going with another ****. This truck has a TH350 transmission, thats the secret.
Reply With Quote
  #38
Old 12-29-2012
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551

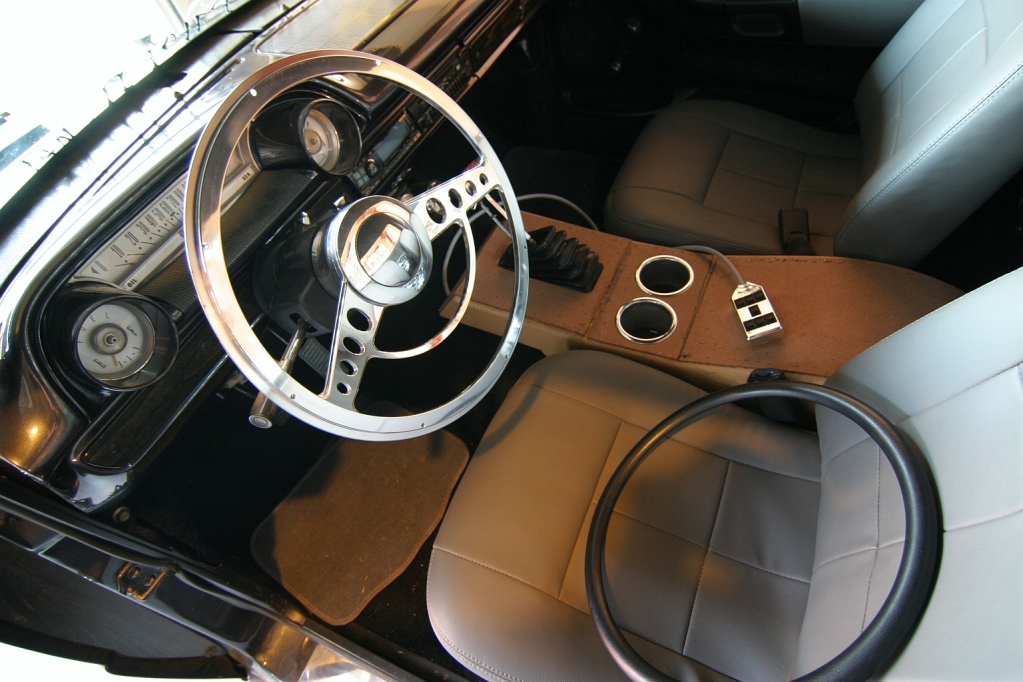

Thanks, Abe is coming along slowly. Mr. C upholstery is ready to wrap the center console Marcus over at MT designs finished up. He talked me into color matching the half wrap steering wheel with the seats. These items are going into the shop this week. The guages are going to be addressed hopefully before LST. :aa:

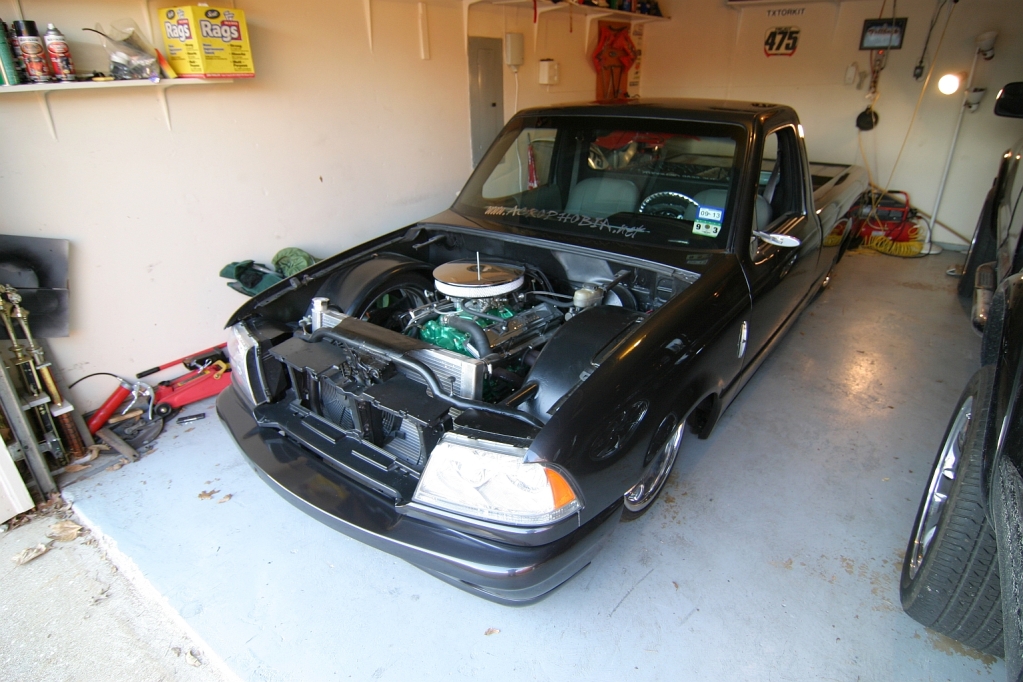

Pic of the new air cleaner. The hood still is at East Texas Jason's shop getting some things taken care of.

Attached Thumbnails
Abe's interior build thread (with pics)-wheelwrap.jpg   Abe's interior build thread (with pics)-lowproaircleaner.jpg
Reply With Quote
  #39
Old 01-01-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Sick Nasty. Whats up with the Gauges?
Reply With Quote
  #40
Old 01-01-2013
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Nice! You are really cleaning it up.
Reply With Quote
  #41
Old 01-02-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by StxDangerRanger View Post
Sick Nasty. Whats up with the Gauges?
Looks to me like classic 60's era gauges retrofitted to work with that engine.

Maybe 50's
Reply With Quote
  #42
Old 01-02-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 01RangerEdge View Post
Looks to me like classic 60's era gauges retrofitted to work with that engine.

Maybe 50's
Mid 60's Galaxy.

Thems sweet homie.
Reply With Quote
  #43
Old 01-04-2013
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Quote:
Originally Posted by StxDangerRanger View Post
Sick Nasty. Whats up with the Gauges?
They no worky. It is a 1964 Galaxy dash.

Thanks, guys. Im heading to Mr. C's shop right now to discuss the stitching plans.
Reply With Quote
  #44
Old 01-04-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by <TX>TORKiT View Post
They no worky. It is a 1964 Galaxy dash.

Thanks, guys. Im heading to Mr. C's shop right now to discuss the stitching plans.
They should be cable driven gauges. Find a pre 95 ranger dash. Those ones were cable driven. Parts might be able to be modified.
Reply With Quote
  #45
Old 01-25-2013
<TX>TORKiT's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Thanks guys, I just got home from Mr. C upholstery. We went with a floating style center console. Black carpet on the side with gray top. The half wrap billet got the matching treatment too. I overexposed the photos like a boss. Time to work out the gauges.





East Texas Jason sent me a pic of Abe's hood and grill in primer today.
Attached Thumbnails
Abe's interior build thread (with pics)-abeconsole2.jpg   Abe's interior build thread (with pics)-abeconsole.jpg
Reply With Quote
  #46
Old 01-25-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
that is one sexy *** interior
Reply With Quote
