ScanGaugeII w/ BlendMount

I was wondering if anybody has used the ScanGuageII with a BlendMount?

I'm thinking of getting one just want to see how it looks and such...
Reply With Quote
  #2
Old 06-30-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Is the blend mount the one that attaches to the mirror? If so, it'll be in direct sunlight and the owners manual says not to put the ScanguageII in direct sunlight.
Reply With Quote
  #3
Old 06-30-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Alon uses one with no problems.
Reply With Quote
  #4
Old 06-30-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
I was thinking about getting one of those but i'm not sure about the price. So what i was thinking of doing instead is using some of that 3M super adheasive tape(grey & red stuff) and mounting it directly onto the bottom of the mirror then running the wire up into the headliner and down the a-piller. Just haven't gotten to it yet

*side note I put up a sunshade anyways whenever my truck is parked
Reply With Quote
  #5
Old 06-30-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788

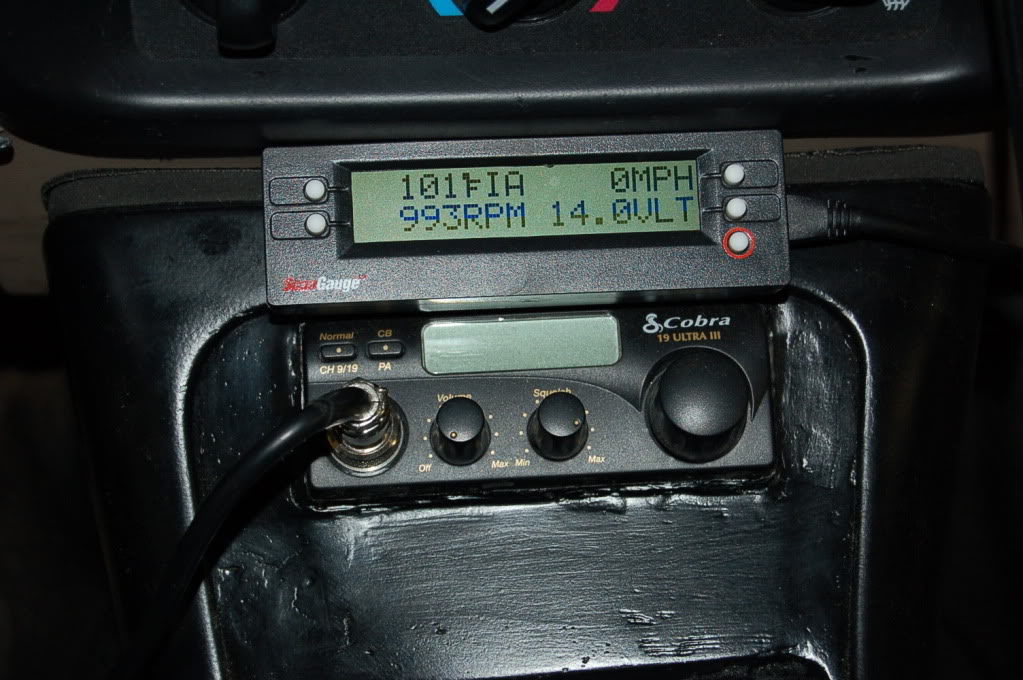

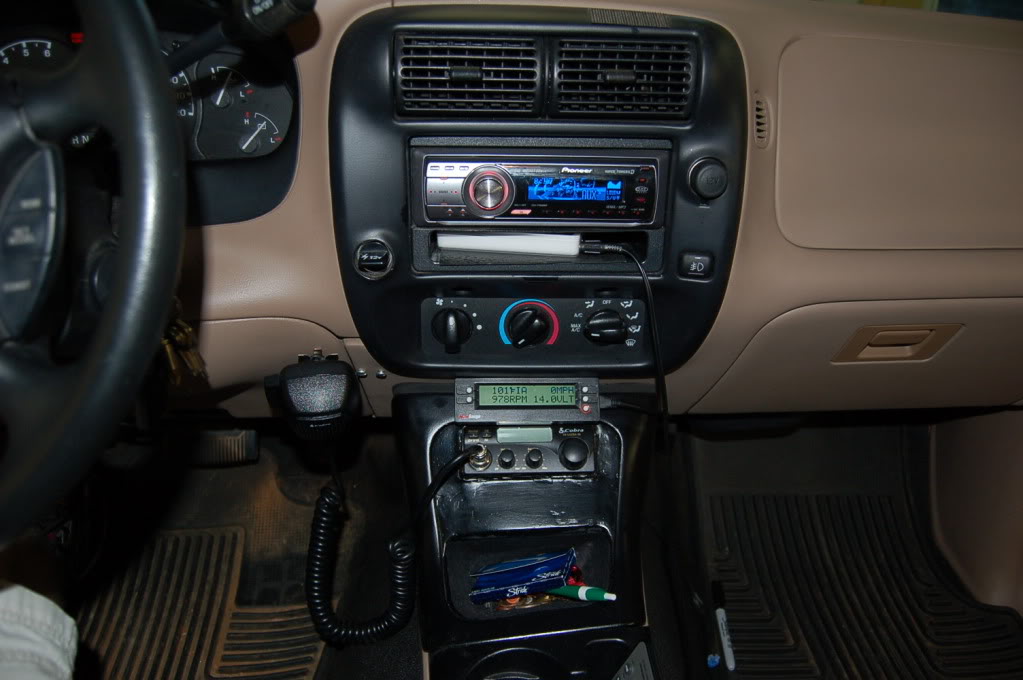

Here's where I mounted mine:
Name:  DSC_0019-2.jpg
Views: 0
Size:  155.8 KB
Name:  DSC_0018-3.jpg
Views: 0
Size:  113.9 KB
Reply With Quote
  #6
Old 06-30-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by Trigger01 View Post
Here's where I mounted mine:

lol your cb is in the same exact spot as mine. same cb too. but i dont have a molding over the top of the cubby

but thats where i'll probably mount my scanguage when i get it as well
Reply With Quote
  #7
Old 06-30-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
and does the scanguage display kr?
Reply With Quote
  #8
Old 06-30-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by Tys 4x4 FTW View Post
lol your cb is in the same exact spot as mine. same cb too. but i dont have a molding over the top of the cubby

but thats where i'll probably mount my scanguage when i get it as well
Pics por favor!
Reply With Quote
  #9
Old 06-30-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
ill get some asap lol
oh and i have almost the same CB. mine has the rf gain adjustment as well
Reply With Quote
  #10
Old 06-30-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
here's mine... removed from my mirror due to overheating from southern heat...



Reply With Quote
  #11
Old 06-30-2009
Black Anger's Avatar
Member

Join Date: Apr 2008
Location: Ontario 905
Posts: 311
I want the mirror mounted scan gage as well I think I would pick above the mirror rather than below the mirror, anyways I have been thinking about it for a bit.
Reply With Quote
  #12
Old 06-30-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
I'm also possibly thinking about mounting mine on the radio insert kit pocket if its large enough right below my pioneer P5000-UB. Other then that or the mirror there isn't really any other good places to put it especially since i use my cup holders a cubby in the little console.
Reply With Quote
  #13
Old 07-01-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by GrafixGuy View Post
here's mine... removed from my mirror due to overheating from southern heat...



why is your bezel black?
i thought the newer ones were silver, mine is...
Reply With Quote
  #14
Old 07-01-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by GrafixGuy View Post
here's mine... removed from my mirror due to overheating from southern heat...



What did you use to mount yours there? Also do you have any pics of how you ran the wire behind the SG? I have mine mounted up by the gauge cluster for now.
Reply With Quote
  #15
Old 07-01-2009
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979

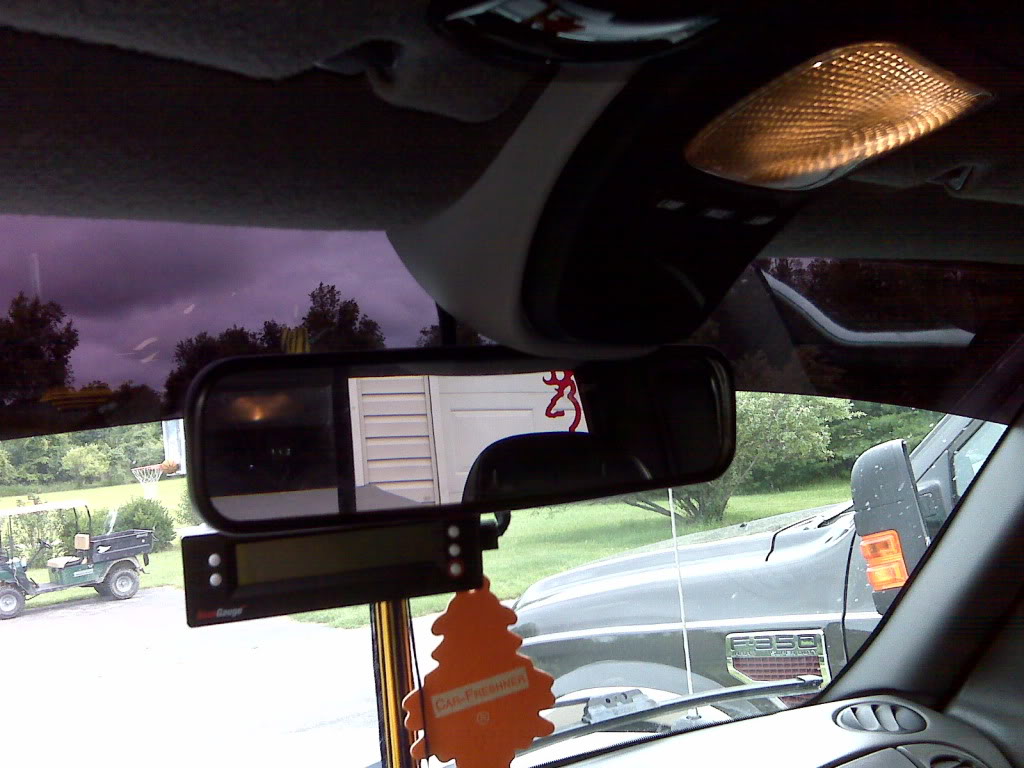

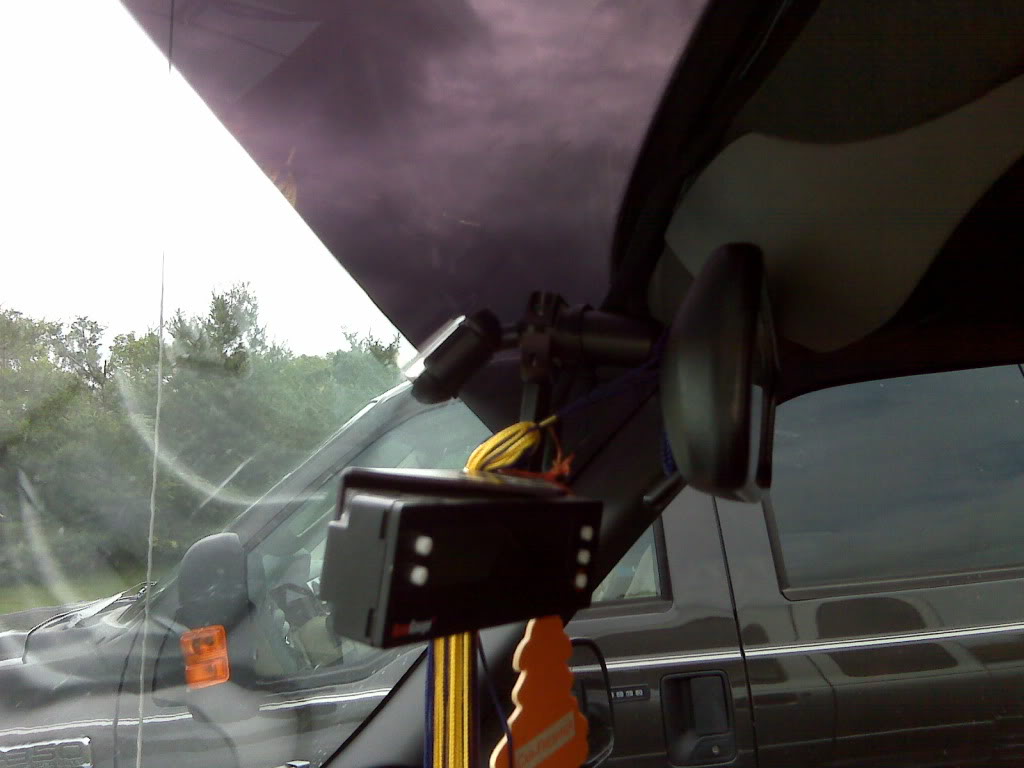

Mine is mounted to my mirror. Due to the OHC it has to be mounted to the underside of the mirror.
Name:  IMG00222.jpg
Views: 0
Size:  117.3 KB
Name:  IMG00223.jpg
Views: 0
Size:  78.5 KB
Reply With Quote
  #16
Old 07-01-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by silverstreak4x4 View Post
Mine is mounted to my mirror. Due to the OHC it has to be mounted to the underside of the mirror.

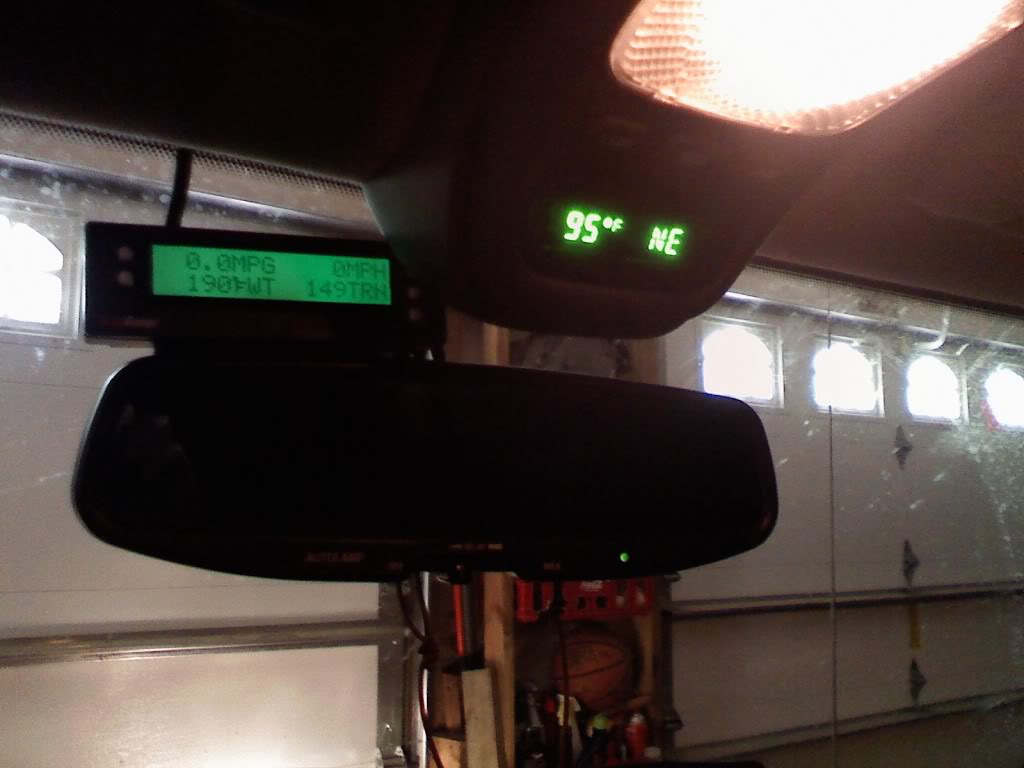

No it doesn't, I had my SG on top of the mirror with a OHC.

Name:  0425091724.jpg
Views: 0
Size:  62.8 KB
Reply With Quote
  #17
Old 07-01-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Anybody have pics of the SGII with the mirror mount on top of the mirror w/o an OHC?
Reply With Quote
  #18
Old 07-01-2009
seminaryranger's Avatar
Member

Join Date: Apr 2006
Location: Ganado, TX
Posts: 356

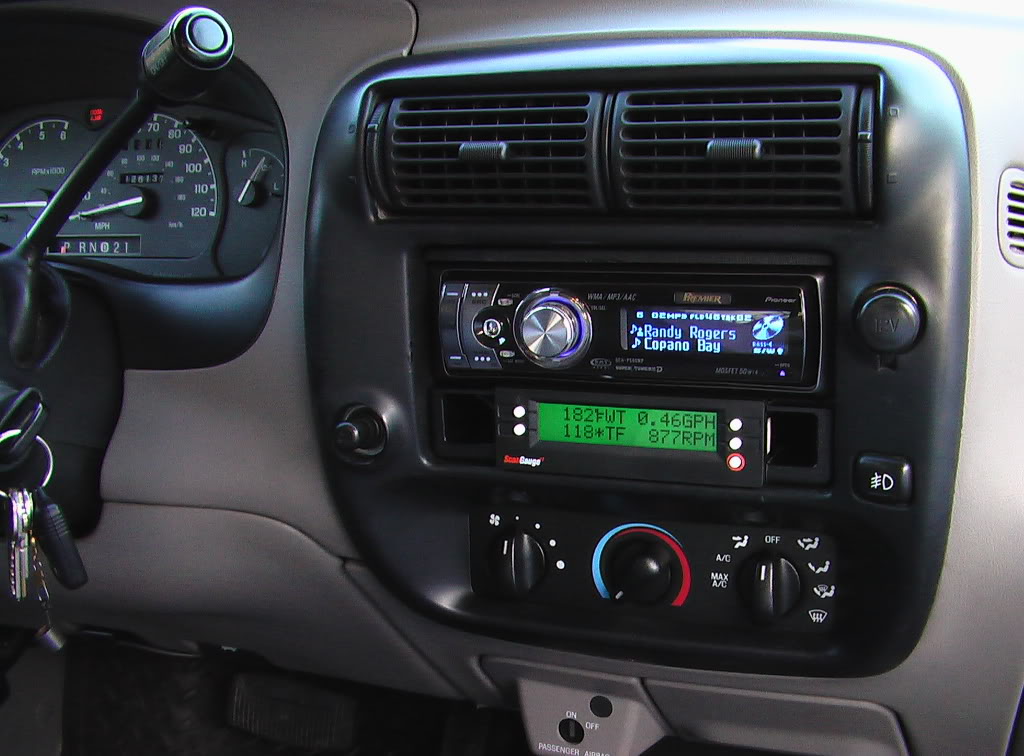

I fit my ScanGauge under the stereo.
I never finished closing in the edges, but it looked pretty good there.

Name:  009.jpg
Views: 0
Size:  108.4 KB

Name:  Jan09001.jpg
Views: 0
Size:  114.2 KB
Reply With Quote
  #19
Old 07-01-2009
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Quote:
Originally Posted by 04blackedge View Post
No it doesn't, I had my SG on top of the mirror with a OHC.
You also dont have the blend mount. Plus it is kinda crammed in behind the OHC.
Reply With Quote
  #20
Old 07-01-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ah yeah your right, didn't feel like spending 50 bucks on something I could do for under a dollar
Reply With Quote
  #21
Old 07-01-2009
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
if you mount to the mirror without the blendmount, you will still need an extension to reach the data port. Blendmount includes it in the kit. This is assuming you hide the wiring in the a-pillar.

The extension may be a radio shack product. Not sure. The point is this- if you end up spending $20 for the wiring, the extra $20 for just the blendmount with the wiring seems very reasonable.
Reply With Quote
  #22
Old 07-01-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Quote:
Originally Posted by seminaryranger View Post
I fit my ScanGauge under the stereo.
I never finished closing in the edges, but it looked pretty good there.



now that I like :) I'm jut not sure about doing it on mine with the stupid bend in the plastic stereo insert kit that most of them develop. Looks like you have a different one.
Reply With Quote
  #23
Old 07-01-2009
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Quote:
Originally Posted by 04blackedge View Post
Ah yeah your right, didn't feel like spending 50 bucks on something I could do for under a dollar
Agreed the thing is nice but definetly not worth the amount I spent on it.
Reply With Quote
  #24
Old 07-01-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Quote:
Originally Posted by silverstreak4x4 View Post
Agreed the thing is nice but definetly not worth the amount I spent on it.
indeed. Now if it were $25 I would go for one of those mounts as well. It seems way over priced if you ask me
Reply With Quote
  #25
Old 07-04-2009
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Quote:
Originally Posted by Trigger01 View Post
Here's where I mounted mine:


thats where mine is too
Reply With Quote
