Camera Mounting!

I had this idea after many failed attempts for a backup camera mounting position.

I think I have figured out the perfect solution.

With about 1.50 in nuts,washers, and a bolt I have this:


Whaddya think?
Attached Thumbnails

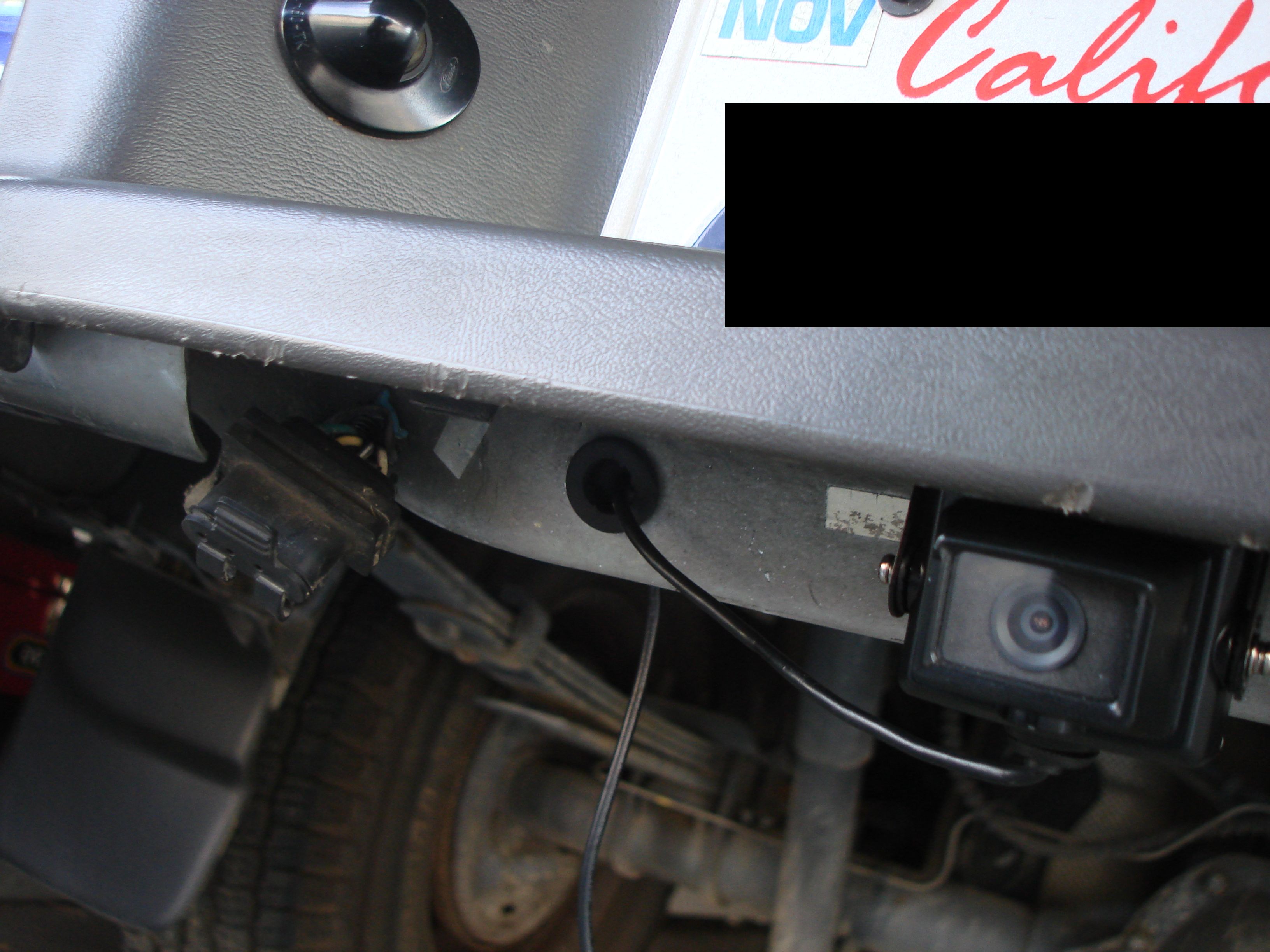

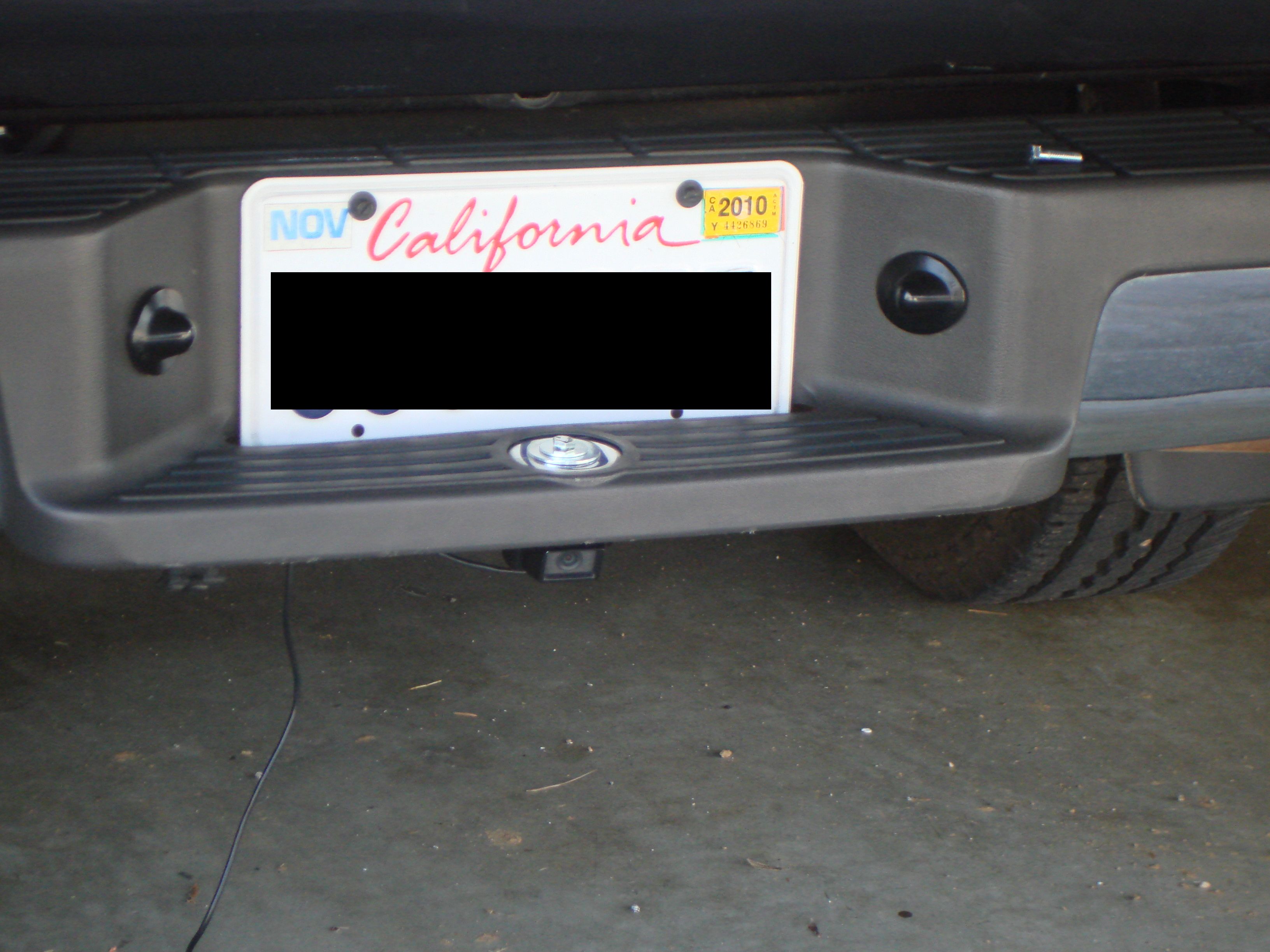

Camera Mounting!-bolts.jpg   Camera Mounting!-mounted.jpg   Camera Mounting!-rear.jpg
Reply With Quote
  #2
Old 09-28-2010
darangerdanger's Avatar
Member
iTrader: (1)

Join Date: Aug 2010
Location: scappoose.oregon
Posts: 1,169
nice work man!

i've been debating doing a backup camera too. cartoys has one thats already built in to a license plate frame so the camera is all flush the way its setup but it's like $200 lol. i'll turn my head instead
Reply With Quote
  #3
Old 09-28-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
How's the view?

I like the mount. Hopefully road debris won't break it
Reply With Quote
  #4
Old 09-28-2010
BufordT9's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Los Angeles, CA
Posts: 38
The view is good, I will have a pic of it soon.

Cheapest mount I've ever had to make.
Reply With Quote
  #5
Old 09-28-2010
BufordT9's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Los Angeles, CA
Posts: 38
Quote:
Originally Posted by darangerdanger View Post
nice work man!

i've been debating doing a backup camera too. cartoys has one thats already built in to a license plate frame so the camera is all flush the way its setup but it's like $200 lol. i'll turn my head instead
I wanted to do a license plate frame camera too, I think that is the ideal position. But I got this camera on clearance (brand new in box) at best buy for 21 dollars. It is usually a 100 dollar camera from what I can tell.

I still have to turn my head, just down to my 7" head unit! :)
Reply With Quote
  #6
Old 09-28-2010
BufordT9's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Los Angeles, CA
Posts: 38
Also i just ran the wires through a grommet and a hole that already existed in the bumper. It fits perfect I think.
Reply With Quote
  #7
Old 09-28-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
thats pretty good idear
Reply With Quote
  #8
Old 09-28-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Gosh *scratches head* With the view you get from a ranger, im always puzzled as to why you need a backup camera? Use your mirrors, or just flip an arm over the passenger seat and look back - if you dont know where you rear end is, you need to practice till your comfortable with getting close to objects in reverse.
Reply With Quote
  #9
Old 09-29-2010
BufordT9's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Los Angeles, CA
Posts: 38
Quote:
Originally Posted by WowMike2001 View Post
Gosh *scratches head* With the view you get from a ranger, im always puzzled as to why you need a backup camera? Use your mirrors, or just flip an arm over the passenger seat and look back - if you dont know where you rear end is, you need to practice till your comfortable with getting close to objects in reverse.
This is the exact order of thoughts I went through until I thought, why not? :) I got a new head unit, it was a cam input (two actually one for parking camera, which I thought was a little over the top) and, it has turned out to be a fun project! especially with all the help from the rf members! woot!

The wide viewing angle helps too, especially with all the kids running around my townhouse complex. those buggers come out of nowhere.
Reply With Quote
  #10
Old 09-29-2010
joshtank's Avatar
Member

Join Date: Jun 2009
Location: Winston GA
Posts: 1,240
Quote:
Originally Posted by BufordT9 View Post
This is the exact order of thoughts I went through until I thought, why not? :) I got a new head unit, it was a cam input (two actually one for parking camera, which I thought was a little over the top) and, it has turned out to be a fun project! especially with all the help from the rf members! woot!

The wide viewing angle helps too, especially with all the kids running around my townhouse complex. those buggers come out of nowhere.

yes they do jump put of no were , sometimes as bad as deer ,
as long as you dont need to tow anything ???, looks good
Reply With Quote
  #11
Old 09-29-2010
BufordT9's Avatar
Member
Thread Starter

Join Date: Sep 2010
Location: Los Angeles, CA
Posts: 38
Quote:
Originally Posted by joshtank View Post
yes they do jump put of no were , sometimes as bad as deer ,
as long as you dont need to tow anything ???, looks good
No towing over here! :) I have already thought about that however. I am going to wire the whole thing on snap connectors, so if I do need to take it out...*snap, snap*. busting the bond on the loctite might be a little hard tho.
