electronic rvm

wondering if anyone has put one of those electronic, auto-dim rear view mirrors into one of our trucks... and maybe even one with an e-compass? i'm thinking of one out of the sport tracs, shouldn't be hard to find one at a wrecker...

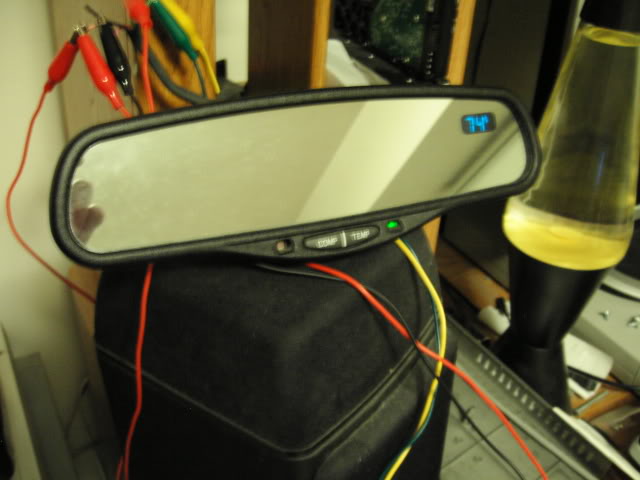

something like this?

Name:  KIF_0238.jpg
Views: 2
Size:  57.2 KB
Reply With Quote
  #2
Old 01-10-2010
rangrdangr_4x4's Avatar
Member

Join Date: Sep 2009
Location: St. Louis, IL
Posts: 294
I wonder how hard it is to install one of these. I might have to pick one up from one of the hundreds of Taurus's at the JY
Reply With Quote
  #3
Old 01-10-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
tauruses come with them too eh?
Reply With Quote
  #4
Old 01-10-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
A lot of guys put the ones from the Expos in the rangers. I had one in mine, its really easy to wire up if you already have a OHC. Only like 3 more wires and it works awesome
Reply With Quote
  #5
Old 01-10-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Picture:

Name:  0425091726.jpg
Views: 3
Size:  109.8 KB
Reply With Quote
  #6
Old 01-10-2010
rangrdangr_4x4's Avatar
Member

Join Date: Sep 2009
Location: St. Louis, IL
Posts: 294
I'm not sure about the dim feature though
Reply With Quote
  #7
Old 01-10-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The dim feature is built into the mirror, you just need a power, ground and reverse wire to make it work.
Reply With Quote
  #8
Old 01-10-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
power and ground, that's pretty obvious, but what do you mean by reverse wire?

did ford make any of these mirrors with compasses or temp gauges on them?

i don't want to put the OHC in mine right now
Reply With Quote
  #9
Old 01-11-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
It just turns off the auto-dim when you shift into reverse so you can see behind you. I don't think Ford made a OEM one with compass or temp in it, I know there are aftermarket ones you can get from the dealer though.
Reply With Quote
  #10
Old 01-11-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
this install is SO easy with an OHC..if you dont have an OHC it makes it a lot harder..then you can get your temp and direction from the OHC..

like Trent said its 3 wires to add the mirror once you have the OHC..without it.its like 10 I think...also if I remember correctly I had to wire in two relays also. They jumped to each other tho and one wire ran off for the dimmer or something like that..
Reply With Quote
  #11
Old 01-11-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i can't understand why there would need to be that many wires... i'll go look into buying the one from the dealer ship... but it will probably be a while, i won't see my truck for a week or 2...
Reply With Quote
  #12
Old 01-11-2010
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
i would love to have that in my ranger, ill have to look into this. the auto dim mirror in my F-150 is awsome!
Reply With Quote
  #13
Old 01-11-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by HighRollerII View Post
this install is SO easy with an OHC..if you dont have an OHC it makes it a lot harder..then you can get your temp and direction from the OHC..

like Trent said its 3 wires to add the mirror once you have the OHC..without it.its like 10 I think...also if I remember correctly I had to wire in two relays also. They jumped to each other tho and one wire ran off for the dimmer or something like that..
Oh yeah I do remember something about 2 relays. Let me see if I can find the write-up
Reply With Quote
  #14
Old 01-11-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Here we go, the 2 relays were for the auto-headlights, not the auto dim.

https://www.ranger-forums.com/forum2...eadlights.html
Reply With Quote
  #15
Old 01-11-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
auto dim is easy..hard part is the headlight part..tapping into those wires that you have no room to do such..

id just do the overhead console swap also..thats an easy install..

I wouldnt go to the dealer for one unless you wanna spend a few hundred..then gotta pay for the harness too im sure they dont come together.

I got mine with harness and two relays from Jones for like 30 shipped..
Reply With Quote
  #16
Old 01-11-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
who is this jones you speak of? and 30$ for the mirror, or the console?

what all is in the console?
Reply With Quote
  #17
Old 01-11-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
a guy that had one laying around..you can find them on ebay and other ranger sites..just gotta wait until you see one..junkyards have them too..

OHC -- over head console..console harness, temp sensor its not a big install just a big wiring install and people are afraid to do it since you have to cut a hole in your headliner but its easy..just start small and keep cutting it out until it fits..
Reply With Quote
  #18
Old 01-11-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Console has dome light, map light, compass, temp and a storage spot for a garage door opener or just general storage. The mirror from the dealer is 200-250, might be more for both temp and compass. I got all my stuff for under 50 bucks, OHC and mirror.
Reply With Quote
  #19
Old 01-11-2010
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I have the stock explorer mirror in mine and I don't know how I drove without it. I did mine when I put in the OHC and lighted visors. All 3 of them use the same harness. I never hooked up the reverse wire because I never use my rear view mirror to back up.
Reply With Quote
  #20
Old 01-11-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
they sell them as a accessories for the b-series
MAZDA PARTS AND ACCESSORIES FREE SHIPPING
Reply With Quote
  #21
Old 01-11-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
anyone have any good solid pics of their OHC? i MIGHT put one in...

also, the compas and temp gauge... what sensors are they wired to? just so i know for when i go rip what ever it is, out of a wrecked vehicle
Reply With Quote
  #22
Old 01-11-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Compass is built into the unit, the temp sensor gets mounted on the front of the truck. 2 wires from from it to the OHC. I have pictures but they're on another computer, I'll find them later if someone else doesn't post them up.
Reply With Quote
  #23
Old 01-12-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
sweet, thanks trent!
Reply With Quote
  #24
Old 01-12-2010
Lone_Ranger's Avatar
Member

Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
Do it, they're sweet. I got my '09 with one installed at the stealership, compass and thermometer. Looks to be maybe 3 wires going into it, but they're small and hard to see without disassembly. I don't think mine loses the auto-dim in reverse, but I just may not have noticed it. LR
Reply With Quote
  #25
Old 01-12-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i think i'm just going to go with the auto dim mirror, compass and thermo, no OHC... but who knows... gotta get a free day off and go to the wrecker...

this sensor for the thermo, what does it look like? where exactly on the vehicle will i find it?
