Biltrites axle builds and eventual sas

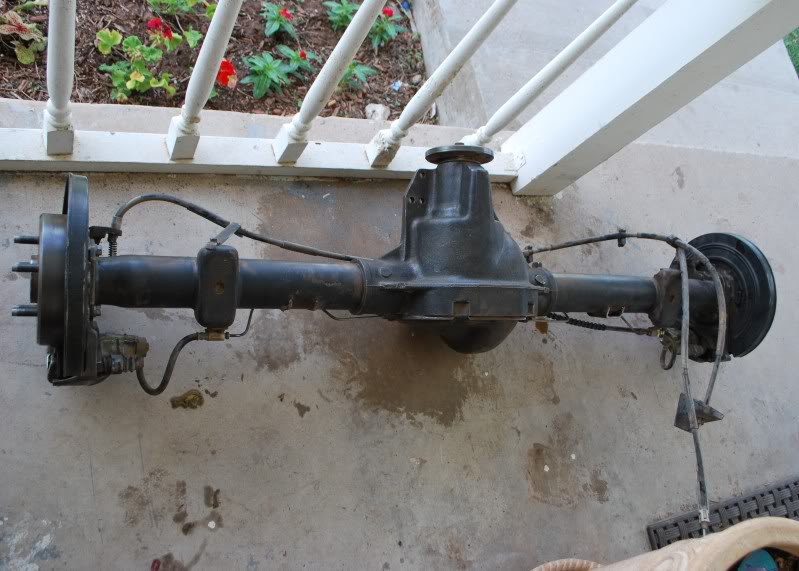

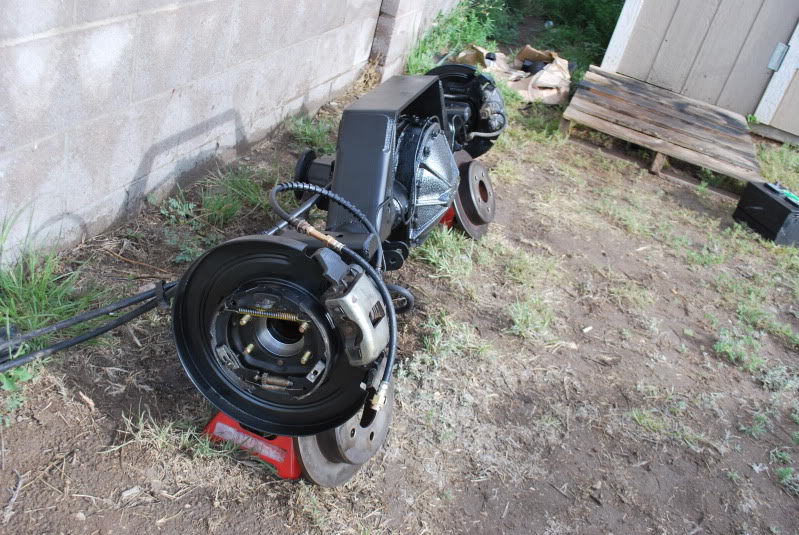

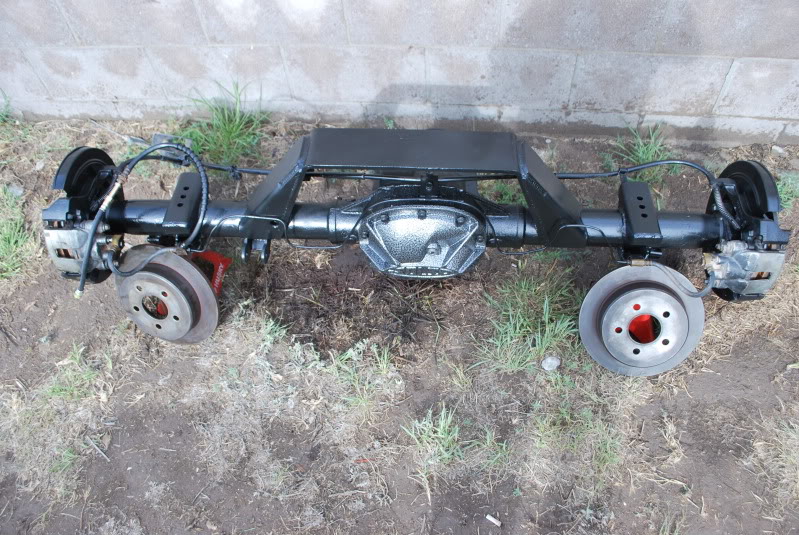

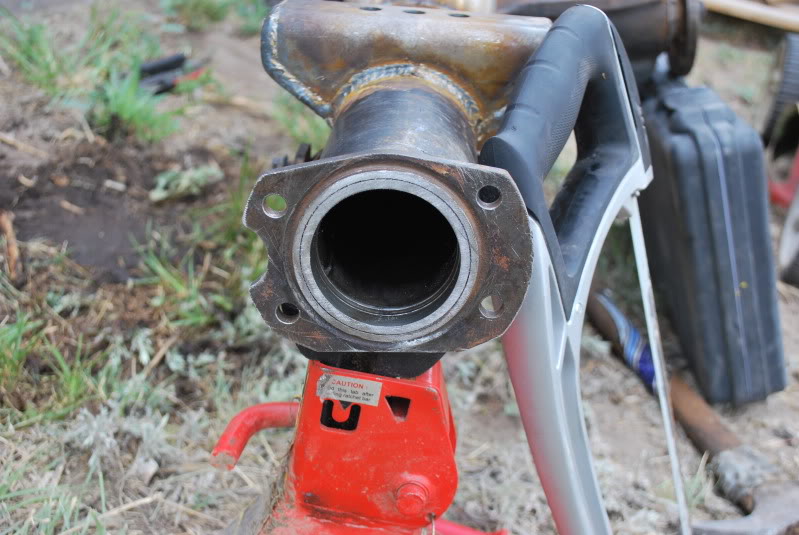

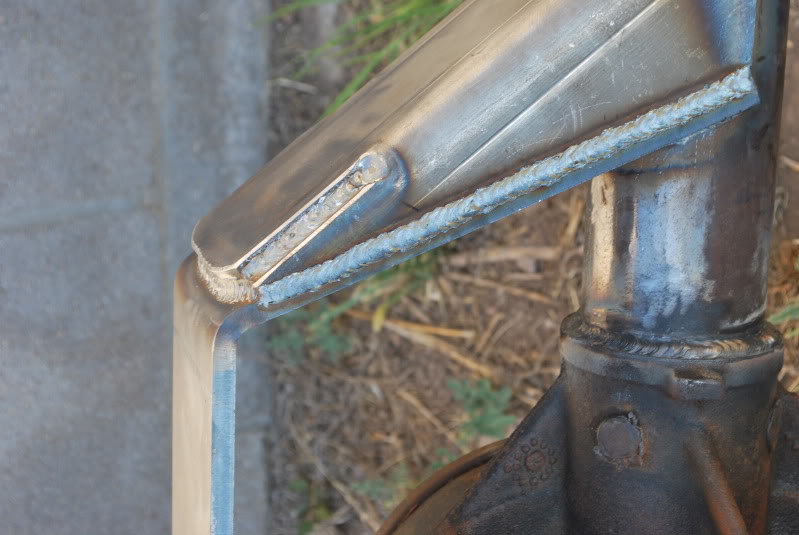

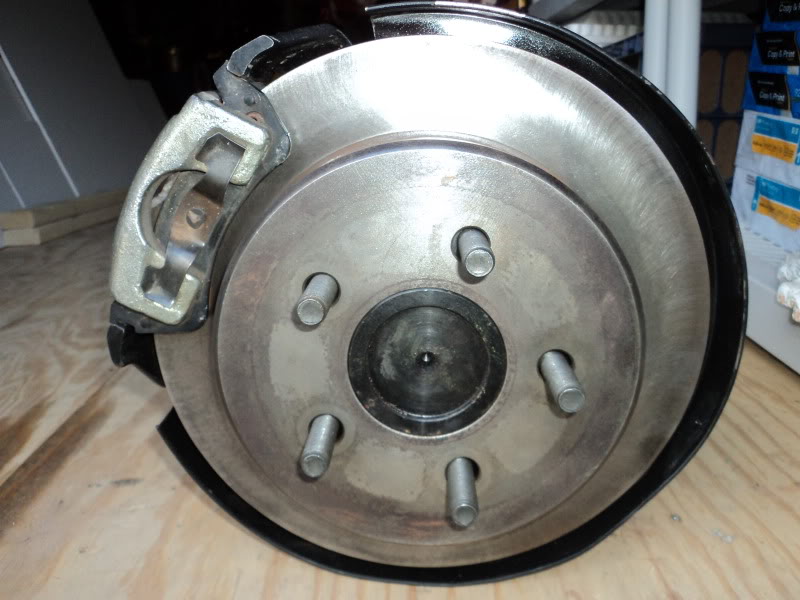

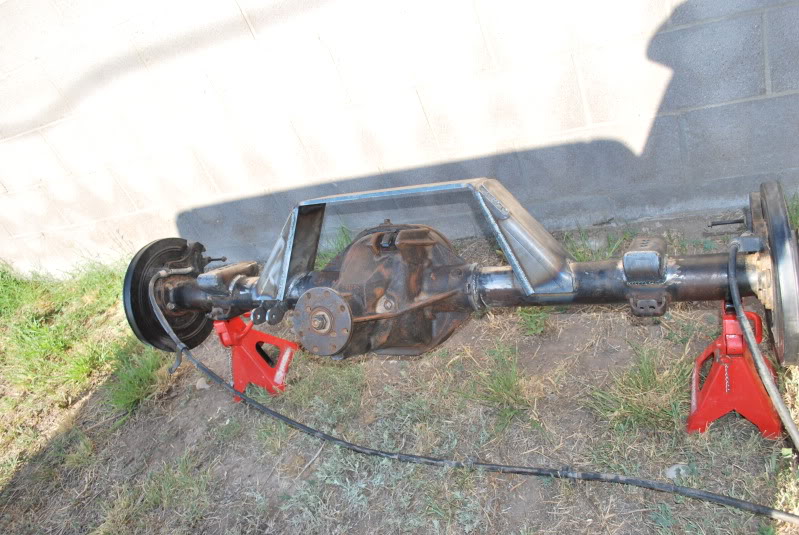

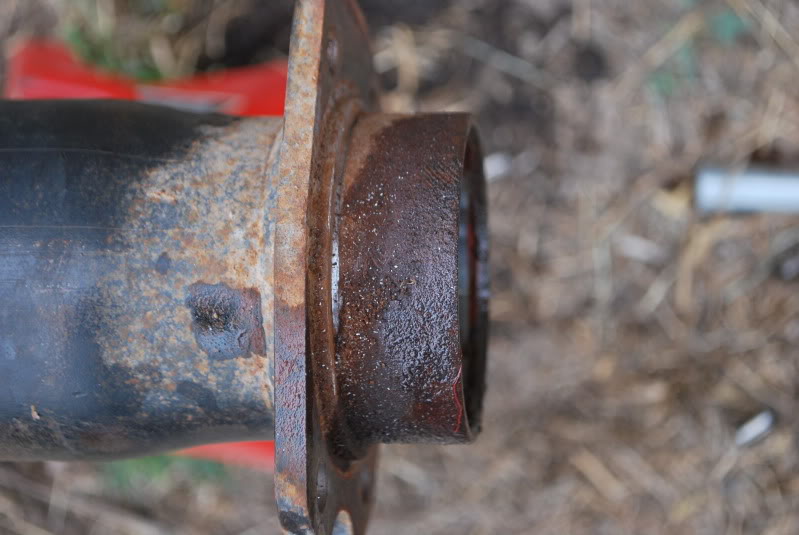

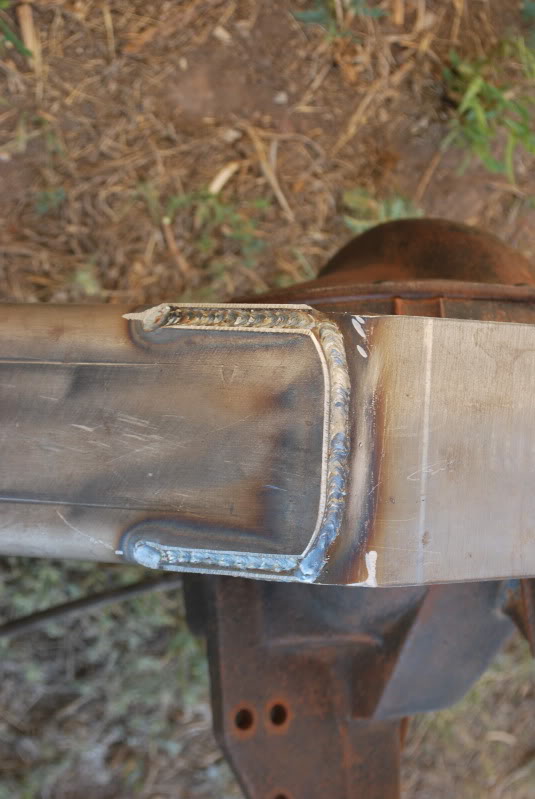

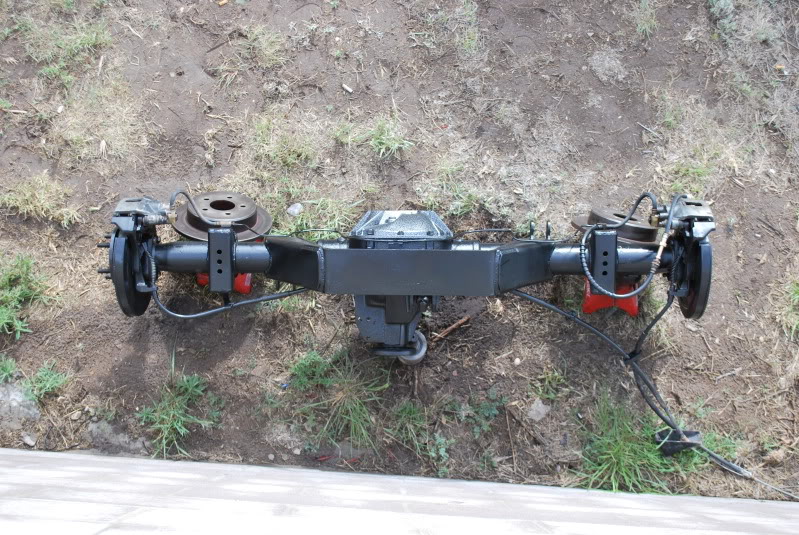

Rear: Started off building a 96 Ford Explorer 8.8 with superior's super 88 kit, yukon 4.88r+p, aussie locker, lube locker gasket and solid diff cover
got the axle tubes, spring perches, truss, shock tabs, welded got every thing installed and threw some paint on it

Name:  3bd34a87.jpg
Views: 83
Size:  89.8 KB

Name:  f29dd328.jpg
Views: 79
Size:  86.3 KB

Name:  0c5e5412.jpg
Views: 87
Size:  61.0 KB

Name:  d590ea43.jpg
Views: 84
Size:  58.0 KB

Name:  DSC_0044-4.jpg
Views: 80
Size:  109.4 KB

Name:  DSC_0045-2.jpg
Views: 82
Size:  66.8 KB

Name:  DSC_0041-3.jpg
Views: 81
Size:  63.1 KB

Name:  DSC_0040-2.jpg
Views: 82
Size:  67.0 KB

Name:  DSC_0042-3.jpg
Views: 76
Size:  121.5 KB

Name:  DSC_0003-1.jpg
Views: 75
Size:  66.6 KB

Name:  DSC_0001-4.jpg
Views: 78
Size:  84.2 KB

Name:  DSC_0052-4.jpg
Views: 84
Size:  143.2 KB

Name:  DSC_0059-3.jpg
Views: 76
Size:  150.6 KB

Name:  DSC_0053-1.jpg
Views: 79
Size:  156.6 KB

Name:  DSC_0055-2.jpg
Views: 87
Size:  144.2 KB

Name:  00a24e61.jpg
Views: 80
Size:  83.6 KB
Reply With Quote
  #2
Old 12-13-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
How you liking the disc brakes and power from the gear change?
Reply With Quote
  #3
Old 12-13-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Nice effing welds man...
Reply With Quote
  #4
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557

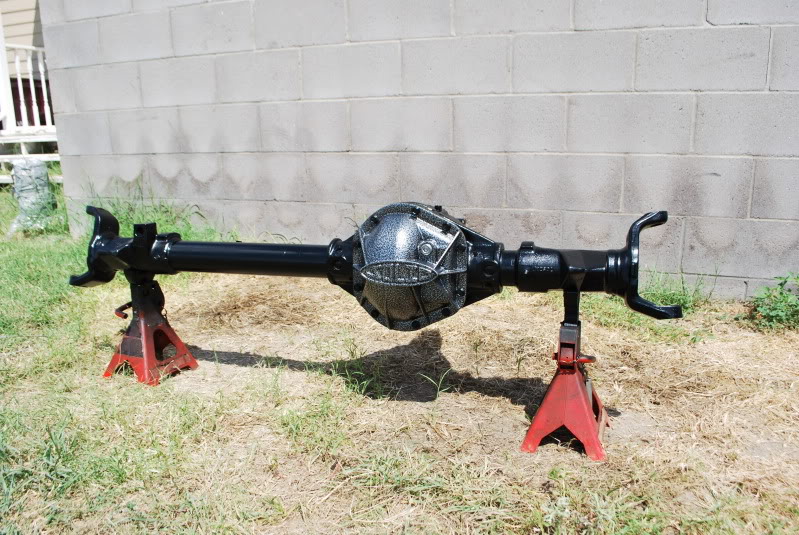

FRONT: 78-79 ford bronco/f150 dana 44, with 5.13 r+p, spool, solid diff cover, rcv 30 spline shafts,
warren 30 spline lockout hubs with 300M lock out hub gear, going to be set up with highsteer, and coil overs

tore it down and got it pretty

Name:  70b3fd49.jpg
Views: 73
Size:  138.1 KB

Name:  260e4b39.jpg
Views: 73
Size:  134.6 KB

Name:  ec7e5cae.jpg
Views: 75
Size:  173.6 KB

Name:  ee2d4041.jpg
Views: 75
Size:  169.8 KB

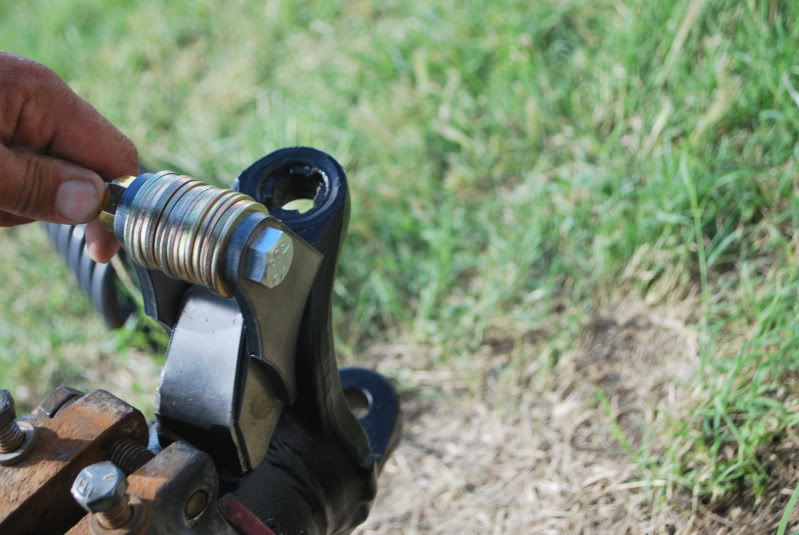

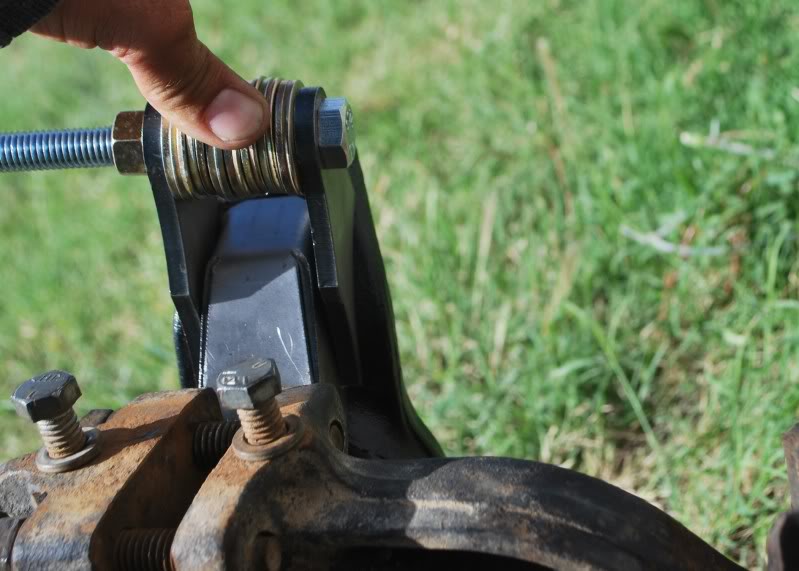

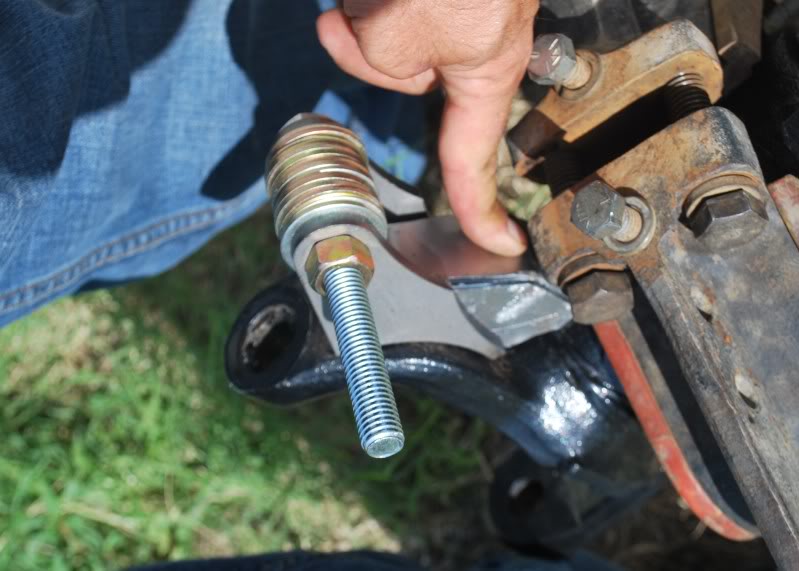

bought some gussets and coil over shock tabs, had to adjust the gussets a little, new upper c gusset on the left adjusted upper c gusset one on the right

Name:  73a0a77c.jpg
Views: 74
Size:  58.5 KB

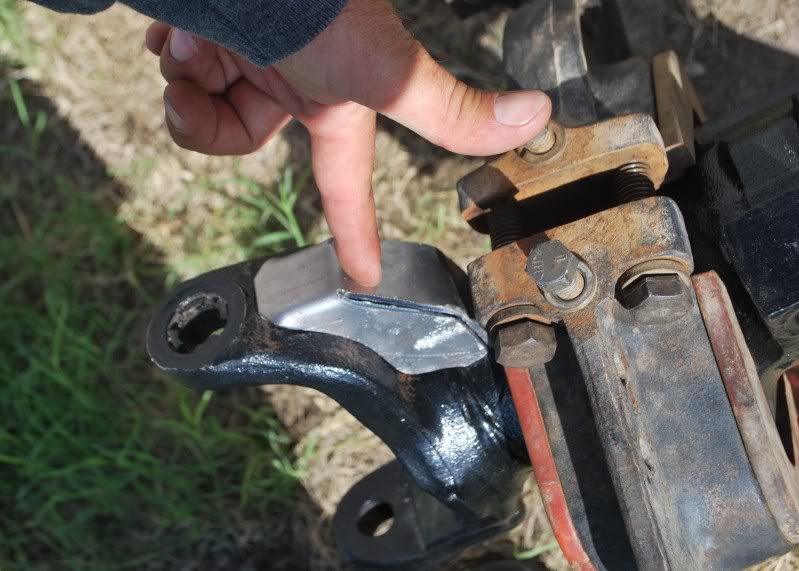

you can see why I had to adjust them

Name:  207cbfcb.jpg
Views: 81
Size:  77.8 KB

Name:  de7e8d0c.jpg
Views: 76
Size:  88.4 KB

Name:  2ddc6113.jpg
Views: 78
Size:  65.2 KB

Name:  6f9320c5.jpg
Views: 75
Size:  73.9 KB

Name:  1ad3bc8e.jpg
Views: 75
Size:  79.8 KB

Name:  72fd098a.jpg
Views: 75
Size:  66.7 KB

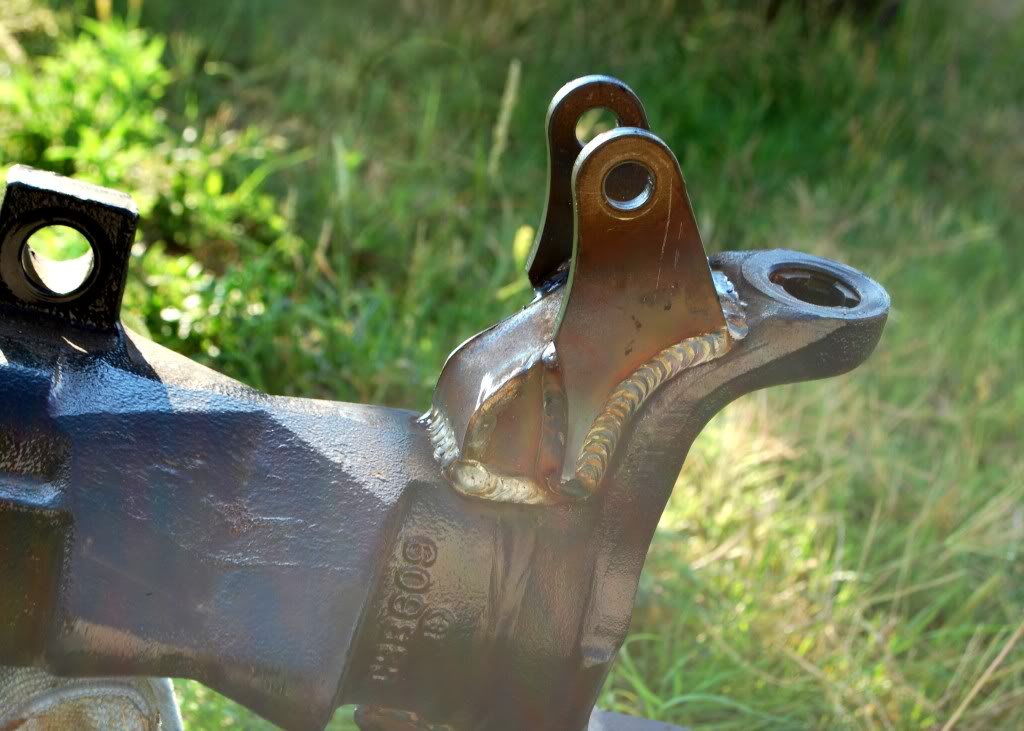

got them burned in

Name:  DSC_0003-2.jpg
Views: 73
Size:  63.4 KB

Name:  DSC_0007-1.jpg
Views: 78
Size:  102.1 KB

Name:  DSC_0012-3.jpg
Views: 75
Size:  97.1 KB

Name:  DSC_0015-5.jpg
Views: 77
Size:  105.9 KB

Name:  DSC_0016-2.jpg
Views: 78
Size:  135.7 KB

Name:  aa10cbaa.jpg
Views: 74
Size:  149.7 KB

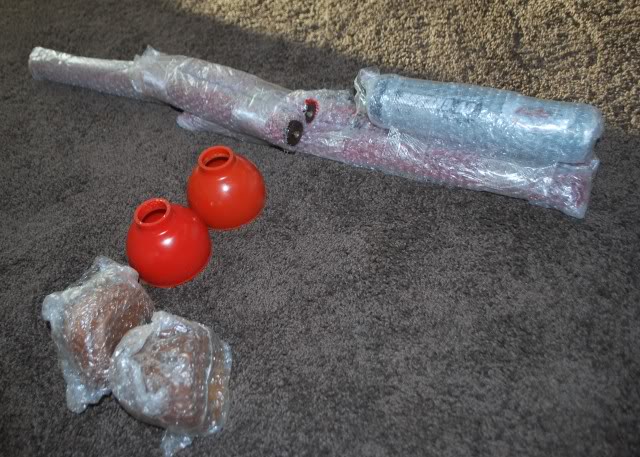

RCV SHAFTS 300M GEARS

Name:  DSC_0213-1.jpg
Views: 78
Size:  79.8 KB

Name:  DSC_0214-1.jpg
Views: 76
Size:  83.8 KB

Name:  DSC_0211-3.jpg
Views: 70
Size:  72.8 KB
Reply With Quote
  #5
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557

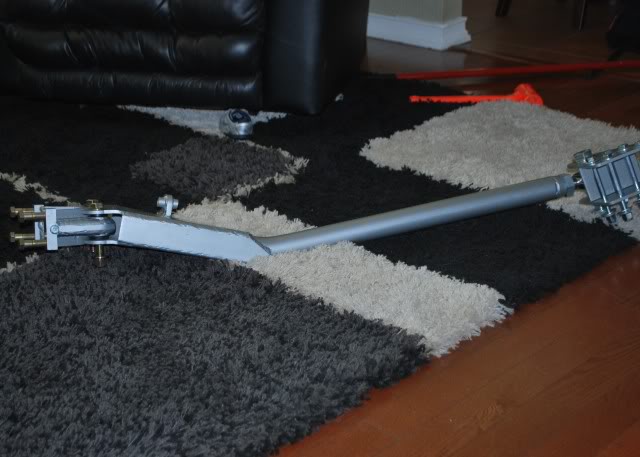

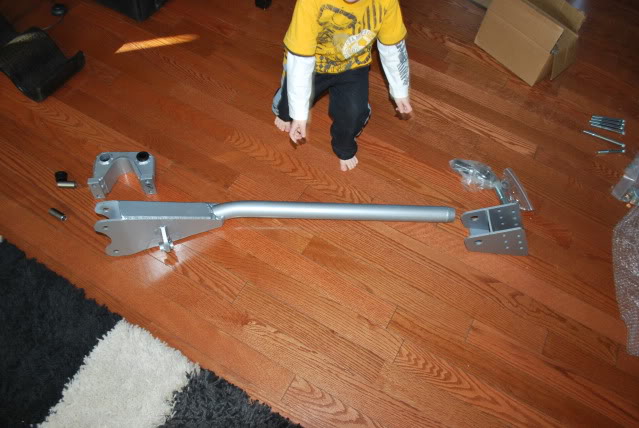

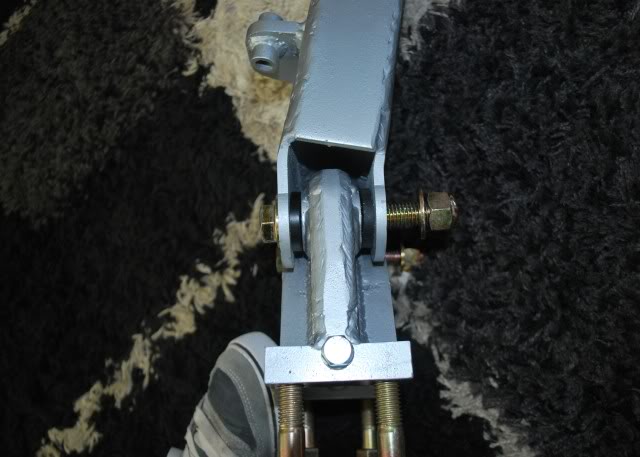

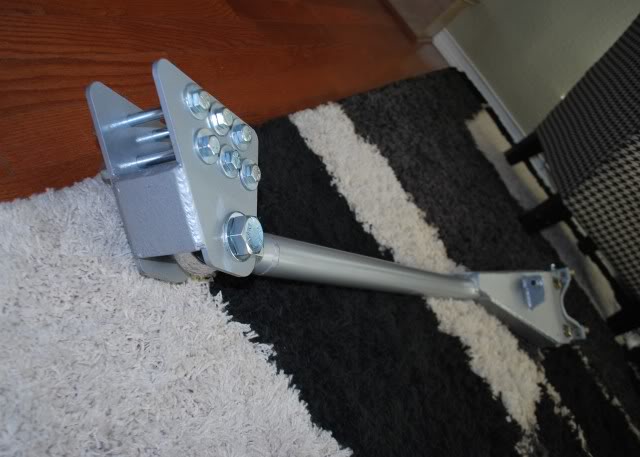

got some bad *** extended bent radius arms, they also have bushings inbetween the arm and axle mounts that will give you a little more flex,
these things are beefy

Name:  DSC_0200-3.jpg
Views: 69
Size:  50.7 KB

Name:  DSC_0204-8.jpg
Views: 75
Size:  54.7 KB

Name:  DSC_0202.jpg
Views: 76
Size:  41.5 KB

Name:  DSC_0203-4.jpg
Views: 74
Size:  47.8 KB

Name:  DSC_0206-1.jpg
Views: 76
Size:  49.2 KB

Name:  DSC_0208-3.jpg
Views: 76
Size:  43.1 KB

Name:  DSC_0207-1.jpg
Views: 73
Size:  46.3 KB

Name:  DSC_0210-1.jpg
Views: 72
Size:  44.5 KB
Reply With Quote
  #6
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by KLC View Post
How you liking the disc brakes and power from the gear change?
it works great but im going to have to take out the 4.88 and put in 5.13s Im also going to take out the aussie and put a selectable in

Quote:
Originally Posted by RangOH View Post
Nice effing welds man...
thanks wish I could say I did them...lol
Reply With Quote
  #7
Old 12-13-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Are those the cage arms? Those are some nice radius arms.
Reply With Quote
  #8
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by RazorsEDGE View Post
Are those the cage arms? Those are some nice radius arms.
yup cage arms, compared to the stock arms, one of these arms weighs more than two of them
Reply With Quote
  #9
Old 12-13-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
very nice work so far! loving it.

should turn out real nice.
Reply With Quote
  #10
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
making room for 37's with out having them ugly flares

Name:  DSC_0195.jpg
Views: 76
Size:  109.9 KB

Name:  DSC_0186-3.jpg
Views: 75
Size:  125.8 KB

Name:  DSC_0199-2.jpg
Views: 71
Size:  83.3 KB

still need to do the rear, wanting to buy matts bed/cage or build one close to this

Name:  19797eea.jpg
Views: 135
Size:  165.0 KB

Last edited by BILTRITE BULLIES; 12-13-2010 at 11:01 PM.
Reply With Quote
  #11
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557

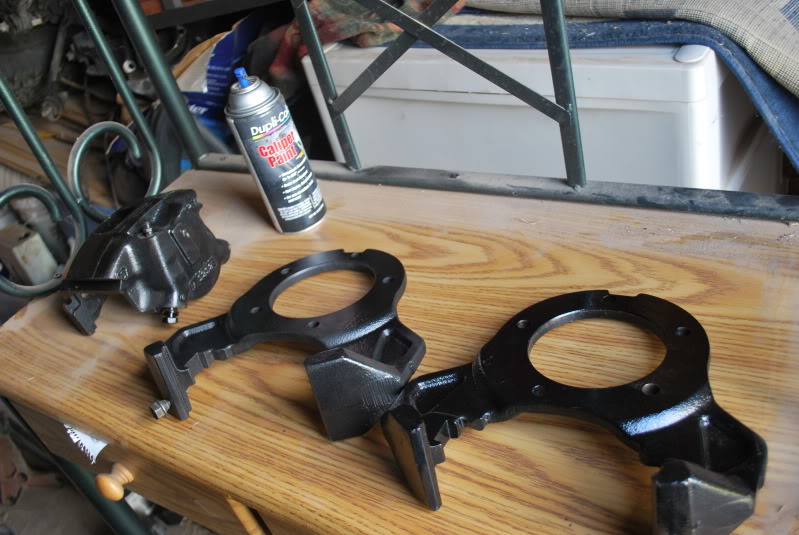

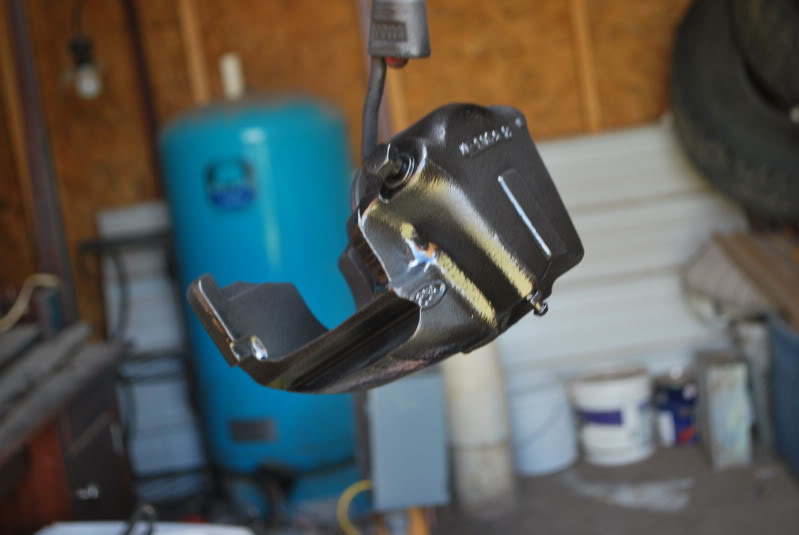

cleaning up the d44 calipers and backing plates

Name:  c254d4ff.jpg
Views: 74
Size:  86.8 KB

Name:  74171d40.jpg
Views: 75
Size:  41.3 KB
Reply With Quote
  #12
Old 12-13-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
are you pulling the front bumper? i like those fenders.
Reply With Quote
  #13
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by zabeard View Post
very nice work so far! loving it.

should turn out real nice.
Thanks Zach
Reply With Quote
  #14
Old 12-13-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
yes Im pulling the front bumper want to make me a tube one...lol
Reply With Quote
  #15
Old 12-14-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Awesome stuff!! Can't wait to see it put together.
Reply With Quote
  #16
Old 12-14-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Those fenders look fantastic with the factory paint on them. Nice work man!
Reply With Quote
  #17
Old 12-14-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
looks great! you should get rid of the rear flares too and send em over this way LOL
Reply With Quote
  #18
Old 12-14-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
nice start man -- cant wait to see the fab work on this one..
Reply With Quote
  #19
Old 12-14-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
There sure is gonna be a lot of Superlifts/RCDs for sale in the near future...


GB :)
Reply With Quote
  #20
Old 12-14-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by seed60 View Post
Awesome stuff!! Can't wait to see it put together.
me too

Quote:
Originally Posted by 04blackedge View Post
Those fenders look fantastic with the factory paint on them. Nice work man!
thanks

Quote:
Originally Posted by 99offroadrngr View Post
looks great! you should get rid of the rear flares too and send em over this way LOL
i will be pretty soon

Quote:
Originally Posted by HighRollerII View Post
nice start man -- cant wait to see the fab work on this one..
thank you

Quote:
Originally Posted by Bird76Mojo View Post
There sure is gonna be a lot of Superlifts/RCDs for sale in the near future...


GB :)
Reply With Quote
  #21
Old 12-14-2010
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
I'm not selln my superlift lol. I can tell by his parts it's costing $$. I'd say in my opinion this swap is up there in quality with Zabeard's because he's using very nice high quality parts. Looks awesome.
Reply With Quote
  #22
Old 12-14-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
looks awesome man. Can ya give me a PM when those flares go up?
I had no job this summer so I sold mine off my 08 to make my payment that month...haha now good luck finding another set...

Can't wait to see the finished product on this, what wheel/tire combo were you thinking of? (sorry if you said and i missed it)
Reply With Quote
  #23
Old 12-14-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557

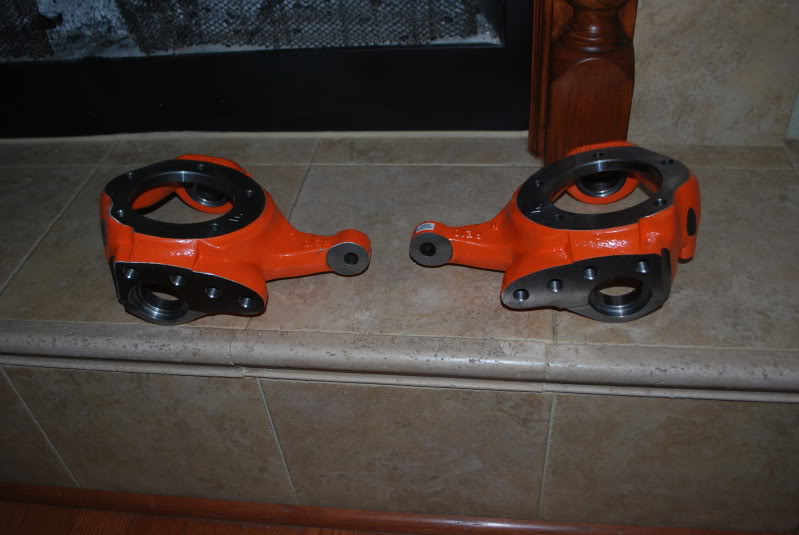

pictures of the reid flat top knuckles, they are ford style, the only ones with a big enough opening to just slide the rcv shafts rite in
plus all the other outer stuff I already had was ford

Name:  dd949d65.jpg
Views: 68
Size:  54.4 KB

Name:  d7663b2c.jpg
Views: 69
Size:  57.8 KB

and I picked me up a ball joint press today so I can get the ball joints in these babys

Name:  e565f712.jpg
Views: 72
Size:  75.3 KB
Reply With Quote
  #24
Old 12-14-2010
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by Red_Ak_Ranger View Post
I'm not selln my superlift lol. I can tell by his parts it's costing $$. I'd say in my opinion this swap is up there in quality with Zabeard's because he's using very nice high quality parts. Looks awesome.
thanks and you aint joking about the $$$ part

Quote:
Originally Posted by ShadowRanger08 View Post
looks awesome man. Can ya give me a PM when those flares go up?
I had no job this summer so I sold mine off my 08 to make my payment that month...haha now good luck finding another set...

Can't wait to see the finished product on this, what wheel/tire combo were you thinking of? (sorry if you said and i missed it)
will do, 37 inch pitbull rockers with the same style rims i have now but 5 on 5.5
Reply With Quote
  #25
Old 12-14-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
Quote:
Originally Posted by BILTRITE BULLIES View Post
will do, 37 inch pitbull rockers with the same style rims i have now but 5 on 5.5
thanks :)

those are going to look awesome on there. also, what fenders are those? I've never seen them before but they look great, especially matched to your factory paint
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
demo derby builds begin djfllmn Project Logs 1 12-15-2013 01:51 PM
Bumper Build and a few other builds Ray_Welder Fabrication & Tool Tech 30 04-28-2009 08:37 PM
SAS axle help sem1845 General Ford Ranger Discussion 13 02-12-2006 11:22 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 11:27 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
