Goof's 2004 V8 Swapped Ranger
#1
Goof's 2004 V8 Swapped Ranger
I finally got it!
I have always wanted to lower and V8 swap my original 04 Edge, (Build log for that here: https://www.ranger-forums.com/projec...-build-145288/ ) but the more I researched it, the more I found out how next to impossible it would be. A few months ago I found this beauty for sale! A 2004 Ford Ranger Edge 4 door.
Other than the bed style and the rear window this truck was an exact twin from the factory as my current truck. However this truck had just finished a 4 year build of getting V8 swapped and professionally repainted. I had to have it! After months of chatting with the owner/builder, I talked him down to a reasonable price and I took the 3 hour trip to go get it. Here she is, officially mine!
Here is a rundown of the truck as I purchased it.
The truck is a 2004 Ranger edge model 4 door. Was originally a 3.0 which blew up a little after 170k miles. The V8 is out of a 1998 Explorer which had around 130k miles. The motor was torn completely down. An E303 cam was installed along with adjustable 1.7 rockers, larger throttle body, air intake and tune. Transmission is the 4r70W from the Explorer. However it too was rebuilt, with a Boss Hog stall converter, Transgo shift kit and Transgo rebuild kit. Exhaust are OBX headers back to flow master 40's and dumped over the rear axle. Here is a sound clip for you of the truck:
Few things that needed to be finished on the truck:
The Tachometer and the Temperature gauge did not work properly.
Slight power steering leak.
Fuel leak.
Coolant leak somewhere on the front of the motor.
Cruise control needs to be sorted out.
Reverse lights need to be wired.
Retune do to the shift kit creating too much pressure in the trans.
Open rear diff with 4.10 gears.
My wants:
Needs to be lowered!
The 20's need to go!
Clean up the engine bay
Swap to a solid rear glass
So far in the few months I have had it I have gotten a few things done. First off was a custom plate, because I just had to!
Fixed the fuel leak. I plan to redo this entire return line with hard line at some point, but for now some proper clamps fixed the issue. This picture was before I fixed it.
Picked up a pair of never mounted 18" wheels and tires for the ranger from Sean AKA Fordzilla here on the forum. They are going to look awesome on the ranger once I get them all mounted up. Have to get another pair for the front when I get a chance. The offset is perfect for this truck!
After a lot more tweaking, tearing down the gauge cluster many times, soldering, wiring and a converter box later, I finally have all of the gauges working! I couldn't be happier with this!

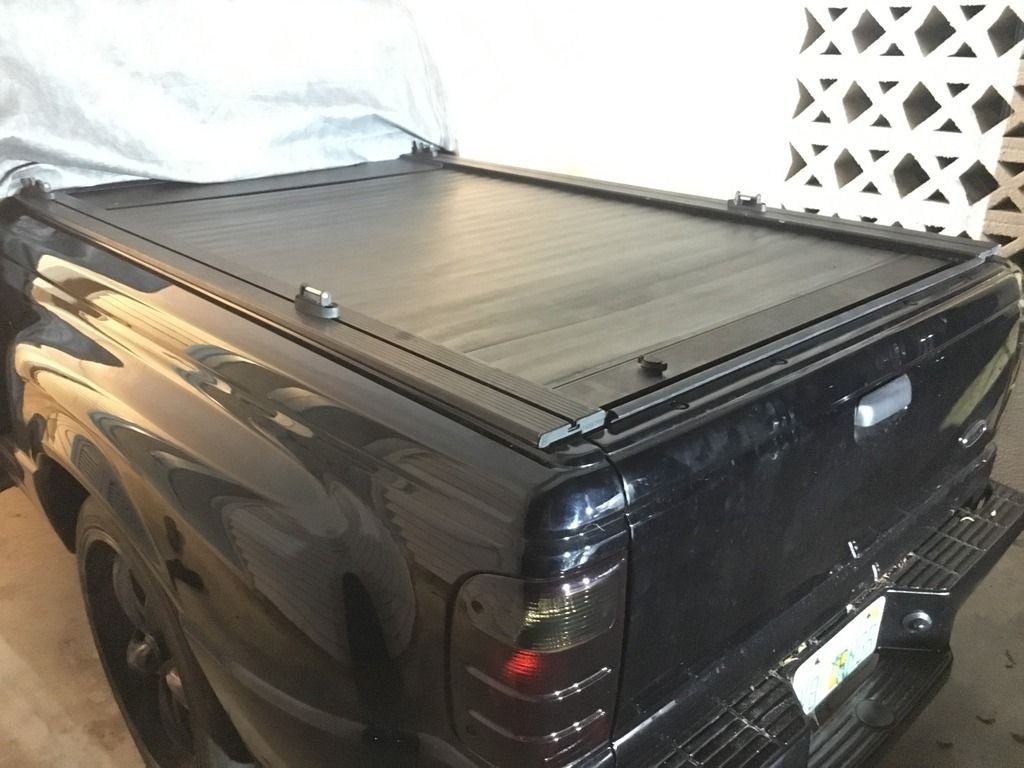

Happened to stumble across a roll up bed cover for a step side and the price just happened to be right! I picked it up for almost a 1/5th of what it would have been new! This was such a great surprise and I couldn't pass it up.
Got the reverse lights wired up to the sensor on the 4R70W. Now they work like factory! Defenintly going to need to put some LEDs in there.
Currently the 8.8 is out of the truck and off to get its new gears (3.55 Limited Slip) set. Im excited to no longer be one wheel drive and to have a little better gearing for daily driving. These brakes look like they haven't been touched since the factory 180K miles ago. Going to redo everything in the rear. Bearings, seals, brakes and new aluminum diff cover. Also have a flip kit and notch from Rick Moore to throw in the rear to lower the truck an extra 3" from where it is now!
The new truck is fitting in well in the family and I am excited to keep getting it to exactly where I want it. I will post updates on here every few months. For more up to date progress follow me on Instagram. @thatv8ranger
