Motor swap In the works

Well, i've been really scratching my head lately on puting a V8 5,0 in my 95 ranger.... been looking all over for a motor to start with and work from there... Well, it looks like i am no longer going the 302/5.0 route....


I was on craiglist looking, and well... i found a Eagle stroker kit and block with heads for a sweet deal, 800 for all of it, the stroker kit alone was worth 900 new, and is still brand new in the box, block is already magnafluxed, rough bored, needs the pistons brought in, with the block and crank to get the final machining done for tolerances, but long story Short, were looking at a 347 Stroker in the works here... in a little ole Ranger, should be pretty wild when it is done... lol... in time,

heres some pictures...


[img width=576 height=768]http://img.photobucket.com/albums/v439/trx450ryan/utf-8BSU1HMDAxMDAtMjAxMDA4MDYtMjM0MS5qcGc.jpg[/img]

Name:  utf-8BSU1HMDAxMDUtMjAxMDA4MDctMDc1OS5qcGc.jpg
Views: 2
Size:  110.0 KB

Name:  utf-8BSU1HMDAxMDYtMjAxMDA4MDctMDgwMS5qcGc.jpg
Views: 4
Size:  58.0 KB

Name:  utf-8BSU1HMDAxMDctMjAxMDA4MDctMDgwNC5qcGc.jpg
Views: 3
Size:  71.4 KB

Name:  utf-8BSU1HMDAxMDgtMjAxMDA4MDctMDgwNC5qcGc.jpg
Views: 2
Size:  83.2 KB

Stay tuned, ill update this thread as i build it up!
Reply With Quote
  #2
Old 08-07-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
347 is gonna be bad ***
Reply With Quote
  #3
Old 08-07-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
It should get around a litter quicker then the 3.0 eh LOL
Reply With Quote
  #4
Old 08-20-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well, i picked up some parts tonight got a decent deal i think, not sure how much use the super coil and msd igntion will be but i got a set of redone GT40 heads with dual valve springs, and crane 1.6 roller rockers tonight as well as BBK underdrives, prices seemed alright, slowly getting there!

Name:  utf-8BSU1HMDAxMzAtMjAxMDA4MjAtMjMxMS5qcGc.jpg
Views: 2
Size:  60.4 KB

Name:  utf-8BSU1HMDAxMjktMjAxMDA4MjAtMjMwOC5qcGc.jpg
Views: 4
Size:  50.9 KB

Name:  utf-8BSU1HMDAxMjgtMjAxMDA4MjAtMjMwNi5qcGc.jpg
Views: 6
Size:  32.6 KB

Name:  utf-8BSU1HMDAxMjctMjAxMDA4MjAtMjMwNS5qcGc.jpg
Views: 3
Size:  51.5 KB

Name:  utf-8BSU1HMDAxMjYtMjAxMDA4MjAtMjMwNC5qcGc.jpg
Views: 2
Size:  59.1 KB

Name:  utf-8BSU1HMDAxMjQtMjAxMDA4MjAtMjMwMy5qcGc.jpg
Views: 3
Size:  73.1 KB

Name:  utf-8BSU1HMDAxMjMtMjAxMDA4MjAtMjI1My5qcGc.jpg
Views: 2
Size:  62.1 KB

Name:  utf-8BSU1HMDAxMjItMjAxMDA4MjAtMjI1Mi5qcGc.jpg
Views: 3
Size:  45.1 KB

Name:  utf-8BSU1HMDAxMjEtMjAxMDA4MjAtMjI1MC5qcGc.jpg
Views: 3
Size:  62.8 KB
Reply With Quote
  #5
Old 08-21-2010
j99ranger4x4's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
sexy
Reply With Quote
  #6
Old 08-22-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Hopefully it does the truck and doesnt give me too hard a time once i try to put it in lol
Reply With Quote
  #7
Old 08-22-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
sweet
Reply With Quote
  #8
Old 08-23-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Planning to pick up an SVT cobra intake next week, if the guy still has it!, and the list keeps getting knocked down slowly
Reply With Quote
  #9
Old 08-25-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
looks awesome so far, whats the plan with the rest of the driveline, tranny and axle anyway..
Reply With Quote
  #10
Old 08-26-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well as of now. im looking for an 8.8 rear from an explorer with 4.10 and disc rears. Also looking at a 5 speed from a 4x4 95 F-150 for a trans, and thinking of mating that to an 150 t-case as well... still havnt decided what im gonna do up front... so far my only plan is to pray that ttb D35 holds up lol....
Reply With Quote
  #11
Old 09-01-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
sounds solid, im sure the front will be ok for everyday use, unless your into some technical offroading. your bound to have a heavy foot with that set up but if you take it easy it will last longer. i also know some guys running some v8 power in their stock axle jeeps without an issue. will you be upgrading the radiator and cooling systems?

be detailed on how it goes to hot rod the trucks electrical and displays. im looking at doing something different with the engine in mine but its the wiring and some technical that scares me away. and id also like to know lots about the pully set up and how you run the belts on the truck

Last edited by 08rangerdan; 09-01-2010 at 07:08 PM.
Reply With Quote
  #12
Old 09-02-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
the dana 35 twin traction beam axle can handle up to 33 inch tires safely

but using 35 inch tires is pushing the limits of that axle
Reply With Quote
  #13
Old 09-02-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
35s would be ok for street but not offroad
Reply With Quote
  #14
Old 09-06-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
One the truck is done, i dont really, well want to avoid, going off-roading in it any more lol... too much work to keep it looking nice, and off-raoding as welll. I know some of you may call it the street queen or ETC, but after the motor swap id like to get the body redone, and keep it on the streets, and pic up something older and cheap to abuse off road, so the front axle may be alright,

From what i was told the rad from the 93-97 4,0's had a super duty version available, soon as i find a part # im gonna get some prices on them from the parts store, just need to search if there is a part number i can find to look one of theses up.

And for the wiring, i plan on sticking with EFI, and well to be honest the wiring is my most feared point at this time, a friend of mine from work is an electrician, he will help me if i need it, so i may be alright, well see.... time will tell lol... im on hold as far as buying goes for a bit, gotta build back some cash flow, lol.... all in time!!
Reply With Quote
  #15
Old 09-07-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
ya take your time and think it out, there is nothing worse then rushing things and having to make endless revisions. good luck with it.
Reply With Quote
  #16
Old 09-24-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well i got another bumdle of parts in, the thing is slowly coming together. picked up the following parts:

Mustang engine harness and computer with injector harness
24lb/hr injectors with fuel rails.
BBK 70mm Throttle body with Egr spacer
C&L 73 MM MAF
Distributor and coil
Cold Air Intake
And a Trick Flow Upper lower Street Heat intake

The parts all need a really good once over, and clean up but other then that ui got a good deal so im not too worried, im gonna refinish the intake a different colour, not sure yet tho,

Name:  utf-8BSU1HMDAwMDgtMjAxMDA5MjQtMTIyMS5qcGc.jpg
Views: 4
Size:  59.1 KB
Reply With Quote
  #17
Old 09-26-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
what are you gonna do about the MTO and emissions? just register it as a modified vehicle?
Reply With Quote
  #18
Old 09-26-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Emissions will put me in the hot road category as the ranger platform was never offered with a V8, not sure what ill have to do at the MTO, never even looked into it lol... its still refistered in my name LOL, ill have to see.... and go from there
Reply With Quote
  #19
Old 10-22-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well. i opted to retire the stock open 7.5 rear at the same time i retire the 331 000 KM 3.0(207 000 ISH Miles) and replace it with this rear end, ford explo 8.8 with disc's, it currently has 3.73 posi, but i will be having 4.10 gears replacing those to match the front, also thinking about going to a 35 or 37'' tire in the process... most likely gonna scoop up the M5O2-R2 F-150 trans as well for the price i can get it... now i just need to sell the explo leafs. as there is already a set on the truck , lol.. the parts keep flowing in slowly, i wanna get the engine done fairly soon, however... as always a work in progress!

Here;s the axle, needs a little fad and tlc, and she will be ready to rock!
Name:  utf-8BSU1HMDAxMTQtMjAxMDEwMjItMTMwNy5qcGc.jpg
Views: 3
Size:  90.2 KB
Reply With Quote
  #20
Old 10-22-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
that is exactly the expo rear end i looked at the wrecker

like the idea of having a shock bolted to the pumpkin to prevent axle side movement

you also have the tires that i will be getting early next year
Reply With Quote
  #21
Old 10-22-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
the tires and rims are for sale lol....
Reply With Quote
  #22
Old 11-03-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well... got the distributor taken care of... MSD Pro Billet Ign... pics arnt great, but this thing looks killer!


Name:  utf-8BSU1HMDAxMjEtMjAxMDExMDMtMjM0Ni5qcGc.jpg
Views: 1
Size:  43.2 KB

Slowly but surely picking away at the parts list!
Reply With Quote
  #23
Old 11-19-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Update:
The Good:

GT40 Heads are now for sale, i ended up finding some Windsor Sr Heads with 2.02 and 1.6 Valve with rockers for a cheap price. They need about 2-300 in labour, but should be good to go, and much more potential for the motor then the GT-40.

The Bad:

The block i bought with the stroker kit was machined on the loose side, and i to get the other block i had in a complete motor ready for machining. The block i have is usuable with different style pistons, but the machinist does not feal comfortable running it as it is. Minor set back is all blocks themselves are fairly cheap.

The New:

Name:  utf-8BSU1HMDAxNDMtMjAxMDExMTktMjIzNC5qcGc.jpg
Views: 2
Size:  62.7 KB

Name:  utf-8BSU1HMDAxNDYtMjAxMDExMTktMjIzNS5qcGc.jpg
Views: 3
Size:  32.1 KB

Name:  utf-8BSU1HMDAxNDctMjAxMDExMTktMjIzOC5qcGc.jpg
Views: 2
Size:  42.9 KB

Name:  utf-8BSU1HMDAxNDgtMjAxMDExMTktMjIzOC5qcGc.jpg
Views: 2
Size:  60.4 KB

Also got theses along with the cylinder heads. if i can make them fit, bonus, if not... they will be for sale. 1.75'' Headers:
Name:  utf-8BSU1HMDAxMzgtMjAxMDExMTAtMDE1OC5qcGc.jpg
Views: 3
Size:  61.7 KB

Thats all I have for now, next step is to get a block to the shop and get the machine work done, and then go from there... it is getting closer and closer.... i am getting anxious!
Reply With Quote
  #24
Old 12-05-2010
Member
Thread Starter

Join Date: Jun 2010
Location: Ontario Canada
Posts: 107
Well as i believe i shared ealier, i found out the block i had was not quite right, i had another engine on the side lines for parts, decided i will use the block from it, and it turned out to look good. Got this torn apart, transmission removed and down to bare block with the crank in about 2.5 Hrs. Just need a puller for the front harmonic balancer, and i will be ready to send this block out. Here's some pics of the massacre lol.

Name:  utf-8BSU1HMDAxODktMjAxMDEyMDUtMTkzOC5qcGc.jpg
Views: 2
Size:  77.2 KB

Name:  utf-8BSU1HMDAxOTEtMjAxMDEyMDUtMTk1OC5qcGc.jpg
Views: 2
Size:  68.8 KB

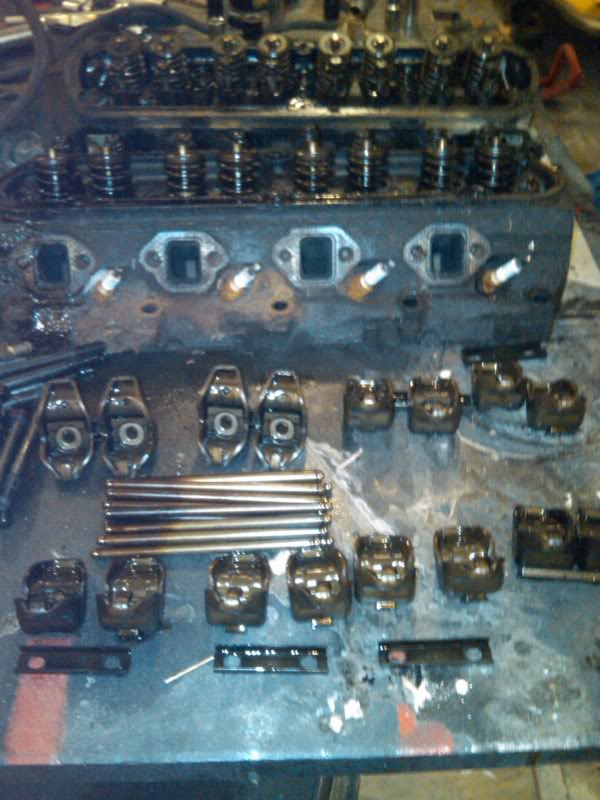

Name:  utf-8BSU1HMDAxOTctMjAxMDEyMDUtMjAyOC5qcGc.jpg
Views: 2
Size:  81.0 KB

Name:  utf-8BSU1HMDAxOTQtMjAxMDEyMDUtMjAyMy5qcGc.jpg
Views: 2
Size:  77.9 KB

Name:  utf-8BSU1HMDAxOTUtMjAxMDEyMDUtMjAyMy5qcGc-1.jpg
Views: 2
Size:  55.4 KB
Reply With Quote
  #25
Old 12-08-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
good to see things are moving along. sucks about the stroker. are you gonna bore this one out and use the internals from the old engine or just clean it up?
