  #26
Old 07-18-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
hahah no sir... She is all mine. I dedicate this project to you and all my friends over at rps!! :)
Reply With Quote
  #27
Old 07-18-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Quote:
Originally Posted by Thorny073 View Post
Are you sure you don't have to get your motor port and polished????

we will see
Reply With Quote
  #28
Old 07-18-2008
D.
Unregistered User

Posts: n/a
Your about 2 years late but I gave away a rebuilt MP90 to one of the members here. I wonder what he did with it?

I *MIGHT* Have a factory MAF for an SOHC laying around here somewhere. I'll have Shawna look for it while I work on her truck this weekend. Pro-M made a 75mm MAF with an excellent element in it for the SOHC, you might want to try and locate one.
Reply With Quote
  #29
Old 07-18-2008
D.
Unregistered User

Posts: n/a
http://www.jegs.com/p/Pro-M/872990/12052/-1

Ford ECC 4/5 connector as well. You can order one pre-calibrated to your injectors as well.
Reply With Quote
  #30
Old 12-28-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hey!



just a reminder, GET THIS **** DONE!!
(when i met him the other night, he was like."oh yea, i just have that supercharger kit laying around i need to put on")

then get the body lift on.. then get back to austin so we can go wheelin'
Reply With Quote
  #31
Old 12-28-2008
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
Dude seriously i wanna see this done man!
Reply With Quote
  #32
Old 12-28-2008
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
it's cause he's GAY!!
Reply With Quote
  #33
Old 12-28-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
wouldn't surprise me


jk man.
Reply With Quote
  #34
Old 01-16-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
lol i think i need a fuel pump now :(
Reply With Quote
  #35
Old 03-12-2009
215ranger's Avatar
Member

Join Date: Nov 2007
Location: oxford pa
Posts: 143
any updates
Reply With Quote
  #36
Old 06-03-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Its in the works right now to get a manifold mocked up for this... I think the only way to fit this SCer in the bay like the way i want it is to get my Body lift installed haha

I bought a tuner for the truck so i can get it all tuned up once bolted in...
All i really need is that damn manifold. grrrr

I was thinkin of just getting rid of the SCer and going the 5.0 route but then i thought to myself, ill just boost this motor until it dies then swap the motor. haha

Soooooo right now this is where i stand. Getting the manifold mocked up.. Ill be taking off my upper intake manifold off next week to see where i stand as far as how i would like my scer to sit on top of the motor and how i want my manifold to look and such. Hopefully i can get measurments of everything to start a mock up. we will see how it goes.
Reply With Quote
  #37
Old 06-03-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Have or Bought already:
1. Fuel Injectors/Pump - ffv 25.3lb injectors
2. Supercharger w/ Intake Plenum - Eaton m90 - Running 4-6psi
3. Throttle Body – 95 Mustang GT 5.0L 65mm
4. Spark plugs - NGK TR55
5. MAF – 1997 Explorer 5.0L MAF
6. Tune - SCT xcal 3

Still need made/bought:
7. Intake Manifold - Custom made upper Intake manifold
8. Belt – That will be measured once everything is installed
9. Inkate – Custom piping with K&N filter
10. Dyno
Reply With Quote
  #38
Old 06-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
your going to buy or make a dyno?

i want to see this!!!

hurry up and get this shat done!!
Reply With Quote
  #39
Old 06-04-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
haha homo... what if I did buy one? would u pay for my services
Reply With Quote
  #40
Old 06-04-2009
mudranger96's Avatar
Member

Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
If you got an Iphone or Itouch you can actually download a dynamometer app and its pretty accurate.
Reply With Quote
  #41
Old 06-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by MudSlanger View Post
haha homo... what if I did buy one? would u pay for my services
depends on the service offered homo.
Reply With Quote
  #42
Old 06-05-2009
redranger_02's Avatar
Member

Join Date: Oct 2006
Location: Evansville, Indiana
Posts: 641
never ending is what this project is lol
Reply With Quote
  #43
Old 06-05-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
bahaha sure is!! :)
Reply With Quote
  #44
Old 06-09-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
ALMOST FINISHED!!!!!!!

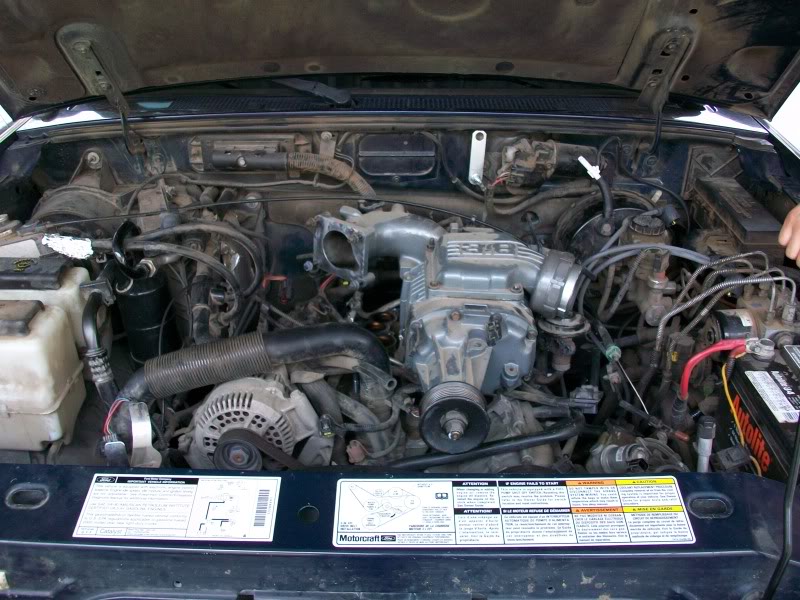

Name:  100_0378.jpg
Views: 55
Size:  144.2 KB
Name:  100_0379.jpg
Views: 9
Size:  136.2 KB


















































JK :-P I just decided since i was doing some work with my injectors, Id test fit the super charger in place of the Intake Manifold while its out. Looks HOT!
Reply With Quote
  #45
Old 06-09-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Damn thats an ugly hood. You need an edge hood! Lol

On a serious note, I forgot this morning, but I will call Greyhound in a little bit and let you know what I find out...
Reply With Quote
  #46
Old 06-09-2009
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
Getting closer to hearing the whine now.....
Reply With Quote
  #47
Old 06-09-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO
Reply With Quote
  #48
Old 06-09-2009
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
So I have a buddy that can possibly make me a flange for the intake manifold. What im going to do is give him the upper intake manifold gasket and have him do his measurements then put it in the computer and have his machine cut me up the flange. i would just need some one from there make me some runners and a box/tube style manifold with a bracket coming off the side so i can mount this charger. It looks REALLY easy and im about to start making phone calls very soon about getting this manifold made.

My egr valve fits on the back of the charger very nicely, all ill need to do is make some new piping coming from the header to the egr valve. nothing an exhaust place cant take care of for me. *This is for emissions purposes, Im not removing it from the system.*

Doesnt look like ill have any issues with vacuum lines. Those might require SOME new hoses, no big deal...

All electrical sensors mounting positions im going to try and keep them in the same location. The reason being is because I dont want to have to extend wires and such. Just in case i want to go back to stock for any reason.

Im keeping the coil pack in the same location. Doesnt look like it will get in the way. When i make the manifold ill have new mounting studs installed for this so its out of the way but still easy to change out the wires. If anything all ill need to do is take the intake tube off. easy.

Everything else looks mildly easy... Nothing really to this but using a little imagination lol!
Reply With Quote
  #49
Old 06-09-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
And patience!
Reply With Quote
  #50
Old 06-09-2009
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
This might give you some more motivation...Oh ya and I like to ***** out the truck LOL...


Reply With Quote
