Project "Get it done before the dunes"

Well ever since it started getting warm out again i have been busy working on the truck. So far i have gotten my bed all cut apart due to rust and just put the bed sides themselves back on and pulled tem in a bit, Made new rear cab mounts (cab is solid mounted now), Reworked the rear bumper,Plated front frame rails. Still to be done is install my new Griffin 31x19 aluminum radiator, Install Derale tranny cooler, fab up a new core support, add bump stops in the front (front diff had a run in with the engine X member), rework engine x member,pull tranny have it built,and swap out t-cases.

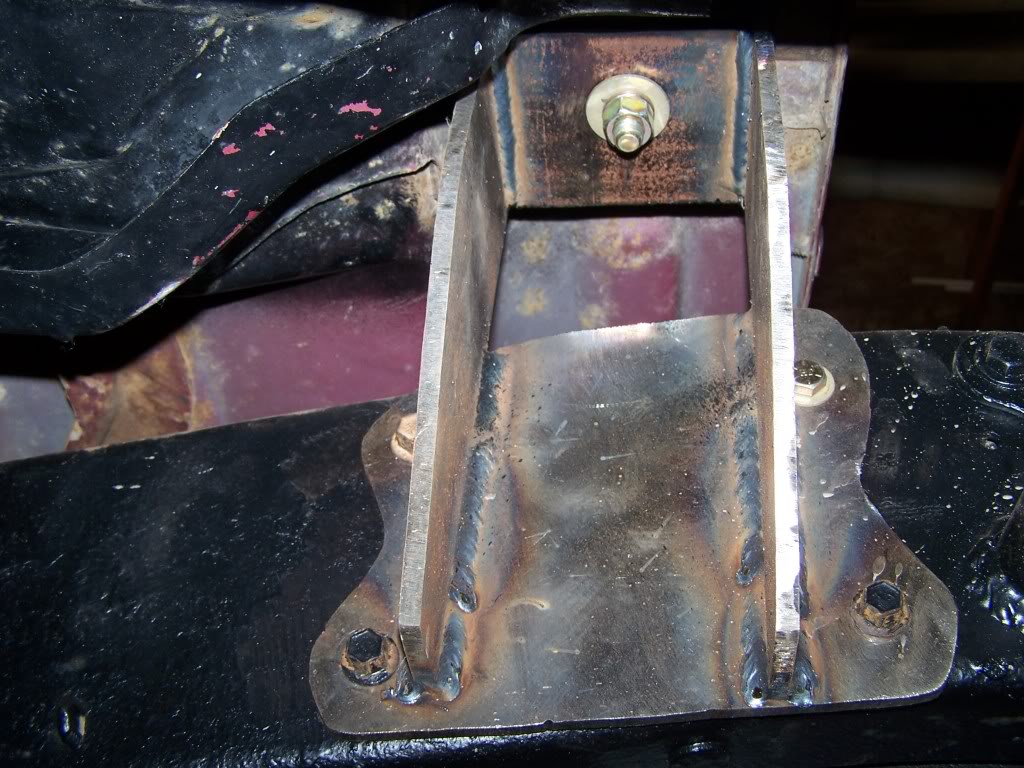

Name:  100_3201.jpg
Views: 5
Size:  150.5 KB
Name:  100_3200.jpg
Views: 5
Size:  183.0 KB
Name:  100_3199.jpg
Views: 3
Size:  118.8 KB

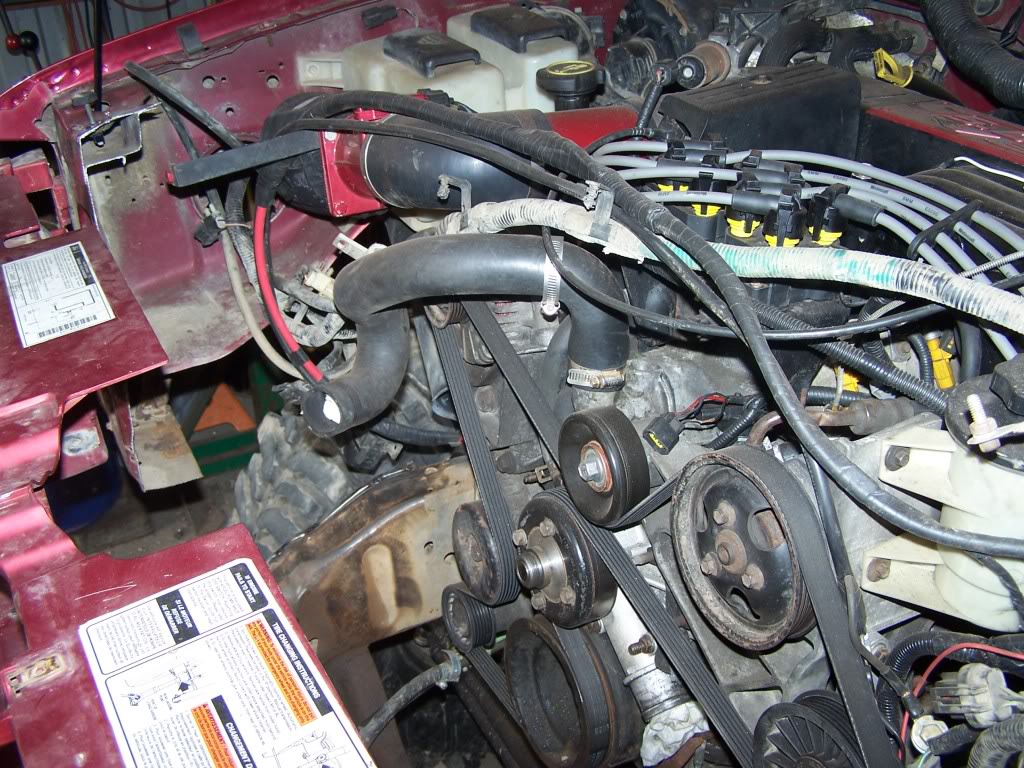

Name:  100_3198.jpg
Views: 5
Size:  206.6 KB
Name:  100_3197.jpg
Views: 6
Size:  171.4 KB

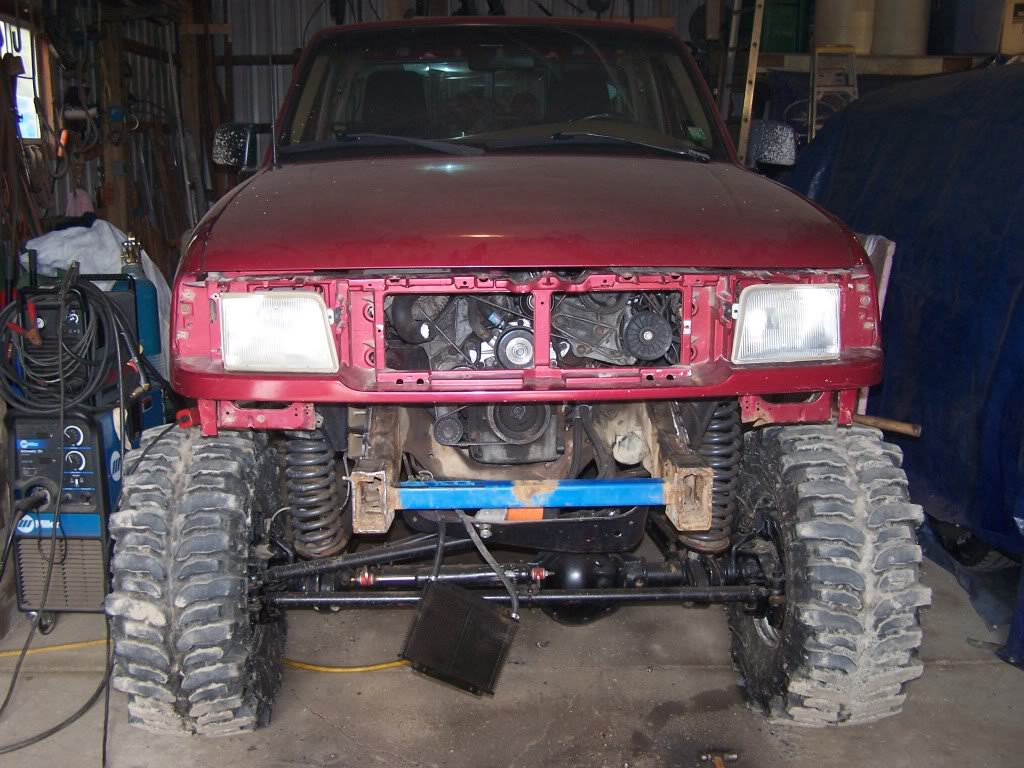

Name:  100_3196.jpg
Views: 5
Size:  147.0 KB

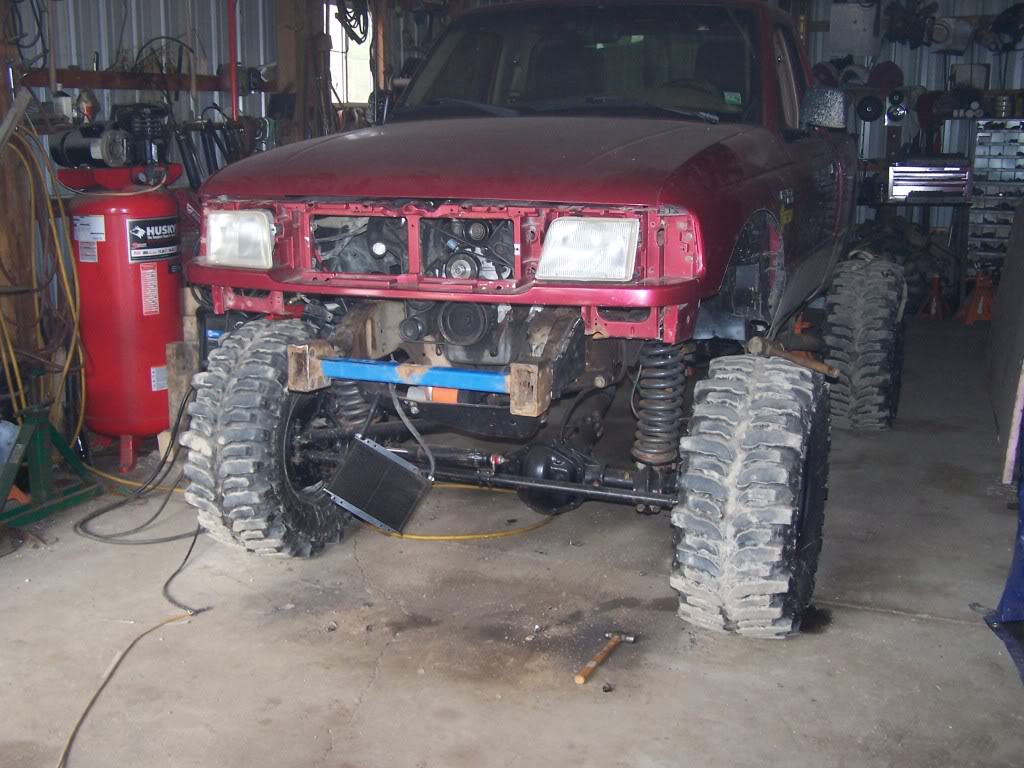

Name:  100_3195.jpg
Views: 4
Size:  127.9 KB

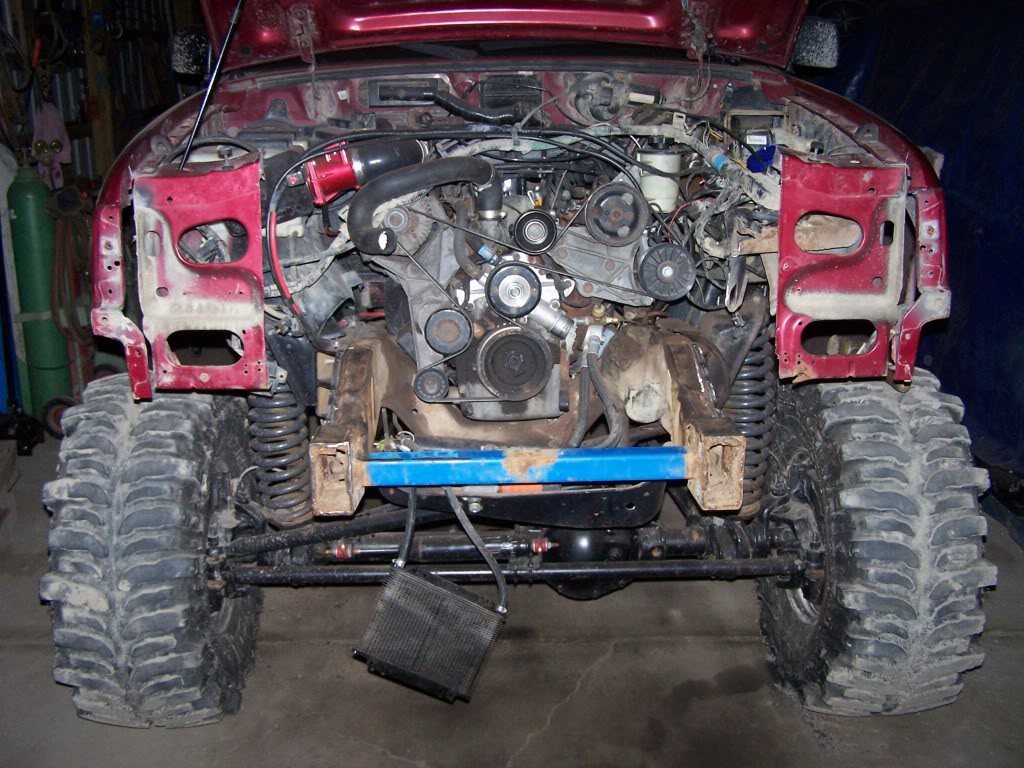

Name:  100_3206.jpg
Views: 6
Size:  163.0 KB

Last edited by ford rules; 03-15-2010 at 08:10 PM.
Reply With Quote
  #2
Old 03-15-2010
GI_JO_NATHAN's Avatar
Member
iTrader: (2)

Join Date: May 2007
Location: Spartanburg, SC/Pensacola
Posts: 343
Damn, you've got a little bit of work to do...
Reply With Quote
  #3
Old 03-15-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
ya im sure theres stuff im forgetting to haha
Reply With Quote
  #4
Old 03-15-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks sweet man with the swampers
Reply With Quote
  #5
Old 03-15-2010
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Looking great hope to see it moving out there this year LOL last time i saw it in the parking lot then parked on the beach never saw it move
Reply With Quote
  #6
Old 03-15-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Glad to see some progress. Looks nasty with the boggers!!!
Reply With Quote
  #7
Old 03-15-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
freaking sweet dude good luck putting it together
Reply With Quote
  #8
Old 03-15-2010
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
these gona be nice to watch. always loved ur truck
Reply With Quote
  #9
Old 03-16-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
LOVE the boggers.

are you going to keep your bed with just bedsides? or is this temp?
Reply With Quote
  #10
Old 03-16-2010
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
I hadn't seen the truck with the boggers on it. Looks mean as hell... Can't wait to see more.
Reply With Quote
  #11
Old 03-16-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Bed sides are stayin untill i put a cage and 4 link the back then they will get redone.
Thanks for the compliments and trust me i moved last year haha i ran the crap outta the 4.0 now i will se what i can do with the 5.0.
Also i just got my radiator and tranny cooler the quality is very high on both and am very happy with them i will get pics when installed.
I do have a ? though does anybody know if i can put an electric speed sensor in place of the mechanical speed sensor on a np-205?
Reply With Quote
  #12
Old 03-16-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good Rob, how much was the radiator?
Reply With Quote
  #13
Old 03-16-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
It was $180 from summit and in my opinion worth more its very nice quality, nice welds no rough edges or anything. Im definatly happy with it.
One question is the fan on the new tranny cooler i have says to just wire it up to the factory wires for the old fan but i didnt have a factory fan to begin with so how should i wire it in just hook it up so it turns on when you turn the key, put it on a switch, or what should i do?
Zach what are you using for a radiator with the 5.4?
Reply With Quote
  #14
Old 03-16-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
180 for the griffen radiator? that is a good price!

i have no clue what we are doing for the 5.4, im leaving that to nick. its unlikely i will be at the dunes anyway.
Reply With Quote
  #15
Old 03-16-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
lookn good! damn you have alot work just like me..I hope I can get it all done in time. Good deal on the rad, I think I'm going to upgrade this summer too
Reply With Quote
  #16
Old 03-17-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ya i was very suprised with the price it is a universal radiator so you make your own mounts but no big deal really.
Reply With Quote
  #17
Old 03-17-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
got a link to it Rob?

btw when is the D60 going in? haha
Reply With Quote
  #18
Old 03-17-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Link to the radiator. Griffin Thermal Products 1-26272-X - Griffin Aluminum Pro Series Radiators - Overview - SummitRacing.com
Haha ya i want to bad but i cant afford it right now i can get a KP 60 locally for $500 but i will not be able to afford it and i will also wanna 3 link it and C/O it in the process.
Reply With Quote
  #19
Old 03-17-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i understand. 500 is a good deal for a D60!
Reply With Quote
  #20
Old 03-17-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ya it is haha its killing me not to just go buy it but i still gotta get a tranny before the dunes also.
Reply With Quote
  #21
Old 03-17-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah i bet man. it would me too, i just cant hold myself back! lol so i give you credit for doing that.

so how are you going to attach your hood since you cut all that out?
Reply With Quote
  #22
Old 03-21-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Im just going with hood pins there not the best but that is reallly my only choice since the old hood latch wont clear the rad. and hood.
Reply With Quote
  #23
Old 03-22-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
I got a NP 205 this weekend, just set it up in there it looks like it is going to clear everything. I am pulling the trans friday and hope to have it built by next week. Radiator and front clip are 95% done.
Reply With Quote
  #24
Old 03-22-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
no pics
Reply With Quote
  #25
Old 03-22-2010
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
None yet im gonna try to finish my radiator mounts and install my new idler/tensior pulleys tonight.
