upgrading to the d-44

i finally got all of the parts for my second sas this time with a d-44 well here is my parts list so far,pic's will be up in a day or two this all i could think of for now,i have been busy tearing the truck down for the second itme

78-79 hp d-44 out of an f-250
10 foot 1.5" dom bar
4 one ton chevy tie rod ends
mild to wild high steer two hole arms
new rotors,calipers,bearings,seals,brake pads,ball joints
2 drilled and taped flat top ford knuckles
4 weld in bungs for chevy one ton tie rod ends
4 5 on 5.5 wheels
4 bfg alterain 35x12.50-15 tires
2 wheel adapters 5 0n 4.5 to 5 on 5.5
i am not sure on the springs yet(but it will come soon)
Reply With Quote
  #2
Old 02-10-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Why not just replace the rear axle with a FW 8.8 from a F150 to match the front axle?
Reply With Quote
  #3
Old 02-10-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
i have that option at the moment,i just have not made my mind up about it yet
Reply With Quote
  #4
Old 02-10-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I'm putting a full width 8.8 in mine.

I used F-150 coil springs on mine. I have 4" lift springs from that year.

You need one more wheel for a spare. Just get a JY wheel and put a used tire of whatever diameter you're going to on it. I don't know how far away you are, but I have some 35" mud tires (used but still some tread) and you can have one for a spare free if you get out this way. I think I have an extra steel 5x5.5 wheel and you can have that too.

What steering box will you use? I've changed my mind about the full size ford boxes from that era -- too few of them around and finding them or getting rebuilt ones can be a pain. Something with more cores available would be a good choice.
Reply With Quote
  #5
Old 02-10-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
thanks for the great offer griggs,i currently have a yota box but my options are still in the air
Reply With Quote
  #6
Old 02-10-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
ok,pic time

Name:  100_0388.jpg
Views: 4
Size:  126.3 KB
Name:  100_0389.jpg
Views: 3
Size:  102.5 KB
78-79 f-250 d-44
Name:  100_0390.jpg
Views: 2
Size:  156.3 KB
Name:  100_0391.jpg
Views: 5
Size:  121.2 KB
Name:  100_0392.jpg
Views: 4
Size:  151.0 KB

Name:  100_0413.jpg
Views: 4
Size:  112.9 KB
Name:  100_0414.jpg
Views: 3
Size:  101.4 KB

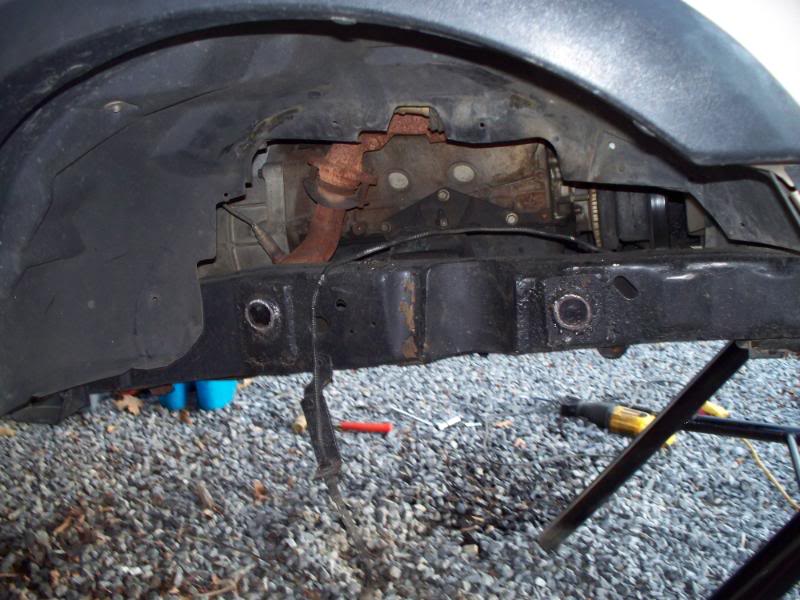

Name:  100_0415.jpg
Views: 4
Size:  90.7 KB
Reply With Quote
  #7
Old 02-11-2008
natedog57's Avatar
Member

Join Date: Nov 2005
Location: Central Florida
Posts: 33
Looks good Walt, everything a little easier to remove this time?
Reply With Quote
  #8
Old 02-11-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good walt.
Reply With Quote
  #9
Old 02-11-2008
Member

Join Date: Jun 2005
Posts: 148
I'm taking it that you're not going to reuse the suspension components that you had on there before with the D30? Are you switching to leaf springs?
Reply With Quote
  #10
Old 02-11-2008
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Looks good Walt
Reply With Quote
  #11
Old 02-11-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
Hate to say it Walt but.... I told you so! haha. Just kidding man, good luck with the new axle. I wish i would have gone full width when I did mine.
Reply With Quote
  #12
Old 02-11-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by natedog57 View Post
Looks good Walt, everything a little easier to remove this time?
lol,yeah you could say that,plus i have my little freind the cutting torch this time
Reply With Quote
  #13
Old 02-11-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by ShoNuff82 View Post
Hate to say it Walt but.... I told you so! haha. Just kidding man, good luck with the new axle. I wish i would have gone full width when I did mine.
yep,you sure did,i am thankfull for the change so soon,i just do not know about full width,i have an 8.8 rear axle out of a f-150 that is full width all i have to do is say the word and it is mine,but that is somthing i need to give some thought to.
Reply With Quote
  #14
Old 02-11-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by zainyD View Post
I'm taking it that you're not going to reuse the suspension components that you had on there before with the D30? Are you switching to leaf springs?
leaf springs?yes that is what i am looking to put under it,why the change?it does not matter if you put two days or if you put twenty years worth of work into a truck,to me if it does not drive right,or make me happy i will tear it apart and make it work the way i want it too,right is right and wrong is junk,that is how it is for me.
Reply With Quote
  #15
Old 02-12-2008
Member

Join Date: Jun 2005
Posts: 148
Quote:
Originally Posted by mazda98 View Post
leaf springs?yes that is what i am looking to put under it,why the change?it does not matter if you put two days or if you put twenty years worth of work into a truck,to me if it does not drive right,or make me happy i will tear it apart and make it work the way i want it too,right is right and wrong is junk,that is how it is for me.
I wasn't being critical, just curious if you were gonna go with leafs. I doesn't matter either way, whatever you want to do. I personally think either setup is fine. Hope it turns out the way you want it.
Reply With Quote
  #16
Old 02-12-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
What kinda problems are you having that are making you think about the change to leafs?

Just curious.... not critical.
Reply With Quote
  #17
Old 02-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
he was havin bump steer... i dont think that is a good enough reason to go to leaf springs tho.

i say lower it more if you can get high steer...
Reply With Quote
  #18
Old 02-12-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
That shouldnt really change by going to leafs tho.

Walt, do you have any pics of your steering / panhard geometry?
Reply With Quote
  #19
Old 02-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
here chris some from his build thread

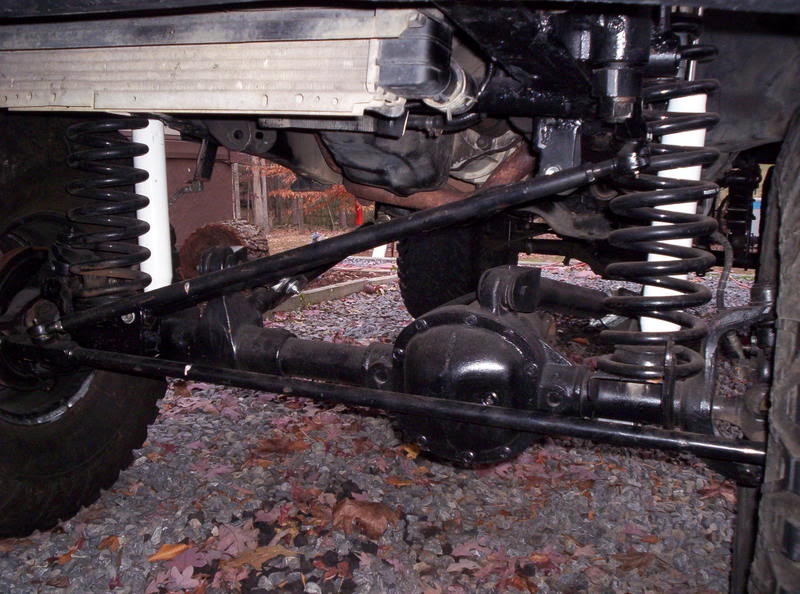

Name:  jeepfamily018.jpg
Views: 5
Size:  92.4 KB
Reply With Quote
  #20
Old 02-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Name:  itojfv3.jpg
Views: 3
Size:  96.6 KB
Reply With Quote
  #21
Old 02-12-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
Yea i would say your angles are a bit steep. I'd try the high steer and maybe lower it down a bit. Try and get your angles as close to flat as possible. Dont give up on the links just yet...
Reply With Quote
  #22
Old 02-12-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by zainyD View Post
I wasn't being critical, just curious if you were gonna go with leafs. I doesn't matter either way, whatever you want to do. I personally think either setup is fine. Hope it turns out the way you want it.
i apoligize if i sounded harsh,i was just trying to explane my reasoning,sorry man
Reply With Quote
  #23
Old 02-12-2008
mazda98's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by ShoNuff82 View Post
What kinda problems are you having that are making you think about the change to leafs?

Just curious.... not critical.
i know no one is being critical,i am thankfull for everyones opinions on here,as for the steering issues death wobble yada,yada,yada,so i decided to go a different rout,hey man look at the current pic no body lift.

Last edited by mazda98; 09-20-2008 at 05:33 PM.
Reply With Quote
  #24
Old 02-12-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by ShoNuff82 View Post
Yea i would say your angles are a bit steep. I'd try the high steer and maybe lower it down a bit. Try and get your angles as close to flat as possible. Dont give up on the links just yet...
Yea hes switching to a d44 so highsteer is now reasonable option. I agree with this. He already has all the link parts. He should buy the D44 TJ brackets and run what he has with highsteer, should fix his problem.
Reply With Quote
  #25
Old 02-13-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
Quote:
Originally Posted by mazda98 View Post
i know no one is being critical,and i hope that no one is mad at me,because i am thankfull for everyones opinions on here,as for the steering issues death wobble yada,yada,yada,so i decided to go a different rout,hey man look at the current pic no body lift.
Putting leafs on will not solve death wobble. Death wobble is usualy a symptom of back wheel bearings, out of round or unbalanced tires (yours look shot), bad tie rod / link ends. Have you ever trie borrowing a different set of tires?

I have run my d44 with high steer for years and never once had death wobble.

Im not hatin on leaf springs, what ever you decide to do Im sure it will work out. Just dont walk away from links for the wrong reason.
Reply With Quote
