2005 edge dana 30 4 link swap - Ranger-Forums - The Ultimate Ford Ranger Resource


Solid Axle Swaps General discussion of solid axle swaps for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 12-20-2010
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
2005 edge dana 30 4 link swap

just a couple picks so far finishing up the rear and prepping/mock up the front


(wife is pissed)
Attached Thumbnails
2005 edge dana 30 4 link swap-2010-12-20_15-59-59_609.jpg   2005 edge dana 30 4 link swap-2010-12-20_15-52-41_675.jpg   2005 edge dana 30 4 link swap-2010-12-20_15-50-38_161.jpg   2005 edge dana 30 4 link swap-2010-12-20_15-51-07_394.jpg
Reply With Quote
  #2
Old 12-20-2010
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Looks good. Was about to ask if you were in Alaska. Our big air force base is called EAFB
Reply With Quote
  #3
Old 12-21-2010
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Nope in south dakota I would much rather alaska though
Reply With Quote
  #4
Old 12-23-2010
stangdroptop351's Avatar
Member

Join Date: Feb 2010
Location: Scottdale,PA
Posts: 511
lookin good man, my cousin was @ EAFB in AK he was in the air force up there 4 a few years he just came home last yr
Reply With Quote
  #5
Old 12-23-2010
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Thanks will get some more pics up shortly
Reply With Quote
  #6
Old 12-23-2010
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
nice
Reply With Quote
  #7
Old 08-19-2011
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
new axle for the front





thinking either a FF14B (disc brake kit) or sterling 10.25...
Attached Thumbnails
2005 edge dana 30 4 link swap-2011-08-19_17-42-07_187.jpg   2005 edge dana 30 4 link swap-2011-08-19_17-13-51_292.jpg
Reply With Quote
  #8
Old 08-19-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Whatever happened to the D30? Did it get finished?
Reply With Quote
  #9
Old 08-19-2011
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by 98liftedranger View Post
Whatever happened to the D30? Did it get finished?
yup a long time ago just forgot to update this thread



Attached Thumbnails
2005 edge dana 30 4 link swap-17042-img-3541.jpg
Reply With Quote
  #10
Old 08-19-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I'm guessing you posted those from FRF? Those pictures are not going to work on this site.
Reply With Quote
  #11
Old 08-19-2011
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by 98liftedranger View Post
I'm guessing you posted those from FRF? Those pictures are not going to work on this site.
fixed a couple
Reply With Quote
  #12
Old 01-13-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Slight update. My deployment is winding down (living in the tents now) and I have ordered some bits and bob's to finish up.

As of right now the guy working on my truck should have the front axle in. Keeping with the same suspension set up I had with the D30. I am going with 5.38's and probably a lockrite in the front. I have not decided on a rear yet either going with a D70u or Sterling 10.25 either way 5.38's and welded. Steering will be a standard setup with room for hydro assist in the future. I just ordered some 39.5's and 16.5" steelies from a member on here and they should be there when I get home. I wish I had some pictures to throw up. Sent an email to the shop and he said when he gets a chance he will toss some up for me.


Now a couple of questions D70u or sterling price is the same either way. Also the 39.5's are pretty well used two of them will last the season without a doubt (~40% tread) but the other two are racing slicks. I found cheap set of brand new 38.5's will they match well enough to keep the tcase from smoking? I have read that the 38.5's are a little short, but I cant imagine they are to much shorter than some relatively bald 39.5s...
Reply With Quote
  #13
Old 01-26-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209




Up to date pics.
Attached Thumbnails
2005 edge dana 30 4 link swap-2012-01-26_17-19-27_638.jpg   2005 edge dana 30 4 link swap-2012-01-26_17-19-18_944.jpg
Reply With Quote
  #14
Old 01-26-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
quick shot of 2 of the tires



and the other 2 I ordered to make up for the racing slicks.

Attached Thumbnails
2005 edge dana 30 4 link swap-capture202.jpg
Reply With Quote
  #15
Old 01-26-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looking good!
Reply With Quote
  #16
Old 01-28-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209


Pulled a rear axle today came out of a 1999 e series van. Is a D70 (HD?) with factory disks.
Attached Thumbnails
2005 edge dana 30 4 link swap-2012-01-28_16-07-36_395.jpg
Reply With Quote
  #17
Old 01-29-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Got some junkyard rims and tires for rollers and since I have a similar set of rims on the way I figured I would experiment with these



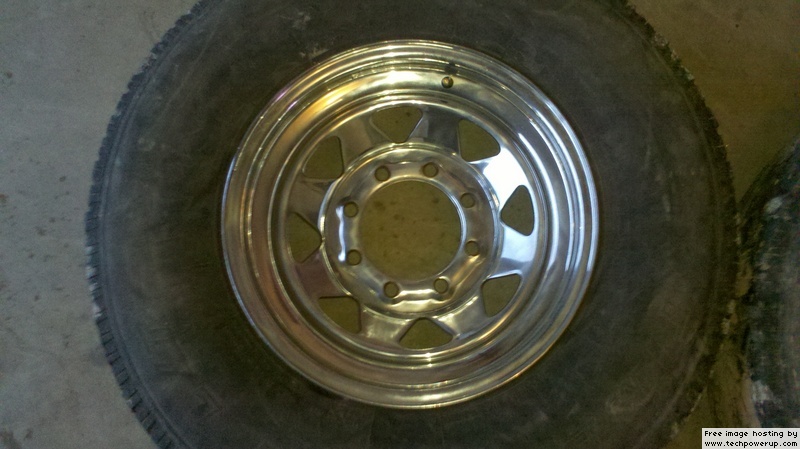

Original rusty rim



Rust removed



Self etching primer

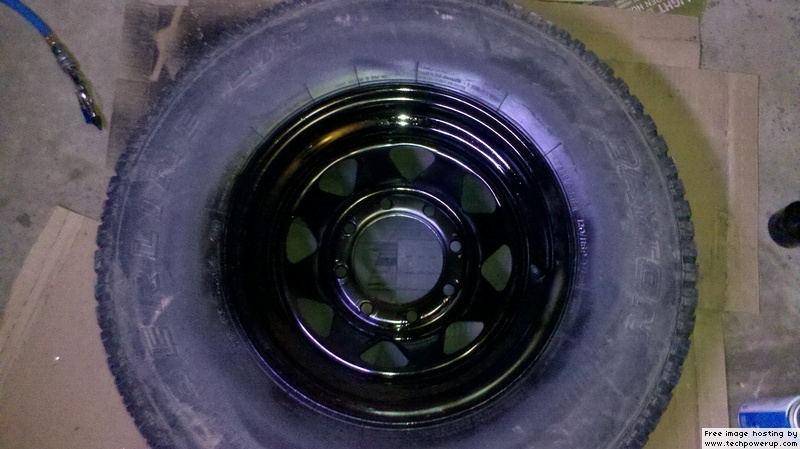

Cheap black gloss paint

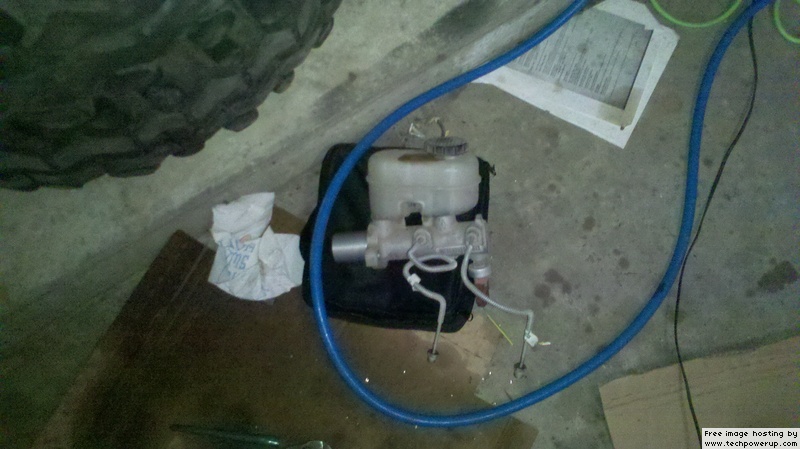

I also picked up a new master cylinder this one should be valved for front and rear 1 ton disk brakes it came off of the E350 I pulled the axle from.

Attached Thumbnails
2005 edge dana 30 4 link swap-2012-01-29_16-41-02_97.jpg   2005 edge dana 30 4 link swap-2012-01-29_16-41-06_898.jpg   2005 edge dana 30 4 link swap-2012-01-29_16-41-16_663.jpg   2005 edge dana 30 4 link swap-2012-01-29_17-19-20_165.jpg   2005 edge dana 30 4 link swap-2012-01-29_17-08-26_187.jpg

Reply With Quote
  #18
Old 01-30-2012
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice progress. Can't wait to see more.
Reply With Quote
  #19
Old 01-30-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by seed60 View Post
Nice progress. Can't wait to see more.
x2! Should be sweet!
Reply With Quote
  #20
Old 01-31-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Nice stuff, should be HD all the way.

I have to ask, what will you be running in the D70 rear, L/S, Locker… ?

My thinking, go Sw’able or spool, because a D70 “Auto" locker, in a Ranger (light weight) will never unlock to differentiate when turning or cornering.
Just wondering !
Reply With Quote
  #21
Old 01-31-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by Scrambler82 View Post
Nice stuff, should be HD all the way.

I have to ask, what will you be running in the D70 rear, L/S, Locker… ?

My thinking, go Sw’able or spool, because a D70 “Auto" locker, in a Ranger (light weight) will never unlock to differentiate when turning or cornering.
Just wondering !
Plan on going with a detroit full case. Full case spools are expensive for the D70 and I need a new carrier since there are no thick 5.38s and I have the carrier for 3.55s. If I walk into a cheap elocker or something I may go with that but I doubt it at this point a detroit should be plenty strong.
Reply With Quote
  #22
Old 01-31-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by cdawall View Post
Plan on going with a detroit full case. Full case spools are expensive for the D70 and I need a new carrier since there are no thick 5.38s and I have the carrier for 3.55s. If I walk into a cheap elocker or something I may go with that but I doubt it at this point a detroit should be plenty strong.
Oh ya the Detroit Locker for a D70 will be plenty strong, and as I said in the rear of a Ranger it will never unlock.

Sounds like you will have a great setup once done.

Spools are usually cheaper by a lot but I don’t know on the D70.

ltr
Reply With Quote
  #23
Old 01-31-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209

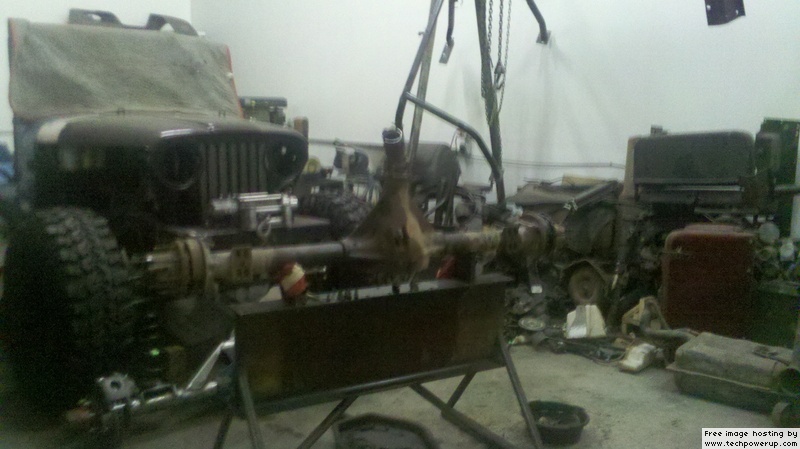

D70 is torn down. Turns out it is only a 32 spline axle, but until I start breaking things that's plenty for me.





^guess which side has a bad seal in it.



Quote:
Originally Posted by Scrambler82 View Post
Oh ya the Detroit Locker for a D70 will be plenty strong, and as I said in the rear of a Ranger it will never unlock.

Sounds like you will have a great setup once done.

Spools are usually cheaper by a lot but I don’t know on the D70.

ltr
Normally spools are cheaper and that is what I am used to but for the D70 it seems they cost about the same. I had originally planned on just welding it, but am hoping with all of the extra crap in and on the truck it will be heavy enough.
Attached Thumbnails
2005 edge dana 30 4 link swap-2012-01-31_18-13-02_162.jpg   2005 edge dana 30 4 link swap-2012-01-31_18-13-06_991.jpg   2005 edge dana 30 4 link swap-2012-01-31_18-13-22_101.jpg
Reply With Quote
  #24
Old 02-01-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Rear axle is now out and some I installed some XJ 1" shackles they will only give .5-.75" lift, but are a lot beefier not to mention greasable.

Measured the ring gear on the rear axle and even though 35 spline shafts fit the FF hubs turns out this one is still a D60 (9.75" ring gear) no big deal should still be plenty strong. Judging by the thicker tubes, hubs that fit 35 spine shafts and stock 32 spline shafts I do feel safe calling it a D60HD lol.
Reply With Quote
  #25
Old 02-01-2012
cookiemonster's Avatar
Member
iTrader: (1)

Join Date: Jan 2012
Location: budd lake, nj
Posts: 84
Where did you get those 2 super swappers?
