08+ lift options

I have been reading posts for the past few hours and am trying to determine how to get 3" lift.

So far this is what i have come up with:

get the keys from Ford for a pre 07 ranger and then do a little TB crank

for the rear end get a aal and the chevy drop shackels

was wondering how this sounds.......

also part numbers would be helpful. I got about 1 month before i head into the hunting camp so gonna need the lift.

I dont like Body lifts so thats a last resort.

oh and if you havent seen my truck i posted a pic in the picture forum

Thanks
Reply With Quote
  #2
Old 04-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
PreKey mod (07 and older keys on an 08+)will get you about 1.75" lift with the stock depth/crank of the bolts. Best and cheapest route is getting a set from another member or hitting up a junkyard.

Dump the stock block, and get the AAL and shackles. If you do those ontop of having a block, you'd be about an inch lower than me....you'll gain 3" in the back....but wont gain 3" in the front. If you did the shackle and AAL w/o the stock block, you'd gain about 2" in the rear.



All your PreKey info is found here, including part numbers....
https://www.ranger-forums.com/forum2...ad.php?t=70142

Belltech 6400 2" chevy drop shackles(which are adjustable so you can perfect the stance)
http://store.summitracing.com/partde...0&autoview=sku

ProComp Short AAL
http://store.summitracing.com/partde...5&autoview=sku

Last edited by Fx4wannabe01; 04-21-2009 at 02:22 PM.
Reply With Quote
  #3
Old 04-21-2009
Rescue's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Moose Jaw, Saskatchewan
Posts: 213
so i remove the blocks all together?


also is there in online how tos for this stuff ....or should i just go get a book from haynes
Reply With Quote
  #4
Old 04-21-2009
Sea-Bass's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Georgia
Posts: 1,059
Quote:
Originally Posted by Rescue View Post
so i remove the blocks all together?


also is there in online how tos for this stuff ....or should i just go get a book from haynes
See post above yours^^^^

and here is the finished results thread to the thread shane posted above...

https://www.ranger-forums.com/forum2...ad.php?t=83924

Last edited by Sea-Bass; 04-21-2009 at 03:11 PM.
Reply With Quote
  #5
Old 04-21-2009
DallyBoy09's Avatar
Member

Join Date: Feb 2009
Location: Kingston, Ontario
Posts: 184
Hey Rescue, check out my post in a few minutes, i just completed a shackle install with pre-keys. You will need to crank the bars tho to get it to around factory rack.


Dallis
2009 GO Ext.Cab 4x4 4.0L
Pre-Key Mod
Cranked Bars
Shackle Kit
Reply With Quote
  #6
Old 04-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by DallyBoy09 View Post
Hey Rescue, check out my post in a few minutes, i just completed a shackle install with pre-keys. You will need to crank the bars tho to get it to around factory rack.


https://www.ranger-forums.com/forum2...ad.php?t=84643

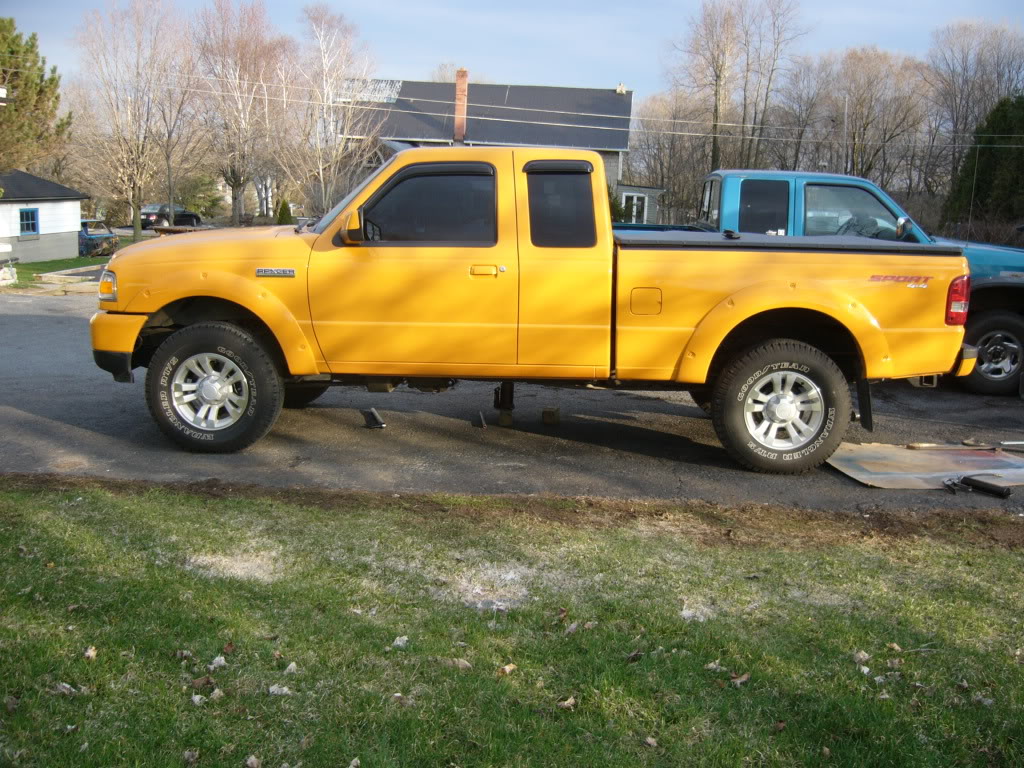

PreKey mod + slight crank + Belltech 6400 shackles + stock 1.5" blocks
Name:  P1010888.jpg
Views: 2
Size:  210.2 KB
Reply With Quote
  #7
Old 04-21-2009
Rescue's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Moose Jaw, Saskatchewan
Posts: 213
whats the measurements now ? and how long did it take ya?
Reply With Quote
  #8
Old 04-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Rescue View Post
whats the measurements now ? and how long did it take ya?
click here: https://www.ranger-forums.com/forum2...ad.php?t=84643

to see this:

Quote:
Originally Posted by DallyBoy09 View Post
and for time, the keys took about an hour a side bymyself and the shackles about the same , more like 45 min with my bro helping me....grand total for everything, about 220 bucks.....thats with Number 1 bars.

I want to say Dallis got all new parts....should be able to do it for under $100 by buying from a junkyard.
Reply With Quote
  #9
Old 04-21-2009
DallyBoy09's Avatar
Member

Join Date: Feb 2009
Location: Kingston, Ontario
Posts: 184
only new pars were the shackles, the bars and keys were used.....but dont forget this is CDN Moooola ......

And due to the lack of yards around here, parts for the newer trucks are hard to find, and none of the yards are 'you pull it' style.
Reply With Quote
  #10
Old 04-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
CDN/AMCN blah. lol. I knowingly didn't put 'in Canadian dollars' in my reply because he's from Ontario too...BUT....I forgoted all about my little 'it'll run ya no more than $100' in relation to the CDN/American dollar rates. lol.
Reply With Quote
  #11
Old 04-21-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hockey pucks seem to be popular

use them as body lift pucks, lift blocks between the spring perch and leaf spring, stick them in your shock? hell wedge it between your bump stop and the a-arm
Reply With Quote
  #12
Old 04-21-2009
TrucknGolf's Avatar
Member

Join Date: Nov 2008
Location: Colorado
Posts: 1,829
^^lol
Reply With Quote
