Coilover Brackets by ME00stepside Official Thread

Reply




  #2151
Old 06-12-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
ME00, I just send you payment Via PayPal. Thanks!

Reply With Quote
  #2152
Old 06-13-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
Anyone here a welder in the San Diego/Socal Area? Once I get the brackets, I'll be doing the conversion, but the autoshop on base doesn't offer welding services, and that is the only part I can't do. I'm not opposed to going to a shop down here, but I figured I'd see if anyone wants to take my money first.

Reply With Quote
  #2153
Old 07-05-2018
Join Date: Apr 2018
Location: windsor
Posts: 6
King 2.5 coilovers on the way.

Paint job got us distracted from the suspention.
just ordered king 2.5's x 8 inch travel.these should
work out pretty sweet..i will post pics in a week or two when they get in.

Reply With Quote
  #2154
Old 07-05-2018
Level III Supporter
iTrader: (2)
Join Date: Nov 2010
Location: Maine
Posts: 1,229
Originally Posted by FirstRangerProject View Post
Paint job got us distracted from the suspention.
just ordered king 2.5's x 8 inch travel.these should
work out pretty sweet..i will post pics in a week or two when they get in.
8" travel shocks? Are you using my kit, and what have you done to the suspension? Even with a Superlift, 8" travel is too long for a coilover conversion unless you're using tall shock hoops.

Curious to see what youi're doing.

Reply With Quote
  #2155
Old 07-05-2018
Join Date: Apr 2018
Location: windsor
Posts: 6
Yes we are using your brackets and your bolts because there are good quality bolts, and couple of the spacers. The lower bracket position in set in stone and we are keeping the original LCA. For the upper bracket we may chop off originial moumt and make an extention of 3 inch in height to mount your bracket to. However our first install is going in as you would do. UCA will need to be made...if we could find a set that extends and extra 1.5 to 2 inch maybe id buy them but not much to making a set either...we will offset pin to A Arm down..Now this is the first time we have done any of this so i hope my math is good...if my math is correct the front should sit 3 to 4 inches higher on 500 pound springs ...and we should be able to dukes of hazard the sand dunes and mayne a train crossing or two.

Reply With Quote
  #2156
Old 07-05-2018
Join Date: Apr 2018
Location: windsor
Posts: 6
Yes we are using your brackets and your bolts because there are good quality bolts, and couple of the spacers. The lower bracket position is set in stone and we are keeping the original LCA. For the upper bracket we may chop off originial mount and make an extention of 3 inch in height to mount your bracket to. However our first install is going in as you would do. UCA will need to be made...if we could find a set that extends and extra 1.5 to 2 inch maybe id buy them but not much to making a set either...we will offset pin to A Arm down..Now this is the first time we have done any of this so i hope my math is good...if my math is correct the front should sit 3 to 4 inches higher on 500 pound springs ...then we get 3.5 inch up travel and 4.5ish down..also we are adding gas bump stops but we using dadco they are nothing fance but i have never seen one fail .and iv seen them run in presses for years..i got some crazy ideas to step a couple by different inch/pounds to make up for springs on up travel..this way truck isnt up 8 inchs....I hope..ha ..they should do the trick..

Reply With Quote
  #2157
Old 07-26-2018
Member
Join Date: Nov 2008
Location: Chicagoland, IL USA
Posts: 34
MEStepSide,

Just curious if you've thought about offering lower brackets as described here:

https://www.ranger-forums.com/showpost.php?p=2131612&postcount=2136

Chuck

Reply With Quote
  #2158
Old 07-26-2018
Member
Join Date: Nov 2008
Location: Chicagoland, IL USA
Posts: 34
MEStepSide,

Just curious if you've thought about offering lower brackets as described here:

https://www.ranger-forums.com/showpost.php?p=2131612&postcount=2136

Chuck

Reply With Quote
  #2159
Old 08-02-2018
tyrell's Avatar
Member
Join Date: Jul 2009
Location: peterborough, on
Posts: 8
Payment sent

Reply With Quote
  #2160
Old 08-04-2018
tyrell's Avatar
Member
Join Date: Jul 2009
Location: peterborough, on
Posts: 8
Just curious if anyone has used coilovers with the new rough country 5 inch kit?

Reply With Quote
  #2161
Old 08-13-2018
Join Date: Apr 2018
Location: windsor
Posts: 6
Originally Posted by chucky2 View Post
MEStepSide,

Just curious if you've thought about offering lower brackets as described here:

https://www.ranger-forums.com/showpo...postcount=2136

Chuck
Hi..i could possibly be interested but im not sure how committed i could be to it. I would have to see after i get mine done..i just picked up the kings and i will be mounting them tuesday..they are really sweet. I will post picks with them mounted..im sure we will need some kind custom UCA.

Reply With Quote
  #2162
Old 09-07-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
For the spacers that come with the kit, which side do the larger ones go on? I put the larger ones on the upper mount, because that is the only way I could get it to sit tight. I saw in the thread some people put the larger one to the rear, and the smaller one in front, but that left me with 1/8" of play for the shock to slid fore and aft. On the bottom, I'm looking at both smaller spacers. I can attach pictures if needed, and any input is recommended.

Reply With Quote
  #2163
Old 09-13-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53

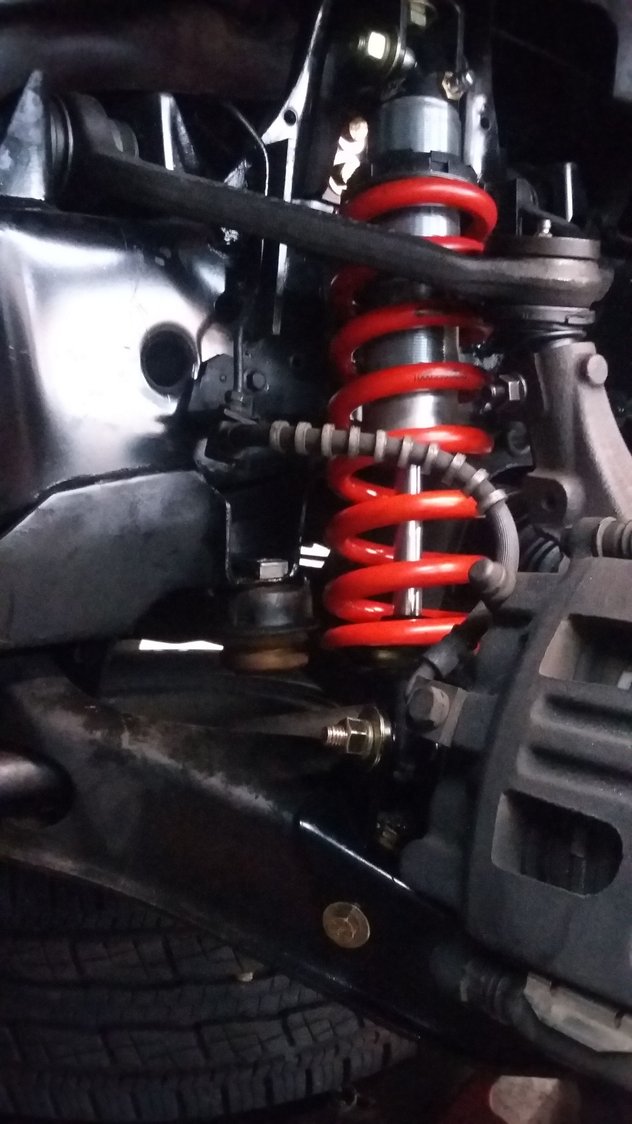

Moved the stock BS to mount in the rear tab hole, just used a through bolt on it. I forgot my straps at home, so ill install those tomorrow, and pull the bars as well.

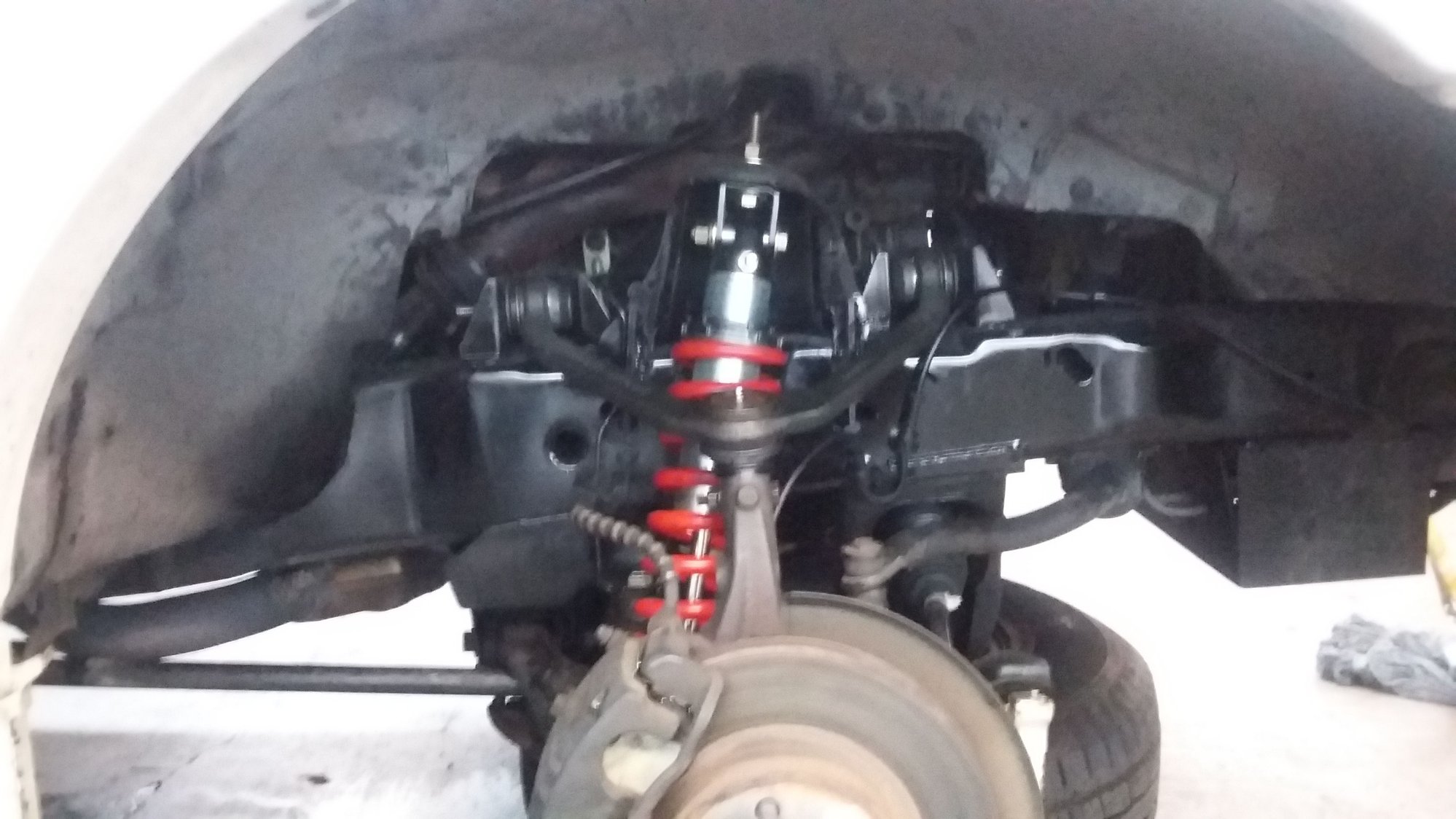

Finished product. New tie rods, upper A Arms and ball joints. The lower BJ was awful. Ill post a video if i can.


Last edited by HawaiiRanger04; 09-14-2018 at 08:58 AM.
Reply With Quote
  #2164
Old 09-17-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
Alright, so I finished the swap, and holy smokes talk about an improvement. It was too late in the day for firestone to do a full alignment, but I got the toe fixed, but my camber is still a bit off. That aside, the ride is so much better. Regular road travel is so smooth, speed bumps are a thing of the past! I only had about 1.5-2" of clearance on 31" tires, and now I'm up to 3-3.5" and the truck finally sits level. I need to tweak the preload to level the driver/passenger side a bit, but overall, I'm happy with it. I'm running 650lbs springs, and I'll see how these feel over the next couple of weeks as they settle in. I'm only running about 1.5" of preload, and I know I'll need to tighten that up, especially as the springs settle. I'll get some truck pictures of how she sits now, and I'll measure the side height to see what I'm sitting at now.

Reply With Quote
  #2165
Old 09-17-2018
Bird76Mojo's Avatar
Member
iTrader: (2)
Join Date: Dec 2009
Location: Central, IL.
Posts: 1,305
At $325 I'd be looking for a new fabrication shop. Get that price down and your customer base growing. There is an online fabricator bid service that I could probably have these made for less than half that price, provided I had the drawing files. J/S

Reply With Quote
  #2166
Old 09-21-2018
Member
Join Date: Jan 2018
Location: Loudonville Ohio
Posts: 2
Looking for coil over brackets

I need some of the coil over brackets for the ranger coil over conversion anyone selling or can get me to the guy that does

Reply With Quote
  #2167
Old 09-21-2018
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
Originally Posted by ME00Stepside View Post
Guys, I do still make these, but I just got word from the fabricator that my cost is going up a little, so here is the latest pricing:

Pricing:
$325 shipped to the US
$360 shipped to Canada

Kit includes:
4 brackets (2 upper, 2 lower)
4 gussets to reinforce shock tower
2 shock tower spacers for upper mounts
8 rod end spacers (for 1/2" wide rod ends--like Fox)
All hardware to install--grade 8 zinc plated

What else you will need:
2 coilover shocks
2 coil springs
2 limit straps and brackets (do NOT skip these!)

What you may need:
Bump stops if you are lifting your truck at the same time, but if you already have a Superlift, or if you are remaining at stock height, you can reuse what you have. You simply need to trim back the bracket on the frame where the bump stop mounts, so that the coilover will clear it. You then redrill a hole in the remaining part of the bracket and mount the bump stop further in. Depending on your bumpstop, you may want to have a tab welded onto your LCA to give you a flatter area for the bump stop to contact. I would suggest moving the bump stop before you have the gussets welded, so you can have this done at the same time.

To order:
1. Send payment to sbeau1 (at) metrocast (dot) net.
.......include in your instructions that it's for Ranger coilover brackets, and your R-F user name
2. Post in this thread that you've sent payment.
3. check in on the thread for updates.
4. Post pics of your install!

Email is always the best method to get in touch with me. I don't come on here very often, and usually when I do, I find a message that is at least a few weeks old.

Thanks to all of you guys for the support in making these. I'm happy to be able to offer something to the RBV community.
[/QUOTE]

Here is the sellers information

Reply With Quote
  #2168
Old 2 Weeks Ago
Join Date: Sep 2014
Location: San Diego, CA
Posts: 53
Has anyone run 12" springs on the stock height ranger? I searched through the forum, and see a handful of people talking about 12" springs, but I haven't seen it on the stock height, just the SL trucks. My preload put the nut behind the a-arm, and I'd like to crank a bit more, but can't get the spanner on anymore.


Last edited by HawaiiRanger04; 2 Weeks Ago at 12:39 PM.
Reply With Quote
  #2169
Old 6 Days Ago
Join Date: Apr 2018
Location: windsor
Posts: 6
Hi my kid and I put in a set of 8" travel coil overs....spring was 12-13 inch we copped off the tops of the existing top mounts and extended them 4 inchs higher..so the over all height only lifted 4 inches.."this is what we wanted"..sway bars gone torsion spring gone....with 31 inch bf's what a fun ride...she rolls over tracks and makes your stomach drop . we are about to replace the rear spring mounts and ind install some fox smoothies back there..then we see how she rolls. i can be more descriptive if you would like to know more..i posted some pics.
