coilover conversion problems

2.0 by 6 coilovers are rubbing on the ball joint and frame.... i need help, do i just adjust the coils a certain way or what, got my brackets on here from the guy who made them... had to cut off the bumpstops and move the brake line mounts... i had to take apart the ball joint to even get the coils bolted in.

i need help and preferably pictures

thanks!
Reply With Quote
  #2
Old 07-14-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Sounds like something is not right with the brackets, the angles are off. You are using 2.5" springs, right?

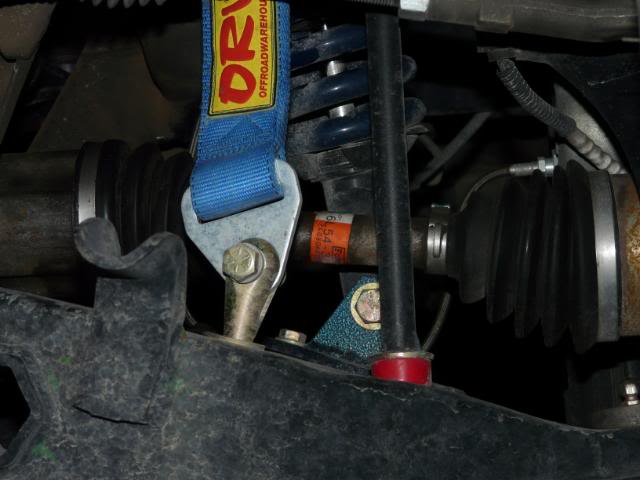

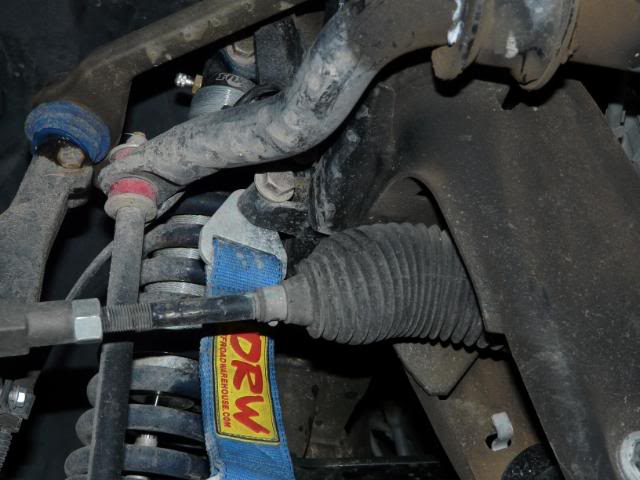

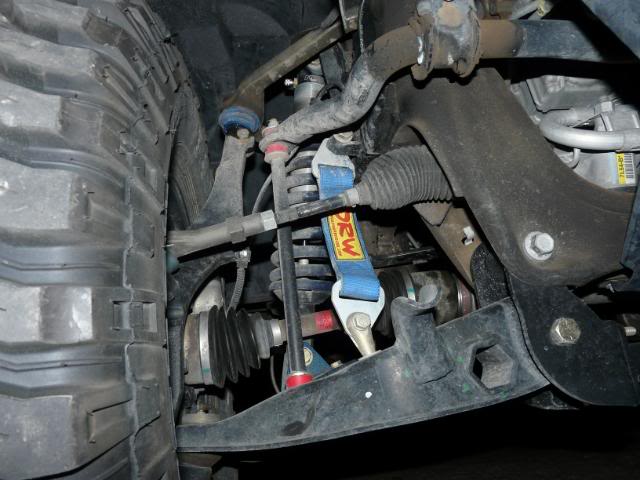

Here are the best pictures I have:





Attached Thumbnails
coilover conversion problems-012.jpg   coilover conversion problems-014.jpg   coilover conversion problems-009.jpg
Reply With Quote
  #3
Old 07-14-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Reply With Quote
  #4
Old 07-14-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Hey man, sorry I just got your PM. I'll give you a call later if you still need help, but yes, the bump stop mounts needed to be trimmed. It's actually mentioned in the brackets thread, and in the how-to that ORW had made back when they were still selling mounts. Once those are trimmed, you can get the coil in without disconnecting the ball joint, but what I found was that it was still easier with the lower control arm dropped.

I need to see if I can find the pictures on my hard drive from when I originally posted them, because they were lost when the Ranger-Forums server issue happened over the winter.

As for rubbing on the frame, you should have enough clearance to get your fingers behind the coils. Something doesn't sound right there. This is the first complaint I've had of this nature.
Reply With Quote
  #5
Old 08-01-2012
2007BlackFX4's Avatar
Member

Join Date: Feb 2010
Location: Alabama
Posts: 171
Did this problem ever get fixed?
Reply With Quote
  #6
Old 08-02-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by 2007BlackFX4 View Post
Did this problem ever get fixed?
Wondering the same.
Reply With Quote
  #7
Old 08-02-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Yes, I have checked in with him since this thread, and everything is good. Aside from trimming the bump stop mounts, I don't know what else was the issue, but I'm thinking that's all it was. He didn't really give me any info, just that his setup is all installed and everything is good.
