Icon5 fox emolsions and coils for xmas

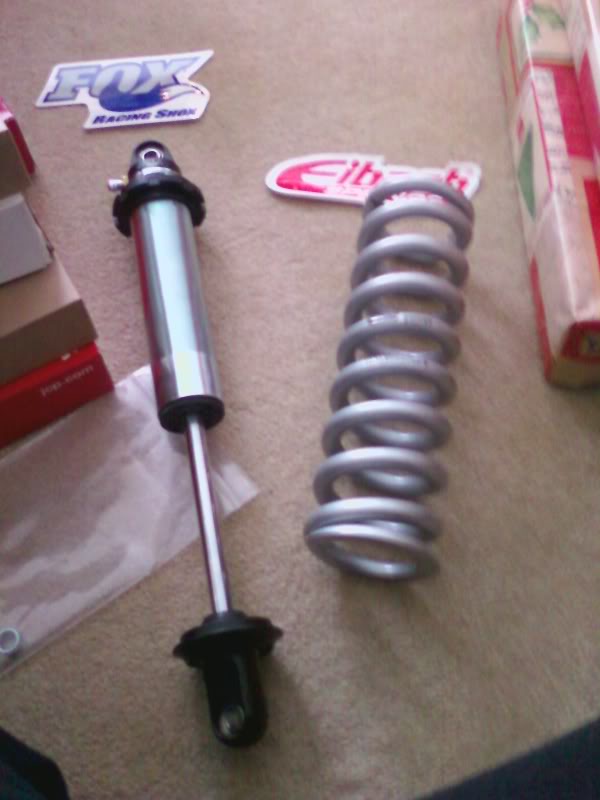

like it says i got emolsiom 2.0 with 750lb eidech coils. Im jst trying to figure out how the coils mount on the shock... Maybe im retarded but im just at a lose, cant figure it out lol.... HELP ME!!!! lol Merry Christmas!!!

Name:  fox.jpg
Views: 3
Size:  44.1 KB

Last edited by Off-roadranger04; 12-25-2009 at 09:42 AM.
Reply With Quote
  #2
Old 12-25-2009
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191
lucky dog
Reply With Quote
  #3
Old 12-25-2009
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
Nice.
Reply With Quote
  #4
Old 12-25-2009
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
take the fitting out and then the top lock ring unscrews, but thats just from looking at it
Reply With Quote
  #5
Old 12-25-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
Quote:
Originally Posted by chevyslayer925 View Post
take the fitting out and then the top lock ring unscrews, but thats just from looking at it
thats the fitting to charge it with nitrogen... idk if i take that out if the nitrogen will shoot out lol
Reply With Quote
  #6
Old 12-25-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Reply With Quote
  #7
Old 12-25-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
sweet thanks man. i cant wait for these to go on the truck. btw is there a tool to tighten the adjuster to put more tension on the coils??
Reply With Quote
  #8
Old 12-25-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Spanner wrench.
Reply With Quote
  #9
Old 12-25-2009
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
does the bottom cup not have a notch to clear the shaft?
Reply With Quote
  #10
Old 12-25-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by Off-roadranger04 View Post
thats the fitting to charge it with nitrogen... idk if i take that out if the nitrogen will shoot out lol
No, nitrogen won't come out just by taking the cap off. The cap keeps the schrader valve protected.

Screw off the adjustment and lock nut at the top of the coilover to install the spring. Once the spring is on, you adjust the nuts back down to compress the spring. It is best to use a spanner wrench, like this: Off Road Warehouse - ICON 2 Pin Spanner Wrench - ALL ICON Coil-over Shocks
Reply With Quote
  #11
Old 12-25-2009
Seb_L's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
SICK!
Reply With Quote
  #12
Old 12-25-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Just noticed, you got a sticker? I didn't get one.
Reply With Quote
  #13
Old 12-25-2009
atrocity's Avatar
Member

Join Date: Dec 2009
Location: 954Fl
Posts: 547
Quote:
Originally Posted by KLC View Post
Just noticed, you got a sticker? I didn't get one.
did you check inside the manual?
Reply With Quote
  #14
Old 12-25-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
yeah its a pretty cool sticker
Reply With Quote
  #15
Old 12-25-2009
blkb3's Avatar
Member

Join Date: Oct 2005
Location: Tolleson, Az
Posts: 443
The spanner wrench didnt come with the shocks?? Maybe its a wierd FOX thing but double check your boxes, they usually do
Reply With Quote
  #16
Old 12-25-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by atrocity View Post
did you check inside the manual?
I did, but I'll double check just in case.
Reply With Quote
  #17
Old 12-25-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by blkb3 View Post
The spanner wrench didnt come with the shocks?? Maybe its a wierd FOX thing but double check your boxes, they usually do
Fox shocks don't come with them.
Reply With Quote
  #18
Old 12-25-2009
blkb3's Avatar
Member

Join Date: Oct 2005
Location: Tolleson, Az
Posts: 443
Quote:
Originally Posted by KLC View Post
Fox shocks don't come with them.
gotcha
Reply With Quote
  #19
Old 12-25-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you know the bottom cup should come loose and come off the shaft. slide the coil on then put the bottom cup back in.
Reply With Quote
  #20
Old 12-25-2009
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Thats a nice X-Mas present.
Reply With Quote
  #21
Old 12-26-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
so how do i kno when the tensioners are tight enough????
Reply With Quote
  #22
Old 12-26-2009
Gmanpaint's Avatar
Member
iTrader: (1)

Join Date: Dec 2009
Location: SW, MO
Posts: 111
Just depends on how you like it to ride. The tighter the coils, the stiffer the ride. You will be making adjustments for awhile after you install them. Its just a matter of fine tuning to your comfort level.
Reply With Quote
  #23
Old 12-26-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
ah gotcha... thanks guys!!
Reply With Quote
  #24
Old 12-26-2009
Member

Join Date: Sep 2009
Location: fairfax, virginia
Posts: 1
You bought coils but you don't even know how to install the spring? Probably was not the right setup for you.
Reply With Quote
  #25
Old 12-26-2009
Off-roadranger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
ive done my research... they are going on the truck when my buddy clears out his garage!
