front leafs on dana 44

im am doing my axle swap and im getting further and further and learning lots, i am going with a dana 44 front with shocks and coils and a ful floater GM 14 bolt

but why on every ranger i see with a SAS it has leafs in the front, i thought coils get better articulation that the leafs WHY LEAFS??
Reply With Quote
  #2
Old 04-27-2007
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
Zach used coils on his.

i think alot of people use leafs because its cheaper/easier.
Reply With Quote
  #3
Old 04-27-2007
icb12's Avatar
Member

Join Date: Nov 2006
Location: there
Posts: 175
??? Im confused.. I think Ive only seen one or two on here with leaves...
zabeard is coils
bigranger is coils
badkarma is coils
ryanrebel I believe has done a couple coil..

I guess 034x4 is leaves and so is 2002fx4

theres a bunch of coil guys around..

but as for leaves: generally cheaper, generally simpler to set up,
coils: better ride, maybe better flex some leaves flex nice, more expensive, harder to get right,

It all depends really, you got any more specifics on your plan??
Reply With Quote
  #4
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Leafs and coils are out...Coilovers are in
Reply With Quote
  #5
Old 04-27-2007
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
im with him^^
Reply With Quote
  #6
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
Leafs and coils are out...Coilovers are in

if you can afford it
Reply With Quote
  #7
Old 04-27-2007
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
theyre not tooooo expensive.
Reply With Quote
  #8
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
note the extra 'ooo'
Reply With Quote
  #9
Old 04-27-2007
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
lol
Reply With Quote
  #10
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Im looking at 500 in Coilovers, and another 400 for the coils for them.
Reply With Quote
  #11
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
not bad.

i have heard that coilovers are not the best for a DD though. could be false info
Reply With Quote
  #12
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by zabeard
not bad.

i have heard that coilovers are not the best for a DD though. could be false info
they arent any different then a coil and shock combo. They just have more adjustability.
Reply With Quote
  #13
Old 04-27-2007
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I'm doing coils on mine, in part because I want coils, and in part because it's easier with my donor axle: a 1978 F-150 Dana 44.

The 1978-79 axles in F-150's and Bronco's have a two piece axle tube design. The "wedge" where the radius arms attache is a cast piece with tubes pressed into it on either side. It already is set up for a coil bucket and going to leaf springs can be done but it's less than optimum and a bit of a pain.

Other Dana 44's have no wedges (if leafs) or they have weld-on wedges which can be removed. This makes leaf springs easier.

But I like the idea of coils and for simplicity and low cost I'm putting the original F-150's suspension design on my truck complete. Later I will upgrade the suspension for more flex.
Reply With Quote
  #14
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by n3elz
Later I will upgrade the suspension for more flex.

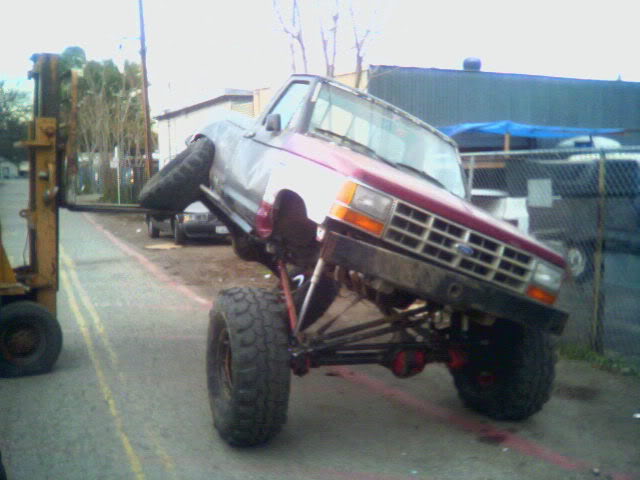

Just extend the stock arms and run a Heim or Flex Joint on the end....

Name:  Image041.jpg
Views: 2
Size:  41.4 KB



The arms look bent where they connect but they arent its just the angle from the picture.
Reply With Quote
  #15
Old 04-27-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I'm still up in the air on the whole "coil vs. leaf" on my sas. I'm thinking 3/4 ton ford front w/ coils, and GM 14 bolt rear. 3/4 ton for the huge brakes. Then again, I'm also thinking just a Waggy front w/ leafs and the 8.8. Ah who knows.
Reply With Quote
  #16
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
I know my truck isnt close to being done but these are my thoughts. If I could start over from scratch I would start with a Fullwidth axle. Either a D60 and a Built D44. Run a D70 or FF 14bolt in the rear. The small axles are nice to keep stock width but for my 3 link and coils its a pain in the *** to fit link mounts/truss/coils seats on them. But since Im going to go with Coilovers now the coil space is no longer a problem.
Reply With Quote
  #17
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
brackets like this wont help you save space? this is what i'm thinking about running on my f250 D44, but shortened....
Reply With Quote
  #18
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
It will but it also offsets the coils, and what if you dont want to mount your shock there?

This is what im going to run

Reply With Quote
  #19
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
that bracket just takes most of the adjustabilty that seperate brackets give you. Like my lower links will mout above the center line of the axle for clearance purposes.
Reply With Quote
  #20
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah i understand what you are saying, im just wanting to reuse the arms i have and close to the same setup... my shocks should in theory line up in the same spot with those brackets.
Reply With Quote
  #21
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by zabeard
yeah i understand what you are saying, im just wanting to reuse the arms i have and close to the same setup... my shocks should in theory line up in the same spot with those brackets.
you might run into space problems tryin to fit a truss for the driverside upper link
Reply With Quote
  #22
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
you might run into space problems tryin to fit a truss for the driverside upper link

hmm how much larger is the D44 pumkin?


also are you making your brackets? or buying? on the frame and the axle...
Reply With Quote
  #23
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Ruffstuff Specialties Lower mounts


Polyperformace Frame Upper mount


Ruffstuff Specialties Lower Frame mounts
Reply With Quote
  #24
Old 04-27-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
dang i should have bought frame brackets, would have made my project go much faster! lol
Reply With Quote
  #25
Old 04-27-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
For what I payed, It was worth just buying them instead of making them. And this way they are garanteed to come out the same on both sides.
