install

im installing chevey shackles this morning... my question is... how am i supposed to get around the bumper bracket to get the lower bolt off?
Reply With Quote
  #2
Old 06-06-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
pics? i never had this issue before.

the top bolt you do not need to hold the nut as it has a retaining clip on it.

the bottom bolt is just a bolt and a nut, i think 21mm.
Reply With Quote
  #3
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493

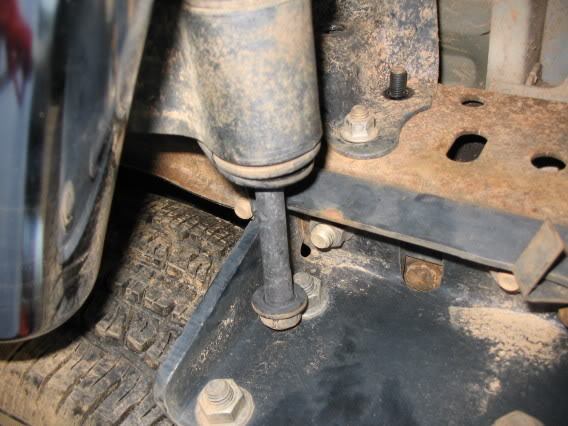

Name:  ComputerReceipt3001.jpg
Views: 2
Size:  55.9 KB
plx dont tell me i need to take the trailer hitch off...
Reply With Quote
  #4
Old 06-06-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
that spring should have some twist in it try and pull the spring further away from the hitch.

otherwise take the hitch off.
Reply With Quote
  #5
Old 06-06-2006
resqdude's Avatar
Member

Join Date: Mar 2006
Location: Altamonte Springs, FL
Posts: 424
yeah dude u might have to take it off to get the bolt all the way out
Reply With Quote
  #6
Old 06-06-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
I TOLD YOU THIS IN YOUR OTHER THREAD... TAKE OFF THE BUMPER....ok..there... its like 4 bolts do it...
Reply With Quote
  #7
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
ok... i got the bolt out.... i tried twisting and it worked just enough... now im tryin to get the new shackle in, but i cant get the leafs to com down far enough to get it in location.... im guesin this is supposed to be a 2 person job???
Reply With Quote
  #8
Old 06-06-2006
got-dirty's Avatar
Member

Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
lower the axle down as far as possible if the springs are still bolted to it. that should help.
Reply With Quote
  #9
Old 06-06-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Once you get the stock shackles off then you can jack the back of the truck up some more and the springs will stay where they are. You may have to pull down on the spring some but it can be done without removing the bumper. Ask me how I know.
Reply With Quote
  #10
Old 06-06-2006
resqdude's Avatar
Member

Join Date: Mar 2006
Location: Altamonte Springs, FL
Posts: 424
i did it myself just put some elbow grease into it.
Reply With Quote
  #11
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
im having some serious issues with this.... ive been workin on my truck for 2 days now... and im freakin exhausted... now my tips are in the way.... i can just barely get it started.... and thats as far as i can get it by myself.
Reply With Quote
  #12
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
you think that maybe i could put the bottom bolt in the slot 2nd from the bottom and still get at least an inch?

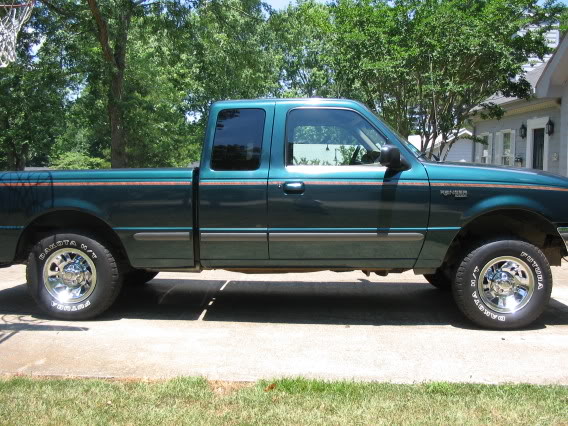

Name:  ComputerReceipt3041.jpg
Views: 4
Size:  80.7 KB this is what my truck looks like with the front raised.... be honest cuz i need to know how hard i need to bust my knuckles today..thx for the help everybody

Last edited by mx98ranger; 06-06-2006 at 09:11 AM.
Reply With Quote
  #13
Old 06-06-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
prolly.

and dont tell me your tired. try working on it for a week straight!
Reply With Quote
  #14
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
yeah.. i would much rather be in my position than yours right now... well.. i think im gonna take a break... and get back at it in an hour or so..
Reply With Quote
  #15
Old 06-06-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
quick question...sound stupid but seen people do it...where is your jack stands at? are they on the frame? jack the truck way up and make sure both sides of the shackels are off and it should drop down farther then you want it..and take the jack and the rearend where you want it..
Reply With Quote
  #16
Old 06-06-2006
Kanoeking's Avatar
Member

Join Date: Nov 2005
Location: Murderapolis
Posts: 748
you can always put some cribbing under the truck and usa a jack to raise the vehicle and let the springs/axle hang.
Reply With Quote
  #17
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
so wait... your saying to take the front shackle off too?... or are you saying to lift the passenger and driver side at the same time???
Reply With Quote
  #18
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
yeah the jack stands are on the frame... the directions in the box said the put zero pressure on the spring so ive got em on the frame in front of the front hanger
Reply With Quote
  #19
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
ok.... i need to attach the bottom bolt into the very bottom hole correct? cuz when i tried to do it in the 2nd to the bottom hole... there was no height change at all.
Reply With Quote
  #20
Old 06-06-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yes very bottom. im not sure how much lift you will actually get out of them
Reply With Quote
  #21
Old 06-06-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by mx98ranger
yeah the jack stands are on the frame... the directions in the box said the put zero pressure on the spring so ive got em on the frame in front of the front hanger
just checking i have seen people do it before...
Reply With Quote
  #22
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
im not takin this thing back apart again.

Last edited by mx98ranger; 06-07-2006 at 08:57 AM.
Reply With Quote
  #23
Old 06-06-2006
mx98ranger's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: GA
Posts: 1,493
ok... should i take off the front shackle too??? cuz im getting ready to do that
Reply With Quote
  #24
Old 06-06-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
there is no shackle in the front. it should just mount onto the hanger.
Reply With Quote
  #25
Old 06-06-2006
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
hehe you think you have it hard try putting upper and lower arms on and coils and in the back dealing with getting the bolts out that connect to the shackle that rusted to the rubber after dealing with 7 years of salty ohio winters...

truck is identical to mine..

3 yrs ago on 235/75/15 God I hated it that high

Name:  truck.jpg
Views: 3
Size:  52.4 KB

And our color name is not Forrest Green it is "Deep Emerald Green"

Last edited by Mark98xlt; 06-06-2006 at 02:01 PM.
