No more superlift Clunk!

I finally got around to making some endlinks. As most superlift owners know, the crappy ball joints on the superlift links fail qite regularly and it causes them to make a clunk whenever a bump is hit.

Total cost was about $20. parts:
2 20" long grade 8 threaded rod in 7/16" (1/2" is better but 7/16" is all I could find in grade 8 and thats the same as the superlift links and bigger than stock)
Some Energy Suspension swaybar endlink bushings from Autozone (8 of them and it included the dished washers)
Cheap metal pipe from Home Depot
2 stover nuts and 2 nylock nuts.

Cut down the rod to the same length as the superlift links Forgot how long... you can easily figure that out)

The pipe length is 10 3/4" to allow the bushings to fit and keep the swaybar level

Slid the bushings and washers on, hooked it up to the swaybar, and thats it. Drives exactly the same as before minus that annoying clunk!

Im not sure if the pipe is gonna rust or not, i might end up painting it.

Name:  DSC00498.jpg
Views: 8
Size:  142.2 KB

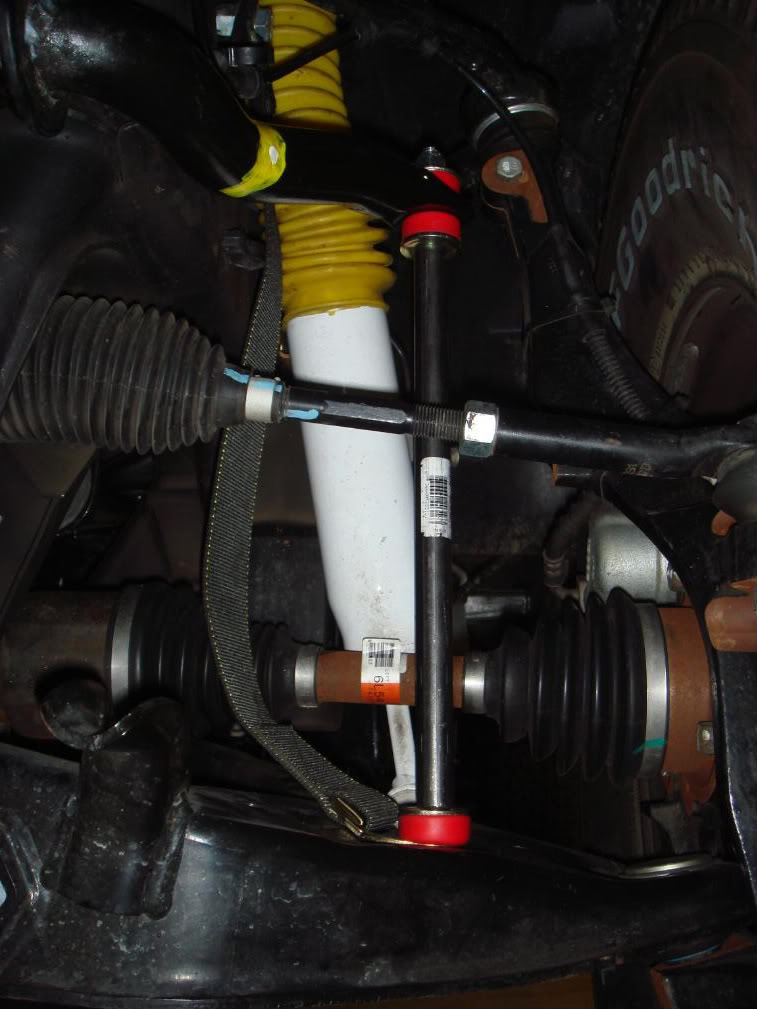

Name:  DSC00506.jpg
Views: 8
Size:  92.4 KB
Reply With Quote
  #2
Old 07-30-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Nice write up Keith!! Im marking this cause I need to do the same.
Reply With Quote
  #3
Old 07-30-2008
alljackedup's Avatar
Member

Join Date: Apr 2008
Location: Brockville, Ontario
Posts: 111
for the rod, you can us u bolt rod that hasnt been bent. It will be grade 8
Reply With Quote
  #4
Old 07-30-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I dont have a superlift but good job!
Reply With Quote
  #5
Old 07-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
VERY VERY nice Keith!!



Chris...why go through all the trouble to FIND un bent ubolts when you can just get all thread anywhere?
Reply With Quote
  #6
Old 07-31-2008
Hayn Time
Unregistered User

Posts: n/a
I solved that prob with 1/2" threaded stock from home depot and energy suspension bushings. Had this in my truck for two years now. Works great. No complaints and less roll than the stupid lift sway bar links that failed after two months (and then they never returned my calls when I asked em for new ones. You guys suck superlift)
Reply With Quote
  #7
Old 07-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I can't seem to locate bushings w/ 1/2" holes...anybody wanna link me?
Reply With Quote
  #8
Old 07-31-2008
Hayn Time
Unregistered User

Posts: n/a
Ream em out like I did. They lasted me two years. I you wanna pursue fixing the stupid lift prob, either PM me and I'll get you a full list o stuff or look at the other post I had on this (should have the part #'s from 4WP on it) Latz
Reply With Quote
  #9
Old 07-31-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by Fx4wannabe01 View Post
I can't seem to locate bushings w/ 1/2" holes...anybody wanna link me?
http://www.energysuspension.com/pages/endl.html

"Performance Polyurethane End Link Set, Grommets and Washer Set-"

The hole is only 3/8" but i forced the 7/16 rod through no problem, although it was really tight. The hardest part was getting the top bushings on after I hooked up the anti sway bar.

1/2" rod would be tough, might damage bushing. 7/16 rod im sure is plenty strong. its still bigger than stock and is same size as the superlift link.
Reply With Quote
  #10
Old 07-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I might settle for 7/16 then....oh yea....i'm making it a quick-disco too.
Reply With Quote
  #11
Old 08-01-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by Fx4wannabe01 View Post
I might settle for 7/16 then....oh yea....i'm making it a quick-disco too.
Im interested in seeing how you design this! I drove around with the sway bar disconnected for about a week and it was great. I dont like it on the freeway though and since my truck is my daily driver, i have to have a swaybar... but for off roading, its sooo nice to have it off!
Reply With Quote
  #12
Old 08-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
There should be a thread soon about it...give me a couple months. lol.


*reason being.....alignment shop won't align me if i don't have a sway bar. They say it's a liability on thier part due to the amount of lift i have. total bs imo.
Reply With Quote
  #13
Old 04-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Building mine this week....will update this thread with my build.

1/2" rod, eventually planning quick discos.
Reply With Quote
  #14
Old 04-26-2009
God,Country,FORD's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
08XLT4X4- Interested in making a set for me? PM me a price. I would do it, but dont really have access to everything here in Germany.
