PICS - Help with front bearings, tie-rods.

So the girlfriend got a camera, and I went and ****ed around with it.

My truck:

Name:  DSCI0024.jpg
Views: 2
Size:  78.5 KB



The interior under-way. Need new seats and some new fabric for the ceiling. A big shout out to mikey for the heads-up on the Metal-cast (the blue ****). It is great.

Its a little dusty, I'll clean it out tomorrow.

Name:  DSCI0033.jpg
Views: 2
Size:  87.1 KB

Name:  DSCI0036.jpg
Views: 2
Size:  105.2 KB



My brother went to see the Browns last week and brought me back this:





Hell fire raining down from the sky (also, Mandi's tallest sunflower this year is up over 11 ft!):




***

Anyway, here is the first problem. I have to reuse these year-old bearings until I can get new ones. What is the best way to get them cleaned out so I can get the new grease in there? I'll get new ones in a couple weeks but right now I have to make do.

Name:  DSCI0016.jpg
Views: 2
Size:  64.7 KB

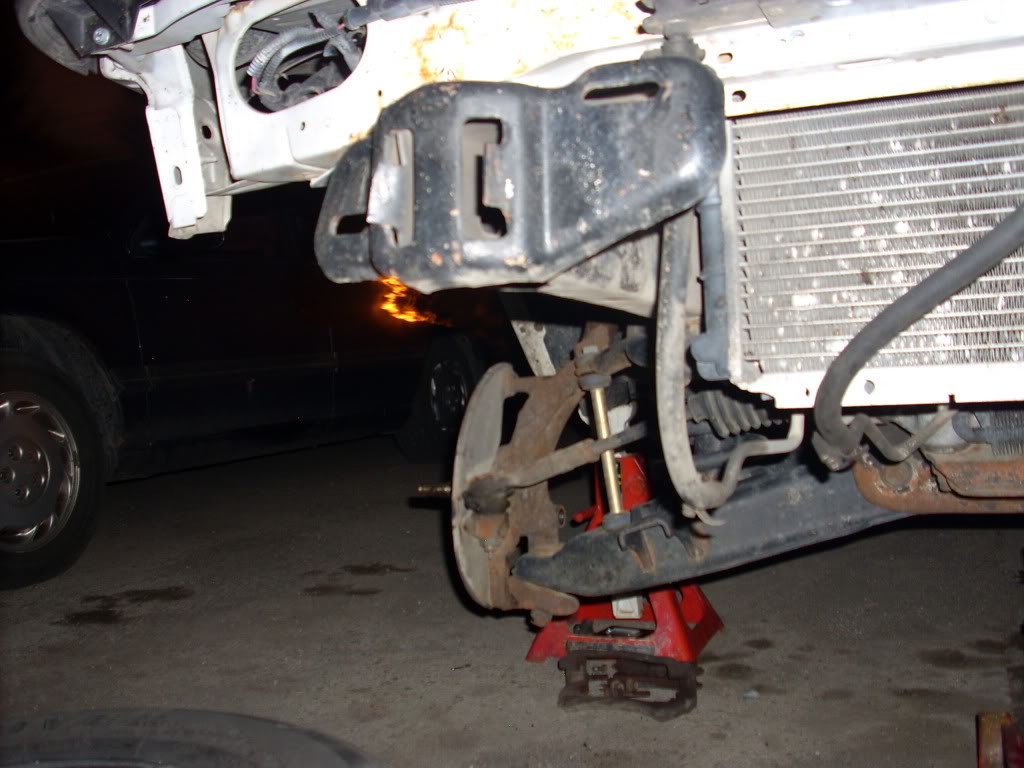

SECONDLY...the only reason I decided to have this fun to begin with was because I noticed THIS!!!:

Name:  DSCI0029.jpg
Views: 4
Size:  112.3 KB



The end of the outer tie-rod is ****ed. Its like all the rubber has exploded upwards whereas the other side looks like this:





So anyway, to summarize.

1 - The best way to make year-old bearings as new again as they can be for a fresh greasing and repacking. At least I bought new seals.

2 - WTF is making the tie-rod end on the passenger side do that when they were both installed new at the same time (inner and outer) and the driver's side is fine? FTR the control-arm on the passenger side is new as well.

HELP!

Last edited by Ciaran; 09-26-2009 at 01:17 AM.
Reply With Quote
  #2
Old 09-25-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
For the bearings...put a big dob of wheel bearing grease in your hand and run the bearings through it. It will push new grease in it and hopefully force the old grease out. As for the tie-rod, it's hard to tell what exactly happened in the picture. What brand are they and how many miles on them?
Reply With Quote
  #3
Old 09-26-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

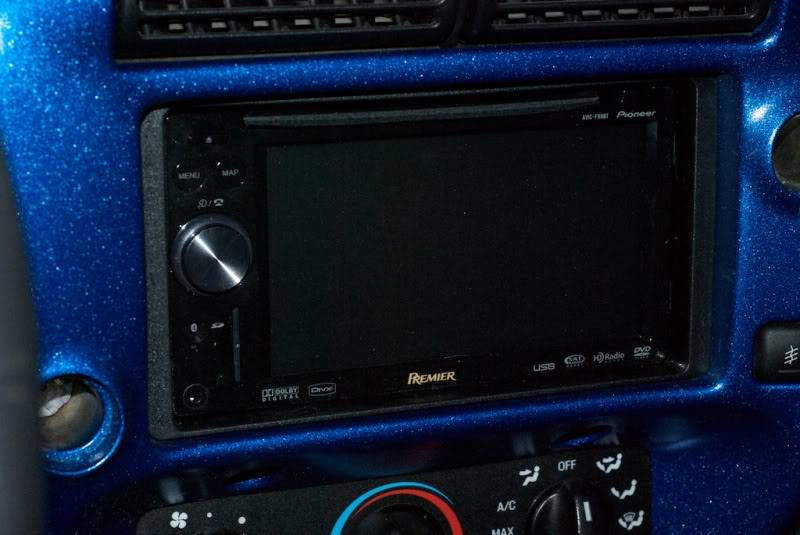

Your bezel looks just like mine did!

Name:  DSC_0237.jpg
Views: 2
Size:  64.6 KB
Reply With Quote
  #4
Old 09-26-2009
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
for the bearings i would buy a few cans of berrymans b12 and hose them down you can put the little straw on the can to bet inside a bit make sure you have some eye protection on dont want the stuff in your eyes they dont have to be perfect just get out what you can and if theres nothing wrong with the bearings i would just clean, repack, reinstall and forget about them

is that ball joint greaseable? i might have been over greased they dont need much 2-3 pumps
Reply With Quote
  #5
Old 09-26-2009
Ciaran's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Calgary, AB
Posts: 184
Quote:
Originally Posted by Toms994x4 View Post
For the bearings...put a big dob of wheel bearing grease in your hand and run the bearings through it. It will push new grease in it and hopefully force the old grease out. As for the tie-rod, it's hard to tell what exactly happened in the picture. What brand are they and how many miles on them?
Cheap ****, like part-source or whatever. About 30,000 KM.
Reply With Quote
  #6
Old 09-26-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by Ciaran View Post
Cheap ****, like part-source or whatever. About 30,000 KM.
lol. That's only about 18k miles. Not much at all. I'd step up and get mid to higher quality bearings when you can.
