Quick ttb lift question.

so i've recently lifted my ranger and have a "slight" positive camber issue.

i know i need to drop the axle arms at the pivot points to get it into the ballpark of alligning it.
my quesion is this, what arre the parts called? ive seen radius arm drop mounts but the radius arms are the ones that run parallel to the frame, adn i cant see lowering them helpful to fixing my problem.
are these so-called radius arm drop mounts what i need?

http://cgi.ebay.ca/83-97-Ford-Ranger...item439c8d7381

are these waht i need?
thanks
Reply With Quote
  #2
Old 01-20-2010
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
You need the drop brackets for the beams as well. How much did you lift it? If it really is only a "slight" camber issue it can be corrected with cam bushing.
Reply With Quote
  #3
Old 01-20-2010
Member
Thread Starter

Join Date: Nov 2009
Location: Chilliwack, B.C.
Posts: 46
ive lifted it about 3.5 inches. if i could get away with just the bushing that would be great. i kinda hope so
Reply With Quote
  #4
Old 01-21-2010
Corkey's Avatar
Member
iTrader: (1)

Join Date: Oct 2009
Location: sioux narrows,ontario
Posts: 83

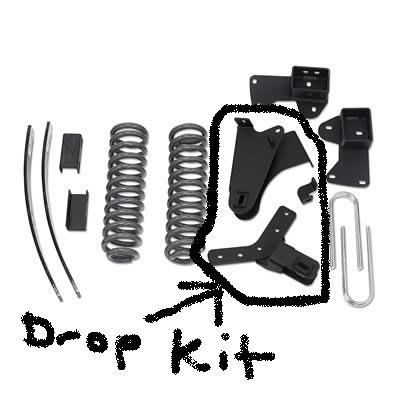

won't happen unless you cut and turn the beams, the camber cannot be adjusted for that much lift, you need the drop brackets,
Attached Thumbnails
Quick ttb lift question.-ranger-lift-2.jpg
Reply With Quote
  #5
Old 01-21-2010
Corkey's Avatar
Member
iTrader: (1)

Join Date: Oct 2009
Location: sioux narrows,ontario
Posts: 83
oops,
Reply With Quote
  #6
Old 01-21-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
ebay has the 2 inch drop brackets too
Reply With Quote
  #7
Old 01-21-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
donno
Reply With Quote
  #8
Old 01-21-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
when i had the ttb on the truck. i had a 4 inch lift with drop brackets. and in order to get the camber aligned i still need the cam bushings... so it wouldnt hurt to go ahead and get the cam bushings and then if you still need the drop brackets, get them too
Reply With Quote
  #9
Old 01-21-2010
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
The cam bushing won't be able to correct for 3.5 inches of lift. You can usually get away with 2 inches, maybe a little bit more depending on your setup. You also have to have the correct matched cam bushing for your truck, if you buy the biggest cam bushing you can find, but don't need it will throw the caster off.
Reply With Quote
  #10
Old 01-21-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
not trying to jack your thread man,but i do read them all ,and i was just wondering what does ttb mean?
Reply With Quote
  #11
Old 01-21-2010
Member
Thread Starter

Join Date: Nov 2009
Location: Chilliwack, B.C.
Posts: 46
twin traction beam, its the front end suspension that is on 83-97's kinda looks like scissors
Reply With Quote
  #12
Old 01-21-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
oh ok thanks man
Reply With Quote
  #13
Old 01-21-2010
Reddog99's Avatar
Member

Join Date: Sep 2007
Location: Jamul, CA
Posts: 109
FWIW, Twin Traction Beam was for the 4WD models. The 2WD models were called Twin I-beam suspension.
Reply With Quote
  #14
Old 01-21-2010
MugenCRX04's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Pooler, GA
Posts: 240
I got some drop brackets for sale. Are you 2wd or 4wd?
Reply With Quote
  #15
Old 01-21-2010
Member
Thread Starter

Join Date: Nov 2009
Location: Chilliwack, B.C.
Posts: 46
4 wd
Reply With Quote
  #16
Old 01-22-2010
Metro55's Avatar
Member

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
hey.. I have BRAND NEW (never used) skyjacker radius arm drop brackets.. I live in Canada. so shipping won't be nuts!
Reply With Quote
  #17
Old 01-22-2010
Metro55's Avatar
Member

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
I also have a drop pitman arm that if you don't have will be perfect for you!
Reply With Quote
  #18
Old 01-22-2010
MugenCRX04's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Pooler, GA
Posts: 240
Quote:
Originally Posted by kirk3000 View Post
4 wd
nvm my brackets are for a 2wd. Some advice tho go ahead and get skyjacker drop brackets. Better quality and if u wanna go higher than 4" in the future you can.
Reply With Quote
  #19
Old 01-22-2010
Metro55's Avatar
Member

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
Quote:
Originally Posted by MugenCRX04 View Post
nvm my brackets are for a 2wd. Some advice tho go ahead and get skyjacker drop brackets. Better quality and if u wanna go higher than 4" in the future you can.
Ya.. that's why you should buy my skyjakcer drop brackets.. as well the skyjacker drop pitman from me if you need.. let me know.. it's Canada to Canada shipping, which is always a plus
