Icon3 RCD pics

So I'm lookin to lift my front end a lil. I want the damn thing level and right now my LCA's sit almost level, where there should be angled a lil at least! UGH!

I'm thinkin about runnin the 14in coils and replace the 12in RCD's that came with it... For all that are runnin the RCD kit, how did you get your truck level without sacrificing height in the rear? If you're wondering too, my adjusters are almost all the way turned down (at the base of the coil over) so there isn't more I can do!

Can I see your pics and what you did to get it level? Thanks guys!
Reply With Quote
  #2
Old 04-01-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
mine actually sits low in the back, i got 750# 12" Hypercoils.. when i let it back down off the jack the springs barely compressed
Reply With Quote
  #3
Old 04-01-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yah my buddy has the 750 hypercoils and his is raked too in the front... do you have pics? I'd rather have it sit higher in the front... I love that look lol
Reply With Quote
  #4
Old 04-01-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
the driver coil is also cranked all the way and the pass. one is just high enough to level it out.

i dont have any since i put my tool box and tire back in, but heres some of the night i did it... its pretty close still


Name:  DSC03811.jpg
Views: 3
Size:  96.5 KB
Name:  DSC03812.jpg
Views: 3
Size:  198.9 KB

Name:  DSC03830.jpg
Views: 3
Size:  71.4 KB

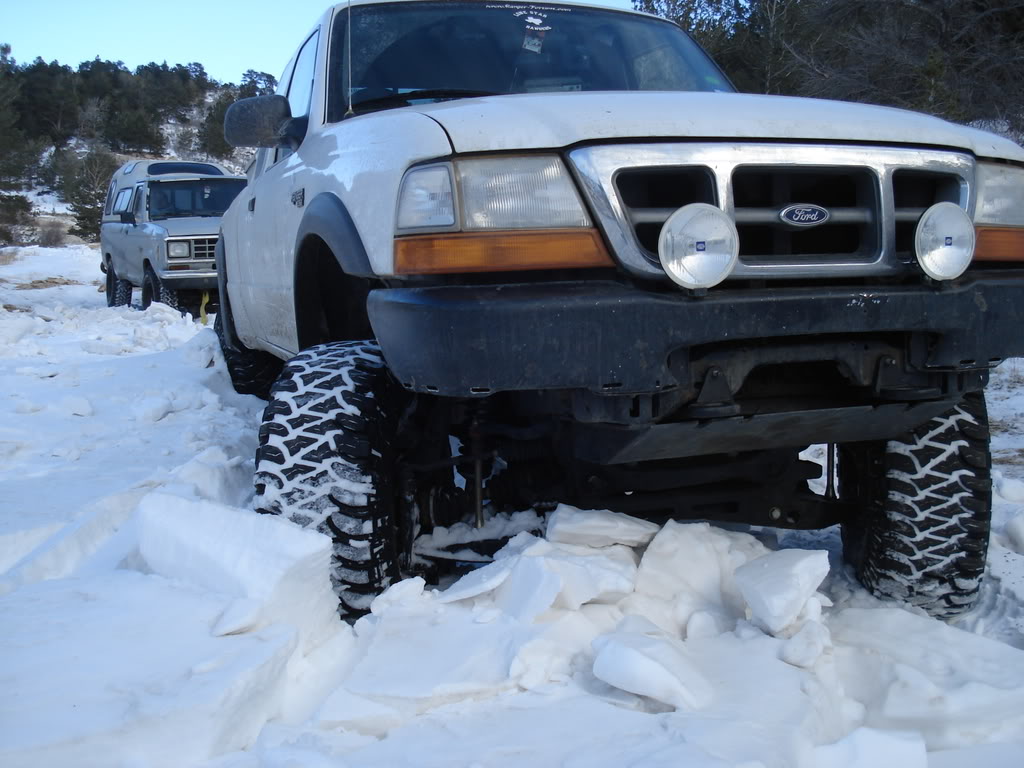

Name:  DSC03782.jpg
Views: 3
Size:  118.9 KB
Reply With Quote
  #5
Old 04-01-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
That's nice lookin! Did you do the coils yourself? I just gotta find a compressor that'll fit around the coil like that and keep it compressed while I adjust it and install it lol...

Also, are those 33's or 35's?
Reply With Quote
  #6
Old 04-01-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
35s

i did it my self, took me like 7 hours lol
but that included finding a damn compressor like you said that would work.. i went through like 5.. then found one for sale at Advance Auto that works so so... i tried to bend the tabs in and stuff but i broke the vice haha

its a giant pain in the *** but if you have a day or weekend to kill.. go for it! oh and i would recommend air and a good impact. spray some penetrating lube on it before hand...

and i compressed the coil while the whole assembly was still attached to the truck, that way i could start the nut back off instead of trying to hold it on the ground and twist and all that good stuff
Reply With Quote
  #7
Old 04-02-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yah... I like the way your truck sits a lot! lol

I'll have to try and find a good compressor that'll work with it though... That's probably gonna be the hardest part... I can get the coils for about $105 from a place down the street from me and I'll hopefully be able to use my buddys shop... Air tools, heat, hydraulic lift lol...
Reply With Quote
  #8
Old 04-02-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yea that was in my friends home/shop while were at school
him and 3 other people live in the office/on a couch above the offices lol... i think that was when they had the gas turned on.. at the beginning we all huddled around that wood incinerator thing to keep warm ha


the lift would have been nice too.
Reply With Quote
  #9
Old 04-02-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
So you did nothing different than just put the 750lb coils in? Meaning you kept the shackle and AAL in the rear and left the factory block in?
Reply With Quote
  #10
Old 04-02-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yep
but the leaves are 9 years old and sagging a bit lol

and the driver coil is maxed out then the passenger coil is just down enough to level it out
Reply With Quote
  #11
Old 04-02-2008
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
Matt, are those 12 or 14 inch coils. I know after compressing my 12 inch hypercoils I'm having a gumby moment and going "no way someone could fit 14s on here!"

Oh, and I don't have my coils cranked all the way down, running 700lbs coils and I sit 1.5 inches lower in the front than the rear. I attribute the rear due to the deavers though.
Reply With Quote
  #12
Old 04-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
trevor.....matt's lower arms are angled.....and yours are flat!
Reply With Quote
  #13
Old 04-02-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by Fx4wannabe01 View Post
trevor.....matt's lower arms are angled.....and yours are flat!
I know it's retarded! I'm gonna order the coils soon... I'm tired of not being level! You're gonna help me at Austins house haha... Swwwwweet!

Quote:
Originally Posted by Lefty04LevelII View Post
Matt, are those 12 or 14 inch coils. I know after compressing my 12 inch hypercoils I'm having a gumby moment and going "no way someone could fit 14s on here!"

Oh, and I don't have my coils cranked all the way down, running 700lbs coils and I sit 1.5 inches lower in the front than the rear. I attribute the rear due to the deavers though.
I would love the Deaver pack... but I'll save that money for my Allpro leafs in the rear and front when I do my SAS next summer. lol...

I know at least one guy on RPS used the 14in coils and was able to get it back to level... I think I'll just go with the 750lb coils maybe even the 800lb ones and just crank up the adjuster til I get it level lol... If not higher in the front!
Reply With Quote
  #14
Old 04-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You know what's funny......Austin still is taller than yours. lol.
Reply With Quote
  #15
Old 04-02-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hahaha dont do 800.. 750 is PLENTY stiff..

and they are 12" ones, it looks like 14" ones would fit, but like Chris said, after compressing them i dont see a 14" spring going on very easy... the 12s sit just fine.


as for SAS'ng
nice choice on All Pros, here's my buddies Yoda on 5" All pro front and 6" rear... i'm just going to do all pro in the front and a block out back to level it out until i get home.. or get the money to get the front drive line setup before i go home...

Name:  l_ad9a570c083cf010f7f86ef6a192014d.jpg
Views: 2
Size:  50.2 KB
Name:  l_adc9c29a00a15601612907039e0aa12f.jpg
Views: 3
Size:  52.0 KB
Name:  l_cb134bd85afe30655ef906a4f3c6a4c6.jpg
Views: 2
Size:  46.5 KB
Name:  l_c250932f1f1fb5f579d4a07b6cb6803f.jpg
Views: 5
Size:  49.1 KB
Name:  l_fd9533e428c92ac47ee731d089adab66.jpg
Views: 4
Size:  42.7 KB
Reply With Quote
  #16
Old 04-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Reppin' the leafs! yahooo! I've got those 6" All Pro's sittin still in their wrappers.
Reply With Quote
  #17
Old 04-02-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hell yea

i think he has or is close to Zach


leaves will take a beating all day, then come back for more. i've seen more messed up coils than leaves, granted axle wrap IS a b!tch... :(
Reply With Quote
  #18
Old 04-02-2008
Member

Join Date: Jan 2008
Location: Chicago, IL
Posts: 25
hey trevor, hmm my advice.

ditch the RCD. Do the SAS starting next week.
Reply With Quote
  #19
Old 04-02-2008
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
i have the 800# hypercoils and they are stiff...

and the truck is level

I want to get the 750's

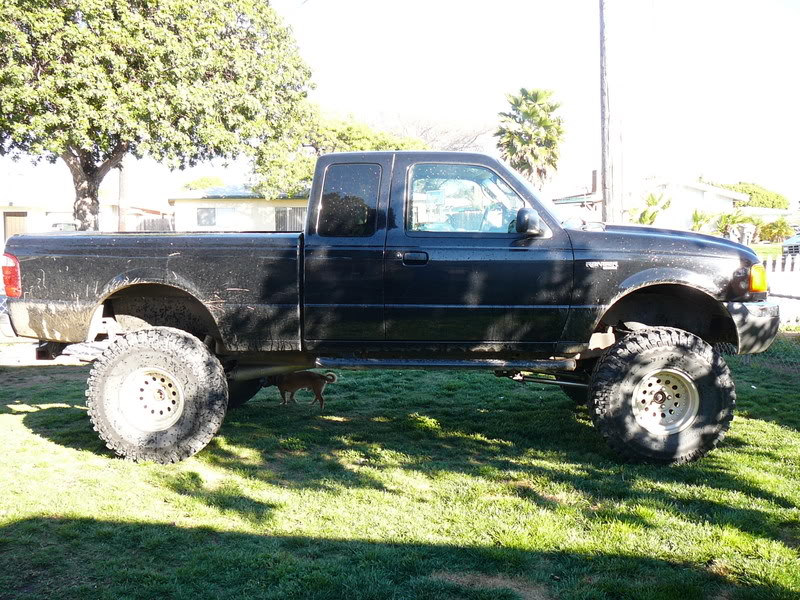

Name:  Rangerforums004.jpg
Views: 6
Size:  157.1 KB
Reply With Quote
  #20
Old 04-02-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I think Evan highrollerii is running 14" 650lb springs in his rcd lifted ranger.

Name:  DSC00805.jpg
Views: 4
Size:  88.7 KB

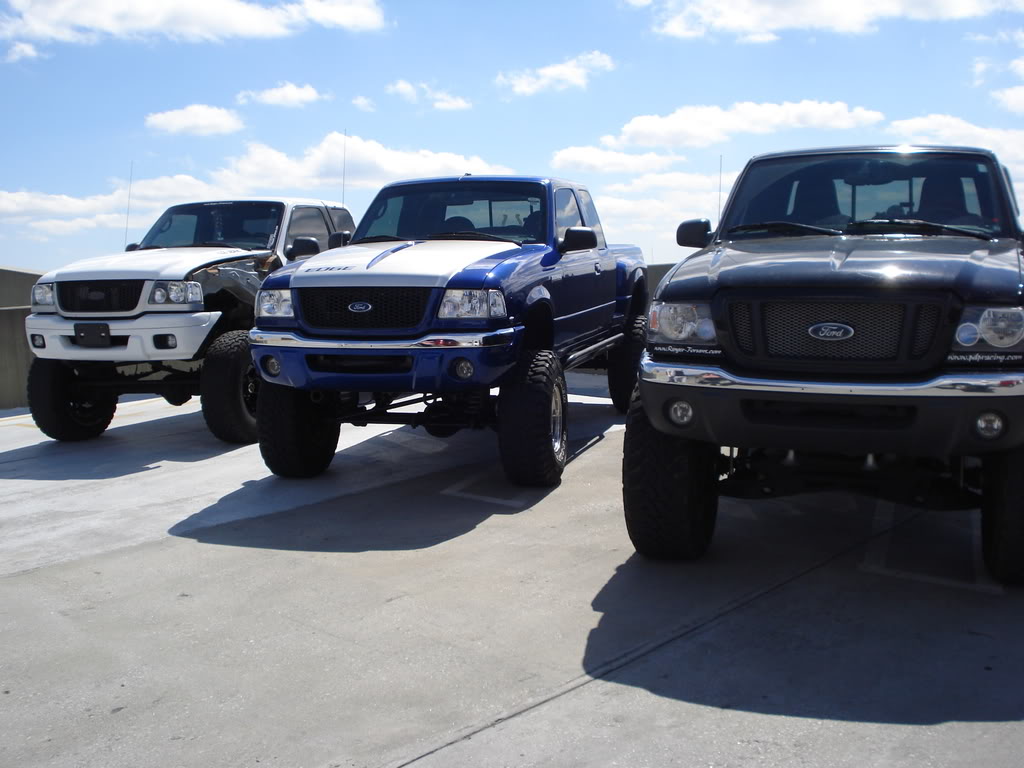

Name:  DSC00817.jpg
Views: 5
Size:  97.2 KB
Reply With Quote
  #21
Old 04-02-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by foxyford View Post
hey trevor, hmm my advice.

ditch the RCD. Do the SAS starting next week.
Ya I know! Tell me about it haha... Quit rubbin it in!

Quote:
Originally Posted by ranger View Post
i have the 800# hypercoils and they are stiff...

and the truck is level

I want to get the 750's
Thanks for the input man, Glad to know someone has the 800s and doesn't like them!

Quote:
Originally Posted by zabeard View Post
I think Evan highrollerii is running 14" 650lb springs in his rcd lifted ranger.



Zach, Where did he get his coils? The biggest 14in coil (rating) I found were the hyper coils and I think they only went to 400. I'll gladly get the 14in 650lb coils if I can find them and they're the same price as a set of the 12in Hypercoils! Thanks for the pic btw, I always love seeing your guys' trucks! haha

Hopefully he'll get on this thread and give him input on it! Where he got em, and how hard those springs were to compress to install... I would love to get some LCA angle like he has! I don't care what it's gonna take, as long as I get my front end level with the rear!
Reply With Quote
  #22
Old 04-02-2008
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
Quote:
Originally Posted by TrePaul86 View Post
Ya I know! Tell me about it haha... Quit rubbin it in!



Thanks for the input man, Glad to know someone has the 800s and doesn't like them!



Zach, Where did he get his coils? The biggest 14in coil (rating) I found were the hyper coils and I think they only went to 400. I'll gladly get the 14in 650lb coils if I can find them and they're the same price as a set of the 12in Hypercoils! Thanks for the pic btw, I always love seeing your guys' trucks! haha

Hopefully he'll get on this thread and give him input on it! Where he got em, and how hard those springs were to compress to install... I would love to get some LCA angle like he has! I don't care what it's gonna take, as long as I get my front end level with the rear!

http://www.hrpworld.com/index.cfm?fo...ction=category

bottom of page....14x2.5x650
Reply With Quote
  #23
Old 04-02-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you will need to PM him i bet to get the specs on his coils. i could be wrong
Reply With Quote
  #24
Old 04-02-2008
Member

Join Date: Jan 2008
Location: Chicago, IL
Posts: 25
yeah haha sorry dude but it will be sick when you get it done.
Reply With Quote
  #25
Old 04-02-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by Lefty04LevelII View Post
Heck yes! Sweet! That's not so cheap though for the 14in 650lb coils lol...

Quote:
Originally Posted by zabeard View Post
you will need to PM him i bet to get the specs on his coils. i could be wrong
Thanks man!

Quote:
Originally Posted by foxyford View Post
yeah haha sorry dude but it will be sick when you get it done.
I know I can't wait, but until I get it done, I want to be at least level!
Reply With Quote
