Rear axle alignment is off. Solutions?

I was staring at my truck tonight, and noticed my rear tire on the passenger side sticks out 1/2 - 1 inch further than my driver side... I measured from the inside of the tire to frame and sure enough, a little less than an inch off. This is bugging me bad. Are my leafs twisted? Did the axle come out of alignment where the u-bolts and spring packs attach? hmmm truck is in perfect alignment, drives straight, doesn't dog tail. Just looks off. I fixed the ranger lean with a little t-bar adjustment and now I'm tackling this issue. any input would be great.

Driver Side Spring:
Name:  DSC01165.jpg
Views: 252
Size:  94.5 KB

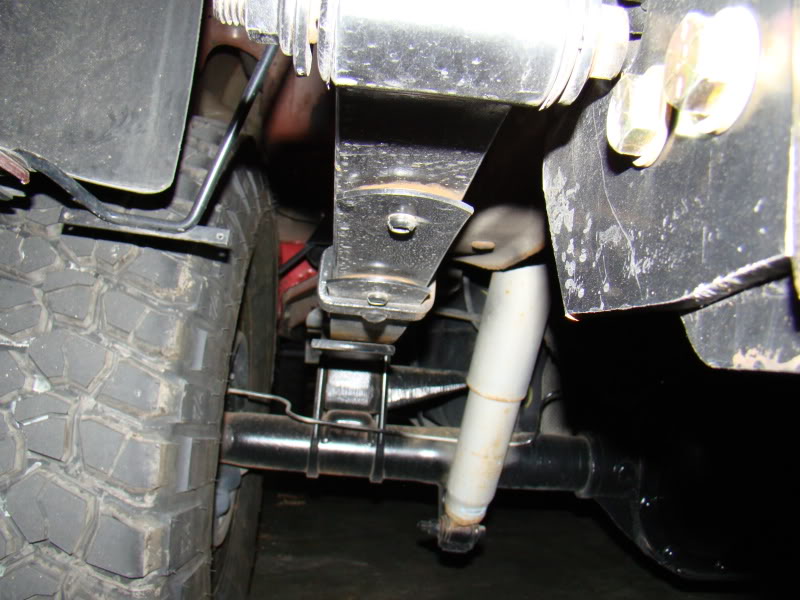

Name:  DSC01167.jpg
Views: 267
Size:  103.2 KB
Name:  DSC01168.jpg
Views: 246
Size:  72.8 KB

Pass Side Spring:
Name:  DSC01166.jpg
Views: 238
Size:  115.9 KB
Name:  DSC01169.jpg
Views: 254
Size:  125.4 KB
Reply With Quote
  #2
Old 11-06-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
have someone ram your tire with a big truck! that might do it!
Reply With Quote
  #3
Old 11-06-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Quote:
Originally Posted by wellcom2knoxvile View Post
have someone ram your tire with a big truck! that might do it!
We are all more dumb for reading that post....


Ben, your passenger side hardware like your leafs, etc... look to be newer then the driver side? Could that affect it?
Reply With Quote
  #4
Old 11-06-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
remember that you noticed your leafs were F'd up after we put the lift on

that may be the cause....one leaf may be twisted
Reply With Quote
  #5
Old 11-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by Lord Of War View Post
We are all more dumb for reading that post....


Ben, your passenger side hardware like your leafs, etc... look to be newer then the driver side? Could that affect it?
nope, got drunk and forgot to paint the pass springs. LOL
Reply With Quote
  #6
Old 11-06-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
remove the u bolts and loosen the center pin and let everything relax and straighten the leafs. reassemble, torque the u bolts down or replace them and take it to have the thrust angle checked to see how far it is really off, the bed could be crooked after the BL so that isnt an accurate measuring point
Reply With Quote
  #7
Old 11-06-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
Lord of War!! yes i agree, i feel dummber after reading my own post.. but honestly, hardware isnt going to change because it "looks older"... unless its "bent" or "damaged" but not newer or older...
Reply With Quote
  #8
Old 11-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Ben, go sleep off the alcohol and remeasure in the morning
Reply With Quote
  #9
Old 11-06-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
sorry, just read you did measure to the frame
Reply With Quote
  #10
Old 11-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by wellcom2knoxvile View Post
Lord of War!! yes i agree, i feel dummber after reading my own post.. but honestly, hardware isnt going to change because it "looks older"... unless its "bent" or "damaged" but not newer or older...
not exactly true. newer springs have less sag in them, but these springs are original and the bolts on the packs haven't been touched. I'm gonna jack the truck up tomorrow of this weekend and take the wheels off and loosen all the bolts on the leaf packs and move it over a smidgen.I'm pretty sure its just a little tweaked. no big deal. Me and the texan (JohnBaum13) drank a 6 beers each staring at it. lol
Reply With Quote
  #11
Old 11-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
What did you measure from the frame to? the wheel? brakes?

I still say wait till the middle of the day tomorrow when your beer goggles aren't playing games with ya haha
Reply With Quote
  #12
Old 11-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
hmm. this cant be normal...

Name:  DSC01165.jpg
Views: 459
Size:  94.5 KB
Reply With Quote
  #13
Old 11-06-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
Quote:
Originally Posted by jeweler54 View Post
Me and the texan (JohnBaum13) drank a 6 beers each staring at it. lol

Reply With Quote
  #14
Old 11-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by 99ranger4x4 View Post
What did you measure from the frame to? the wheel? brakes?

I still say wait till the middle of the day tomorrow when your beer goggles aren't playing games with ya haha
digital caliper from frame to inside of tire. on level ground.
Reply With Quote
  #15
Old 11-06-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
i remember my first beer!
Reply With Quote
  #16
Old 11-06-2009
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
Quote:
Originally Posted by jeweler54 View Post
hmm. this cant be normal...


hmm, yeah not to say its normal or anything but i was chatting with another Ranger owner and he said that his overload leafs were a bit crooked on his 05 and he had to straighten them out... after taking a quick peek at mine (08) i noticed that mine were slightly off as well.. not quite as much as yours but not straight either... perhaps over time they start to shift a bit...?? anyone else?
Reply With Quote
  #17
Old 11-06-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
hmm i think im gonna have to check mine out at lunch.
Reply With Quote
  #18
Old 11-06-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
just looked at mine and my passenger overload it off like that too.
Reply With Quote
  #19
Old 11-06-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by jeweler54 View Post
hmm. this cant be normal...

That is normal lol, they usually aren't straight
Reply With Quote
  #20
Old 11-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by jeweler54 View Post
hmm. this cant be normal...

actually it is.. overloads do that a lot.. take a hammer to it.

Quote:
Originally Posted by jeweler54 View Post
digital caliper from frame to inside of tire. on level ground.
caliper? thats one hugeeee caliper.

are you sure you measured to the exact same part on the tire?

Quote:
Originally Posted by korey89 View Post
That is normal lol, they usually aren't straight
Finally..
Reply With Quote
  #21
Old 11-06-2009
Sixt9coug's Avatar
Member
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
my 09. 9,500 miles or so. Yeah its crooked too.

Name:  11-06-09_1008.jpg
Views: 255
Size:  23.1 KB
Reply With Quote
  #22
Old 11-06-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by Sixt9coug View Post
my 09. 9,500 miles or so. Yeah its crooked too.

thats exactly how my 07 looks at 45k miles
Reply With Quote
  #23
Old 11-06-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Yeah that is not your problem, overloads move, when you flex is when it really moves it. Mine were almost hitting the tire at one point after they shifted, just knock it straight

see
Name:  truck011.jpg
Views: 249
Size:  56.0 KB
Reply With Quote
  #24
Old 11-06-2009
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
yea my overlaod is way off, im just gunna fix it when i put on my AAL.
Reply With Quote
  #25
Old 11-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
here's THE solution..
Attached Thumbnails
Rear axle alignment is off. Solutions?-big_hammer.jpg
