Shocks

Since im probably not getting a lift im going to need new shocks mine are squeaking quite badly now. But i want to get some really nice ones. I know fox makes some good shocks but im not sure which ones to get.
Reply With Quote
  #2
Old 08-17-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
Reply With Quote
  #3
Old 08-26-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
so i need a little help picking which length shock to go with, I've decided on the bilstein 5150 shocks and measured for the rear and figured out i needed the 10" travel ones but im having trouble picking ones for the front. I measured the static length at 18.5" also i have to get the stem adapter kit for the shock so that takes 1.5 - 2 in off the shock height. So i was thinking i needed the 8" travel ones because the 6" ones will only give me 2" of down travel before they are extended all the way but idk if the collapsed length of the 8" ones is too long and will act as a bump stop.
Bilstein
HELP!
Reply With Quote
  #4
Old 08-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
i think you will hit factory bumps first. i would get the 8's
Reply With Quote
  #5
Old 08-26-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
also will the piggyback reservoir fit in the front i know its kinda cramped in there?
Reply With Quote
  #6
Old 08-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
it wont matter, with the mounting you can put it any were, so facing out towards the tire would be fine. the shaft on the bottom will rotate all the way aruond. there shouldnt be an issue.
Reply With Quote
  #7
Old 08-26-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
Thanks so much dude i'll order them as soon as my parents pay me back lol
Reply With Quote
  #8
Old 08-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
no prob. take many pics!
Reply With Quote
  #9
Old 08-26-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
i will i've got some other goodies in the mail now so i'll be postin some pics
Reply With Quote
  #10
Old 08-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
nice
Reply With Quote
  #11
Old 09-01-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
well i got some other parts in the mail this week. sadly none are the shocks.
but heres some of what came!
Name:  DSC00333.jpg
Views: 2
Size:  135.0 KB
Name:  DSC00334.jpg
Views: 6
Size:  210.5 KB
Name:  DSC00336.jpg
Views: 4
Size:  216.3 KB
Name:  DSC00335.jpg
Views: 4
Size:  199.2 KB
also got Fram fuel filter and reese trailer hitch reciever also i'll post more pics of the mirror install if my camera decides to work again i might post a how to on installing these 06+ power mirrors but depends on if i can get them too work.
Reply With Quote
  #12
Old 09-01-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Redrider11 View Post



also got Fram fuel filter and reese trailer hitch reciever also i'll post more pics of the mirror install if my camera decides to work again i might post a how to on installing these 06+ power mirrors but depends on if i can get them too work.
If you get one together or any info you may have, please do post it up or shoot me a PM and I'll have it added to my '06+ mirror swap how-to. I'm not powered so it's something that I couldn't write-up for.
Reply With Quote
  #13
Old 09-01-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
well i cut off the passenger side mirror and took the connector off the new mirror and once my dad gets here we are going to try soldering the wires together, but not sure if it will work the 02 wires are green blue and white whereas the 06+ are green blue and yellow?
Reply With Quote
  #14
Old 09-01-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I have the diagrams of the plugs as to what wire does what... Just they're on my other computer. Give me a minute and i'll post 'em in this thread...
Reply With Quote
  #15
Old 09-01-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
sweet thanks!
Reply With Quote
  #16
Old 09-01-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

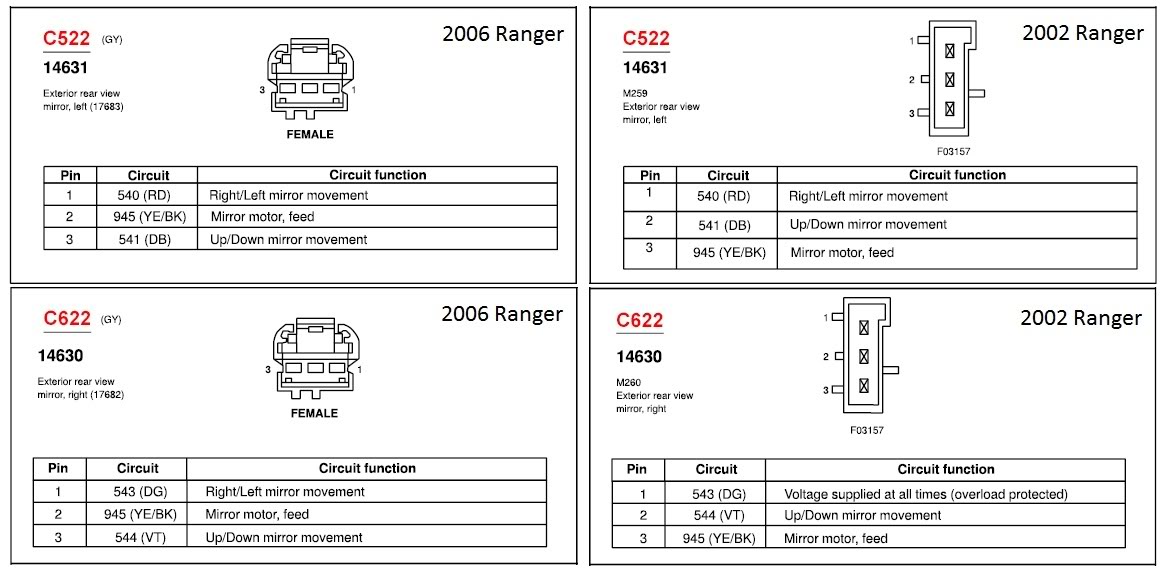

Whipped a quickie together for ya...


The way I'm told and as mentioned in the mirror swap how-to, is you cut the plugs off both sets leaving some wire remaining, reuse your stock plug, cut cut crimp crimp(or solder solder). I've never had any power stuff in front of me to see, but I know on third brake lights and the PCM and alot of engine pigtails, you can actually disassemble them. Could be possible you can disassemble those '06 plugs and the '02 plugs from the wires, slide in the wire w/ connector, and it'll all just click together leaving a totally oem looking quality setup. Might be something to look into.

Name:  Mirrors_02_to_06.jpg
Views: 8
Size:  102.9 KB
Reply With Quote
  #17
Old 09-02-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
well got the mirrors mounted after two days!
Name:  DSC00337.jpg
Views: 6
Size:  203.4 KB
Name:  DSC00339.jpg
Views: 6
Size:  148.2 KB
what do ya think?
also got the order in for the shocks!!!! rear ones should be in on monday not sure about the front though.
Reply With Quote
  #18
Old 09-03-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
any advice on how to mount up the new shocks?
Reply With Quote
  #19
Old 09-04-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
so im going to go ahead and ask do i need to put loctite or anything like that on the shock bolts or anything like that? also should i put some on the t-bar bolts? i didnt do it when i cranked them but didnt know if i should put some on to keep them from creeping back down.
Reply With Quote
  #20
Old 09-04-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Shocks....lock tite isn't really needed if you actually tighten them. Just make sure you tighten them goodly, and you'll be good to go.

T-bar adjustment bolts don't need it because they are covered with locktite from the factory... plus they're basically always getting weight from the truck on them so they won't move.
Reply With Quote
  #21
Old 09-04-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
thanks i wasn't sure.
oh by the way i wired up the mirrors its not the best job but at least i have power to my passenger mirror now! on one side the mirror wont turn in but on the other it wont turn out. not sure how that works but other than that they work great and holy crap i didn't realize how sucky the old ones were! thank you for that how-to! i can see and they look better too!
Reply With Quote
  #22
Old 09-04-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
pm sent about mirrors..
Reply With Quote
  #23
Old 09-05-2010
klc317's Avatar
Member

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
One tip about the shocks, start soaking the bolts in PB Blaster now, and make sure you have at least one impact wrench and a large breaker bar. They are not fun to get loose! I actually split the the nut on one of the rear shocks trying to get em loose. I ran up to Fastenal and got new grade-8 bolts and nuts for them though.
Reply With Quote
  #24
Old 09-14-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
HELP!
so i got my front shocks in today and took the old one off and how do you fit the two bolts piece on the new shock? how do you get it off the old one?
Reply With Quote
  #25
Old 09-14-2010
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by Redrider11 View Post
HELP!
so i got my front shocks in today and took the old one off and how do you fit the two bolts piece on the new shock? how do you get it off the old one?
be more descriptive. i just did mine today and they bolted up fine 20 min job
