so if i crank the t-bar

so if i crank the t-bar i can get about 2in to the front and use a 2in block on the back, do think i can fit a set of 33's or bigger? eventually im going to do a b/l but not for a while. just looking for some input on an easy way to get bigger tires on there
Reply With Quote
  #2
Old 07-13-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
assuming you have a 4x4 or edge, You MIGHT get 2" out of the front bars. Each truck is different. However, you will notice you already have a 2" block back there. Most i've seen from a torsion crank is leveling out of the truck, an added 2" to the back will bring the tail up, even with a torsion crank.

I've seen that 33x10.50 with the right backspacing is max with a torsion crank without rubbing.
Reply With Quote
  #3
Old 07-13-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
i got a 2004 EDGE 4X4
Reply With Quote
  #4
Old 07-13-2008
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
You'd scrub the rear of the front fender flares at full lock, but you can trim that easy to where it looks like it should be made like that. You already have a block in the back but if you were to level it out with the t-bar crank you could fit. The rear would fit fine as it is, no problems. Just crank the bars and trim the flares, I can post pictures of how and where to trim if you want.
Reply With Quote
  #5
Old 07-13-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
yeah post as many pics of it as you can, this is the first real mod i will be doing to the truck
Reply With Quote
  #6
Old 07-14-2008
Member

Join Date: Jun 2008
Location: Imlay City MI
Posts: 5
you might be able to get away with putting a superduty 3inch lift block in the rear and cranking the t-bars up thats what i did but i havent tried to fit 33 under it yet.
Reply With Quote
  #7
Old 07-14-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
I wouldnt lift the rear at all if your only doing a t-bar crank. That way your truck sits level.

And 33"s should fit, but might rub slightly at full deflection. I have the 4" superlift and mine rub every now and then when I turn fully and reverse.
Reply With Quote
  #8
Old 07-15-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by DOW94RANGER View Post
you might be able to get away with putting a superduty 3inch lift block in the rear and cranking the t-bars up thats what i did but i havent tried to fit 33 under it yet.
how big of a tire are you running?
Reply With Quote
  #9
Old 07-15-2008
Tearloch's Avatar
Member

Join Date: Apr 2007
Location: Niagara Falls soon....
Posts: 467
I got screwed on mine, went and bought the blocks, got to my friends house to put them on... one bar was already cranked all the way, and one had 1/4 left.... dont know what happened there, never messed with it before... didnt get to do the lift
Reply With Quote
  #10
Old 07-15-2008
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Hey brian, Im runnin a 285/70-17 which is like a 32.8 X 11.3 err something.... I cranked my t-bars I think 4 turns to level it out.
Heres cranked 4 turns before the 285's...
Name:  100_1616.jpg
Views: 5
Size:  133.5 KB

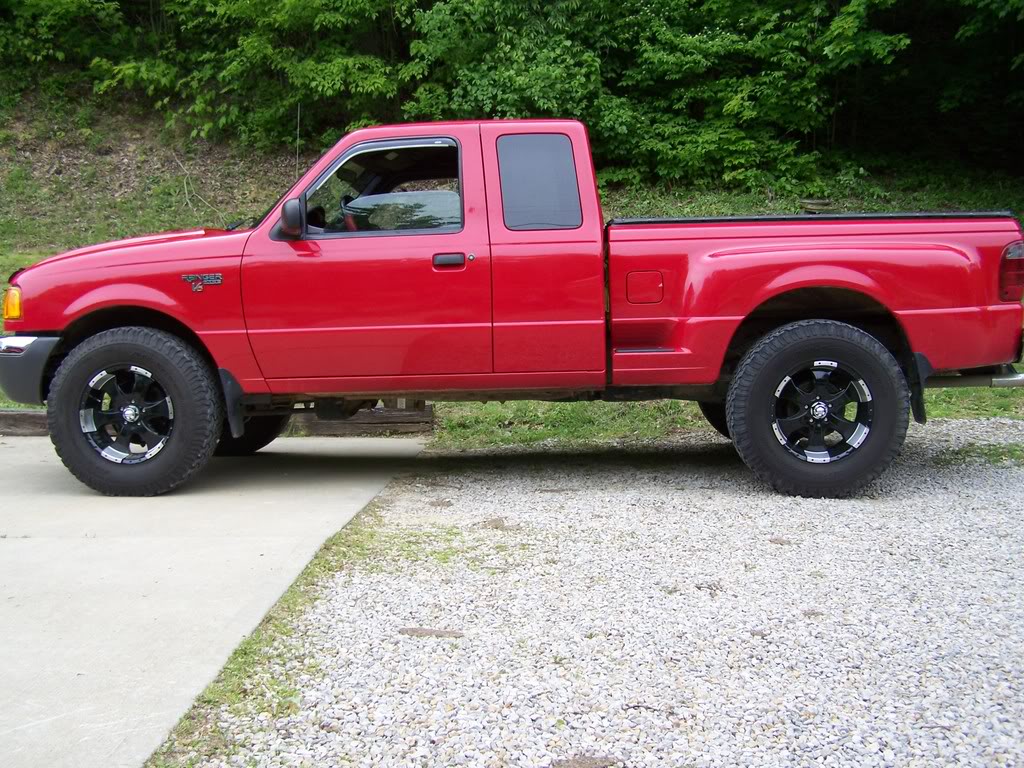

Heres after with the 285's (the concrete and the gravel are different, thats why it dosnt looked cranked)
Name:  100_0572.jpg
Views: 10
Size:  218.4 KB
Minor rubbing, just at full turn.
Reply With Quote
  #11
Old 07-15-2008
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061




t-bar crank (#1 bars) and chevy springs in the rear
Reply With Quote
  #12
Old 07-16-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by sullys_ranger View Post
Hey brian, Im runnin a 285/70-17 which is like a 32.8 X 11.3 err something.... I cranked my t-bars I think 4 turns to level it out. Minor rubbing, just at full turn.
looks good. i try not to turn my wheels fully anyway. how much did those cost you
Reply With Quote
  #13
Old 07-16-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by offroad_ranger View Post
[IMG]


t-bar crank (#1 bars) and chevy springs in the rear
thats actually the look im going for, all blacked out. are those jeep rims?
i would actually like to have sully's rims witha little bit of chrome to match my step bars, but i cant afford those i think im going to buy a set similar to yours but chrome and paint them black or powder coat them at work, i can get them for 75 bucks off my buddy's jeep wrangler
Reply With Quote
  #14
Old 07-23-2008
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
i need help real quick and i didnt feel like searching a whole lot but yea.. if i crank my t-bars an inch will i need an alignment?
Reply With Quote
  #15
Old 07-23-2008
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Brian, I got a set of 5 285/70-17 BFG's on craigslist for $175 for all 5... Whenever you find a deal, go for it man! Oh, I got my wheels which are 17X8 Ion 136's for $125 a peice.... Alot cheaper than I thought they would be. I wanted something a little bit different and trust me, alot of people turn their heads when I roll by.
Reply With Quote
  #16
Old 07-24-2008
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by sullys_ranger View Post
Brian, I got a set of 5 285/70-17 BFG's on craigslist for $175 for all 5... Whenever you find a deal, go for it man! Oh, I got my wheels which are 17X8 Ion 136's for $125 a peice.... Alot cheaper than I thought they would be. I wanted something a little bit different and trust me, alot of people turn their heads when I roll by.
did you get them off patriot auto for $125? ive been looking at there stuff for a while and i got aproved for $7000 @ 7% ARP but dont know how much anything is, they dont tell ya untill you purchase them.
Reply With Quote
  #17
Old 07-24-2008
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Nope, I got em at Custom Vehicles of Zanesville, their distribution warehouse had a set on the showroom floor.
