Stupid question

ok i got a stupid question im changing the shocks on my truck but i dont know if the blue goes up or down....


Reply With Quote
  #2
Old 05-13-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
i mounted my bilstiens so the logo was right side up, although i dont think it makes a difference.
Reply With Quote
  #3
Old 05-13-2009
Ace's Avatar
Ace Ace is offline
Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
Quote:
Originally Posted by 01_ranger_4x4 View Post
i mounted my bilstiens so the logo was right side up, although i dont think it makes a difference.
thats what i was thinking just wanted to make sure.
Reply With Quote
  #4
Old 05-13-2009
Schlitter22's Avatar
Member

Join Date: Dec 2007
Location: W, Oregon
Posts: 90
in the front the shock boots are usually on top, and i think in the back theyre on the bottom. but i dont think it matters
Reply With Quote
  #5
Old 05-13-2009
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
not sure why I took this pic the other day... I guess it was for this thread? lol this is how the rear ones came on my truck from the factory.



Not sure on the front, don't have a pic and it's dark out. I'll have a look in the morning if you want.
Reply With Quote
  #6
Old 05-13-2009
Ace's Avatar
Ace Ace is offline
Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
ah i got the rears done I'm going to do the fronts tomorrow all though those can only go on one direction.

Name:  0513091926.jpg
Views: 4
Size:  72.6 KB
Name:  0513092042.jpg
Views: 4
Size:  24.0 KB

It was relatively easy i only had problems with getting the shock off the top stud but i figured out a easy way to do that is by swinging the shock in a circle repeatedly and tada! lol

i also would like to add i cant believe how much my bed doesn't sag now when i sit on it and i only weigh 145 LBS lol also took it on a rocky road thats has a good amount of pot holes and wow what a difference, I cant wait to do the fronts in the morning.
Reply With Quote
  #7
Old 05-13-2009
old greg's Avatar
Member

Join Date: Sep 2008
Location: Chapel Hill, NC
Posts: 62
On my 06 Sport the rears would only go in one way because the studs going through holes were different sizes.
Reply With Quote
  #8
Old 05-13-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
On shocks, the body usually goes to the bottom, the shaft or shaft cover goes to the top. Decreases the likelihood that they will leak.
Reply With Quote
  #9
Old 05-14-2009
Ace's Avatar
Ace Ace is offline
Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
i would also like to add the only thing i broke while doing this was my torque wrench as strong as it may seem it does not like to be used as a hammer lol
Reply With Quote
  #10
Old 05-14-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
LOL
Reply With Quote
  #11
Old 05-14-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by Johnbaum13 View Post
On shocks, the body usually goes to the bottom, the shaft or shaft cover goes to the top. Decreases the likelihood that they will leak.
You're incorrect.

Bilsteins are designed to mount the way Ace has his mounted. 01 Ranger 4x4 also has the right idea, you are supposed to be able to read the logo on the shock right side up...

Although you think it decreases the likely hood of leaking, it also creates a sleeve to trap water if you leave the boot on them. Hence why I don't run boots. Yes it keeps dirt and such out of them, but that's why they make them with 0-rings. When they're mounted right, they don't trap anything.

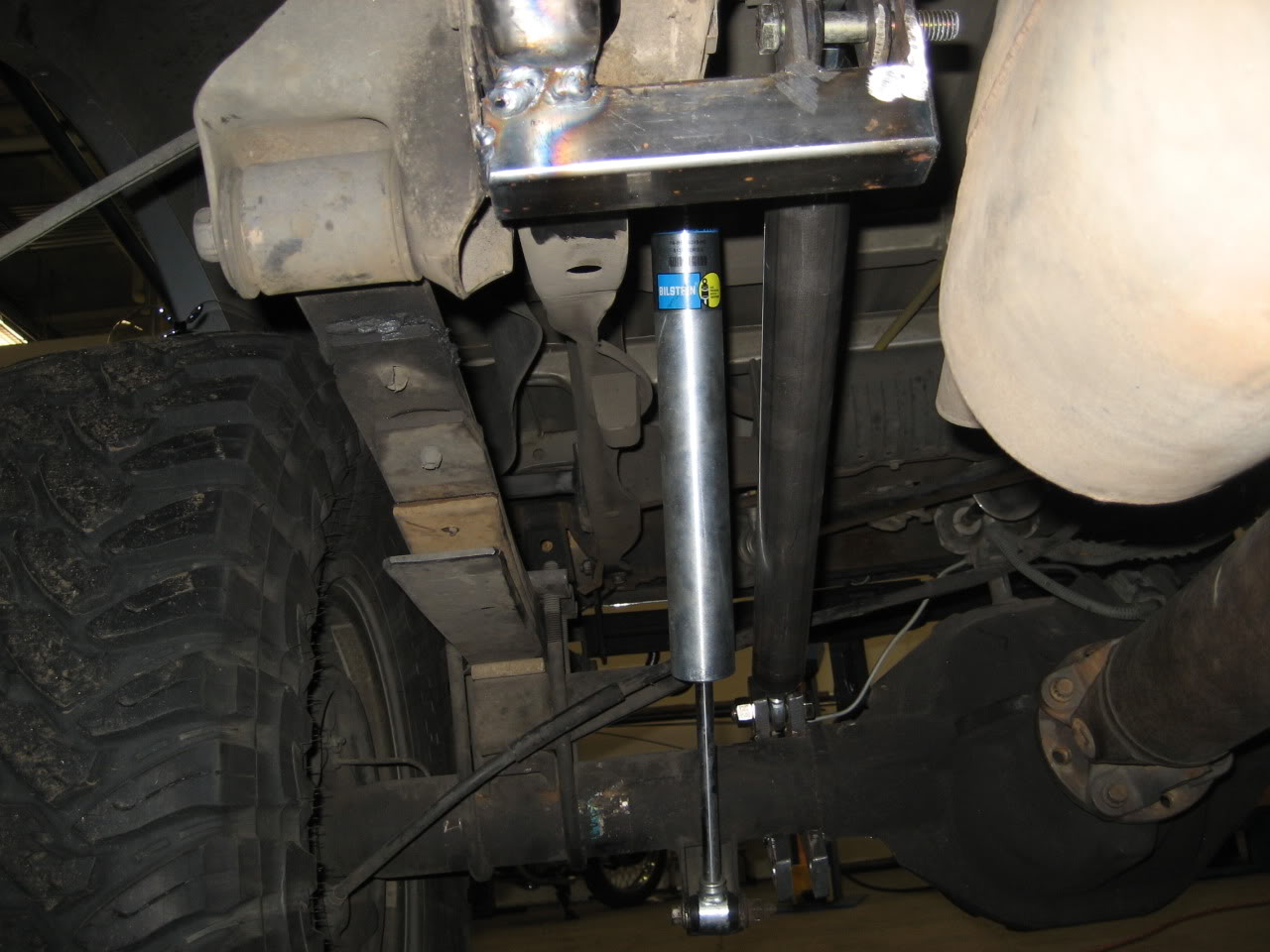

Should look like this, which you already have done Ace:

Name:  IMG_0319.jpg
Views: 3
Size:  141.0 KB

Name:  IMG_0317.jpg
Views: 4
Size:  206.3 KB
Reply With Quote
  #12
Old 05-14-2009
Ace's Avatar
Ace Ace is offline
Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
Quote:
Originally Posted by TrePaul86 View Post
You're incorrect.

Bilsteins are designed to mount the way Ace has his mounted. 01 Ranger 4x4 also has the right idea, you are supposed to be able to read the logo on the shock right side up...

Although you think it decreases the likely hood of leaking, it also creates a sleeve to trap water if you leave the boot on them. Hence why I don't run boots. Yes it keeps dirt and such out of them, but that's why they make them with 0-rings. When they're mounted right, they don't trap anything.

Should look like this, which you already have done Ace:






awesome. I got the fronts done today all though i couldn't get the top nut as tight as i would of liked it b/c it you have to use an allen wrench and well those are not that easy to hold on to.

big thanks to Zach for letting me call him and bug him and ask him what to do.
