tried my own "traction control" idea

its like a traction bar kit, but uses chain instead of the bar. ive put it togther but havent tried it out yet. i would think that it would work, guess i'll find out. heres some pics of my setup. Name:  TC004.jpg
Views: 17
Size:  79.6 KB Name:  TC002.jpg
Views: 15

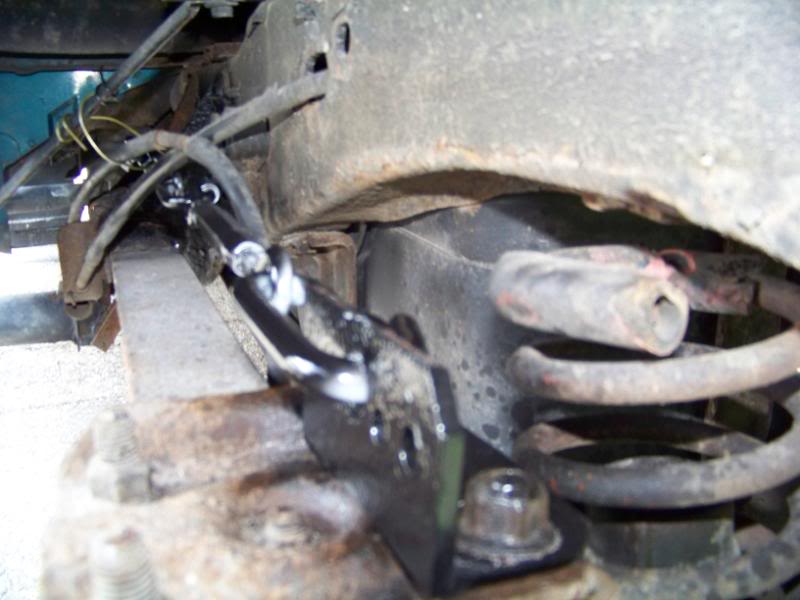

Size:  64.1 KB Name:  TC007.jpg
Views: 18
Size:  63.6 KB at least if it doesnt work out, i havent wasted but about 20 bucks. the coat-hanger wire midway is just a safety in case something breaks loose. didnt want to drill my front shackle mount so i used a clamp thats used in overhead applications in a factory to hold up water and electrical utilities. i could see the "bar" would use compression in reverse or during heavy braking, but i would think that during forward travel under load tension would be whats going on. i could be wrong, i havent studied up on this stuff. didnt preload my chain much, bout 1 turn with a wrench after hand tighting it up.
Reply With Quote
  #2
Old 07-25-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
ok i find this pointless how is the chain going to stop axle warp?
Reply With Quote
  #3
Old 07-25-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Axle wrap puts the chain in tension where the chain is essentially "rigid", it will act the same as a solid bar. So it will work just fine as long as you can keep it tight.
Reply With Quote
  #4
Old 07-25-2009
quicksilver2001's Avatar
Member

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
good idea
Reply With Quote
  #5
Old 07-25-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
It'll keep the axle from wrapping in forward load, but not in reverse. I don't see it limiting the travel either. The only thing I would wory about is instant loading snapping the chain. Might need the chain mount on the axle a little higher though to make it work better. Let us know how it works out.
Reply With Quote
  #6
Old 07-25-2009
4x4RangerOffroad's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Barrington, NH
Posts: 434
This could be very interesting. Lets us know how it works.
Reply With Quote
  #7
Old 07-25-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
I use beam clamps all the time at work (I'm an electrician) and I dont think those will stay put for very long...Theyre going to vibrate loose at some point...Even if you drive them home with an impact (which would either strip the threads or start to put a hole in your hanger) I dont see it working well...

Does anyone know what kind of load is placed upon traction bars when that axle starts to twist?

I hope the chain and all the fittings are rated for the proper load/shock load...

I like the idea, but I just wanted to warn you, dont want to see anything bad happen to an RF'er
Reply With Quote
  #8
Old 07-25-2009
racsan's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: central ohio
Posts: 647
any idea what the load rating is on a beam clamp? i really have no idea. picked those up at work a few years back. the biggest concern of mine is actually the turnbuckle. the eyelets are steel, but the body with the threads is alluminum. the hook going through the axle bracket and the chain connectors are for trailer safety chain, they should be stout enough. i have thought about putting a eye in the front hanger instead of the beam clamp, going to take it easy and see what comes about. thanks for commenting! Dave.
Reply With Quote
  #9
Old 07-25-2009
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
go out and do a wholeshot see if she holds up.lol

im not sure about those beem clamps.
Reply With Quote
  #10
Old 07-25-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Reply With Quote
  #11
Old 07-25-2009
racsan's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: central ohio
Posts: 647
yes, ive seen those, and the price that goes with them. if my idea works for me, then im fine with it. 100 bucks just seems a bit much for that. im not worried about wheelhop in reverse.
Reply With Quote
  #12
Old 07-26-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
I think the chain or tornbuckles or something will snap and get caught up in rotating parts. The "idea" should work (going forward of course), but I also don't think there is enough leverage, the mounting hole is only about an inch or two above the spring pack.

And is that a coil spring in with the bump stop? Weird...
Reply With Quote
  #13
Old 07-26-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by brianjwilson View Post
And is that a coil spring in with the bump stop? Weird...
Works just like an overload spring, helps add spring rate when the back is loaded.
Reply With Quote
  #14
Old 07-26-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Quote:
Originally Posted by redranger4.0 View Post
Works just like an overload spring, helps add spring rate when the back is loaded.
Yeah I'm sure it works great, just never seen one setup like that.
Reply With Quote
  #15
Old 09-20-2009
racsan's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: central ohio
Posts: 647
yes there is a coil overload on the axle housing that the top end of circles the bumpstop, on the project ive changed things a bit, gone is the alumminum turnbuckle and beam clamp. now it's got solid closed eyes and the forward mount goes through the front spring mount and is used to put tension on the chain. seems to be working fine. Name:  Picture003-1.jpg
Views: 16
Size:  70.4 KB Name:  Picture005-2.jpg
Views: 16
Size:  67.9 KB
Reply With Quote
  #16
Old 09-20-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
those are some tiny bolts.. why not just use tube?
Reply With Quote
  #17
Old 09-20-2009
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
wow can u say ghettolicious
