Suspension Tech General discussion of suspension for the Ford Ranger.

What went wrong?

  #1
Old 09-15-2006
Russ533's Avatar
Member
Thread Starter
Join Date: Jun 2006
Location: New Orleans, LA
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
What went wrong?

I did the torsion bar crank...i tighten them around 6 times...and i got MAYBE half an inch...you do tighten them right? not losen them? What when wrong?

  #2
Old 09-15-2006
mudranger96's Avatar
Member
Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
Likes: 0
Received 1 Like on 1 Post
Yes you do tighten them how many threads can you still see

  #3
Old 09-15-2006
Russ533's Avatar
Member
Thread Starter
Join Date: Jun 2006
Location: New Orleans, LA
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
none....the blot is even with the hole...how many time should i crank it?

  #4
Old 09-15-2006
mudranger96's Avatar
Member
Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
Likes: 0
Received 1 Like on 1 Post
Wow i dont know i cranked mine down to about 3 or 4 threads left and got almost an 1 1/2

  #5
Old 09-15-2006
Russ533's Avatar
Member
Thread Starter
Join Date: Jun 2006
Location: New Orleans, LA
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
When you say down, you mean "up" towards the bottom of the truck?

  #6
Old 09-15-2006
winks's Avatar
Member
iTrader: (5)
Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Likes: 0
Received 0 Likes on 0 Posts
Maybe your t-bars are shot? I cranked mine 6 times and got about an inch.

  #7
Old 09-15-2006
mudranger96's Avatar
Member
Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
Likes: 0
Received 1 Like on 1 Post
Yes you want to be tightening them up towards the truck turning them to the right

  #8
Old 09-15-2006
Russ533's Avatar
Member
Thread Starter
Join Date: Jun 2006
Location: New Orleans, LA
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
hmmmmmmmmmmmmmmmmmm.......this sucks...

  #9
Old 09-15-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 7,910
Likes: 0
Received 23 Likes on 20 Posts
Originally Posted by Crazzyrussruss
hmmmmmmmmmmmmmmmmmm.......this sucks...
Roll the tires 1/2 a revolution and bounce the suspension and then take the measurement again. On my 4x4, 5 turns is roughly an inch.

Tightening the bolts clockwise increases the ride height.

  #10
Old 09-15-2006
Join Date: Apr 2006
Location: Jesup, Georgia
Posts: 760
Likes: 0
Received 0 Likes on 0 Posts

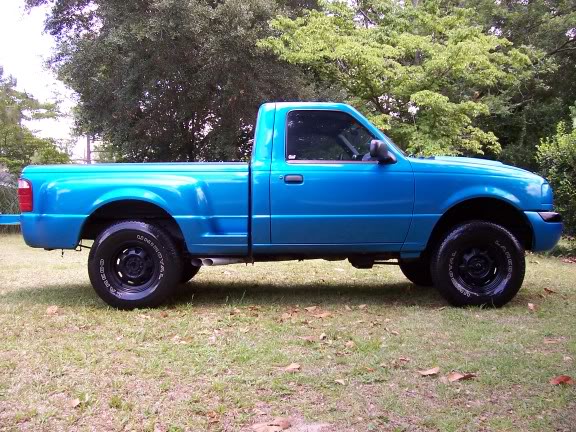

Weak bars maybe?? I got about 2" when I did mine.I'm 2wd and in the pic all I did was crank the bars, 31"s btw


Name:  expotv017.jpg
Views: 70
Size:  93.4 KB

  #11
Old 09-15-2006
l2en's Avatar
Member
Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Likes: 0
Received 0 Likes on 0 Posts
8 full cranks on both sides got me about 2"

  #12
Old 09-15-2006
got-dirty's Avatar
Member
Join Date: May 2005
Location: Sliding in the skreets
Posts: 3,829
Likes: 0
Received 0 Likes on 0 Posts
at work, when we do it, we just measure the wheel well gap, raise it up to desired lift , and even them out. we use an impact though, so i dont know how many turns we get out of them. wouldnt really matter in some cases anyways because they arent even to begin with.

  #13
Old 09-15-2006
Kanoeking's Avatar
Member
Join Date: Nov 2005
Location: Murderapolis
Posts: 748
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by anthony84_2004

I remember this "craze" from this summer.....scary.

  #14
Old 09-16-2006
ranger's Avatar
Member
Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Likes: 0
Received 2 Likes on 2 Posts
haha yep!

  #15
Old 09-16-2006
Join Date: Apr 2006
Location: Jesup, Georgia
Posts: 760
Likes: 0
Received 0 Likes on 0 Posts
Yeah, WTF was I thinking.

  #16
Old 09-16-2006
n3elz's Avatar
RF Veteran
Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,623
Likes: 0
Received 4 Likes on 4 Posts
If your truck has been hard driven, and you have the "F" type (weakest) bars in front (which is what all 2WD's have for the most part), then they could easily be fatigued. I changed my beat F's for a set of stronger B's. Search the board a bit and you'll find quite a bit of info about the t-bar types. Use your imagination since they are often referred to by various terms.
