4.0 OHV rebuild.

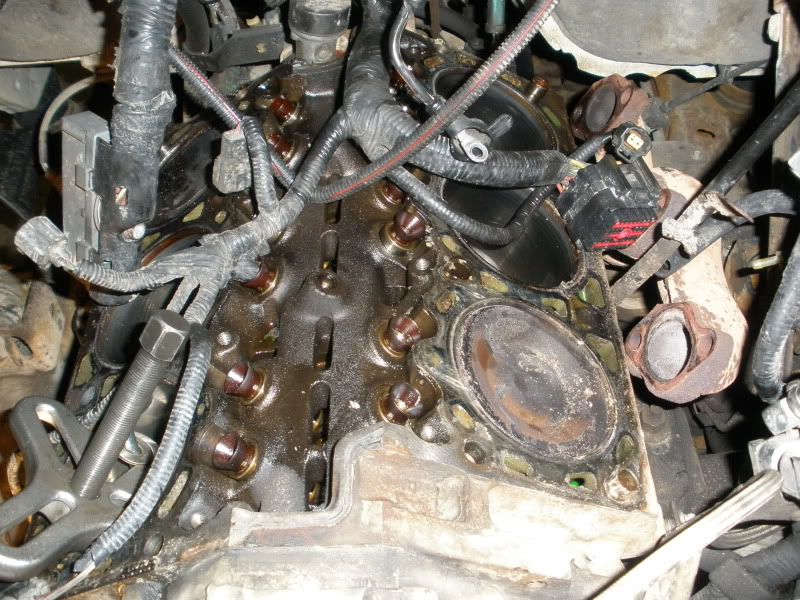

Well I cracked both heads so I decided to take the motor apart and rebuild it. About 3 months ago my waterpump shaft snapped and my truck overheated so thats what caused my heads to crack. Truck ran great, only burned a little bit of antifreeze. I also decided to replace master cylinder and do some other maintnance.

Well I decided to take apart upper end in truck and then take block out by itself. Heads are fixed and i got to put new exhaust seats in and 2 intake seats. All my brackets are getting powdercoated hamertone black which is a killer color. My block and heads are getting spray bombed gloss black, my water pump is going to be aluminum colored paint.

I got my block out today, so tomorrow im hoping to clean up my engine compartment. All new sensors and gaskets are getting used.

Now on with some pics:
Name:  P5080043.jpg
Views: 173
Size:  170.2 KB
Name:  P5100044.jpg
Views: 56
Size:  91.9 KB
Front timing cover seal was leaking pretty good to:

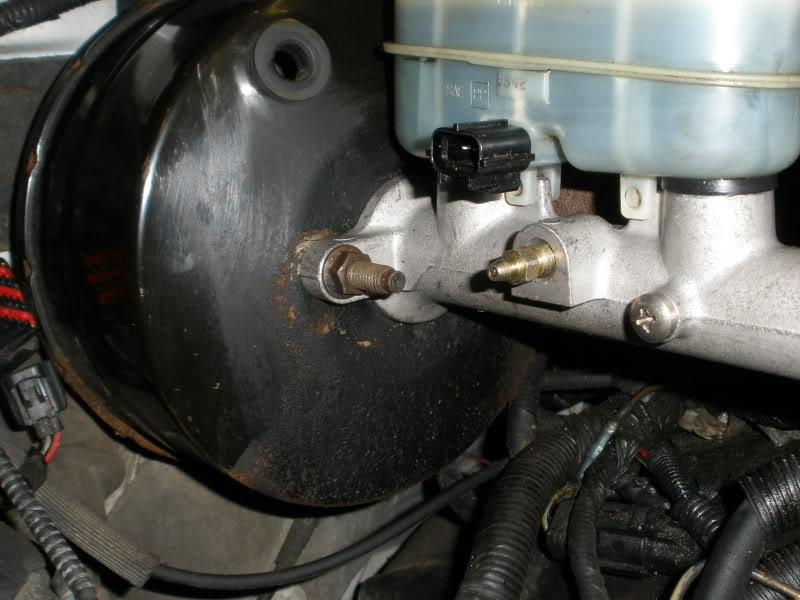

New Master:
Name:  P5100048.jpg
Views: 52
Size:  97.7 KB

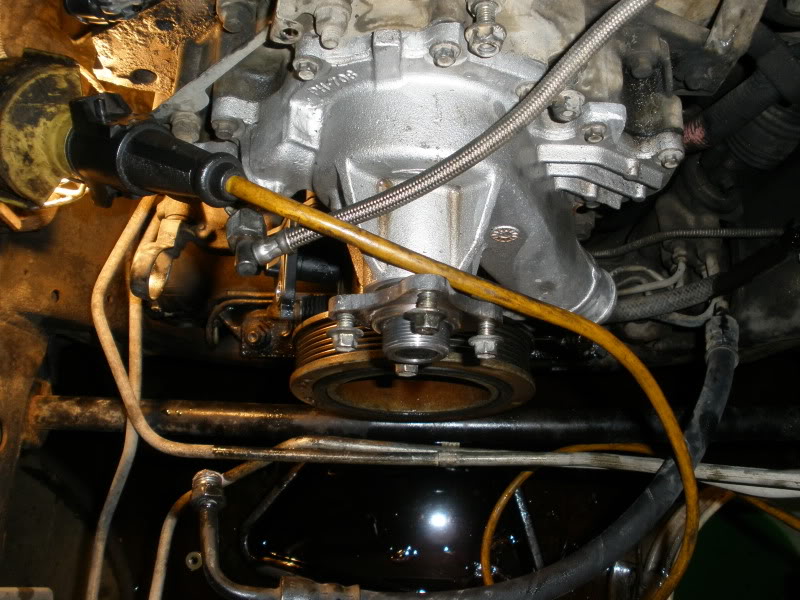

Name:  P5080042.jpg
Views: 47
Size:  124.9 KB

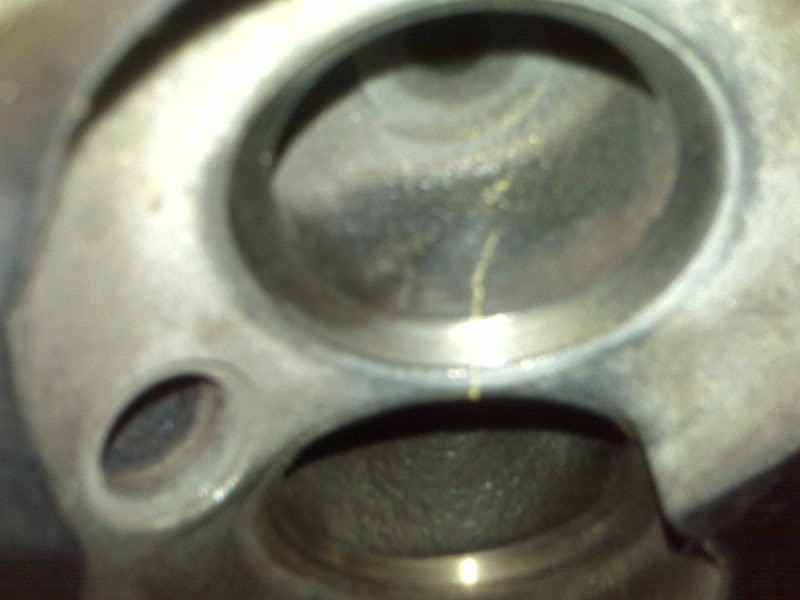

One of the cracks:
Name:  IMG00062.jpg
Views: 54
Size:  36.6 KB

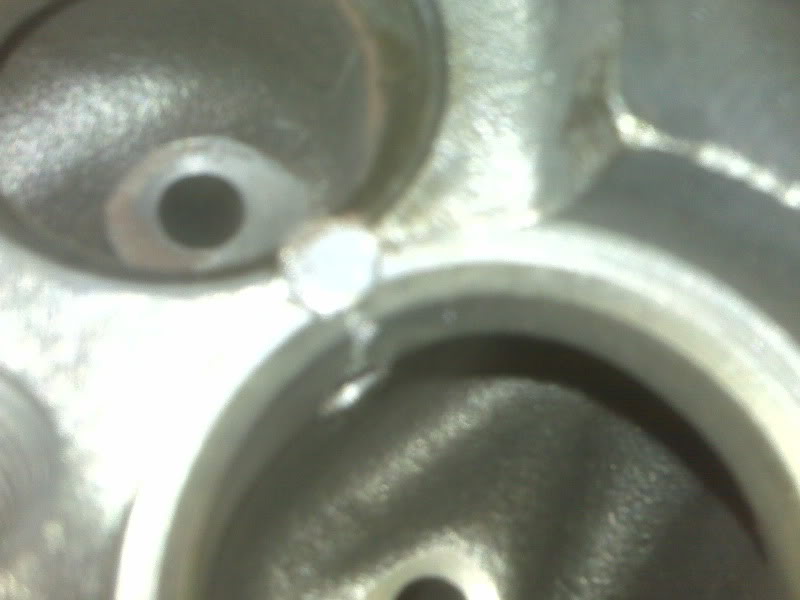

Crack repaired:
Name:  IMG00065.jpg
Views: 47
Size:  38.2 KB

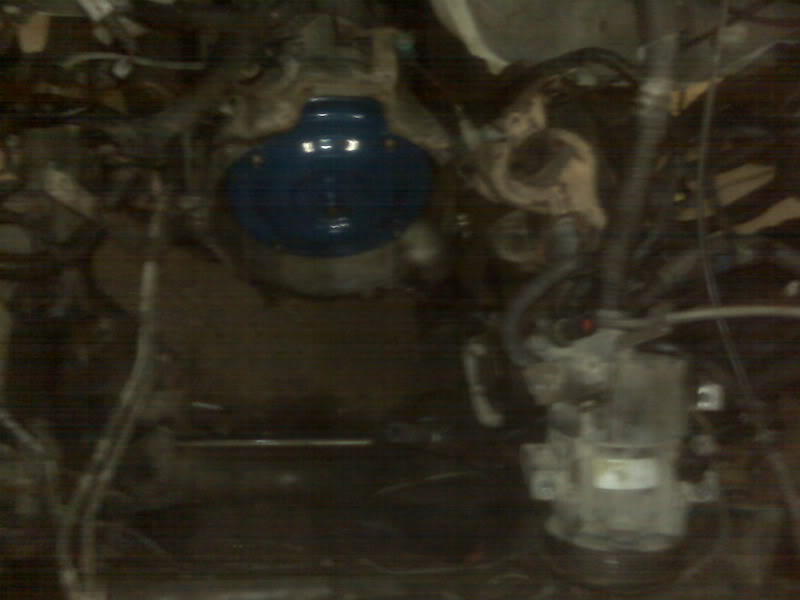

New Torque converter:
Name:  IMG00067.jpg
Views: 50
Size:  35.7 KB

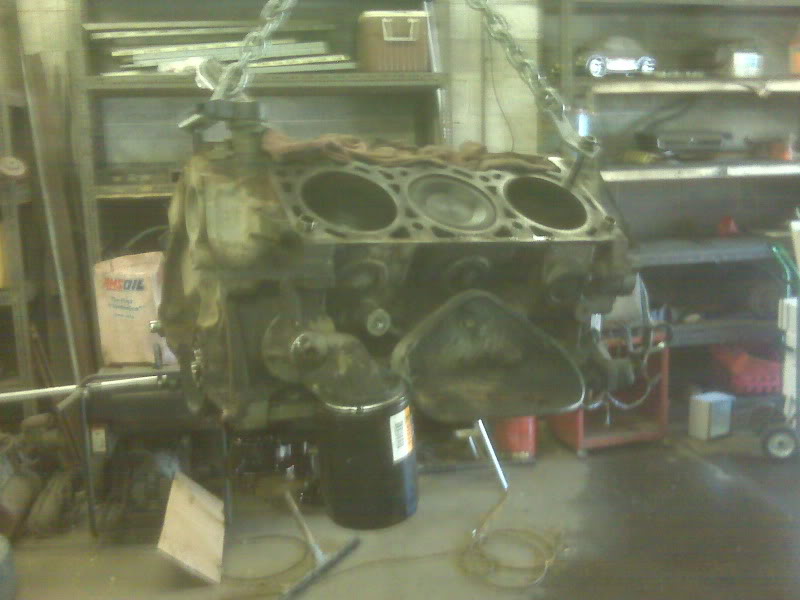

Motor out:
Name:  IMG00068.jpg
Views: 55
Size:  54.8 KB
Name:  IMG00069.jpg
Views: 52
Size:  52.3 KB

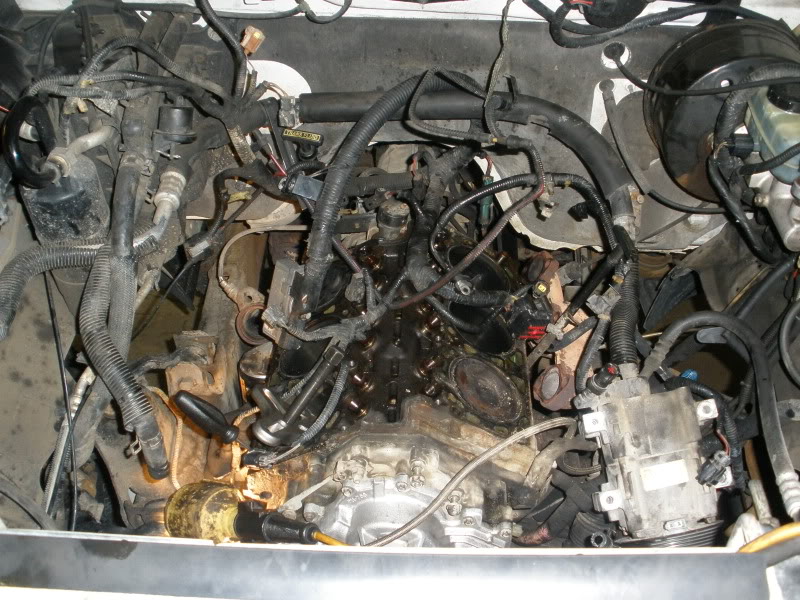

Name:  P5080041.jpg
Views: 47
Size:  151.3 KB
Reply With Quote
  #2
Old 05-14-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489

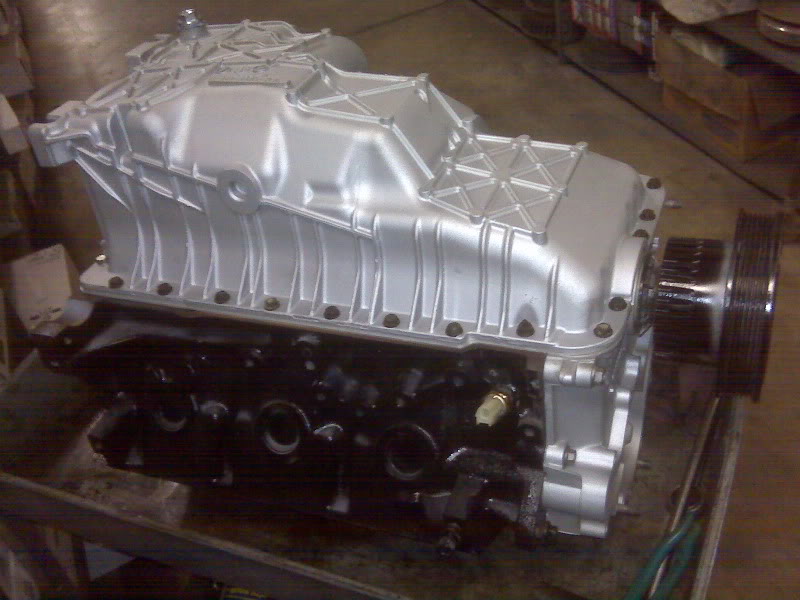

Well got the main and rod bearings replaced and started reassembly. I got the pistons cleaned and put in, oil pump and screen, timing cover, oil pan, waterpump and harmonic balancer.
Name:  IMG00070.jpg
Views: 101
Size:  70.3 KB

Been so busy at work I haven't been able to install all new exhaust seats and 2 bad intake seats, Hopefully tomorrow. If not tomorrow it's going to have to wait till monday when I return from Army drills.
Reply With Quote
  #3
Old 05-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
yay! pushrods FTW!
Reply With Quote
  #4
Old 05-14-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
I hate OHC motors. OHV are much easier to work on. We rebuild so many heads at work its not even funny and the majority of them are OHC heads with bent valves because a timing belt jumped time. I'll take my 4.0 OHV any day over a 4.0 SOHC.
Reply With Quote
  #5
Old 05-14-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Quote:
Originally Posted by Rangerkid View Post
I hate OHC motors. OHV are much easier to work on. We rebuild so many heads at work its not even funny and the majority of them are OHC heads with bent valves because a timing belt jumped time. I'll take my 4.0 OHV any day over a 4.0 SOHC.
X2 I love mine
Reply With Quote
  #6
Old 05-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I regret buying an 01 because I was stupid when I bought it.
Reply With Quote
  #7
Old 05-15-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Well ran to a little snag today. 1 of the 2 heads I pinned didn't hold so now im on the look out for another 4.0 head. The 1 good head is all set and ready to get put back on. I also got my alternator back from the rebuilder and a bunch of other parts from my powdercoater. Im still waiting on my lower intake, exhaust manifolds, and my valve covers.
Reply With Quote
  #8
Old 05-15-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Motor:
Name:  P5150052.jpg
Views: 44
Size:  98.8 KB
Name:  P5150053.jpg
Views: 42
Size:  86.2 KB
Name:  P5150054.jpg
Views: 45
Size:  88.4 KB

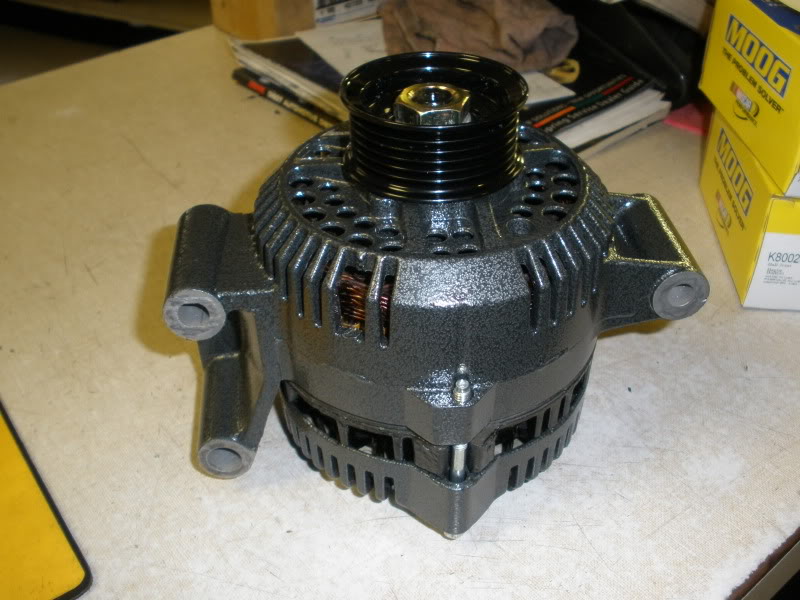

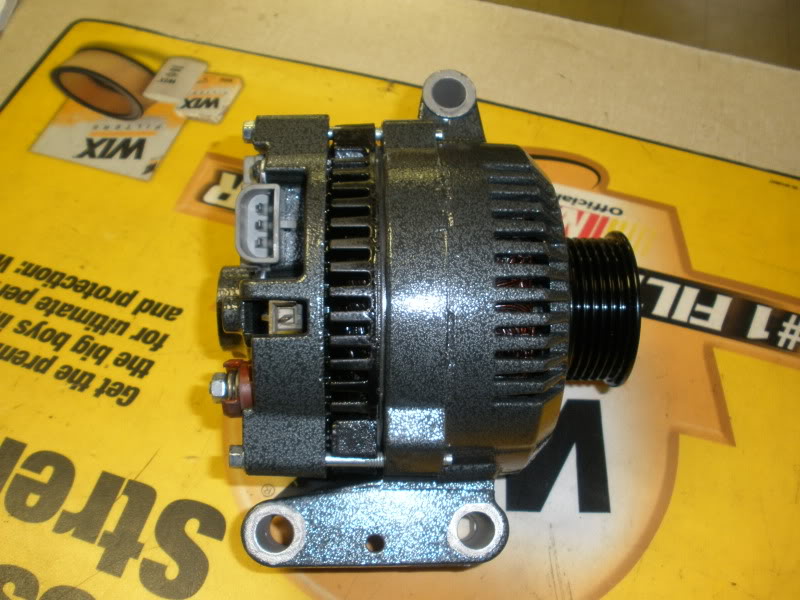

Alternator:
Name:  P5150049.jpg
Views: 41
Size:  108.3 KB
Name:  P5150050.jpg
Views: 42
Size:  128.1 KB
Name:  P5150051.jpg
Views: 47
Size:  103.0 KB

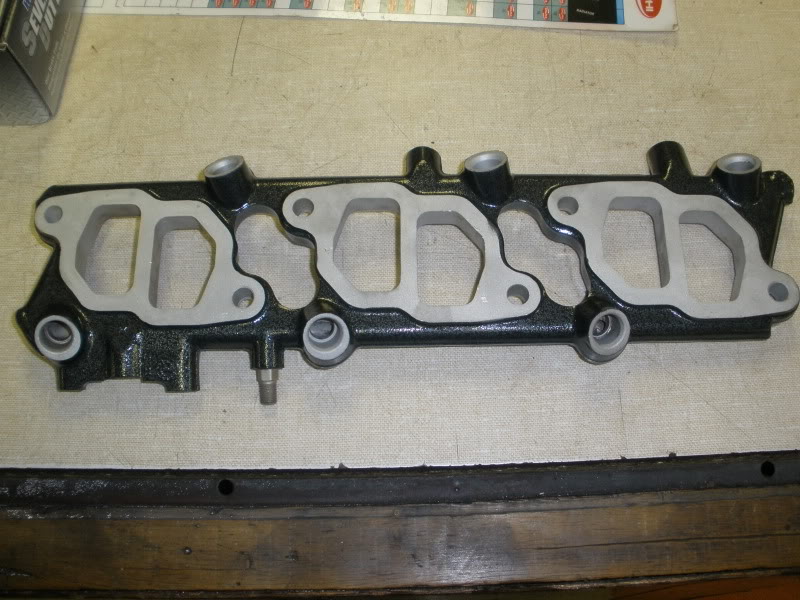

Fuel Rail:
Name:  P5150055.jpg
Views: 41
Size:  116.2 KB
Name:  P5150056.jpg
Views: 41
Size:  136.7 KB

Water pump pulley:
Name:  P5150057.jpg
Views: 46
Size:  143.8 KB

Alt bracket:
Name:  P5150058.jpg
Views: 43
Size:  155.7 KB

Dip stick tube:
Name:  P5150059.jpg
Views: 44
Size:  125.5 KB

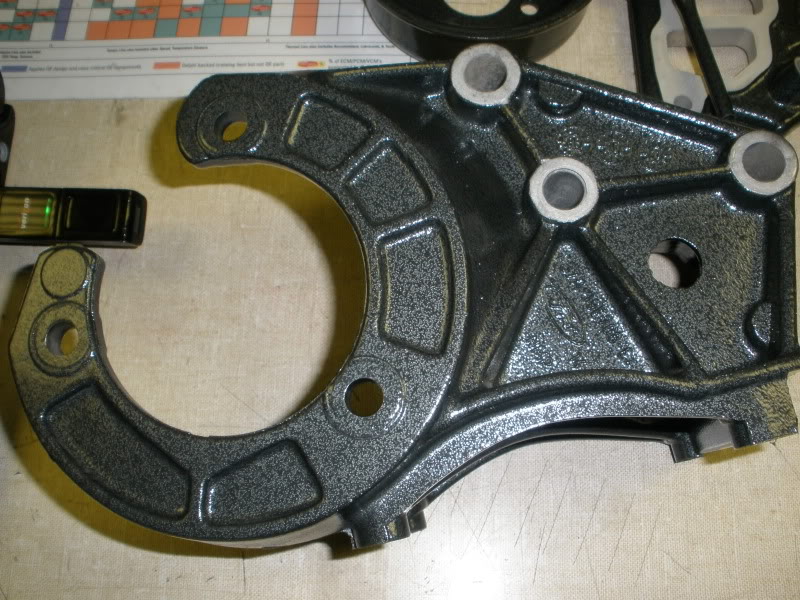

A/C and PS bracket:
Name:  P5150060.jpg
Views: 48
Size:  142.5 KB
Name:  P5150061.jpg
Views: 47
Size:  139.1 KB

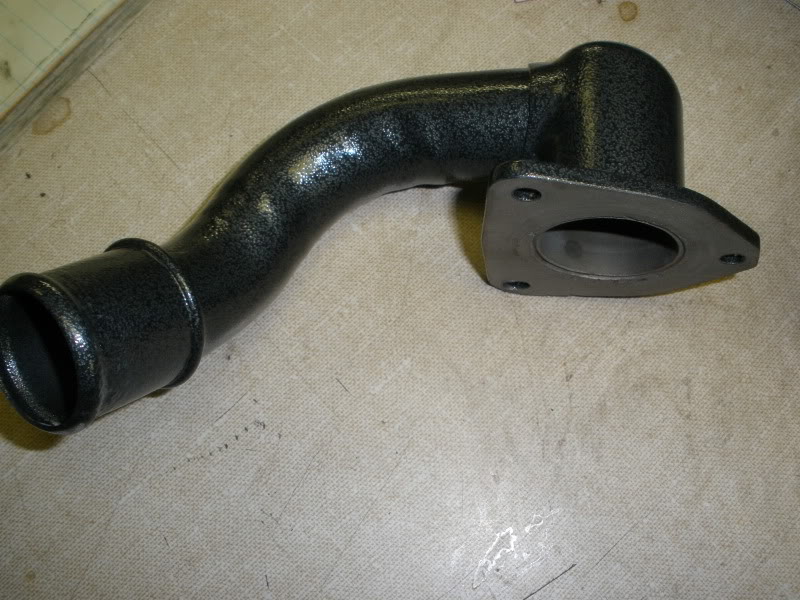

Water neck:
Name:  P5150062.jpg
Views: 44
Size:  121.3 KB

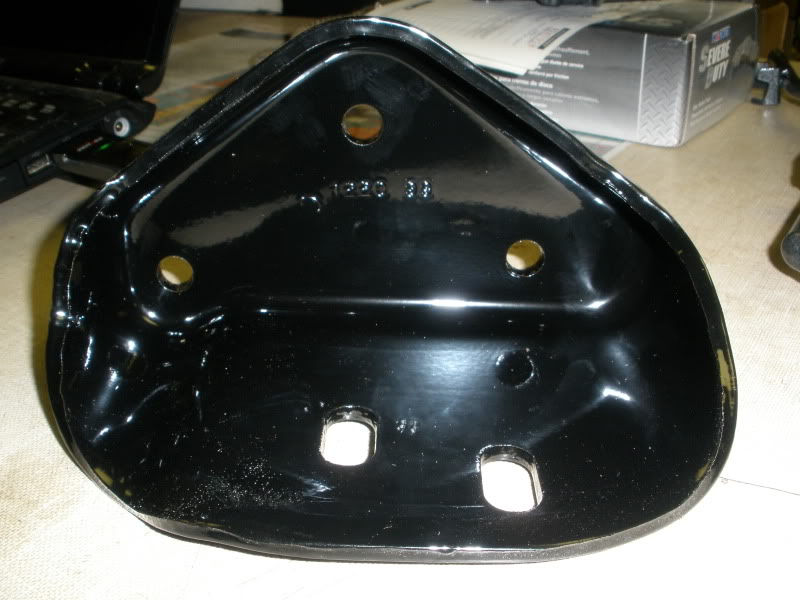

Motor mounts:
Name:  P5150063.jpg
Views: 43
Size:  98.6 KB
Name:  P5150066.jpg
Views: 42
Size:  88.9 KB
Reply With Quote
  #9
Old 05-15-2009
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
did you paint that stuff with hammerite? I'm tearing up my 79 f250 and using it to paint radiator support and everything else that "was" black.

it looks good.
Reply With Quote
  #10
Old 05-16-2009
trucks423's Avatar
Member
iTrader: (2)

Join Date: Jul 2008
Posts: 687
nice powdercoat!!
Reply With Quote
  #11
Old 05-16-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Quote:
Originally Posted by graniteguy View Post
did you paint that stuff with hammerite? I'm tearing up my 79 f250 and using it to paint radiator support and everything else that "was" black.

it looks good.

Ya, its black hammertone. My buddy gets it from powderbythepound.com
Reply With Quote
  #12
Old 05-16-2009
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
sweet dude ill be doing this one day when mine decides to crap out
Reply With Quote
  #13
Old 05-16-2009
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Looks good...My Matco box is black hammertone/silvervein .
Reply With Quote
  #14
Old 05-16-2009
mcpink's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Out There
Posts: 443
That looks great! I can't wait to see the finished product.
Reply With Quote
  #15
Old 05-16-2009
kyle12201's Avatar
Member

Join Date: Apr 2008
Location: East Waterboro, ME
Posts: 1,543
Looking good....
Reply With Quote
  #16
Old 05-16-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Hopefully if I can get a set of heads it should be up and running by thursday or friday if I can get time to bust *** and finish it. Im debatting about putting the block in by itself but it'd be so much easier to put the whole motor in assembled.
Reply With Quote
  #17
Old 05-16-2009
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
their not bad to get back in with the hole motor assembled just take ya time and it will go right in
Reply With Quote
  #18
Old 05-21-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Well motors in, Everythings bolted down and ready to go.... Except my exhaust and im missing a clip that I need for my throttle body. I have to remove my front driveshaft so I can get my front Y-pipe in place and I gotta order a nex clip. then I can top off the fluids and I'll be good to go.

Okay, on with the pics I know you all love.

Motor in the truck, notice all the powdercoat and the now black engine compartment:
Name:  P5210067.jpg
Views: 48
Size:  125.0 KB
You can see the everything matches, Powdercoated intake, valve covers, alternator brackets, MAF, water pump pulley:
Name:  P5210068.jpg
Views: 53
Size:  152.7 KB
Name:  P5210069.jpg
Views: 44
Size:  117.2 KB

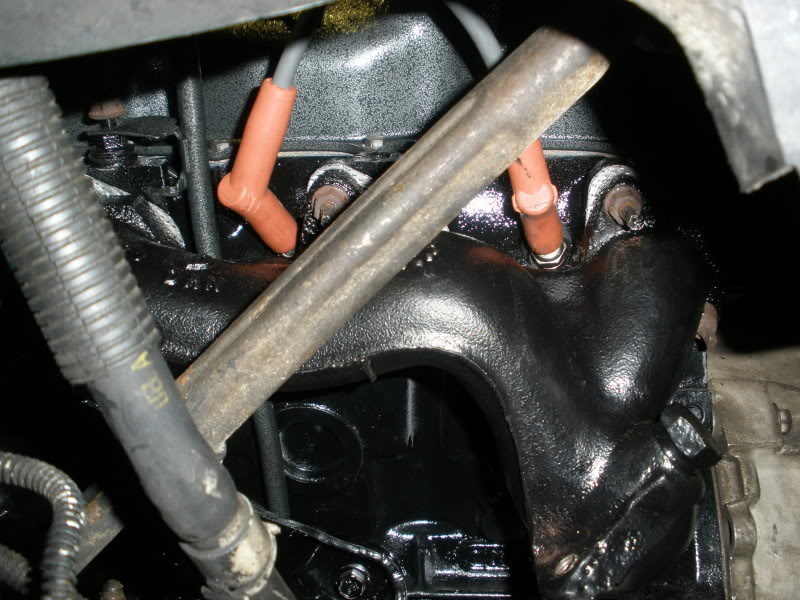

Powdercoated Manifolds:
Name:  P5210071.jpg
Views: 40
Size:  141.3 KB
Name:  P5210073.jpg
Views: 44
Size:  125.0 KB

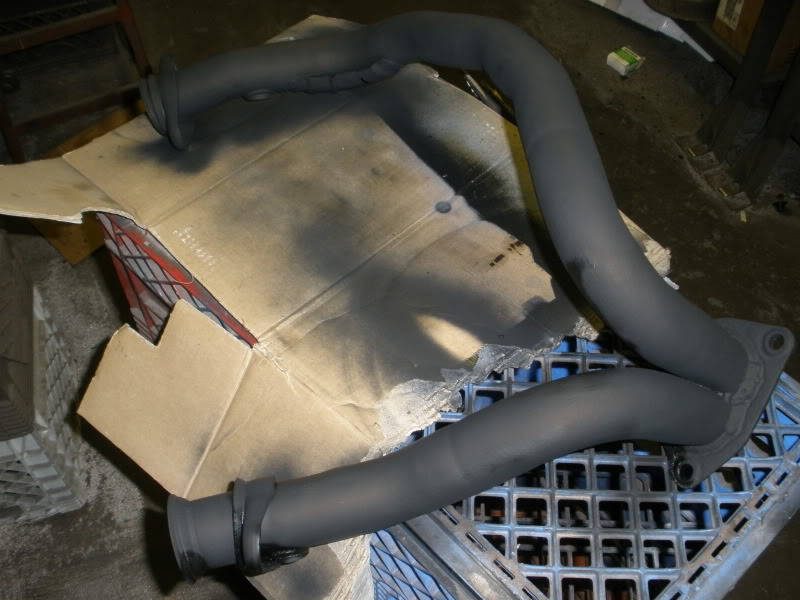

Y-Pipe:
Name:  P5210074.jpg
Views: 79
Size:  92.8 KB
Reply With Quote
  #19
Old 05-22-2009
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by Rangerkid View Post
I hate OHC motors. OHV are much easier to work on. We rebuild so many heads at work its not even funny and the majority of them are OHC heads with bent valves because a timing belt jumped time. I'll take my 4.0 OHV any day over a 4.0 SOHC.

I hear ya.. but I'd like to point out something. It's not the OHC vs OHV *design* that's at fault. It's the casting thickness and heat disipation paths that are.

OHC design is significantly more efficient.
The problem with our engines is that this motor started off as a german 2.6L (or maybe it was a 2.8L?) Since then (the early 70s) this motor has been bored, stroked, and thinned out to within an inch of it's life.
Our heads are simply too thin. So is the block. They just can't be overheated without major problems.

Case in point.. look at the 4.6L and 5.4L fords. They were designed from scratch vs being a stretched previous design.

I've personally seen the durability tests and teardowns at windsor engine plant. Trust me.. the OHC mod motors will go places and endure MUCH more than the old OHV 5.0L ever could.

Rich
Reply With Quote
  #20
Old 05-22-2009
deathbypsi's Avatar
Member

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Josh, did you remove your cam? Im tryin to get some advice on the steps to r&r a cam in a 4.0

I am doing the same as you except I have a Comp 422 waiting to go in but I am not sure what to do with the cam sensor,never delt with one before.
Reply With Quote
  #21
Old 05-22-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Quote:
Originally Posted by deathbypsi View Post
Josh, did you remove your cam? Im tryin to get some advice on the steps to r&r a cam in a 4.0

I am doing the same as you except I have a Comp 422 waiting to go in but I am not sure what to do with the cam sensor,never delt with one before.
Yes I did , I have a cam Synchronizer on mine and I replaced it anyway so it wasn't a big deal just pop out the cam plug. I re-used the pistons, rods, cam, and crank. At 150,000 they all still looked brand new. No wear at all on the bearing surfaces.
Reply With Quote
  #22
Old 05-22-2009
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by Rangerkid View Post
At 150,000 they all still looked brand new. No wear at all on the bearing surfaces.
If you don't mind me asking.. what oil was used and what intervals was it changed at?

Just curious..

Rich
Reply With Quote
  #23
Old 05-22-2009
deathbypsi's Avatar
Member

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
So does anything have to be lined up prior to pulling that dumby shaft with the cam position sensor on it out? Or do you just unbolt the hold down and yank it out? And after new cam is in just drop everything back in the hole?
Reply With Quote
  #24
Old 05-23-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Quote:
Originally Posted by wydopnthrtl View Post
If you don't mind me asking.. what oil was used and what intervals was it changed at?

Just curious..

Rich
Valvoline oil changed every 3,000-4,000 miles used with a wix premium filter. Every other oil change I use a bottle of Slip coat made by a local Michigan company called Hapco.
Reply With Quote
  #25
Old 05-23-2009
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Quote:
Originally Posted by deathbypsi View Post
So does anything have to be lined up prior to pulling that dumby shaft with the cam position sensor on it out? Or do you just unbolt the hold down and yank it out? And after new cam is in just drop everything back in the hole?
Not when pulling the cam Synchro, just unbolt holdown and pull up. When re-installing the sensor has to line up to a certain degree with the #1 cylinder at TDC of Compression stroke. It tells you in the Haynes manual. I can't remember the degrees off hand.
Reply With Quote
