Icon5 Clicking/ticking coming from engine, smell of burning oil as well....

Okay, lately I've been hearing a tick/clicking coming from the engine. It's more noticeable when I step on the throttle rather than at idle, and it's extremely annoying... Tonight, I went to test the new aux backup lights and now I noticed the smell of burning oil when I was backing up. I have a feeling that my engine is on it's last legs... Thoughts? Oh, it started happening Saturday morning after I hit the mud hole I always get stuck in...
Reply With Quote
  #2
Old 06-17-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Okay, I put 2+2 together... I think that when I hit the hole, I sucked water, mud, and **** into my intake and that **** made it's way into the engine, sand scarred my cylinders and lifters, hence the ticking sound. And oil's getting into my cylinders now because the cylinders are ripped up... Plausible? Yes. Absolutely in fact. I need to get a different fuggin intake...
Reply With Quote
  #3
Old 06-17-2012
rangerrunner11's Avatar
Member

Join Date: Feb 2011
Location: .
Posts: 1,018
thread delete then I guess...
Reply With Quote
  #4
Old 06-17-2012
thewoerd's Avatar
Member

Join Date: Mar 2012
Location: Grande Prairie Alberta
Posts: 120
Dusting an engine really sucks, you end up having to go through everything, from the cam, to the pistons/cylinders, to the crank bearings at the bottom, and all the little push rods and crap in between. Hopefully you're wrong for your sake.
Reply With Quote
  #5
Old 06-17-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
No, not thread delete... I'm still looking for thoughts. And yeah, I'm hoping that's not it. If it is, I'll start saving up and beating the **** outta this one, then go buy myself a new truck.
Reply With Quote
  #6
Old 06-18-2012
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
If water got into the combustion chambers then a bent connecting rod is more likely.

I would do a compression check.
Reply With Quote
  #7
Old 06-18-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
Quote:
Originally Posted by Blhde View Post
If water got into the combustion chambers then a bent connecting rod is more likely.

I would do a compression check.
^this
Reply With Quote
  #8
Old 06-18-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Sounds like your cam sensor has been bad for awhile now....
Reply With Quote
  #9
Old 06-18-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
It wasn't enough water to bend a rod, just enough to get grit on there. Brad, I'll have it checked out next time I get a chance.
Reply With Quote
  #10
Old 06-18-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
seafoam and change the oil see if that helps and rather than run 5W-30 try running 10W-30 or 40
Reply With Quote
  #11
Old 06-18-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
10W's a heavier oil, right? I'm running Valvoline full synthetic 5W right now, so when it's a bit closer to my next change I'll give the seafoam a shot. Where is the cam sensor located? I'm gonna try pulling one from a truck in the junk yard when I go today.
Reply With Quote
  #12
Old 06-18-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
10W is heavier and dont use a JY cam sensor...theyre cheap enough to buy new
Reply With Quote
  #13
Old 06-18-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Pull off the intake and see if there's dirt in there, before assuming that's what happened.
Reply With Quote
  #14
Old 06-18-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Oh, I know there is. I have an AEM intake and the filter is now dirt covered after that little friday night excursion.
Reply With Quote
  #15
Old 06-18-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
clean the filter
Reply With Quote
  #16
Old 06-18-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by Redneck Ranger View Post
10W's a heavier oil, right? I'm running Valvoline full synthetic 5W right now, so when it's a bit closer to my next change I'll give the seafoam a shot. Where is the cam sensor located? I'm gonna try pulling one from a truck in the junk yard when I go today.
Why would you wait to change the oil? If you have crap in your engine change the oil now, don't wait until you hit the 3k mile mark.
Reply With Quote
  #17
Old 06-18-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Quote:
Originally Posted by Redneck Ranger View Post
Oh, I know there is. I have an AEM intake and the filter is now dirt covered after that little friday night excursion.
Just because there's dirt on the filter doesn't mean there is inside the intake. Pull it and check it, verify the facts before assuming.
Reply With Quote
  #18
Old 06-18-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
^ this. It's cheap enough to buy an upper intake gasket, and easy as hell to remove it and check. At the same time, buy a new oil change with seafoam.

Remember " Assuming makes an *** out of U and ME"
Reply With Quote
  #19
Old 06-18-2012
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
1 water isn't compressible any amount getting to the cylinder can bend rods.

2 5w and 10w are nearly the same thing and that is the cold weight of the oil. If you want to try thicker oil to fill in gaps you should run a 10/40 or 15/50.


You still need a compression check.
Reply With Quote
  #20
Old 06-18-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
My compression is fine. I still have just as much power as I did last week and the week before. Pulled the intake today and it's got a nice blanket of mud inside the tube. I didn't notice the smell of burning oil either... I'm going to have the garage install my fuel filler neck sometime this week, so I'll have them check it out and see what they think. My idea of what happened was just my paranoia kicking in...
Reply With Quote
  #21
Old 06-19-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249

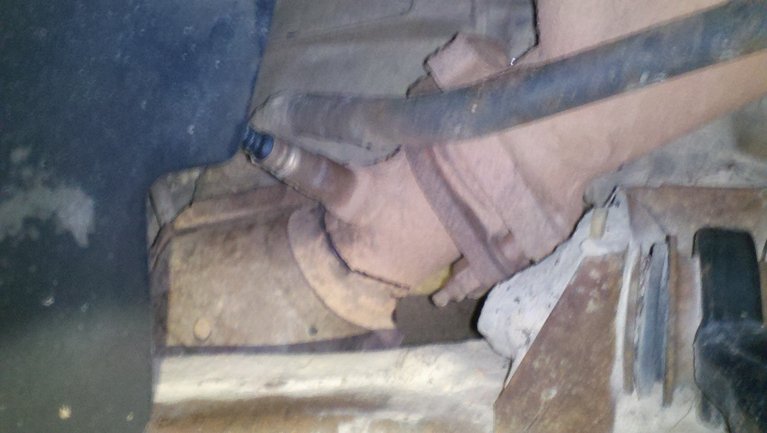

Found my issue....

Attached Thumbnails
Clicking/ticking coming from engine, smell of burning oil as well....-photobucket-6231-1340165304370.jpg
Reply With Quote
  #22
Old 06-20-2012
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
....

Last edited by hurley; 06-20-2012 at 11:12 AM.
Reply With Quote
  #23
Old 06-20-2012
Sean04Ranger's Avatar
Member

Join Date: Dec 2011
Location: Tampa, Florida
Posts: 143
I am having a ticking too, it comes and goes but when it is there it is a constant tick at the same rate. I get oil changes all the time, every time I hit miles and/or 3 months. What is this Sea Foam stuff, should I add some? If so do I just pour it in my Engine Oil and which type should I use? I was on their site and saw that they have a gas one too, should I add that too?
Reply With Quote
  #24
Old 06-21-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Have a friend with you...seafoam, pick it up at walmart, kmart, anywhere that sells automotive stuff. About $8 a can. Pour half into your fuel tank at fillup, then have your friend keep the truck running by feathering the throttle and pour the rest into the vacuum line from the brake booster. It WILL smoke horribly, but run perfectly after.
Reply With Quote
  #25
Old 06-21-2012
Sean04Ranger's Avatar
Member

Join Date: Dec 2011
Location: Tampa, Florida
Posts: 143
Quote:
Originally Posted by Redneck Ranger View Post
Have a friend with you...seafoam, pick it up at walmart, kmart, anywhere that sells automotive stuff. About $8 a can. Pour half into your fuel tank at fillup, then have your friend keep the truck running by feathering the throttle and pour the rest into the vacuum line from the brake booster. It WILL smoke horribly, but run perfectly after.
I talked to the guys at my local Advanced Auto Parts and he told me how to do it. They also said I should do the oil too and do it right before an oil change (about 100 miles before). I don't think this has even been done to my Ranger and it has 220,000 miles, so it is due.

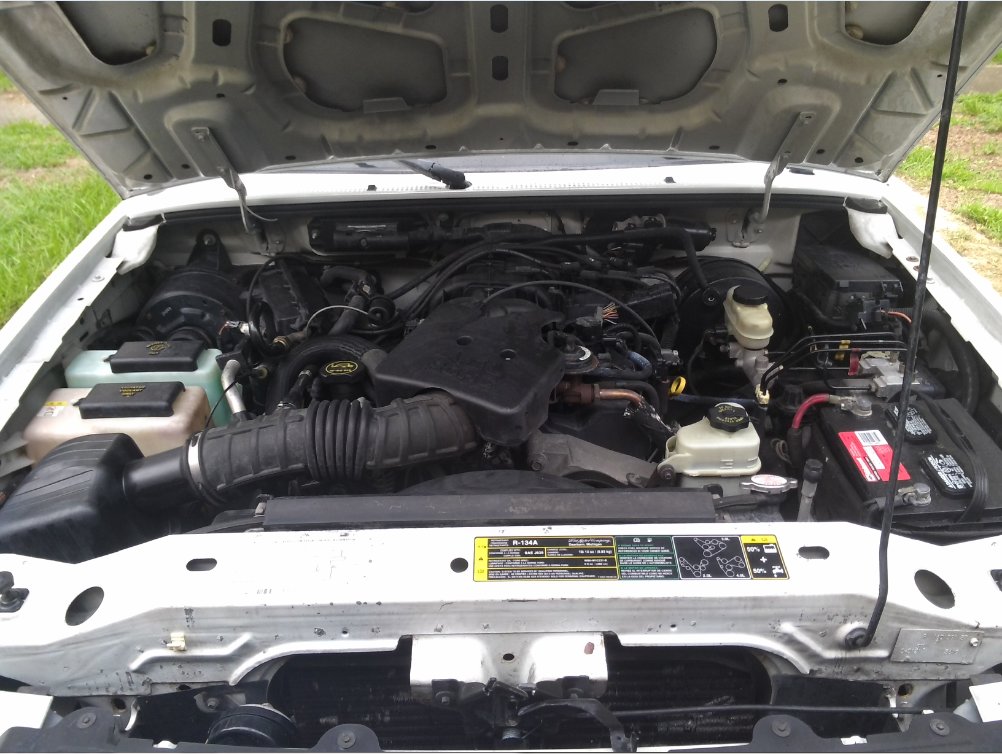

Where is the vacuum line at in a 2004 Ranger 4.0 V6 SOHC?

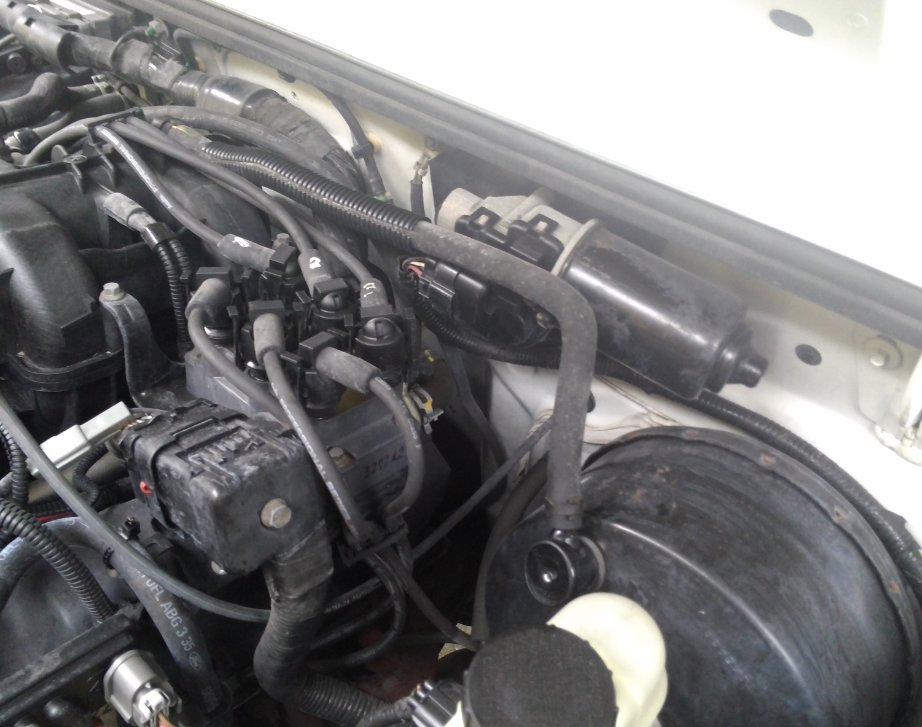

I believe it is this line but I have no idea how to remove it, or how I would put it back on. It looks like it is held on by a metal clip, but I tried undoing it and it didn't move to much.


I also saw that it is possible to use the spray and spray it straight in to the carburetor, would that be easier or would I have to take apart to much of my engine to do it that way?
Attached Thumbnails
Clicking/ticking coming from engine, smell of burning oil as well....-hkhen.jpg   Clicking/ticking coming from engine, smell of burning oil as well....-khch1.jpg
Reply With Quote
