Couldnt find a thread on his please help

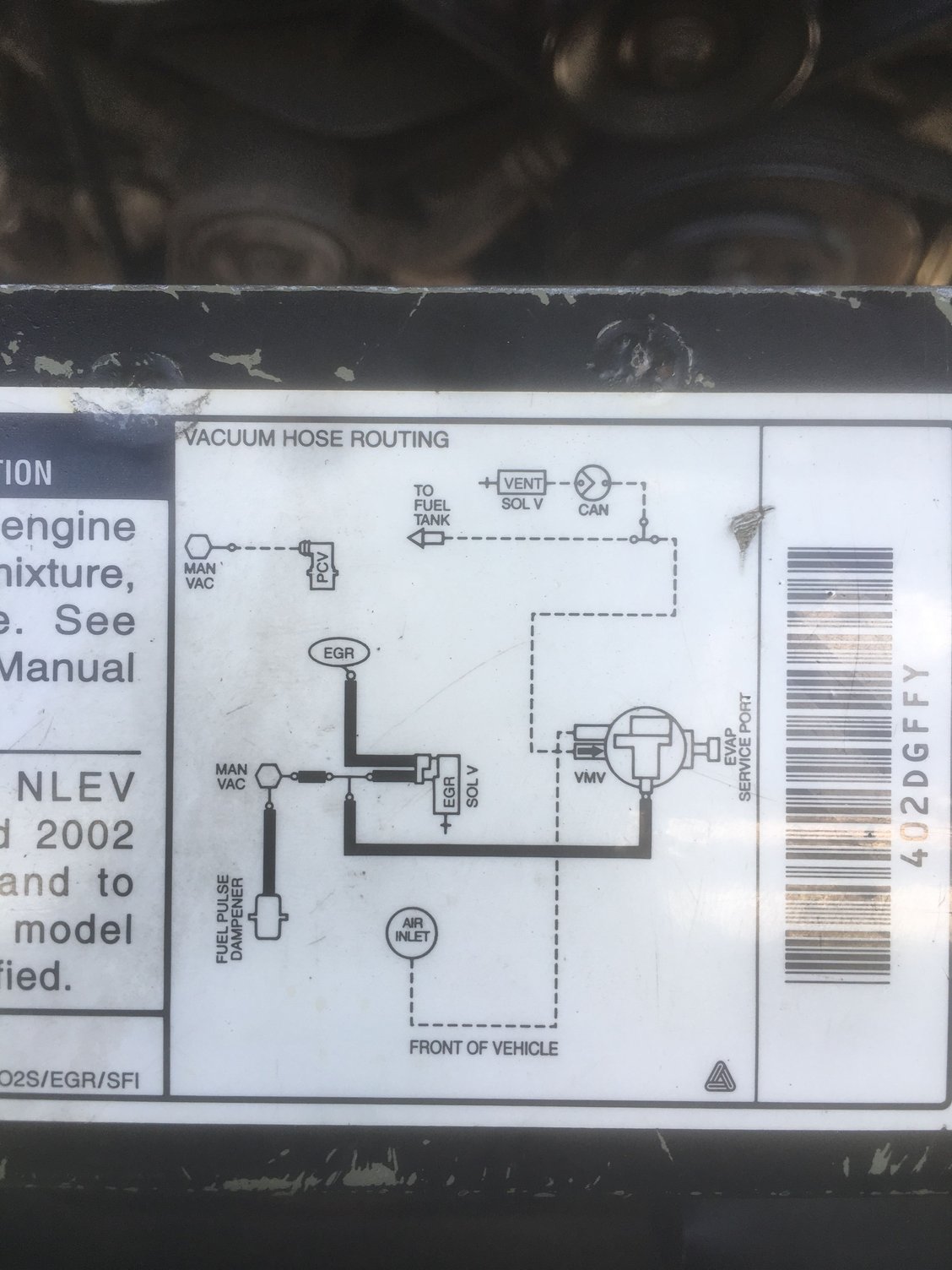

2002 Ranger 4.0 SOHC Manual 4X4 need Vacuum Diagram. All the vaccum diagrams there can be i got this truck with all kinds of crap lose and missing under the hood blown head gaskets a piston has a hole as big as a pinky nail fixed it all up its put together the only thing keeping me from turning the kay is all these damn hoses and lines loose i saw the diagram under the hood but i cant understand it is there anything more detailed anywhere on the net thank you in advance
#2
06-06-2018
#4
06-06-2018
I'm no mechanic but IF you locate each of these components, then proceed to trace out the Vac Lines, it would simplify things some.
I agree with you that the diagram itself leave a lot to b desired but after locate and mark the components in the diagram it should fall in place.
Sorry I can't be of more help !
I agree with you that the diagram itself leave a lot to b desired but after locate and mark the components in the diagram it should fall in place.
Sorry I can't be of more help !
