  #26
Old 05-01-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
nice man! sounds clip is needed, haha
Reply With Quote
  #27
Old 05-02-2009
howells's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Kitchener ont
Posts: 779
i was thinking of doing the same thing cause i have no muffler right know and need one for the dunes meet so i might be putting a magnaflow on there soon.. i want it to be loud still i love loud
Reply With Quote
  #28
Old 05-02-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
i do too, this thing isnt terrible loud at lower rpm's, but when you open 'er up it screams pretty loud!
Reply With Quote
  #29
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Looks good man. Find someone to do a rear cat delete. Take out that last cat in the system and replace it with a 2.5in tube with a dog leg bend in it. It really opens up the throttle response and I **** you not, I'm getting 23-24mpg on the highway with having that last cat done. Better flow (also helps having a manual tranny with all synthetic fluids and a recent oil change, but still) and it really opened the sound up on my exhaust system.

Name:  IMG_0269.jpg
Views: 0
Size:  105.9 KB

Name:  IMG_0267.jpg
Views: 0
Size:  130.4 KB

You can see where the cat used to be with that new shiny tubing! lol
Reply With Quote
  #30
Old 05-02-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
i dont think i have a cat in the same place you did... lol
at least i dont think so
Reply With Quote
  #31
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yeah you should have 4... Well depending on where state emissions laws... 2 on the y-pipe coming off each side of the manifold, and 2 after the y-pipe.

I seriously gained a lot from just that cat delete. I was surprised... Best $42 mod I think for power, mileage and response you can do.
Reply With Quote
  #32
Old 05-02-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
so you just cut it out there's not a 02 plug in it???
Reply With Quote
  #33
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I'll go take a pic of it right now and show you. After the last big cat I cut it off and welded in a straight pipe back to the muffler. In the same general area, I welded in a o2 sensor bung ($7 for the bung and $35 for 4ft of 2.5in tubing with the bend, since no shop will cut out cats, state prohibited) after drilling out the hole for the sensor to fit in. Looks OEM and works WAY better. Hang on, it's pouring outside gimmie a min.
Reply With Quote
  #34
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Ok so here's the big cat i'm talking about... 3rd cat in the system (2 pre-cats before this one on the y-pipe):

Name:  IMG_0272.jpg
Views: 0
Size:  127.5 KB

Here's where the o2 bung was put in to keep CEL's from coming on (re-used the factory hangar):

Name:  IMG_0274.jpg
Views: 0
Size:  104.8 KB

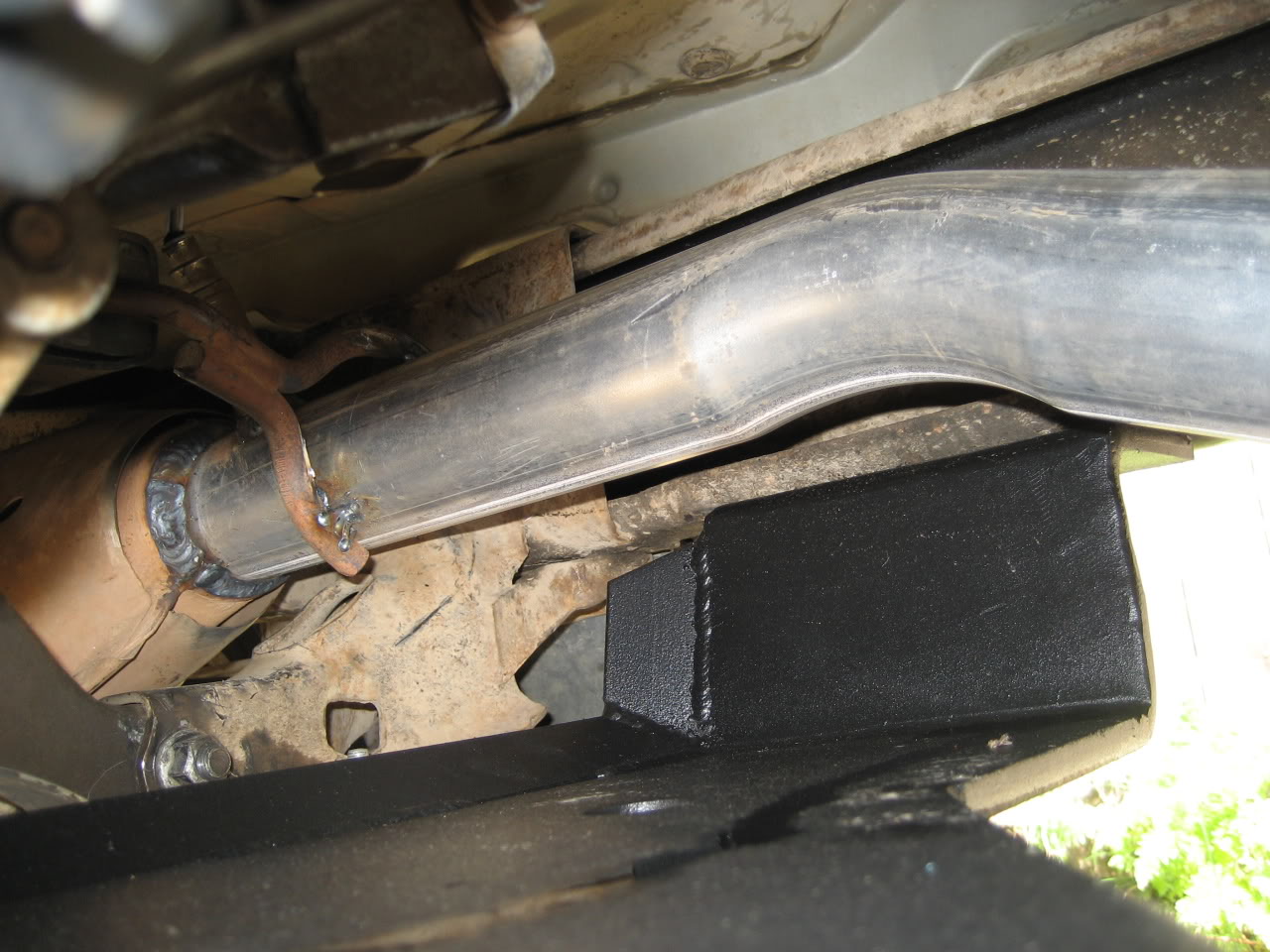

And here's what it looks like with rear cat delete in place. 2.5in tubing 1 piece from the big cat back to the muff:

Name:  IMG_0275.jpg
Views: 0
Size:  178.4 KB

I highly recommend this for anyone, especially with higher mileage motors. Helps to open it up quite a bit. More so than I thought it was going to. My truck used to be quite quiet. Had 2 different types of muffs on it and neither one was "loud". The cats are HIGHLY restrictive, and with this mod in place, it proves it.

EDIT: Here's the cat I'm talking about that I took out. Thanks for the pic Malydeen:

Name:  DSCN0220.jpg
Views: 1
Size:  89.9 KB

You can see where it's about 2.5in off the cat and where it reduces down to about 2in at that collector. When you do this mod you take out the cat and run it 2.5in all the way back increasing flow by a good 25% just in tubing diameters.
Reply With Quote
