Oil in my intake ? Plentum upper intake

I was looking for my cam sensor since they have me the wrong one at the store I thought I had to remove this to replace after looking I realized that it just the sensor on the valve cover.. When I took it off there was carbon build up and tons of oil when I turned it upside down . My truck only has 100k exactly .. How did the oil get in there ? My truck doesn't smoke at all.. And they oil is never low .. I'll post some picture later tonight ..
Reply With Quote
  #2
Old 03-26-2014
ianyboy's Avatar
Member

Join Date: Mar 2013
Location: Quebec City, QC, Canada
Posts: 302
There is oil in the valve cover, to lubricate all the moving parts.
Reply With Quote
  #3
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523

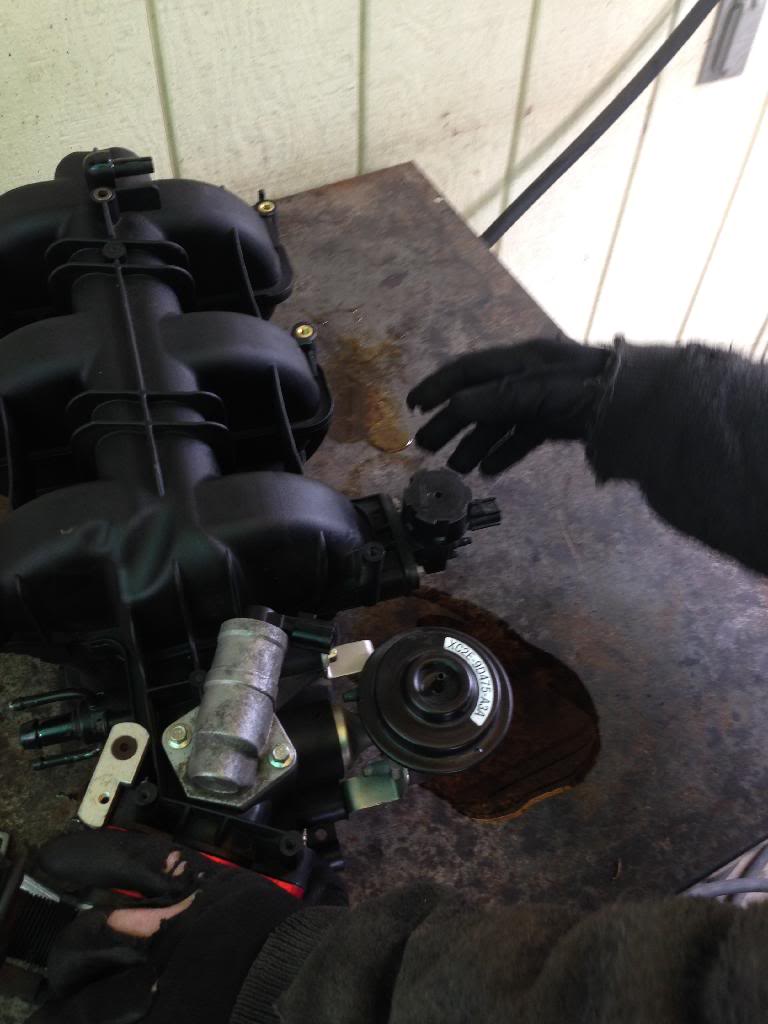

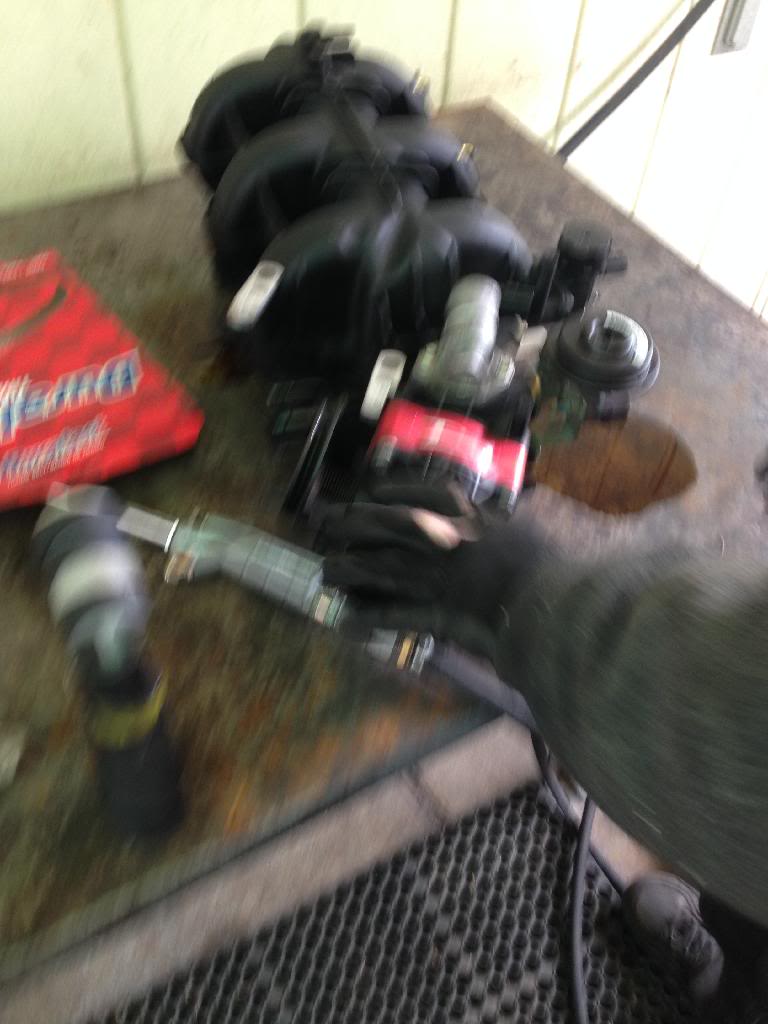

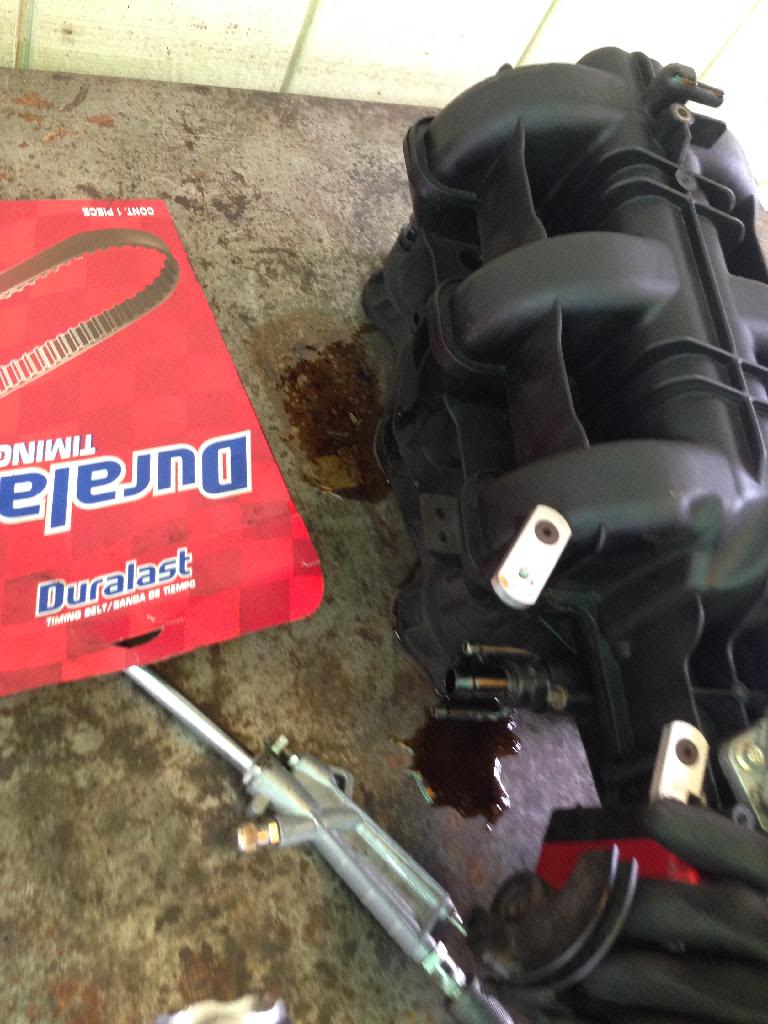

Its not in valve cover its in the plenum(the upper intake)

WHen i turned it upside down a half quart of oil came out.

Name:  4486AFDB-3386-4561-BE0B-4A6945493669.jpg
Views: 204
Size:  95.4 KB

Name:  361AAEAD-39E6-4F22-8663-A256B10193A1.jpg
Views: 195
Size:  67.3 KB

Name:  6BF63619-EB3C-47C0-9DF1-2285B8E43298.jpg
Views: 194
Size:  67.5 KB
Reply With Quote
  #4
Old 03-26-2014
ianyboy's Avatar
Member

Join Date: Mar 2013
Location: Quebec City, QC, Canada
Posts: 302
Sorry for that, due to my quick reading LOL
Check for the PCV valve. I've heard of that issue before, guys are plugging the PCV hole on the plenum, running the hose along to the fender and installing a catch-can.

Or you could, if need be, replace the PCV valve along with the breather in the air filter box.
Here's a way to check that danged valve:
http://www.oreillyauto.com/site/app/...icle=800567427
Reply With Quote
  #5
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
So unhook the vent PVC valve and run it into a a Resivor of some sort and the. Just empty every so often ?
Reply With Quote
  #6
Old 03-26-2014
ianyboy's Avatar
Member

Join Date: Mar 2013
Location: Quebec City, QC, Canada
Posts: 302
Thinking about it, that would do, i just don't like that resolution as much do to the fact of losing some oil into a can...

Theres this thread on FTE, might help you, I did not read it thouroughly though,
Oil in my Upper intake Plenum - Normal or Bad? - Ford Truck Enthusiasts Forums

And to delete that pesky valve, here is the best write-up I have found;
How to Properly Delete PCV w/ Remote Breather - SVTPerformance

Ohhh, and BTW the Motorcraft PCV Valve, Part# EV268 is @ 10 bucks on rockauto
Reply With Quote
  #7
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Awesome thanks ! Im gunna do that same setup ! or similiar
Reply With Quote
  #8
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Ive been reading around now i see this is a common problem
Reply With Quote
  #9
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Im tempted to just run breathers like some people do on the mustangs and just cap everything else its a lot cleaner of a setup and its not that messy from what people say and it would be way easier
Reply With Quote
  #10
Old 03-26-2014
boyd_835's Avatar
Member
Thread Starter

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Heres how nasty the area was i cleaned all of it with brake cleaner

Name:  6ECCE5D0-17DA-47E1-863C-036589BE74F5_1.jpg
Views: 201
Size:  132.1 KB
