Question About The 4.0 OHV Engine

Iíve looked around but couldnít come up with a definite answer, so hereís my question. My dad has a '91 Exploder 2/ the 4.0 OHV engine. I know that the Exploder and the Ranger are alike in far too many ways so is the 4.0 in his the same as in the OHV Rangers? Oh and I know it isnít the same as '97-2000 OHVs because i have seen pics of that engine, but I never recall seeing a pre '97...

We are looking to get a CAI/Intake put in it and I thought if they were the same id be able to find one someoneís selling here

Oh i also snapped a couple pics with my phone

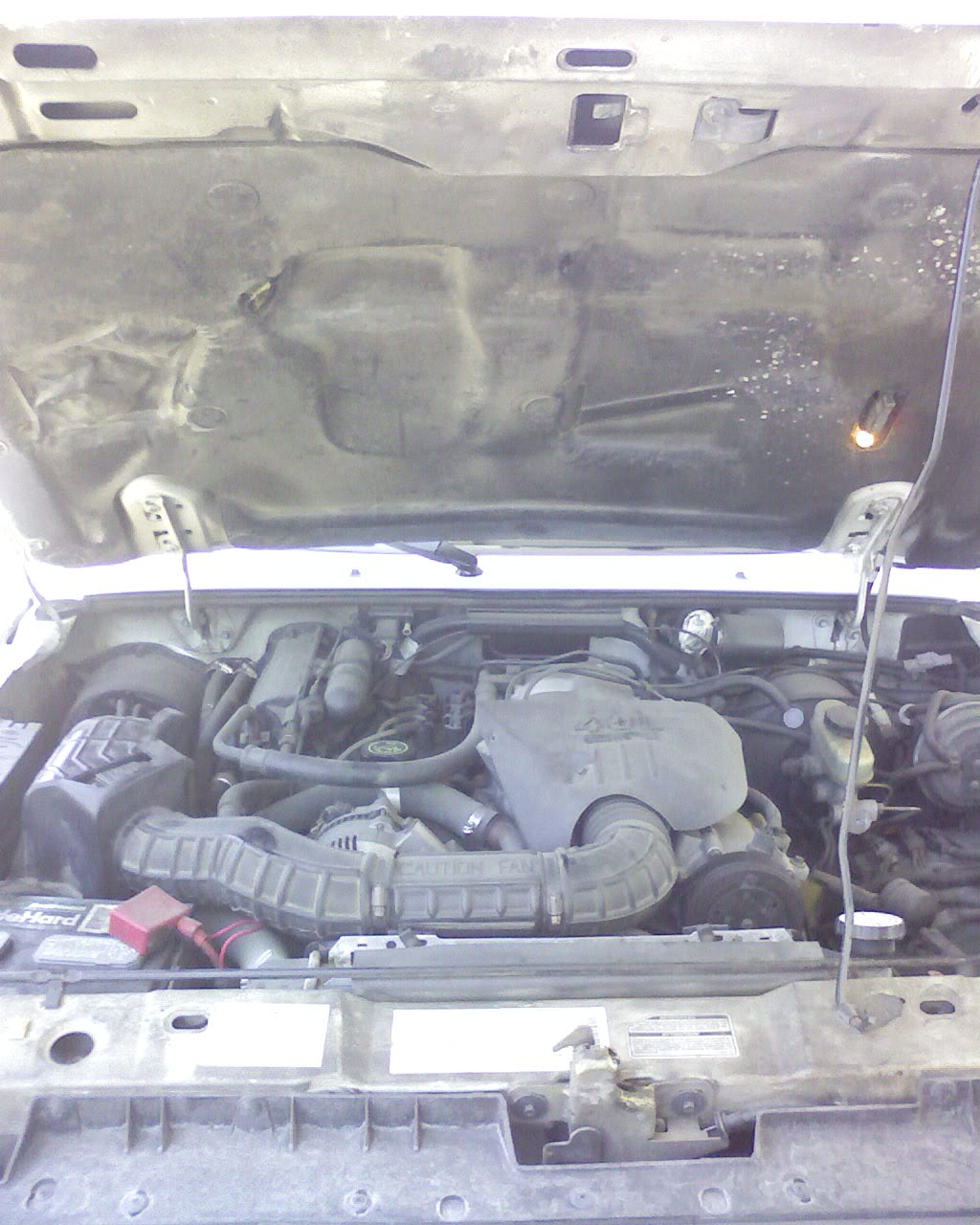

Name:  ExplorerEngineBay2.jpg
Views: 1
Size:  167.5 KB

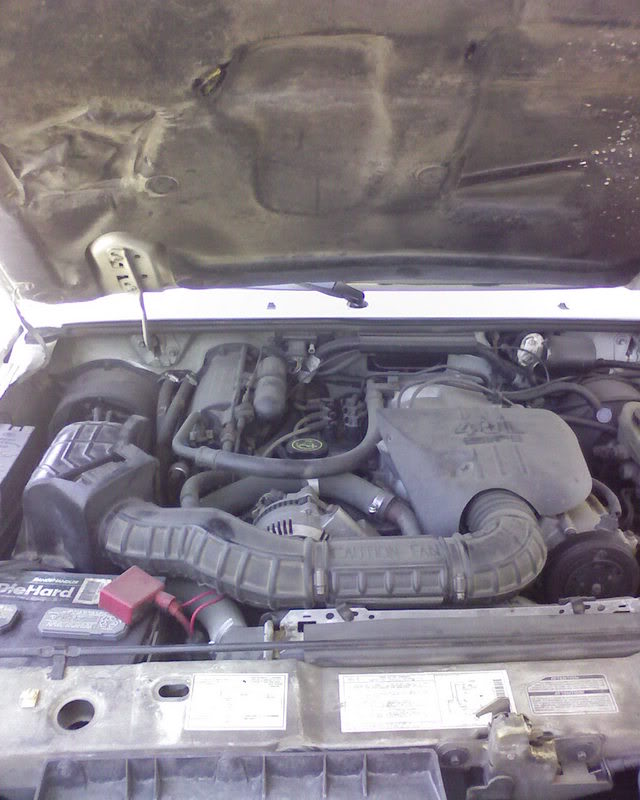

Name:  ExplorerEngineBay3.jpg
Views: 1
Size:  74.4 KB
Reply With Quote
  #2
Old 07-09-2007
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
The earlier 4.0s had a metal intake manifold as opposed to plastic on the newer ones. The air-filter and intake tube are different then a 97'. Other then that I'm thinking they are quite close.

EDIT...I misunderstood the Ranger/Exploder differences. No clue there

Last edited by rolsmojave3; 07-09-2007 at 09:27 PM.
Reply With Quote
  #3
Old 07-09-2007
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
only shots I have from my old 93......



Reply With Quote
  #4
Old 07-10-2007
Mr. Special's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
Thanks Chris. mmm well that intake looks almost identical to my dad's stock one... so im going to say they are?

Anyone else?
Reply With Quote
  #5
Old 07-10-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
only other difference is were the washer/radiator resivors are located at.....some of the Ranger 4.0's have the intake right behind the headlight instead of 1/2 way up the fender.........

the metal/composite intakes are the same, just different material....all the sizes are the same....

also, watch out which intake you get....some 4.0's (even the Explorer 4.0's) had a round intake filter that had the MAF sensor built into the air box.....that causes a problem when trying to get an aftermarket intake (exactly why i haven't got one yet) because you have to swap into the plate style MAF and redo some wiring for the plug to work....

other than that, the Explorer and the Ranger 4.0's are identical...
