Icon14 302 swap into an 85 ranger

i was wondering what the best 302 to swap into my truck would be?
Reply With Quote
  #2
Old 07-06-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Hmmm. maybe 5.0
Reply With Quote
  #3
Old 07-06-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
^^ LOL... quickest and cheapest. carbed.. with either T5 if you already have a manual or C4 if you have an auto.. now there is many many other ways but that will get the ball rolling
Reply With Quote
  #4
Old 08-05-2008
Member

Join Date: Feb 2008
Location: unknown
Posts: 890
Icon12

That's one of the most easiest swaps you can do on this planet. You practically have no clearance issues, with a carbed 302 the swap should take you practically not time at all and should be very cheap too. Alot of people seek out your model year of your truck for that purpose alone. you shouldn't have any problems at all. I wish mine was going to be that easy.
Reply With Quote
  #5
Old 12-05-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
I dropped a 1990 5.0 HO and took off the FI and put a air gap 4 barrel and 600cfm Edelbrock with a T-5 out of a GT. Pretty easy job. The hardest part of the hole job was the clutch cable. Same stock V6 motor mounts.
Reply With Quote
  #6
Old 12-06-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
I would love to see how you did the clutch cable with the T-5
Reply With Quote
  #7
Old 12-06-2008
Liftedgreen4x4's Avatar
Member

Join Date: Jan 2008
Location: lorton,virginia
Posts: 447
can you use the stor motor mounts off a v6? I'm going to be getting a new truck in a year or so, I may keep the 88 around and just swap in a carbed v8 for the simplicity. I want the truck to be some what reliable
Reply With Quote
  #8
Old 12-11-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
I used the stock V6 mounts in my swap. You just have to make 2 flat plats to bolt to the motor. On the drivers side I had to double up the plat so it would sit leval. I used 1/4 inch steel and 1/2 inch on the drivers side. Never even moved the mounts.

As far as the clutch cable. I took a pedal out of a mustang and put it in my truck. It was a 5 speed to begin with. Its not a good set up but works for now. I usuly snap a cable about every other year. I need to put in a hydrolic setup, but havent figured that out yet.
Reply With Quote
  #9
Old 12-11-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
When you ran the cable, didn't you run into issues with the headers? I always have problems with melting my cables more than anything else.
Reply With Quote
  #10
Old 12-15-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
No not at all. But the angle of the cable inside the firewall is pretty steep and there for I keep braking cables about every other year. I have been looking into changing it over to hydrolic but havent quite figured that out yet. And havent realy had the time to work on it.
Reply With Quote
  #11
Old 12-15-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
I've seen the after market hydraulic set ups but they cost a fortune. I'm told newer mustang V6's have a compatible hydraulic set up but I haven't looked into it 2 much.
Reply With Quote
  #12
Old 12-16-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
Who makes the hydrlic kit ? and where can a person get one? At around $50 a cable X 4, I could have payed for a kit by now lol.
Reply With Quote
  #13
Old 12-16-2008
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
now with the fuel injection how much more complicated is that?????
Reply With Quote
  #14
Old 12-16-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by My91Ranger View Post
I've seen the after market hydraulic set ups but they cost a fortune. I'm told newer mustang V6's have a compatible hydraulic set up but I haven't looked into it 2 much.
Yes they do
Reply With Quote
  #15
Old 12-16-2008
Member

Join Date: Jan 2008
Location: Canon City, CO
Posts: 27
Heres a short vid. of my 84 with a 347 in it. I went with Holley Pro-Jection. If you run any type of FI you will have to run a high pressure fuel pump and new lines to feed it(I used the stock lines as my return).
[IMG][/IMG]
Reply With Quote
  #16
Old 12-17-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
Quote:
Originally Posted by My91Ranger
I've seen the after market hydraulic set ups but they cost a fortune. I'm told newer mustang V6's have a compatible hydraulic set up but I haven't looked into it 2 much.

Yes they do

REALY????So what year mustang and is the whole system usable?
Reply With Quote
  #17
Old 12-17-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
+1 I would like some more info on this D.
Reply With Quote
  #18
Old 12-17-2008
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Should be 05' and +, 79-04' used cable and quadrant.

I think there is more to it, some models used a slightly different setup or there was a variation between a couple models I thought, but I could be wrong.
Reply With Quote
  #19
Old 12-17-2008
V8Ranger's Avatar
Member

Join Date: Jan 2008
Location: Horseheads NY
Posts: 32
Quote:
Originally Posted by sniper_101 View Post
Should be 05' and +, 79-04' used cable and quadrant.

I think there is more to it, some models used a slightly different setup or there was a variation between a couple models I thought, but I could be wrong.

The 05 use an internal slave that looks to have 2 bolts that bolt in in place inside, do they fit? they are very pricey also like around $160 to $190. I would think there is a far better way to make the clutch hydrolic, isnt there?
Reply With Quote
  #20
Old 12-17-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
If its less than 200 dollars, thats cheap imo. The after market kits were around 800, atleast the ones I had seen before. As for the internal slave, I wonder if it can be fit on a 302 bellhousing, then pedals could be set up the same as a stock manual ranger.
Reply With Quote
  #21
Old 03-31-2009
v-8 power's Avatar
Member

Join Date: Mar 2009
Location: Huntington, In
Posts: 10

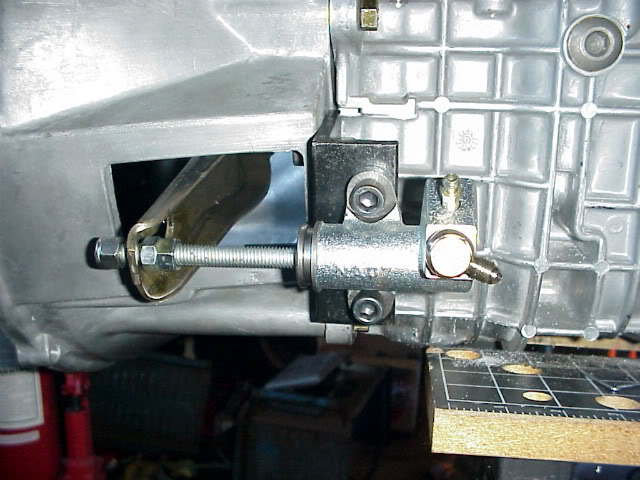

Here is what you could use for your t-5 clutch


Name:  tremec-side.jpg
Views: 7
Size:  65.5 KB
Reply With Quote
  #22
Old 04-21-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
Quote:
Originally Posted by BLOODBANE View Post
Heres a short vid. of my 84 with a 347 in it. I went with Holley Pro-Jection. If you run any type of FI you will have to run a high pressure fuel pump and new lines to feed it(I used the stock lines as my return).
[IMG][/IMG]
my right foot wants to make sweet love to this truck
