Amp power wires, where did u run urs...

Where did u all run ur amp power wires through the firewall? im thinking of running it below the bulk connector from the engine bay to the cab. seems easy access from inside the cab to drill and i can still get to it in the engine bay. i also seen the groumet for the throttle cable but id rather not put it through there.
Reply With Quote
  #2
Old 12-10-2008
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
All of my wires go through a grommet that's already in the firewall.

Last edited by elementsenjoi; 12-10-2008 at 12:33 AM.
Reply With Quote
  #3
Old 12-10-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Move the fuse box and drill a hole right under there. Thats what I did, you can't see it when the fuse box is in either so its clean.
Reply With Quote
  #4
Old 12-10-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Unbolt the two highlighted bolts and move the fuse block out of the way.
Name:  02.jpg
Views: 15
Size:  77.6 KB

Get yourself one of these
Name:  03.jpg
Views: 18
Size:  82.9 KB

Check both sides for any wiring or anything you don't want to drill into and drill. Then add a grommet.
Name:  04.jpg
Views: 17
Size:  75.8 KB

Tada!

Last edited by korey89; 12-10-2008 at 01:14 AM. Reason: eye cnt speel
Reply With Quote
  #5
Old 12-10-2008
optikal illushun's Avatar
Member
Thread Starter

Join Date: Oct 2004
Location: Coal Region, MTC to be exact...heart of the coal region.
Posts: 2,232
ya thanx for the write up, i know how to drill a hole.

looks good so far, hopefully friday i can start installing all the **** in her truck.
Reply With Quote
  #6
Old 12-10-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
look near the gas pedal seems to be where the prev owner ran mine
Reply With Quote
  #7
Old 12-10-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by optikal illushun View Post
ya thanx for the write up, i know how to drill a hole.
Sorry for trying to help, next time I won't
Reply With Quote
  #8
Old 12-10-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
Quote:
Originally Posted by korey89 View Post
Sorry for trying to help, next time I won't
x2 no need to be an ******* that was farily decent detail on demand.
Reply With Quote
  #9
Old 12-10-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Why not use a grommet that is already there?
Reply With Quote
  #10
Old 12-10-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
pretty much i did what Korey did...but i did two 1" holes with 3/4" holed grommets. i got alot of switches in the cab. lol. holes hidden below the engine bay fuse box.
Reply With Quote
  #11
Old 12-10-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah I have 2 big holes too, I don't know what size they are.
Reply With Quote
  #12
Old 12-16-2008
slammin's Avatar
Member

Join Date: Nov 2008
Location: the woods,ms
Posts: 14
i ran mine under the truck its 0gauge so threw the fw would have been tough, in the ext cab there is grommets in the rear under the carpet for water drainage i assume. its zip tied to the frame then up to the body.
Reply With Quote
  #13
Old 12-16-2008
07rangersport's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Maple Ridge CANADA
Posts: 800
I ran mine through with the hood release cable.
Reply With Quote
  #14
Old 12-16-2008
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I used a hole saw & installed one of THESE bad boys.

It works great for my 1/0ga power wire, but I have another smaller grommet for my fog light relay wires.
Reply With Quote
  #15
Old 12-16-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
A few years ago, I needed to route a power wire and a couple of alarm wires through the firewall. Holes were drilled above the factory bulkhead connector next to the brake booster and grommets installed. While I was at it, I added some extra holes/grommets in various sizes for future mods and plugged them with bolts. These have proven to be very useful over the past couple of years and I now have wires and a vac line running through all 5 of the holes.

To make room for the drill motor, the underhood electrical distribution box was temporarily unbolted and moved over. There is a large wire bundle on the interior side that may need to be repositioned out of harm's way while drilling.


Reply With Quote
  #16
Old 12-16-2008
ColdNapalm's Avatar
Member

Join Date: Sep 2008
Location: Jacksonville, Florida
Posts: 499
i just went through an existing hole
Reply With Quote
  #17
Old 12-17-2008
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
I always cut a slit in the existing grommet under the steering shaft. Its the best way IMO... drilling extra holes in the firewall FTL.
Reply With Quote
  #18
Old 12-17-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Wires near a shaft that spins all the time? I'll take drilling holes in something that never moves over that any day.
Reply With Quote
  #19
Old 12-17-2008
optikal illushun's Avatar
Member
Thread Starter

Join Date: Oct 2004
Location: Coal Region, MTC to be exact...heart of the coal region.
Posts: 2,232
im gunna go with the place i wanted which is where bob drilled his. i do like those firewall grouments...better than the regular round ones...i think i will even drill extra holes for other goodies :-D
Reply With Quote
  #20
Old 12-20-2008
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Quote:
Originally Posted by 04blackedge View Post
Move the fuse box and drill a hole right under there. Thats what I did, you can't see it when the fuse box is in either so its clean.

Did the same thing. With a good sealed audio grommet, you'll be good and the install will look clean.

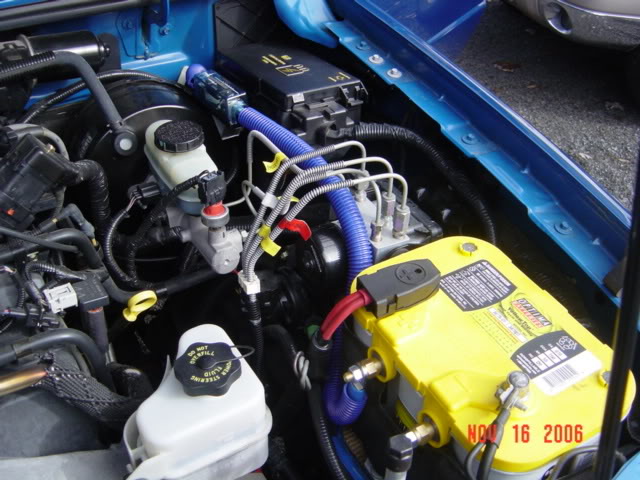

Name:  DSCF0245.jpg
Views: 13
Size:  84.5 KB
Name:  DSCF0240.jpg
Views: 11
Size:  127.7 KB
Name:  x3.jpg
Views: 13
Size:  71.4 KB
Reply With Quote
  #21
Old 12-21-2008
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
Quote:
Originally Posted by slammin View Post
i ran mine under the truck its 0gauge so threw the fw would have been tough, in the ext cab there is grommets in the rear under the carpet for water drainage i assume. its zip tied to the frame then up to the body.
thats how the previous owner had mine, i guess he never went wheeling because the first time i did it came loose and fryed on the exhaust manifold, i just put a grommet in an existing hole under the gas pedal area. fit 4gauge perfectly.
Reply With Quote
