Box Is Finally Built!!!

well, as i said a few months ago, i was gunna build my box for my 10" L5. and i started on it yesterday and finished it tonite.

its grossed 2.6 cu. ft. with a pretty big port that knocks it back down to 2.25 cubes. im gunna go take some pix of it real quick as the calk drys.

but till then, the front looks like the JL W7 box, but the port comes out the right side in the back. i only have a little bit of it carpeted, i need to go to wal mart tomarrrow or tonite, whenever and get some black or dark gray cloth. any tips on how to wrap it?


ok, here it be:

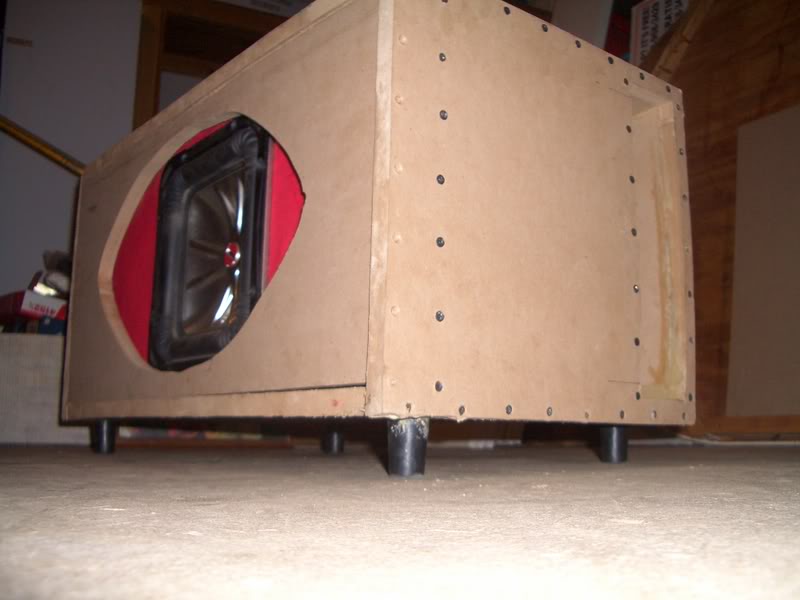

Name:  CIMG1253.jpg
Views: 2
Size:  73.0 KB

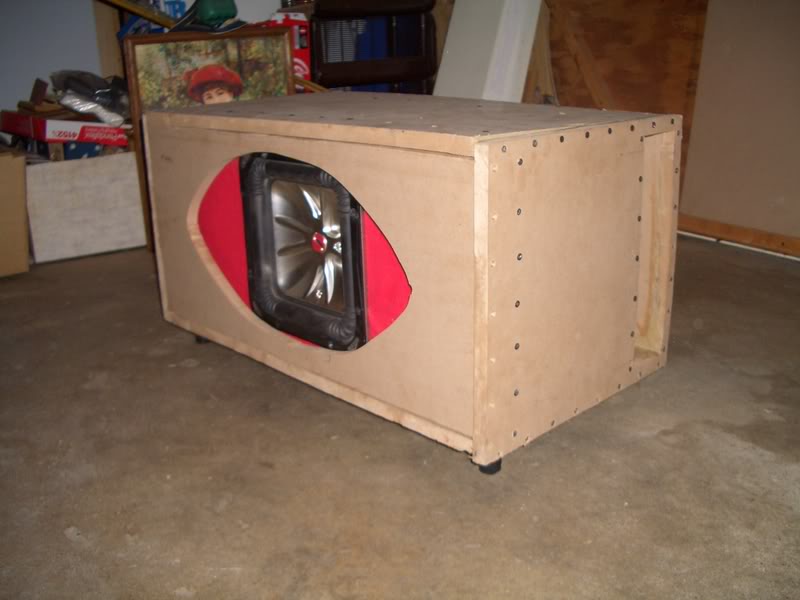

Name:  CIMG1251.jpg
Views: 2
Size:  75.0 KB

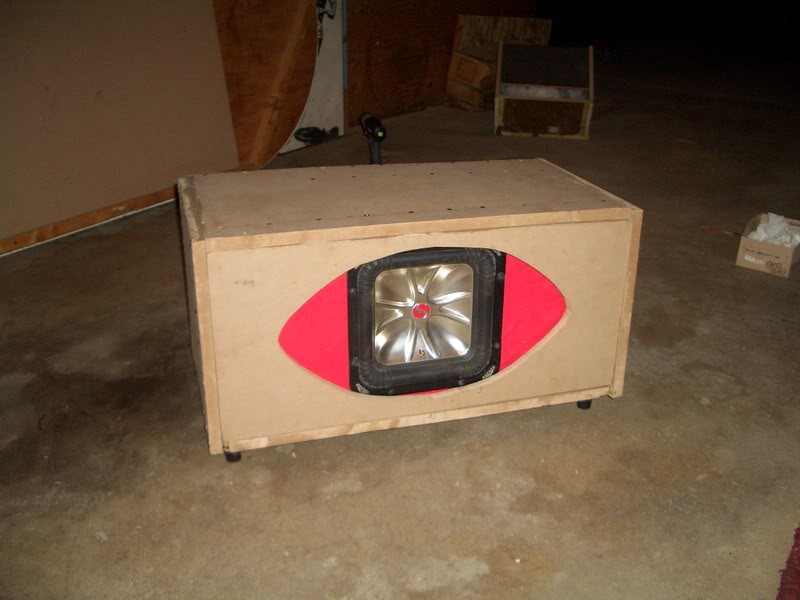

Name:  CIMG1250.jpg
Views: 2
Size:  74.1 KB

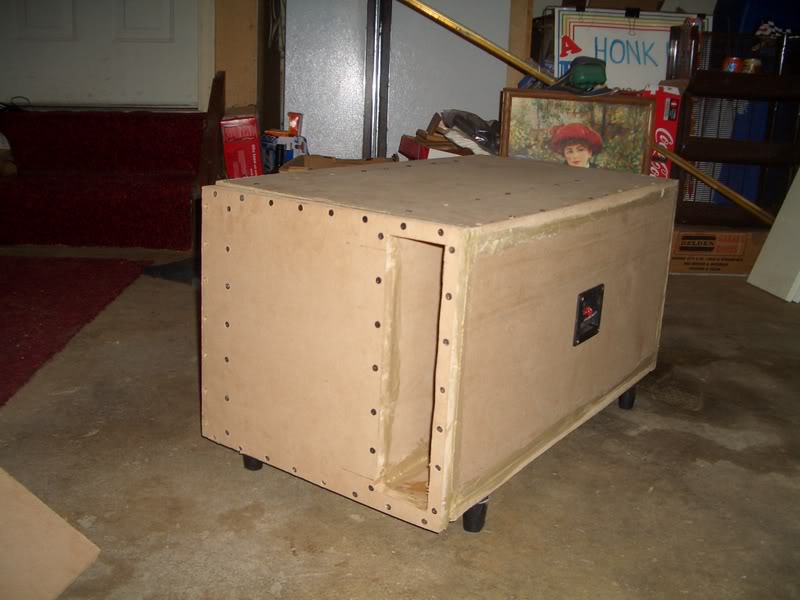

Name:  CIMG1249.jpg
Views: 2
Size:  86.2 KB

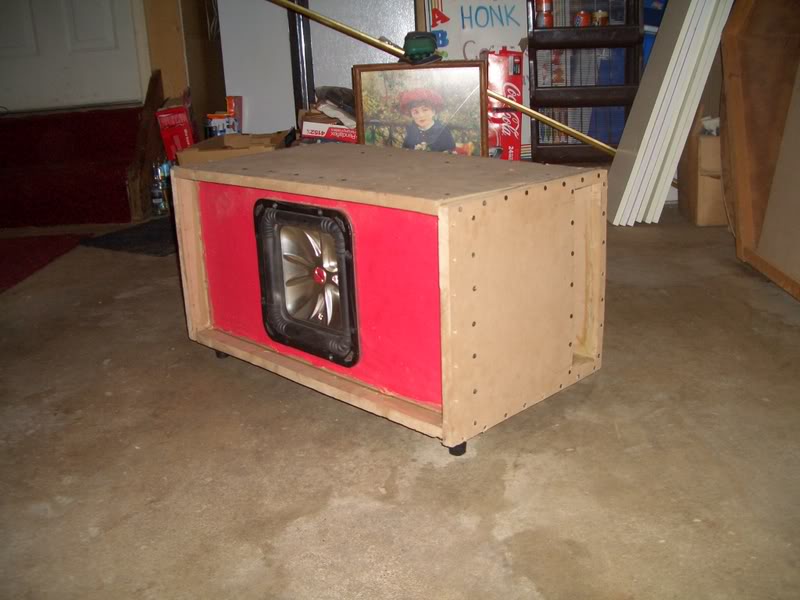

Name:  CIMG1248.jpg
Views: 2
Size:  91.3 KB

so what do ya'lls think? its the second box i've built now. haven't heard it yet, but im hoping its gunna pound like hell....

Last edited by ranger_banger; 08-14-2007 at 09:58 PM.
Reply With Quote
  #2
Old 08-15-2007
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
i do some finishing touches like sanding sanding sanding and wood filler, then a nice coat of paint wih clear coat to get it nice and shinning then put it in your truck. please dont leave it like that, lol.
Reply With Quote
  #3
Old 08-15-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
wow....that is excessivly huge.......<--that is why i always build sealed boxes for trucks...
Reply With Quote
  #4
Old 08-15-2007
Steve_O113's Avatar
Member

Join Date: Apr 2007
Location: Albany, OR
Posts: 562
wheres that going
Reply With Quote
  #5
Old 08-15-2007
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
thats going in a ranger?....hope you arent tall
Reply With Quote
  #6
Old 08-15-2007
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
^ very large is right
Reply With Quote
  #7
Old 08-15-2007
03bamaGT's Avatar
Member

Join Date: Aug 2006
Location: B'ham, AL
Posts: 1,752
That looks more like my custom home stereo enclosure. Its HUGE. Maybe its the picture but that doesnt look like it would fit in your truck.
Reply With Quote
  #8
Old 08-15-2007
Steve_O113's Avatar
Member

Join Date: Apr 2007
Location: Albany, OR
Posts: 562
Quote:
Originally Posted by 91redranger
That looks more like my custom home stereo enclosure. Its HUGE. Maybe its the picture but that doesnt look like it would fit in your truck.
Maybe in the bed.... maybe
Reply With Quote
  #9
Old 08-15-2007
2ranger2's Avatar
Member

Join Date: Jan 2005
Location: Ringgold, Georgia
Posts: 268
You've made it too big. It's not gonna perform how you like with that much space.

those L5 10's have a max. vented volume of 2.25 cubic feet.
Reply With Quote
  #10
Old 08-15-2007
RentonRanger's Avatar
Member

Join Date: Mar 2007
Location: Walla Walla, WA
Posts: 705
"That's no moon...it's a Space Station."

Obi Wan Kenobi
Reply With Quote
  #11
Old 08-15-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
get the idea from the JL boxes (:
Reply With Quote
  #12
Old 08-15-2007
bpolly_2004's Avatar
Member

Join Date: Mar 2007
Location: Huntsville mo
Posts: 559
Quote:
Originally Posted by 2ranger2
You've made it too big. It's not gonna perform how you like with that much space.

those L5 10's have a max. vented volume of 2.25 cubic feet.
i think it will beat hard. i build all my boxes to the max volume, and they are always loud. 2.25 ft isnt too big for it.
Reply With Quote
  #13
Old 08-15-2007
ranger_banger's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: cedar falls, iowa
Posts: 405
it is built to 2.25. its only 30" wide, 15" tall, and 16" deep. its gunna go in my bed room for about 3 months until i get my license back. its ghetto but i know, but i hooked it up and it deffinatly hits hard. i took the amp out of my little 8" jensen powered sub amp, that only pushes 100 watts rms at 4 ohms. and hooked it up to the kicker, and it does some damage, makes almost everything in the house vibrate.

it fits in the cab, just gotta prop it up on top of the x cabs hump. im gunna carpet it soon, or whenever i can get some one to take me to wally world. i can't wait it hear it in the truck tho. after hearing it in my room off only 100 watts, being in the little truck off 400 rms....i can't wait
Reply With Quote
  #14
Old 08-16-2007
mx98ranger's Avatar
Member

Join Date: Apr 2005
Location: GA
Posts: 1,493
have you tried to put it in the truck yet
Reply With Quote
  #15
Old 08-16-2007
2ranger2's Avatar
Member

Join Date: Jan 2005
Location: Ringgold, Georgia
Posts: 268
Quote:
Originally Posted by bpolly_2004
i think it will beat hard. i build all my boxes to the max volume, and they are always loud. 2.25 ft isnt too big for it.
but it would beat much harder and have better SQ if you were closer to the middle range
Reply With Quote
  #16
Old 08-17-2007
ranger_banger's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: cedar falls, iowa
Posts: 405
Quote:
Originally Posted by mx98ranger
have you tried to put it in the truck yet
no, not yet, my truck is at my dads house, which is like 5 miles away from my gramma's, where im living. im gunna use it for my house surround sound sub for now until i get my license back on Nov. 5th. i know its gunna fit. i measured it up a number of times. my original plan was to make a huge box that took up the whole lower X cab for 2 12s. but i don't have the money for subs and amps and all that. so i just went with this one...
Reply With Quote
  #17
Old 08-17-2007
Member

Join Date: Apr 2007
Location: Stockton, CA
Posts: 69
1.) It's only going to sound as good as the woofer. Get rid of that pile.
2.) That'll fit fine in an extended cab.
Reply With Quote
  #18
Old 08-20-2007
SanityAside's Avatar
Member

Join Date: Aug 2005
Location: Houston, Tx
Posts: 2,199
it should fit fine



i got that in mine and i dont have the openening back doors. i hate not bein able to lean my seat way back though.

what amp do you have for it?
Reply With Quote
  #19
Old 08-20-2007
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
^ thats crazy looking
Reply With Quote
  #20
Old 08-22-2007
ranger_banger's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: cedar falls, iowa
Posts: 405
Evan, that is forkin huge!!!

for now, im gunna be using a pile of shat volvenhag 2 channel bridgable amp. supposedly it pumps out 400 watts rms. but even if it realy is only 200, i'll be happy. i want to get a 420watt rms 2 channel audiobahn amp for it that will match (in looks) my 4 chan A-bahn amp.
