Center Console Enclosure Design?

Alrighty guys. New Project Design. I need some help. Im trying to build a new box that will house a 8'' L7 and double as the arm rest and cupholders. Check out the designs.
Here are the sub specs.
Size (IN.,CM) 8, 20.32
Impedance (OHMS) 2 or 4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)* 900/450
Sensitivity (dB 1w/1m) 83.6
Frequency Response (Hz) 28-100
Mounting Depth (IN.,CM) 4-3/4, 12.1
Mounting Cutout, Square (IN.,CM) 7-1/4, 18.4
Min Rec Sealed Box Volume (CU. FT., Liters) .33, 9.4
Max Rec Sealed Box Volume (CU. FT., Liters) .75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)** .66, 18.6
Max Rec Vented Box Volume (CU. Ft., Liters)** 1.0, 28.3

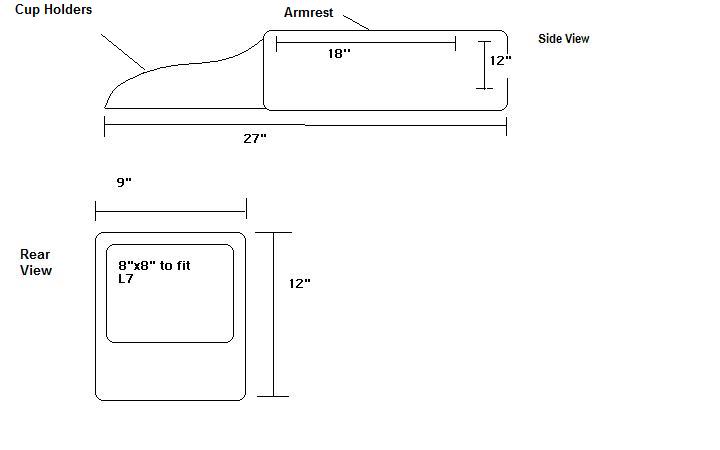

Sealed box est. at .70 cu. ft. (wall thickness at .75'' using mdf)
Name:  SoloL7Rngr.jpg
Views: 2
Size:  13.8 KB

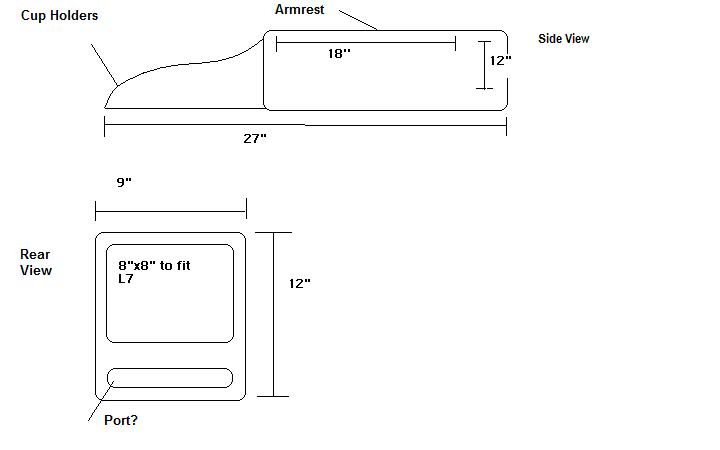

Ported Box Idea (I have heard these respond well to ported enclosures)
Name:  SoloL7RngrPort.jpg
Views: 2
Size:  15.0 KB

With all that said this is my very first box ever. Not sure on the porting tuning and such. I dont know all the technical things involved with building an enclosure but i am willing to learn. I know how to wire up systems and tune with the way it sounds. I know that is bad but i normally have a friend of mine tune it if it needs to be tuned. Please dont get all aggressive with throwing technical words out there lol im in a very long learning curve here.

So, with help which way should i go? If i do a port what size (length width and depth) should i go. The 18x12 rectangle will be seperate from the cup holders. So it will be a rectangular box, and the front added on after. help away! ill be here reading and trying to understand!

My current setup:
pretty plain i know but it has done very well so far
Name:  system1.jpg
Views: 3
Size:  61.0 KB
Reply With Quote
  #2
Old 11-01-2010
Member
Thread Starter

Join Date: Dec 2009
Location: Jacksonville, Fl
Posts: 14
ttt ANY help?
Reply With Quote
  #3
Old 11-01-2010
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
pm me i might be able to help u
Reply With Quote
  #4
Old 11-02-2010
Member
Thread Starter

Join Date: Dec 2009
Location: Jacksonville, Fl
Posts: 14
come on guys any help at all?
Reply With Quote
  #5
Old 11-02-2010
Member
Thread Starter

Join Date: Dec 2009
Location: Jacksonville, Fl
Posts: 14
i just need opinions and advice
Reply With Quote
  #6
Old 11-02-2010
Member
Thread Starter

Join Date: Dec 2009
Location: Jacksonville, Fl
Posts: 14
i guess ill just have to do trial and error and see where that gets me.... or go to an s10 forum
