Icon5 Extended cab enclosures

i already tried to search and found a little but sill need help
HERE

I'm trying to find out how yall get your boxes to stay still and sit flat

please include pictures if you can
Reply With Quote
  #2
Old 03-03-2010
Trailhead_273's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Grayson
Posts: 146
bump
Reply With Quote
  #3
Old 03-03-2010
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Name:  Subs013.jpg
Views: 37
Size:  81.4 KB

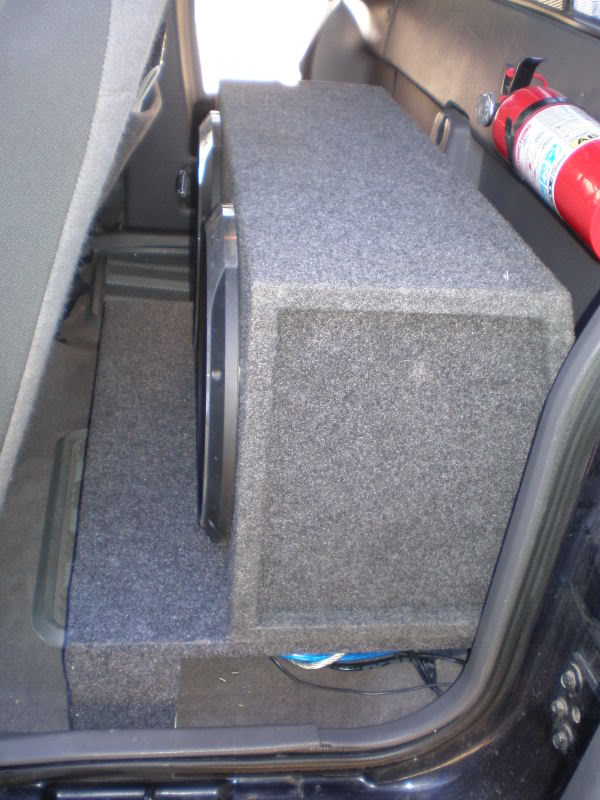

Name:  Subs005.jpg
Views: 14
Size:  82.5 KB
Name:  Subs010.jpg
Views: 20
Size:  112.5 KB
Reply With Quote
  #4
Old 03-03-2010
cucukid124's Avatar
Member

Join Date: Apr 2009
Location: lebanon township, NJ
Posts: 390
when i had two the weight of them both kept it down pretty well
Reply With Quote
  #5
Old 03-03-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Mine bolts to the floor where the jump seat mounts were





Reply With Quote
  #6
Old 03-03-2010
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Downfire F150 Box in a ranger ftw, still can use back seat
Reply With Quote
  #7
Old 03-03-2010
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Heres my system in my extended cab ranger. Its not quite finished.

Name:  007-9.jpg
Views: 14
Size:  52.5 KB

The bottom of the box screwed to the floor i made
Name:  009-6.jpg
Views: 12
Size:  63.7 KB

The box in the truck. Its the best pic i can get since my windows wont roll down.
Name:  010-3.jpg
Views: 12
Size:  67.9 KB
Reply With Quote
  #8
Old 03-04-2010
brichmond's Avatar
Member

Join Date: Dec 2006
Location: IA
Posts: 116
holy crap! isnt that a lil bit overkill??
Reply With Quote
  #9
Old 03-04-2010
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Quote:
Originally Posted by brichmond View Post
holy crap! isnt that a lil bit overkill??
Not really to me. Im doing this for competitions.
Reply With Quote
  #10
Old 03-04-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
so your runnin a 2k amp with all that... at least so your sig says...
Reply With Quote
  #11
Old 03-04-2010
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Quote:
Originally Posted by fourliter dan View Post
so your runnin a 2k amp with all that... at least so your sig says...
No, that was for my old system. I will be running 4 1500s at .5 ohm.
Reply With Quote
  #12
Old 03-05-2010
SanityAside's Avatar
Member

Join Date: Aug 2005
Location: Houston, Tx
Posts: 2,199
Reply With Quote
  #13
Old 03-05-2010
Willzane's Avatar
Member

Join Date: Nov 2008
Location: Pace, FL
Posts: 662
Name:  subsandtruck003.jpg
Views: 14
Size:  59.5 KB
Reply With Quote
  #14
Old 03-05-2010
TCP_Ranger's Avatar
Member

Join Date: May 2009
Location: Lafayette, Indiana
Posts: 90
no pics right now but i got just a standard rectangular ported box with 2 12in's and its held in place with tow straps connected at the jump seats. its pretty bad but works
Reply With Quote
  #15
Old 03-06-2010
mud390's Avatar
Member

Join Date: May 2009
Location: Japan
Posts: 66
Does anyone have a box that covers the whole extended cab floor? What I'm thinking of is a box that creates a false floor so that the jump seats in the doors still fold down and are usable. I'm sure the box would be shallow, and that's fine. Just looking to see if it's been done and how you like it. Thanks!

Kris
Reply With Quote
  #16
Old 03-06-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by mud390 View Post
Does anyone have a box that covers the whole extended cab floor? What I'm thinking of is a box that creates a false floor so that the jump seats in the doors still fold down and are usable. I'm sure the box would be shallow, and that's fine. Just looking to see if it's been done and how you like it. Thanks!

Kris
That was my original plan for my system. The problem is having enough air space in the box for the sub. They make shallow subs that take up little space, but it won't be easy
Reply With Quote
  #17
Old 03-06-2010
mud390's Avatar
Member

Join Date: May 2009
Location: Japan
Posts: 66
Quote:
Originally Posted by 01RangerEdge View Post
That was my original plan for my system. The problem is having enough air space in the box for the sub. They make shallow subs that take up little space, but it won't be easy
What if you only ran on sub utilizing the airspace on both sides of the transmission tunnel? You'd have room to hide an amp under that too if that type of setup is possible.

Kris
Reply With Quote
  #18
Old 03-06-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
True, there's guys on here that are pretty good with audio so hopefully they'll see this and give you some input
Reply With Quote
  #19
Old 03-06-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by mud390 View Post
Does anyone have a box that covers the whole extended cab floor? What I'm thinking of is a box that creates a false floor so that the jump seats in the doors still fold down and are usable. I'm sure the box would be shallow, and that's fine. Just looking to see if it's been done and how you like it. Thanks!

Kris
yes... you could do 2 of these, and then a small flat section to level it out for the d-shaft tunnel...

Name:  photo2-21.jpg
Views: 13
Size:  66.6 KB

Name:  photo-29.jpg
Views: 12
Size:  63.3 KB

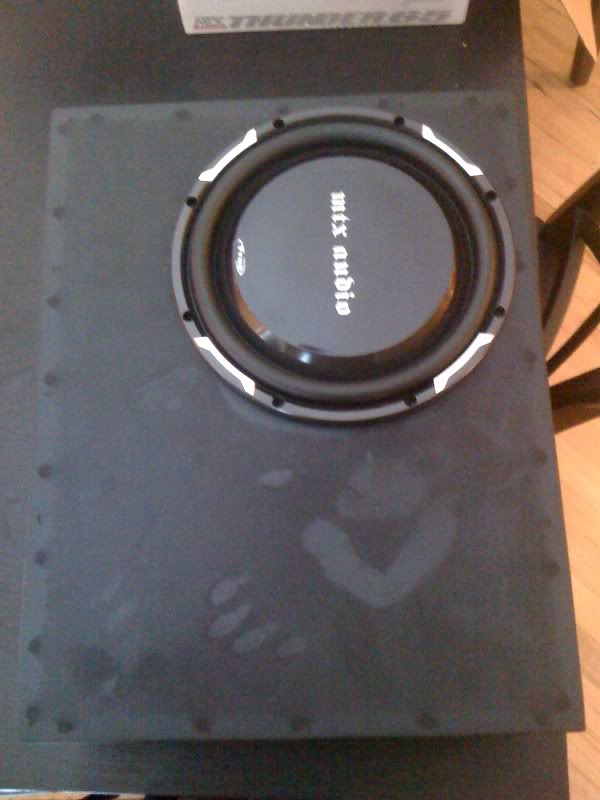

Name:  photo-28.jpg
Views: 12
Size:  59.7 KB

Name:  photo-27.jpg
Views: 19
Size:  42.7 KB

Name:  photo4-12.jpg
Views: 12
Size:  47.2 KB

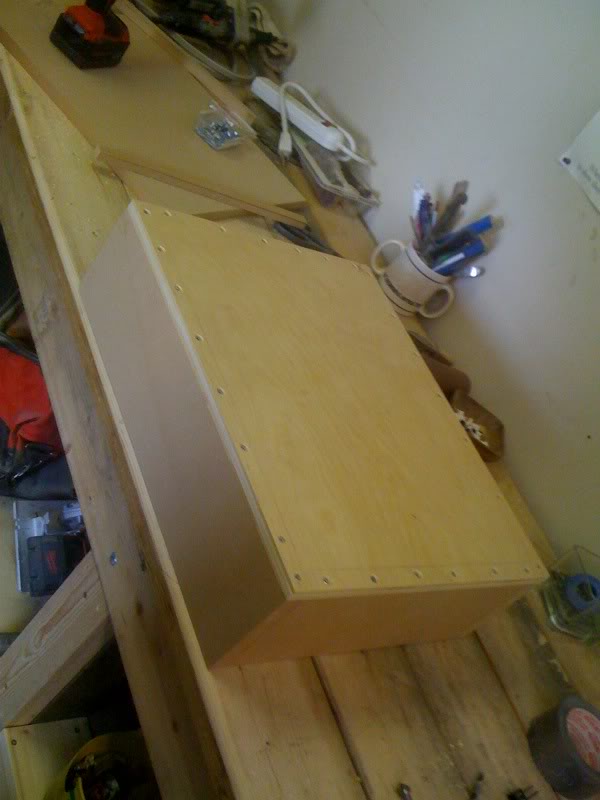

Name:  photo3-13.jpg
Views: 11
Size:  45.8 KB

Name:  photo2-18.jpg
Views: 13
Size:  47.7 KB

box is built almost exactly to spec on what the sub needs, it's a 10" mtx shallow mount, i think it's 4ohm

if you get these, i would recommend making it a little shorter, the seats don't quite want to go down all the way... i used 1/2" plywood for the bottom, where i was supposed to use 3/4 MDF... if i were to do it again, the top and bottom would be 1/2" plywood, so that it is a little shallower and would fit just a little better
Reply With Quote
  #20
Old 03-06-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Do you want the seat to sit on top of the sun like that. I'd want to have a guard on that just in case
Reply With Quote
  #21
Old 03-06-2010
Trailhead_273's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Grayson
Posts: 146
well i got my done finally and i hit 121.1 decibels last-night so it turned out pretty good
Name:  100_0466.jpg
Views: 14
Size:  186.5 KB
Name:  100_0465.jpg
Views: 15
Size:  168.0 KB
Name:  100_0464.jpg
Views: 12
Size:  174.8 KB
Reply With Quote
  #22
Old 03-06-2010
mud390's Avatar
Member

Join Date: May 2009
Location: Japan
Posts: 66
Quote:
Originally Posted by 01RangerEdge View Post
Do you want the seat to sit on top of the sun like that. I'd want to have a guard on that just in case
I would mount them so they are down firing. More protection for the sub, plus I want to be able to use all the space back there when the seats are folded up.

Kris
Reply With Quote
  #23
Old 03-06-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
gotchya
Reply With Quote
  #24
Old 03-06-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by 01RangerEdge View Post
Do you want the seat to sit on top of the sun like that. I'd want to have a guard on that just in case
i ended up spinning the box, so the hole was closest to the center console, the seats are angled, so the inner part (where your calfs hang over) is higher from the floor, than where the backrest meets the seat, i have about 3/4 of an inch clearance on that end... although i have yet to use the backseat, since i bought my truck, for anything but storage
Reply With Quote
  #25
Old 03-08-2010
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
I went out to Lowe's and bought a piece of flat aluminum, cut it and bent it to form a support. The box sat level in the truck, but wanted to slide around. These pretty much just keep it in place. They're held to the floor with one of the bolts that held the seats in and then screwed into the box.

You can see it in the bottom left corner of the picture. It didn't need to do much but keep the box from sliding around.
Name:  x4.jpg
Views: 14
Size:  50.6 KB
Reply With Quote
